2017-2026 Ford 6.7L Power Stroke Mini Hitch Bar Lighting Kit - Rigid SR-M w/ Standard Endcap (100145-02)
Purchase to earn 1007 Dirty Dollars Learn More
Description
Description
Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2017-2026 | Ford | F-250 / F-350 / F-450 Super Duty | 6.7L Power Stroke |

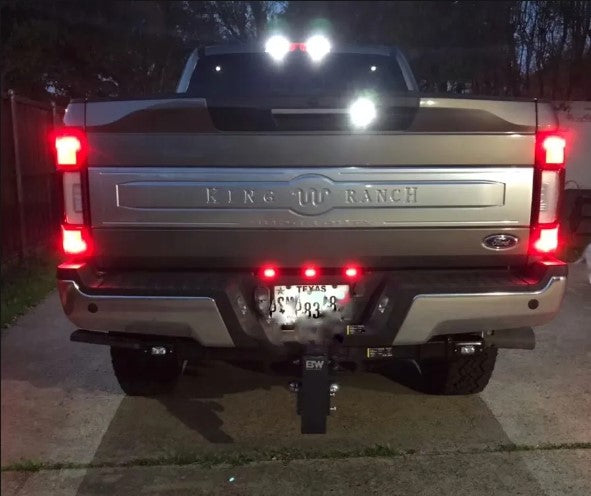

This compact BMC Mini hitch bar mounts in the rear receiver of your 2017-2026 Ford Super Duty and runs just 4.75 inches from the hitch to the endcap, for a cleaner look or to clear obstacles like AMP power steps. It pairs Rigid SR-M with standard marine-grade endcaps, on the same 3x3 inch steel frame and 25 foot no-splice harness as the full-size bar.
Part Number: 100145-02
Features
Features
- Fits 2017-2026 Ford F-250 / F-350 / F-450 Super Duty
- Sold as a pair (driver and passenger)

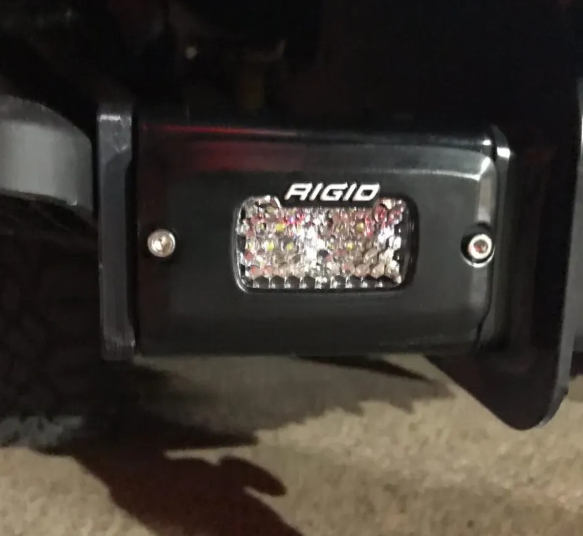

- Main light: Rigid SR-M

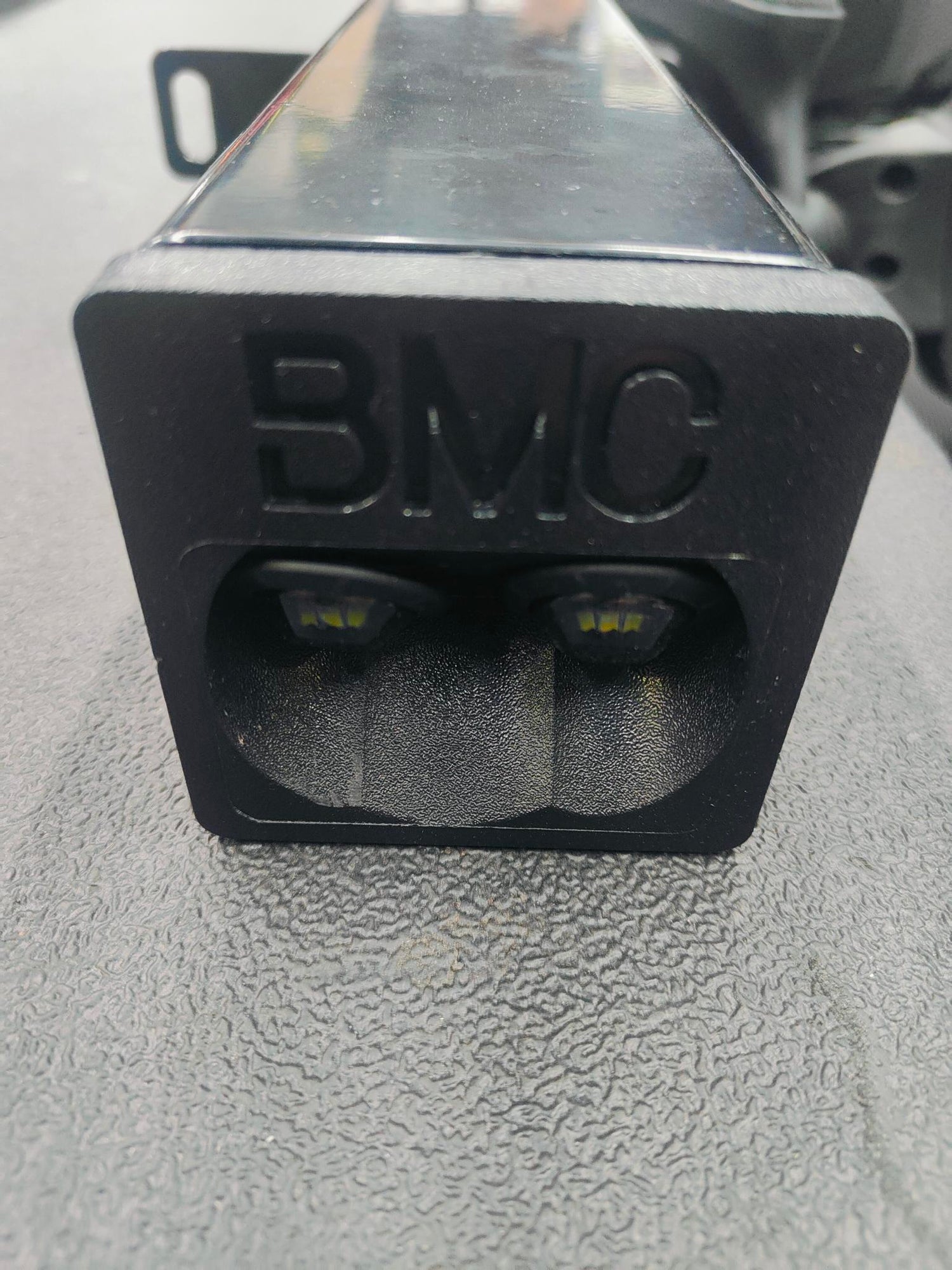

- Standard marine-grade endcaps
- 3x3 inch, 3/16 inch wall steel tube construction
- Black powder coat finish, no external welds to rust
- 47-degree down-angled marine-grade side lights
- Compact 4.75 inch length from hitch to endcap
- 1-bolt installation, mounting hardware included

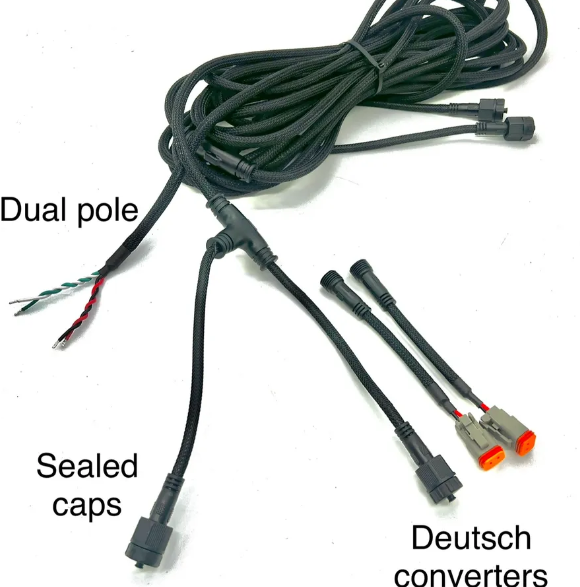

- 25 foot no-splice hardwire install harness included
- Proudly made in the USA
- Lifetime frame guarantee against manufacturing defects
Installation
Installation
Important: the Mini Bar measures 4.75 inches from the hitch to the endcap. If you run AMP power steps, measure for clearance before ordering. The Rigid Ignite endcap upgrade adds length (about 5.75 inches total) and may contact the step; AMP-step clearance is only possible with the standard 2-light endcap.
