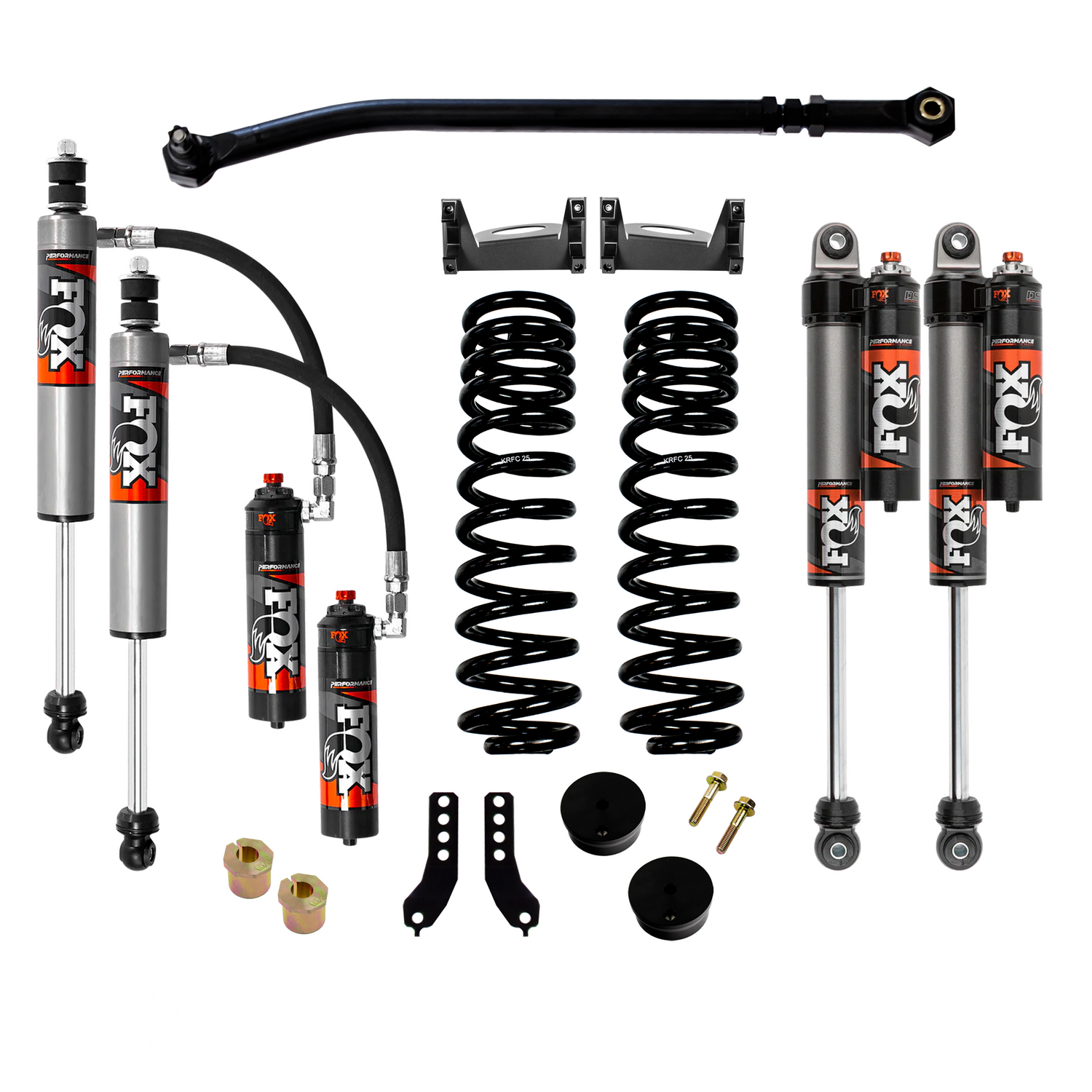

2017-2022 Powerstroke Stage 2 Leveling Kit w/ Fox Performance Elite Shocks (KRFD17STAGE2FOXPE)

Our new Stage 2 Leveling Kit is the perfect solution for a comprehensive suspension upgrade on your 2017-2025 F250/F350 Truck. This complete system provides a 2.5" front ride height increase while maintaining essential droop travel for premium ride quality. To ensure your truck handles as well as it looks, we’ve included 2° Caster Shims to maintain proper alignment geometry after lifting. This elite version of the Stage 2 kit features Fox 2.5 Performance Elite shocks with external adjusters, allowing you to fine-tune your ride for any terrain.

Part Number: KRFD17STAGE2FOXPE

• Provides 2.5" of front lift
• Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
• Compatible with Larger wheels/tires with minor trimming
• Durable Black Finish
• Grade 10.9 Hardware
• Precision CAD Engineering
• Billet Aluminum Spacer
• Direct bolt on Install

• 2 x Fox 2.5 Performance Elite Extended Length Front Shocks (KRS097)
• 2 x Fox 2.5 Performance Elite OE Length Rear Shocks (KRS096)
• 1 x Kryptonite Adjustable Track Bar (KRFTB17)
• 2 x 2.5" Leveling Coils
• 1 x Set of 2° Caster Correction Shims
• 1 x Bump Stop Spacer Kit
• 1 x Set of 65mm Reservoir Brackets

• Allows for 35"x12.5" tires on a 9" wide wheel (4.5" backspacing) with no trimming.
• Accommodates 37" tires with additional fender and front bumper clearance/trimming.
• Direct bolt-on installation with no specialized tools required beyond standard suspension gear.


Click Here For Instructions

Click Here For Track Bar Instructions

(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration must be completed within 90 days of purchase. Complete warranty details can be found [here].
