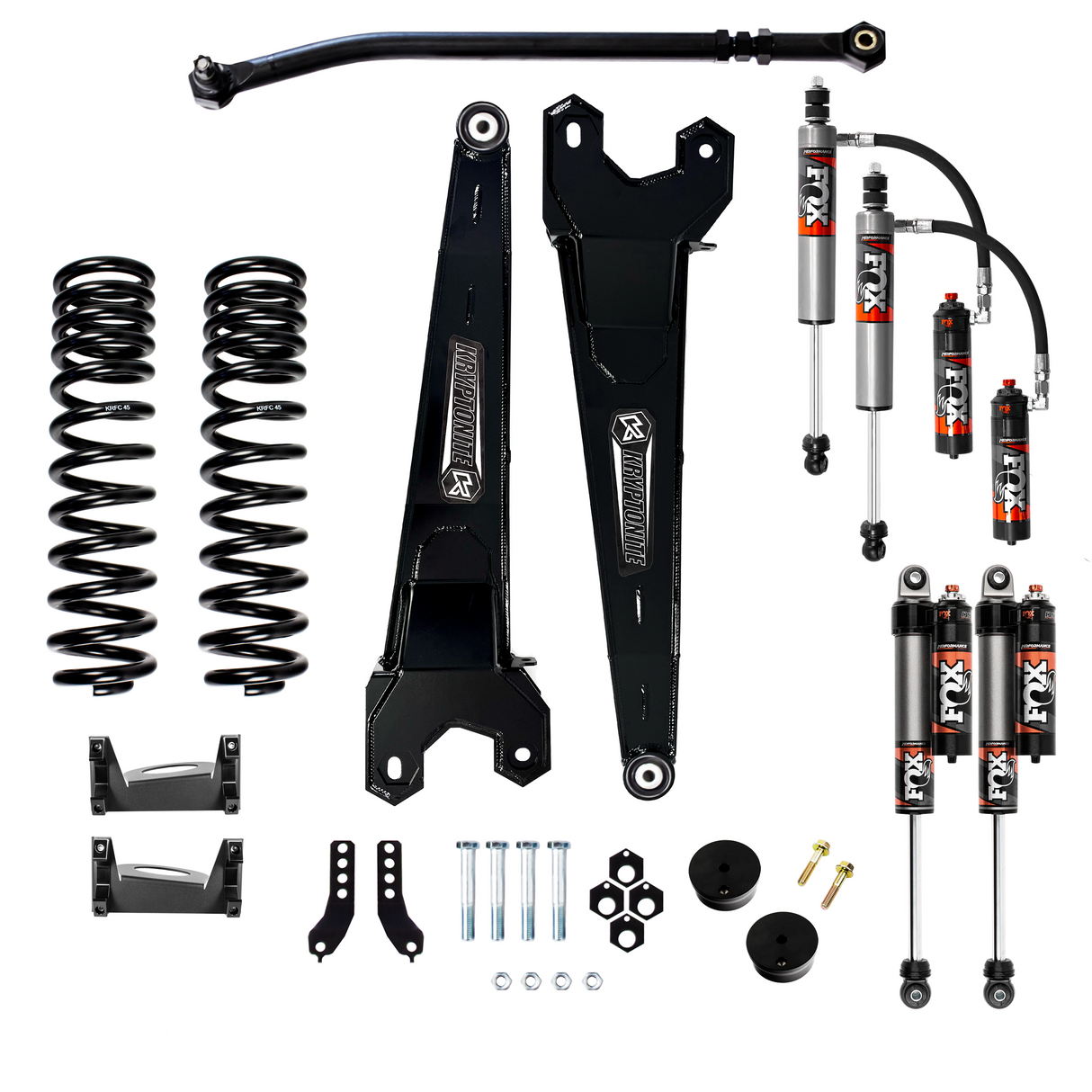

2017-2025 Powerstroke Front 2.5" Performance Elite Fox Stage 3 Leveling Kit (KRFD17STAGE3FOXPE)

Transform your Ford Super Duty's performance with the Kryptonite Stage 3 Leveling Kit, a comprehensive suspension system providing 2.5" of front lift without sacrificing ride quality. This kit features high-strength, boxed radius arms designed with a tire clearance pocket to accommodate up to 37" tires while offering industry-leading caster adjustability via unique locking plates. Paired with Fox 2.5 Performance Elite Series shocks and an adjustable track bar, this system "bulletproofs" your front end for maximum control and stability during heavy hauling or off-road use

Part Number: KRFD17STAGE3FOXPE

• Provides 2.5" of front lift
• Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
• Compatible with Larger wheels/tires with minor trimming
• Durable Black Finish
• Grade 10.9 Hardware
• Precision CAD Engineering
• Billet Aluminum Spacer
• Direct bolt on Install
• Made in the USA

• 2 x Fox 2.5 Performance Elite Series Extended Length Front Shocks
• 2 x Fox 2.5 Performance Elite Series Extended Length Rear Shocks
• 1 x Kryptonite Radius Arm Kit (Pair)
• 1 x Kryptonite Adjustable Track Bar (KRFTB17)
• 2 x 2.5" Leveling Coils
• 1 x Bump Stop Spacer Kit

• Allows for 35"x12.5" tires on a 9" wide wheel (4.5" backspacing) with no trimming.
• Accommodates 37"x12.5" tires on stock 20" rims (5.5" backspacing) with minor fender/bumper trimming.


(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration must be completed within 90 days of purchase. Complete warranty details can be found [here].
