2017-2022 Powerstroke Front 2.5" Leveling Kit w/ Fox Performance Series HTO Shocks (KRFD17STAGE2FOXHTO)

Leveling a Super Duty correctly requires more than just a lift; it requires the precision engineering of the Kryptonite Stage 2 Kit. This system for 2017-2025 F250/F350 trucks fixes the "flighty" steering often found in lifted diesels by including Caster Correction Shims and a heavy-duty Kryptonite Track Bar. Paired with four Fox 2.5 HTO shocks, this kit provides the 2.5" of clearance needed for 35" tires while maintaining critical droop travel and a plush ride.

Part Number: KRFD17STAGE2FOXHTO

• Provides 2.5" of front lift
• Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
• Compatible with Larger wheels/tires with minor trimming
• Durable Black Finish
• Grade 10.9 Hardware
• Precision CAD Engineering
• Billet Aluminum Spacer
• Direct bolt on Install

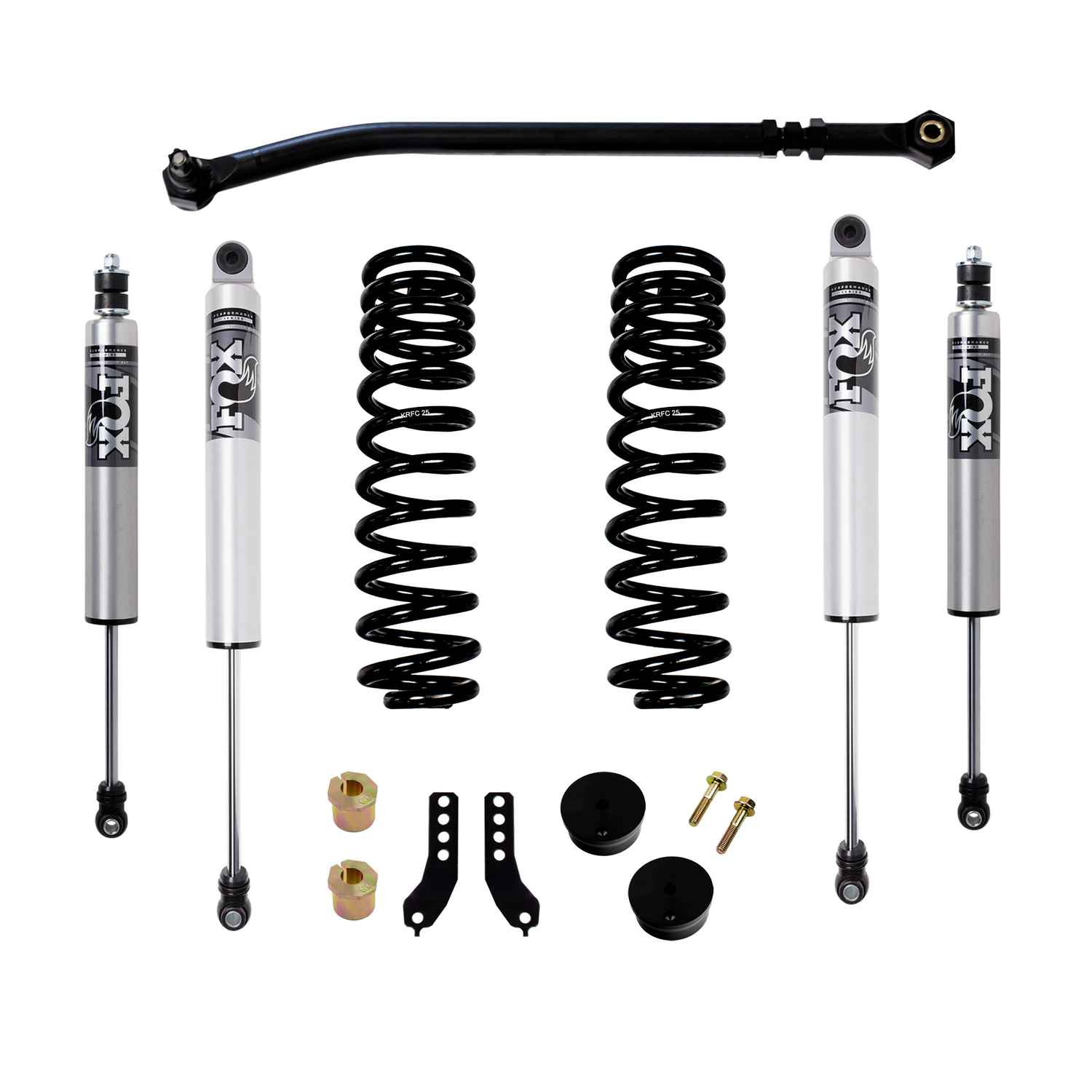

• 4 x Fox 2.5 HTO Performance Series Extended Length Shocks
• 2 x 2.5" Leveling Coils
• 1 x Kryptonite Adjustable Track Bar (KRFTB17)
• 1 x Set of 2° Caster Correction Shims
• 1 x Bump Stop Spacer Kit

• Allows for 35"x12.5" tires on a 9" wide wheel (4.5" backspacing) with no trimming.
• Accommodates 37" tires with additional fender and front bumper clearance/trimming.
• Direct bolt-on installation with no specialized tools required beyond standard suspension gear.


Click Here For Instructions

Click Here For Track Bar Instructions

(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase. Complete warranty details can be found [here].
