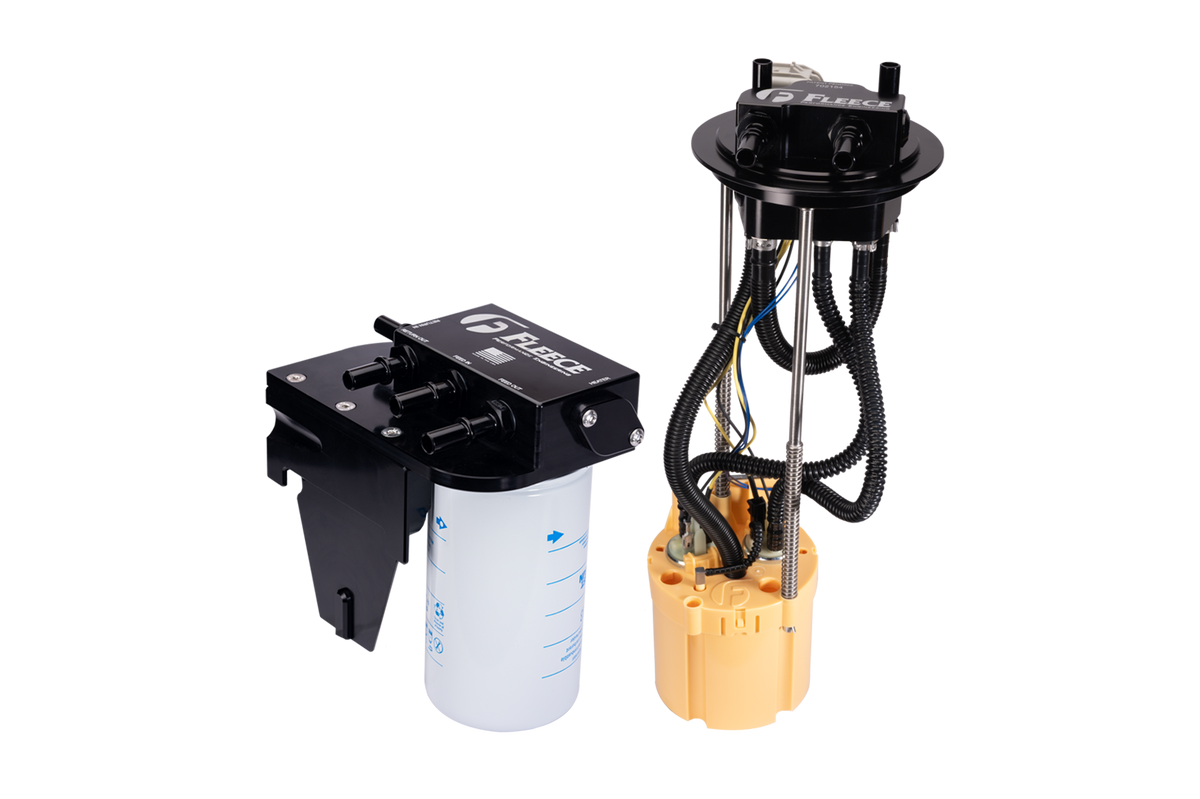

2017-2024 Powerstroke Short Bed PowerFlo Lift Pump w/ Under Bed Filter Kit (FPE-PF-FMC-1724-SB-KIT)

Upgrade your 2017-2024 Ford 6.7L Power Stroke with the PowerFlo lift pump and under bed filter kit from Fleece Performance. The PowerFlo is Fleece's drop-in, in-tank lift pump - twin ultra-quiet gerotor pumps that support up to 800 HP, with an active fill bucket that ends quarter-tank starvation without sumps or draw straws. The plug-and-play kit requires no cutting, splicing, or modification of the factory fuel lines or fuel tank.

This kit pairs the pump with Fleece's under bed filter assembly, which the PowerFlo requires - the PowerFlo cannot be run on the factory under bed filter housing. Buying them together as this kit is the complete lift pump solution.

Part Number: FPE-PF-FMC-1724-SB-KIT (short bed)

• Direct in-tank replacement; retains all factory fuel lines and installs in less than half the time of frame-mounted high-flow pumps
• Dual ultra-quiet gerotor pumps with flow capacity to support up to 800 HP
• Active fill bucket eliminates tank sumps, draw straws, extra air filtration, and quarter-tank issues
• Retains full factory fuel control module operation
• Pump outlet and return threaded for -8 O-ring fittings (3/4"-16) for custom fuel line setups
• Validated for up to 20% biodiesel

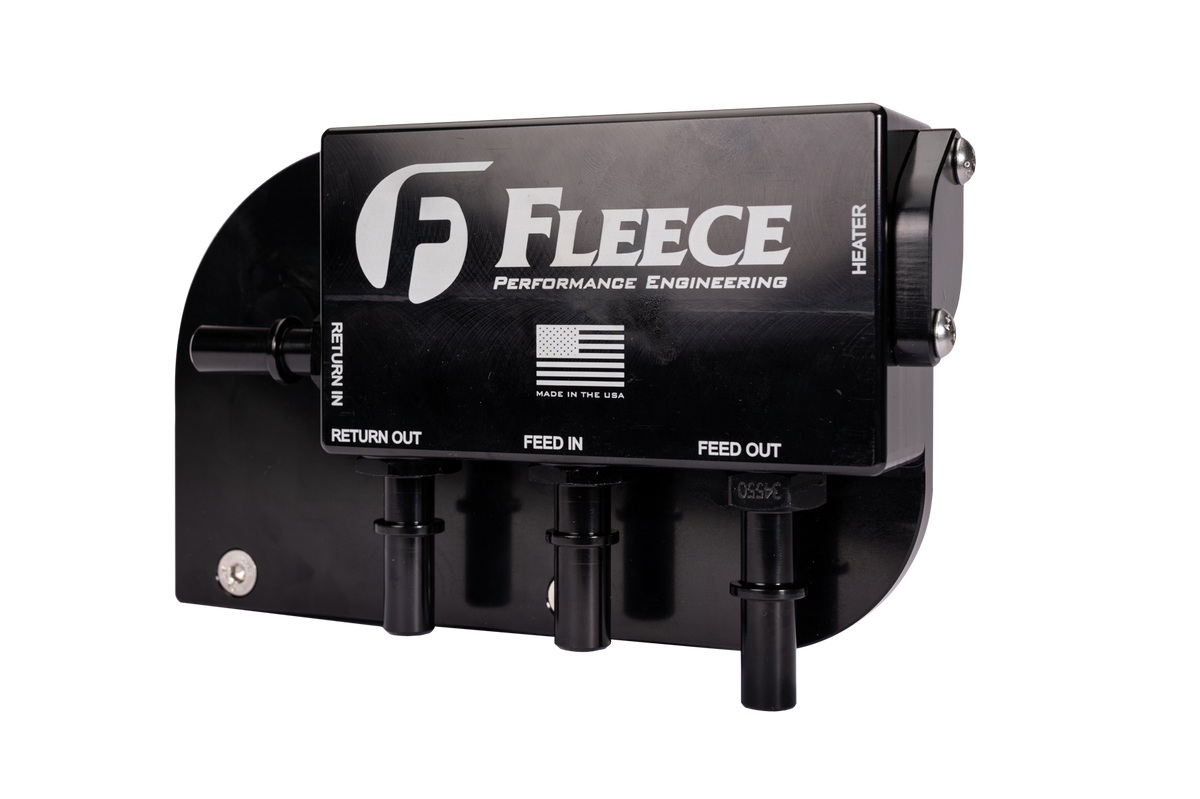

• Under bed filter assembly mounts in the factory location and mates directly to all factory fuel lines - no new lines to route
• Converts the factory "furnace" style filter to a serviceable spin-on Donaldson P553203 (99% efficiency at 4 micron)
• Retains full factory water-in-fuel circuitry and mates directly to the chassis harness
• Machined provision for the optional Fleece fuel heater (FPE-FH-FMC-1724)

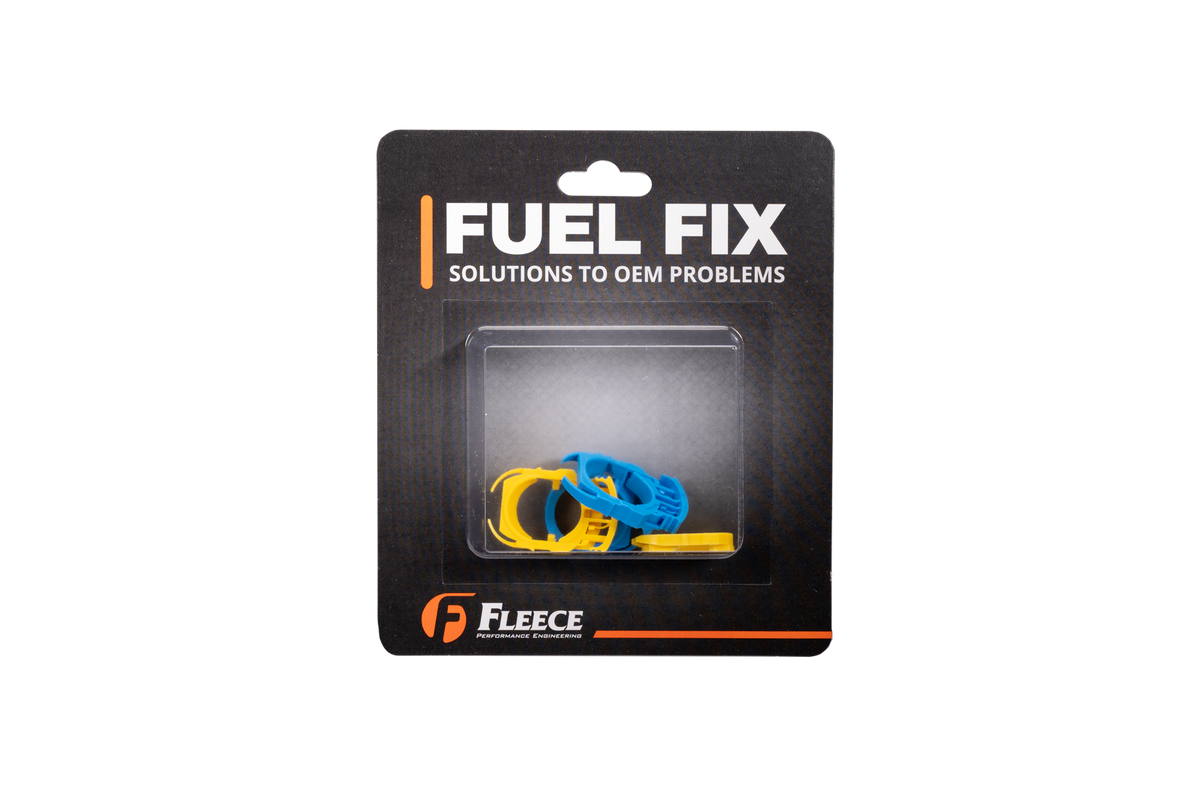

• Replacement fuel line retaining clips for the 1/2" and 12mm connections that go brittle over time

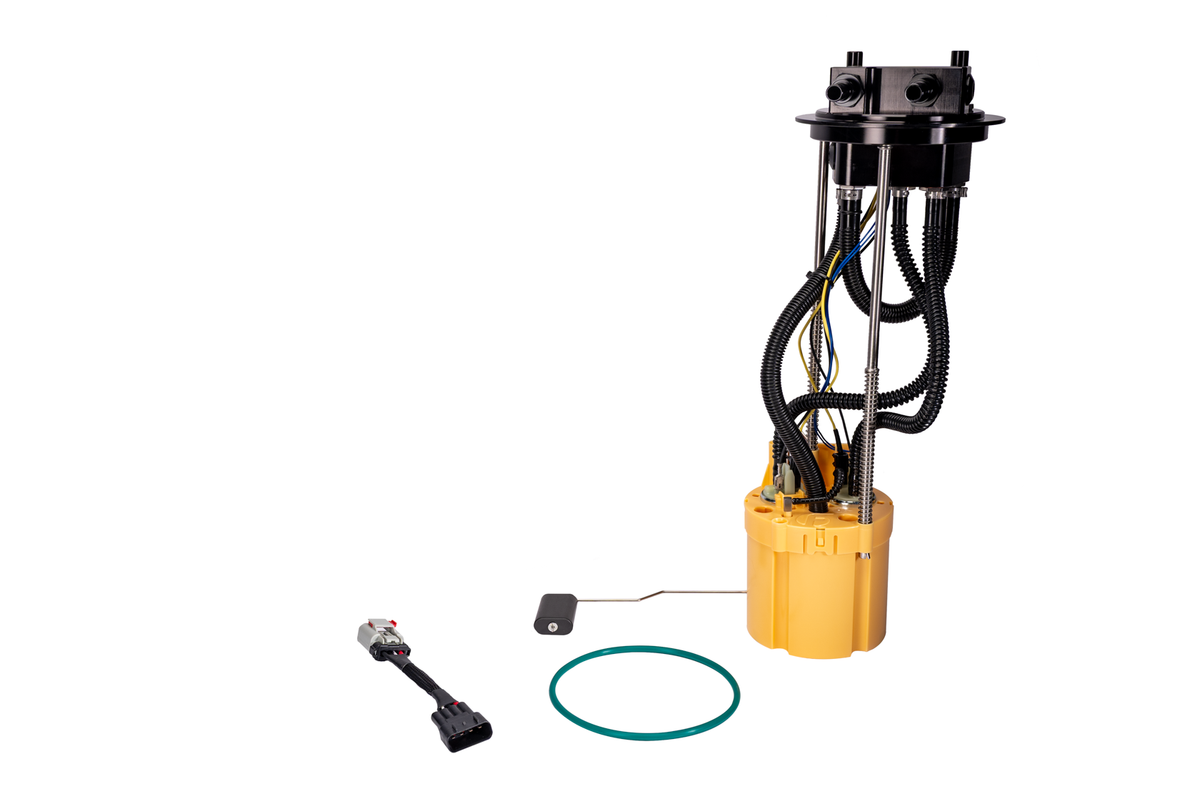

• PowerFlo lift pump with integral fuel level sender
• Chassis wiring adapter harness
• Fuel sending unit tank O-ring
• Fully assembled billet aluminum under bed filter base with Donaldson P553203 filter and fuel heater provision
• Water-in-fuel sensor and electrical extension harness
• Mounting bolt
• Fuel line retaining clips

• Short bed only. Replaces Ford OE HC3Z-9H307AQ
• Does not fit cab and chassis applications
• Confirmed to fit Titan aftermarket fuel tanks, and S&B short bed tanks. Does not fit the long bed S&B fuel tank (10-1008)
• Replaces the factory "furnace" style filter FD-4625, FD4625AA, HC3Z-9N184-C, HC3Z-9N184-J
• Tested and validated with the S&S Diesel Motorsport DCR conversion kit and CP4 Disaster Prevention Kit
• Not compatible with the factory under bed filter assembly or with FASS Drop-in Series filters
• CARB EO D-834-21
• Finish the setup with the Engine Mounted Filter Assembly (FPE-FMC-UHFA-1123)

• PowerFlo Lift Pump Instructions (PDF)
• Under Bed Filter Assembly Instructions (PDF)
