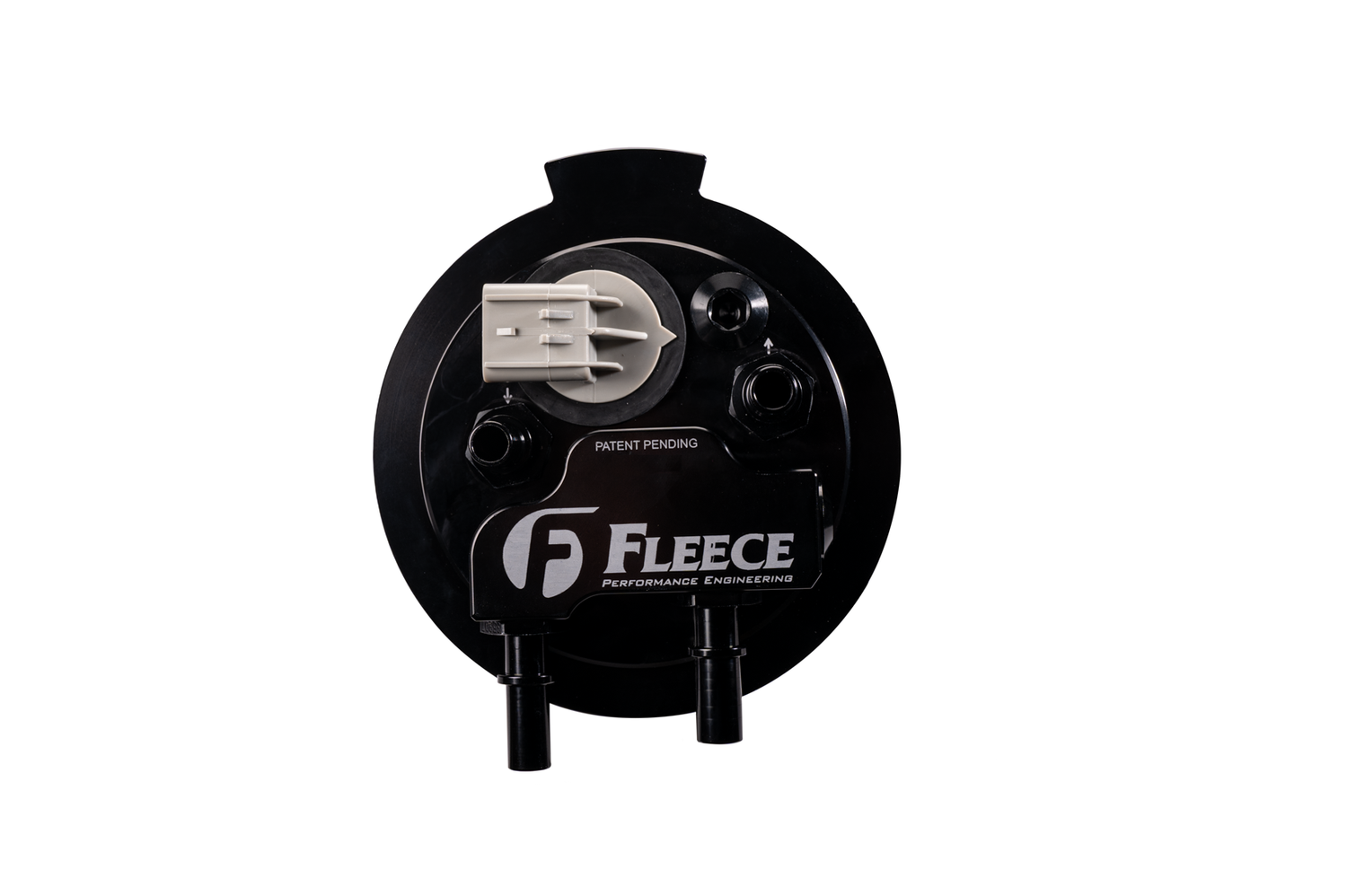

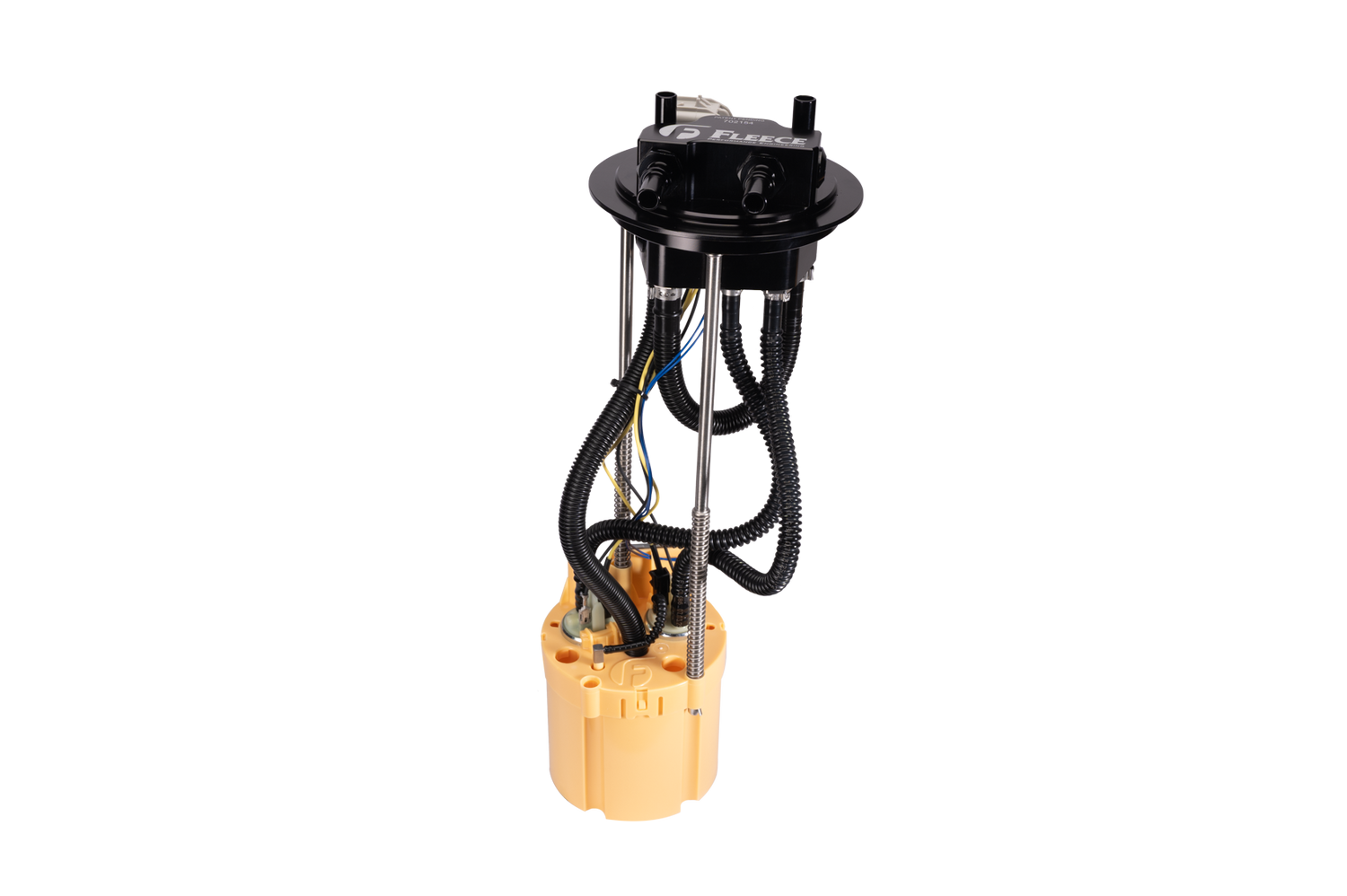

2017-2024 Powerstroke Short Bed PowerFlo In-Tank Lift Pump (FPE-PF-FMC-1724-SB)

Fits

The PowerFlo is Fleece Performance's drop-in, in-tank lift pump for the 2017-2024 Ford 6.7L Power Stroke. It replaces the factory pump with twin ultra-quiet gerotor pumps that support up to 800 HP, and the active fill bucket ends quarter-tank starvation without sumps or draw straws. Installation is plug-and-play with no cutting, splicing, or modification of the factory fuel lines, harness, or tank.

Part Number: FPE-PF-FMC-1724-SB

• Direct in-tank replacement; retains all factory fuel lines and installs in less than half the time of frame-mounted high-flow pumps
• Dual ultra-quiet gerotor pumps with flow capacity to support up to 800 HP

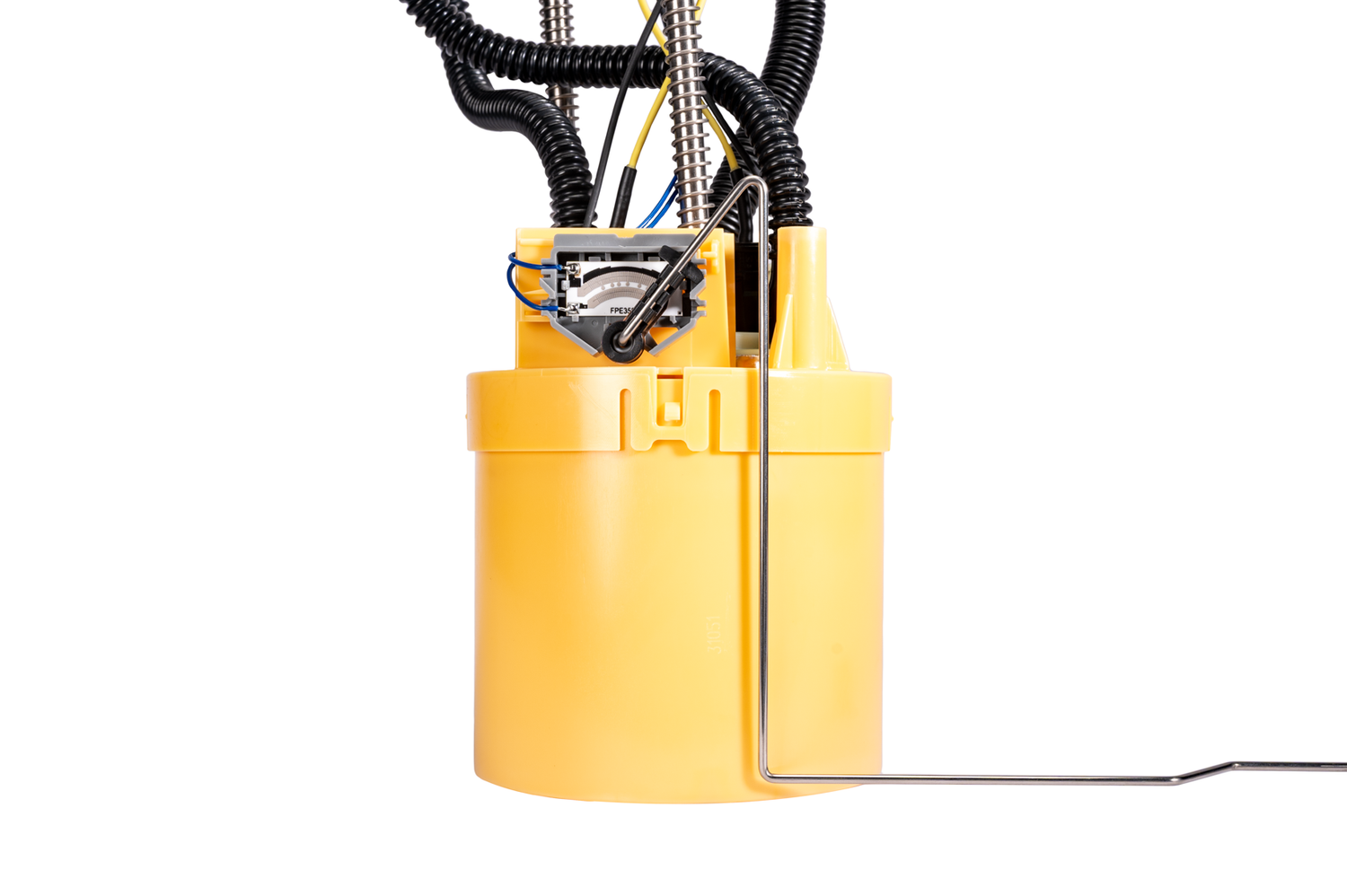

• Active fill bucket eliminates tank sumps, draw straws, extra air filtration, and quarter-tank issues
• Retains full factory fuel control module operation (stock module modulates delivery pressure with engine load)

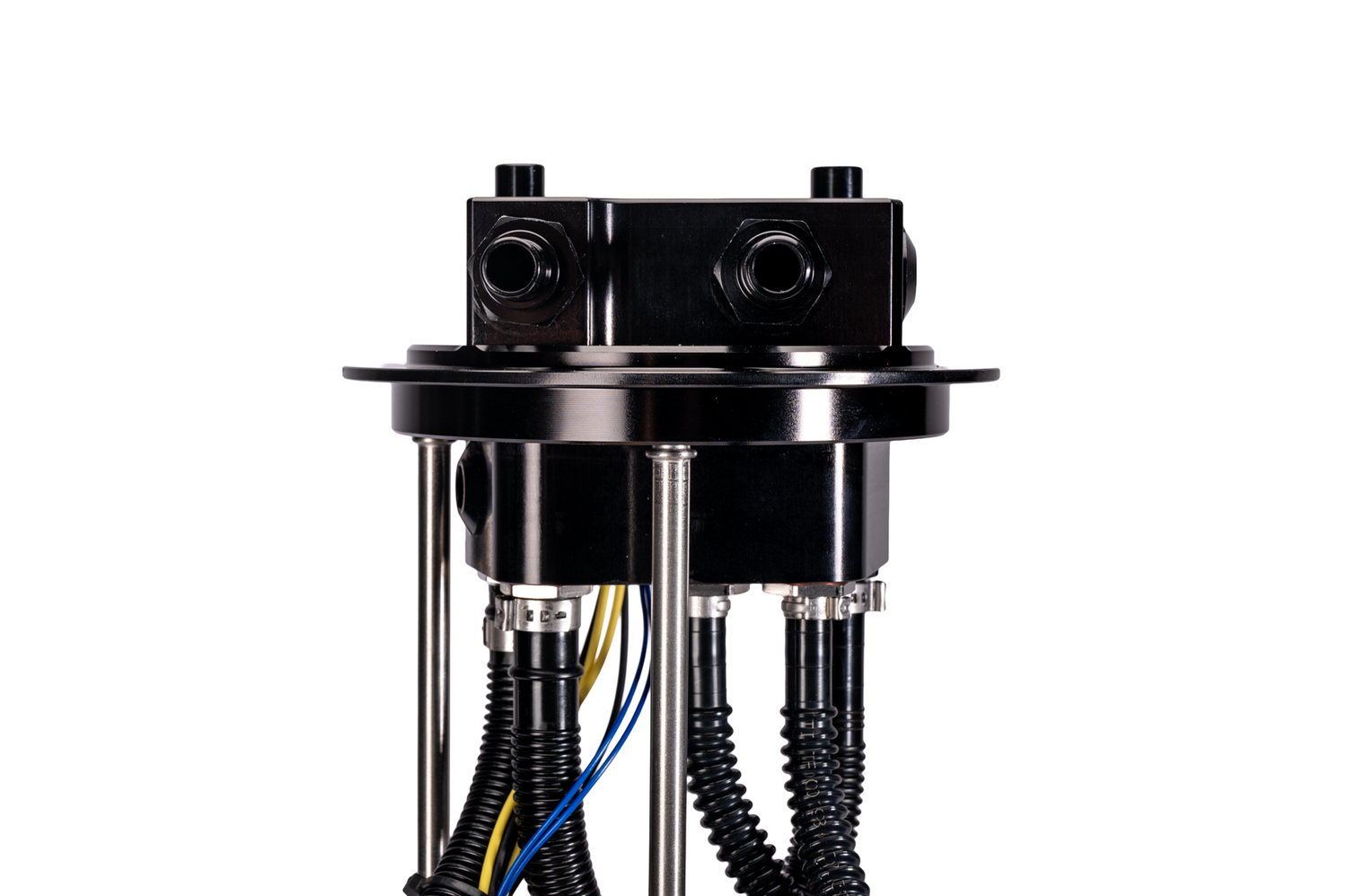

• Pump outlet and return threaded for -8 O-ring fittings (3/4"-16) for custom aftermarket fuel line setups
• Tested and validated with the S&S Diesel Motorsport DCR conversion kit and CP4 Disaster Prevention Kit
• Validated for up to 20% biodiesel

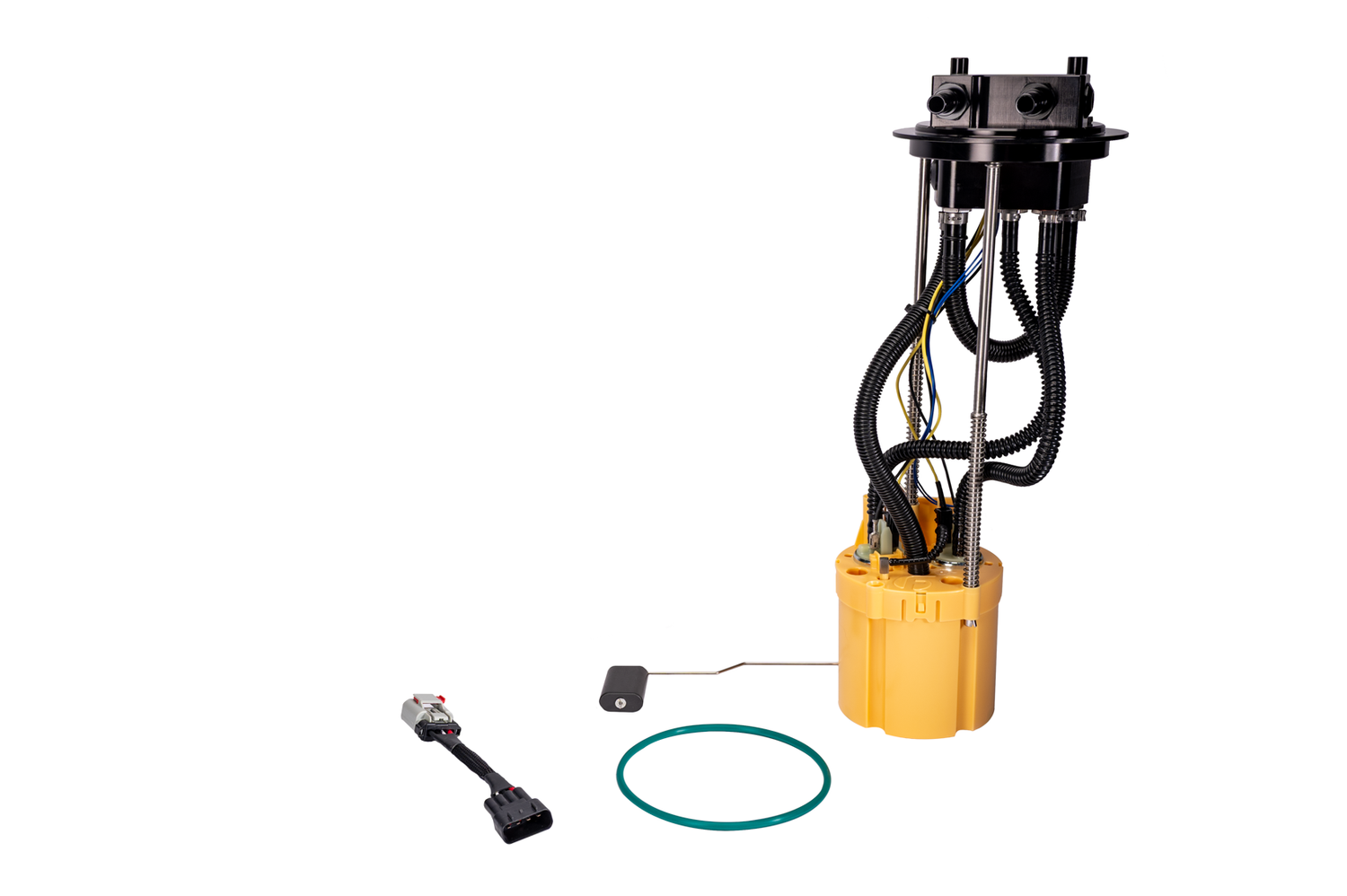

• PowerFlo lift pump with integral fuel level sender
• Chassis wiring adapter harness
• Fuel sending unit tank O-ring

• This part number fits Short Bed trucks and replaces Ford OE HC3Z-9H307AQ; also available in the other bed length
• Confirmed to fit Titan and S&B aftermarket fuel tanks
• Required: this pump must be used with the Under Bed Fuel Filter Kit (FPE-FMC-UBFA-1724). It is not compatible with the factory under bed filter assembly or with FASS Drop-in Series filters.
• Finish the setup with the Engine Mounted Filter Assembly (FPE-FMC-UHFA-1123) for the full fuel delivery setup

• Installation Instructions (PDF)
