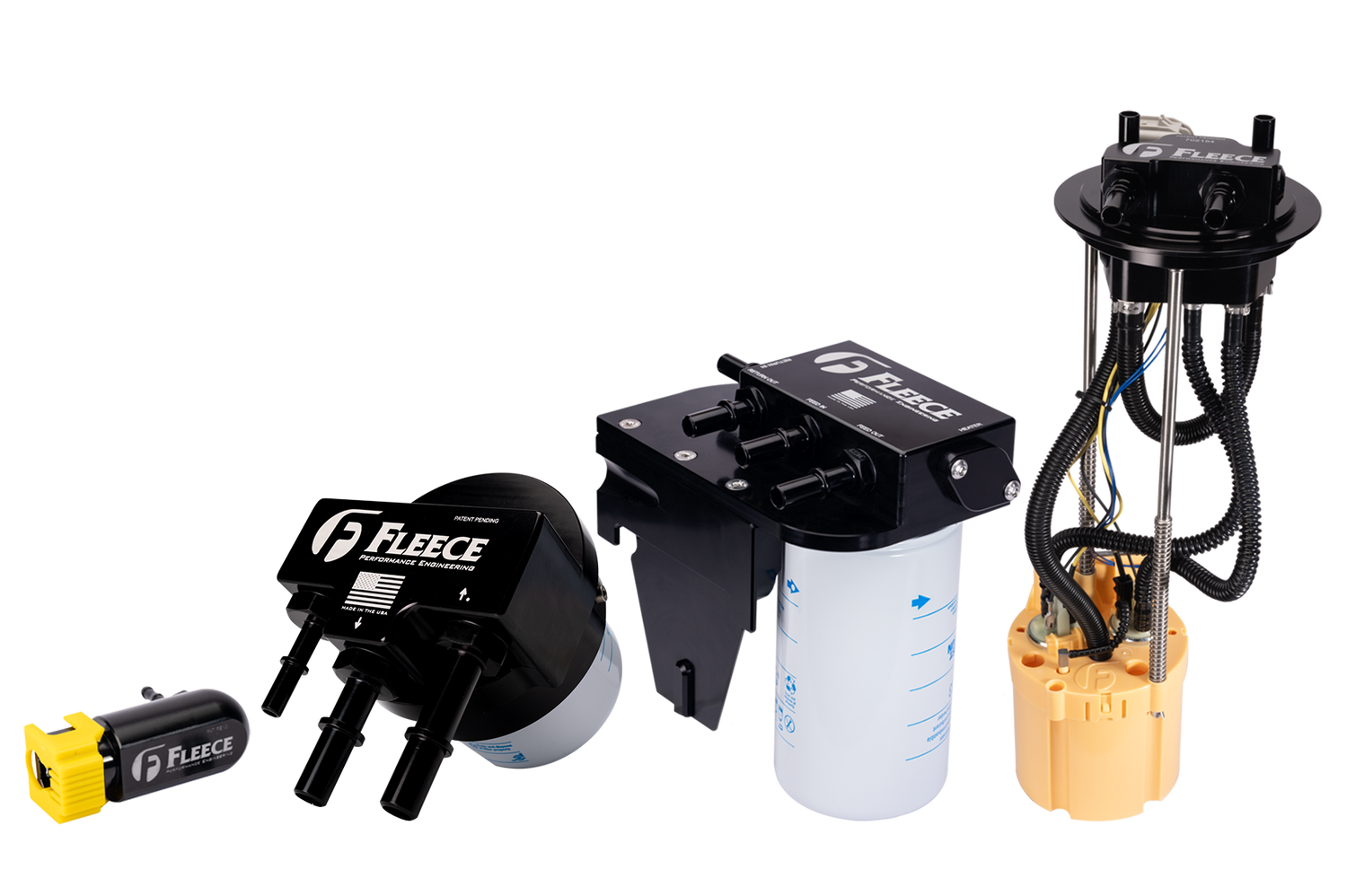

2017-2024 Powerstroke Short Bed Complete Fuel System Upgrade Kit w/ PowerFlo Lift Pump (FPE-PF-FMC-1724-SB-CFS)

The most complete fuel supply upgrade Fleece Performance offers for the 2017-2024 Ford 6.7L Power Stroke, now in a single kit. It combines the PowerFlo in-tank lift pump, the under bed filter assembly, the under hood filter assembly, and the billet injector return repair fitting - every weak point in the factory fuel supply addressed in one part number.

Part Number: FPE-PF-FMC-1724-SB-CFS (short bed)

• Direct in-tank replacement; retains all factory fuel lines and installs in less than half the time of frame-mounted high-flow pumps
• Dual ultra-quiet gerotor pumps with flow capacity to support up to 800 HP
• Active fill bucket eliminates tank sumps, draw straws, extra air filtration, and quarter-tank issues
• Retains full factory fuel control module operation
• Pump outlet and return threaded for -8 O-ring fittings (3/4"-16) for custom fuel line setups
• Validated for up to 20% biodiesel
• Under bed filter assembly mounts in the factory location and mates directly to all factory fuel lines - no new lines to route
• Converts the factory "furnace" style filter to a serviceable spin-on Donaldson P553203 (99% efficiency at 4 micron)
• Retains full factory water-in-fuel circuitry and mates directly to the chassis harness
• Machined provision for the optional Fleece fuel heater (FPE-FH-FMC-1724)
• Billet aluminum under hood filter assembly replaces the crack-prone plastic OE filter cap, with billet quick disconnect fittings and a spare Donaldson filter included
• Billet aluminum injector return fitting with dual O-ring design and serviceable barb replaces the plastic factory connector
• Replacement fuel line retaining clips for the 1/2" and 12mm connections that go brittle over time

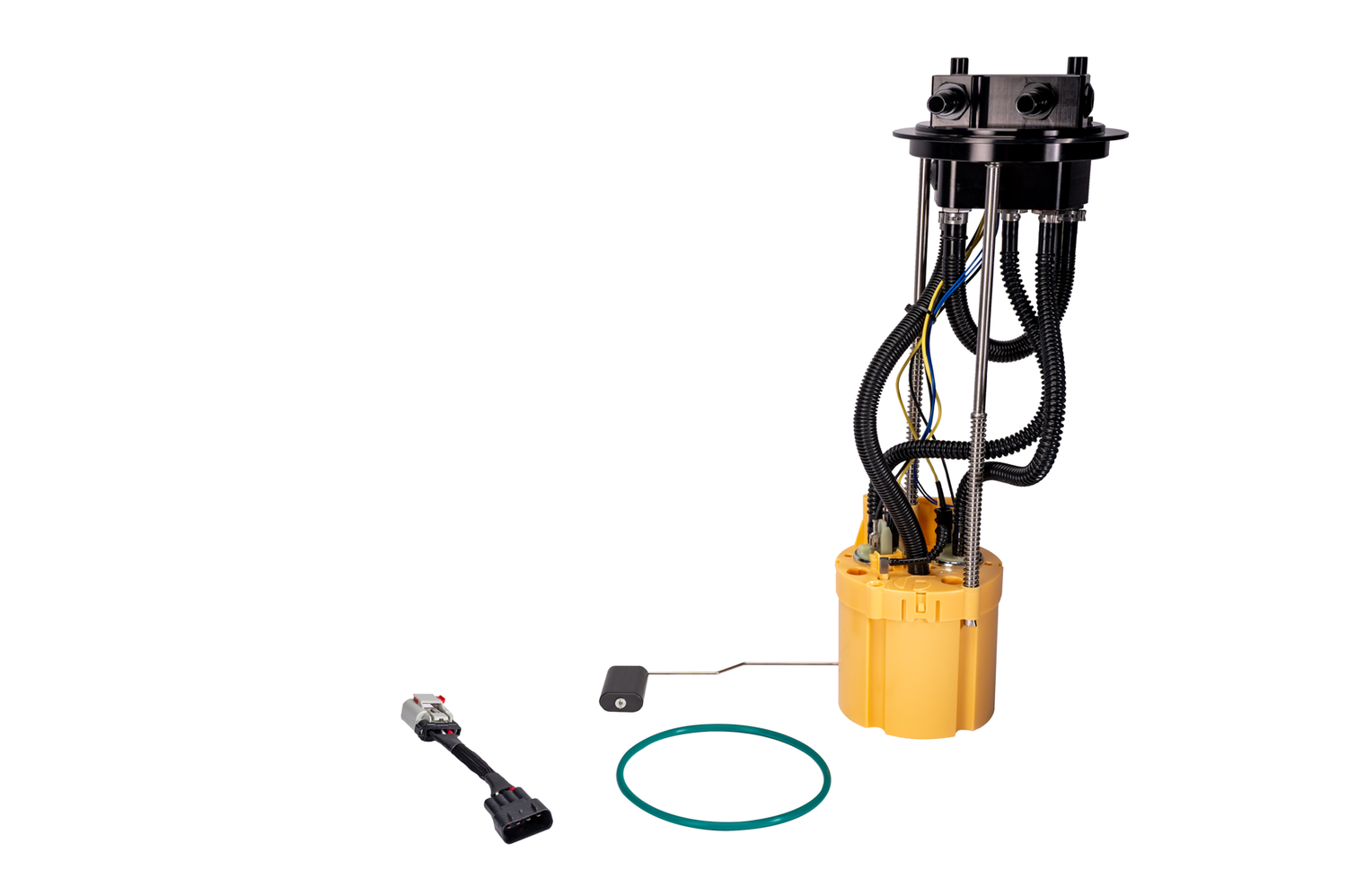

• PowerFlo Lift Pump (FPE-PF-FMC-1724-SB)

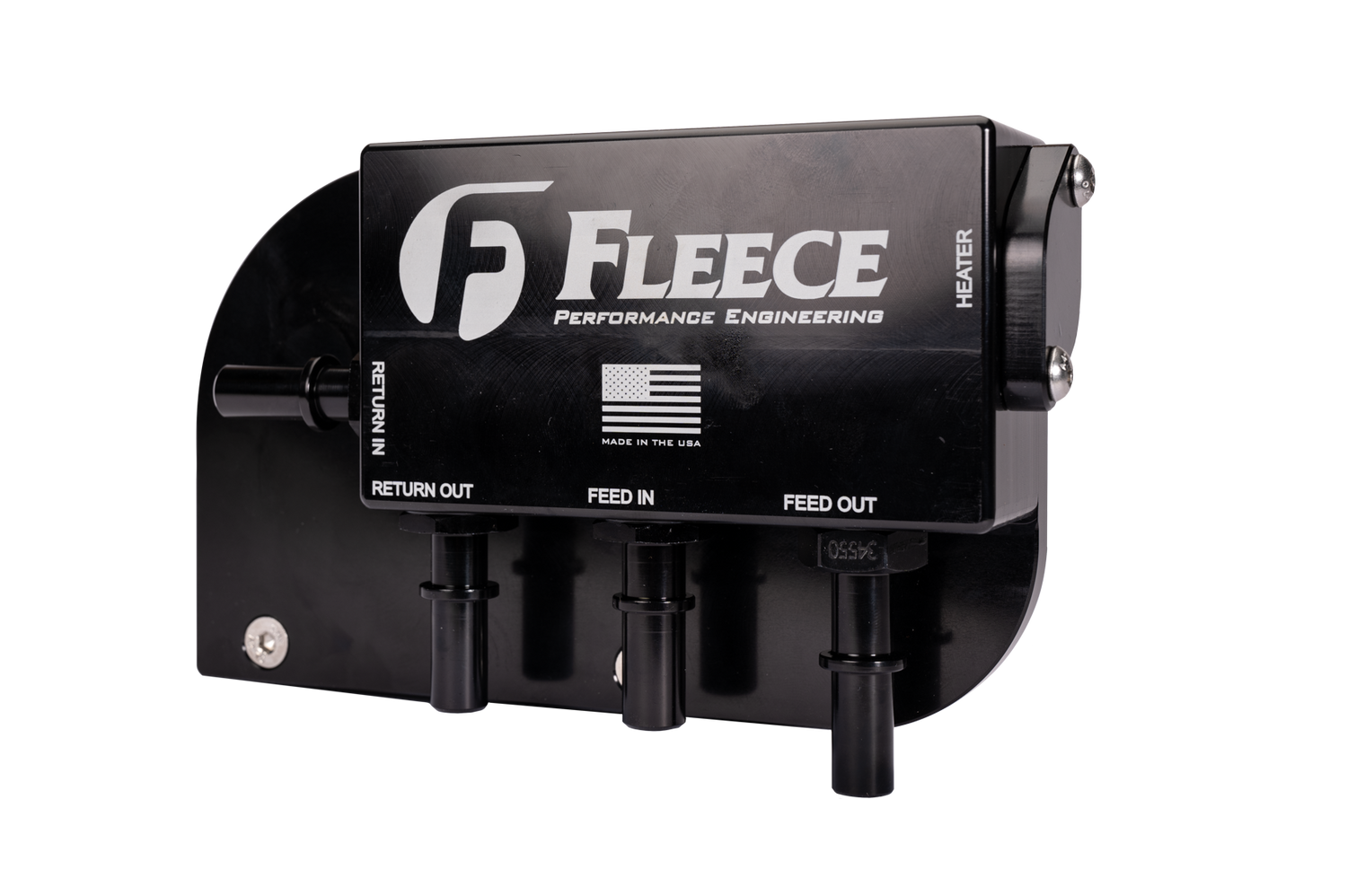

• Under Bed Fuel Filter Assembly (FPE-FMC-UBFA-1724)

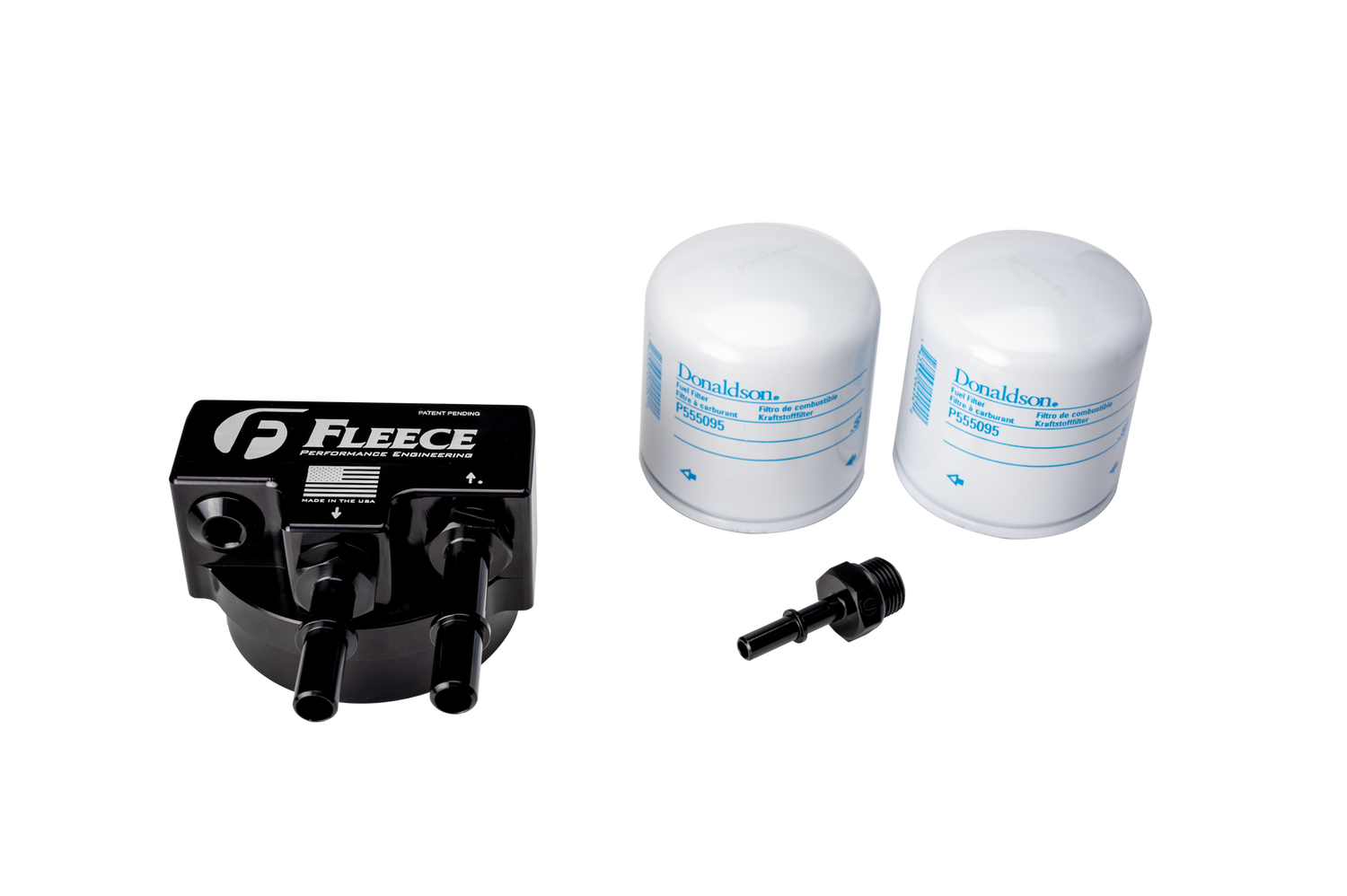

• Under Hood Fuel Filter Assembly (FPE-FMC-UHFA-1123), including an extra Donaldson filter

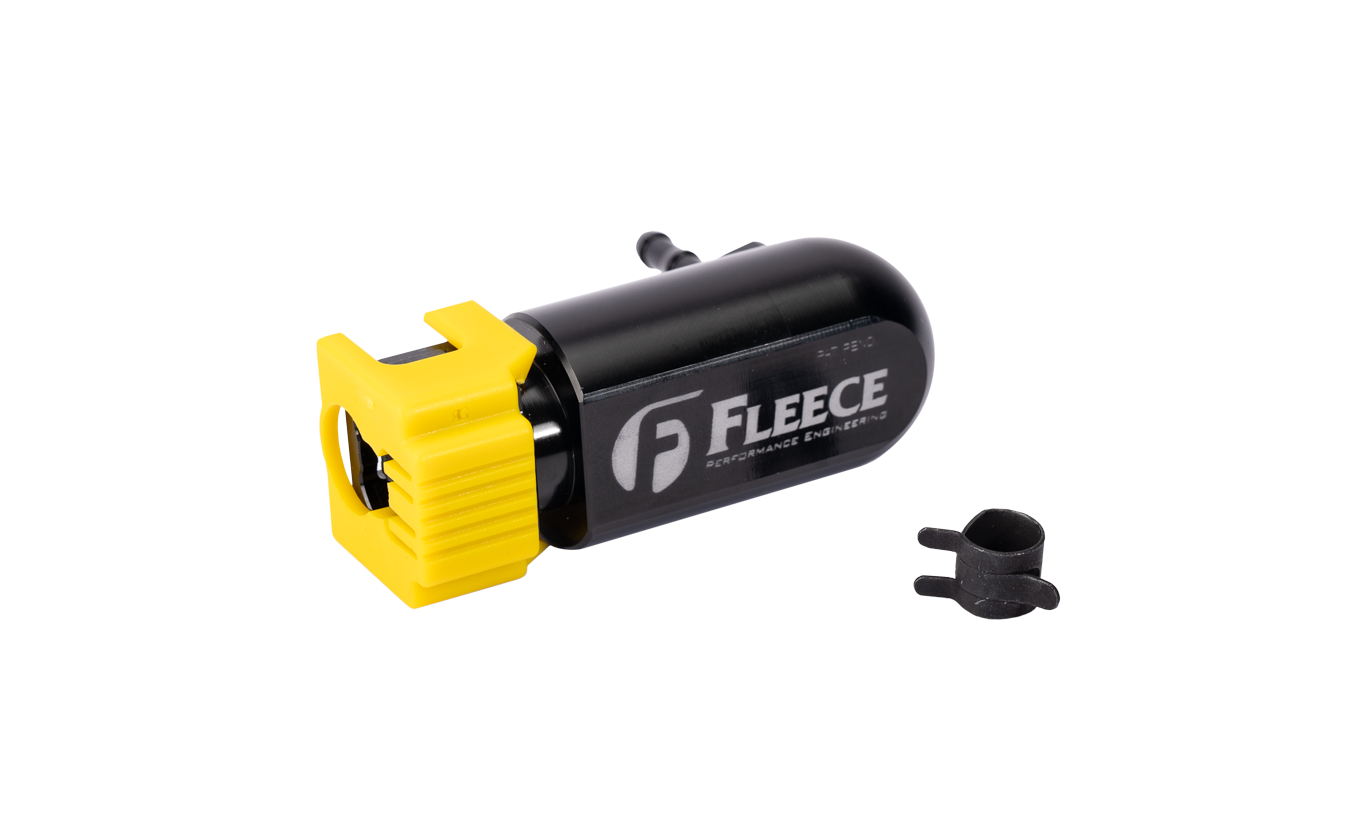

• Injector Return Line Repair Fitting (FPE-FMC-FF-RLK-1724)

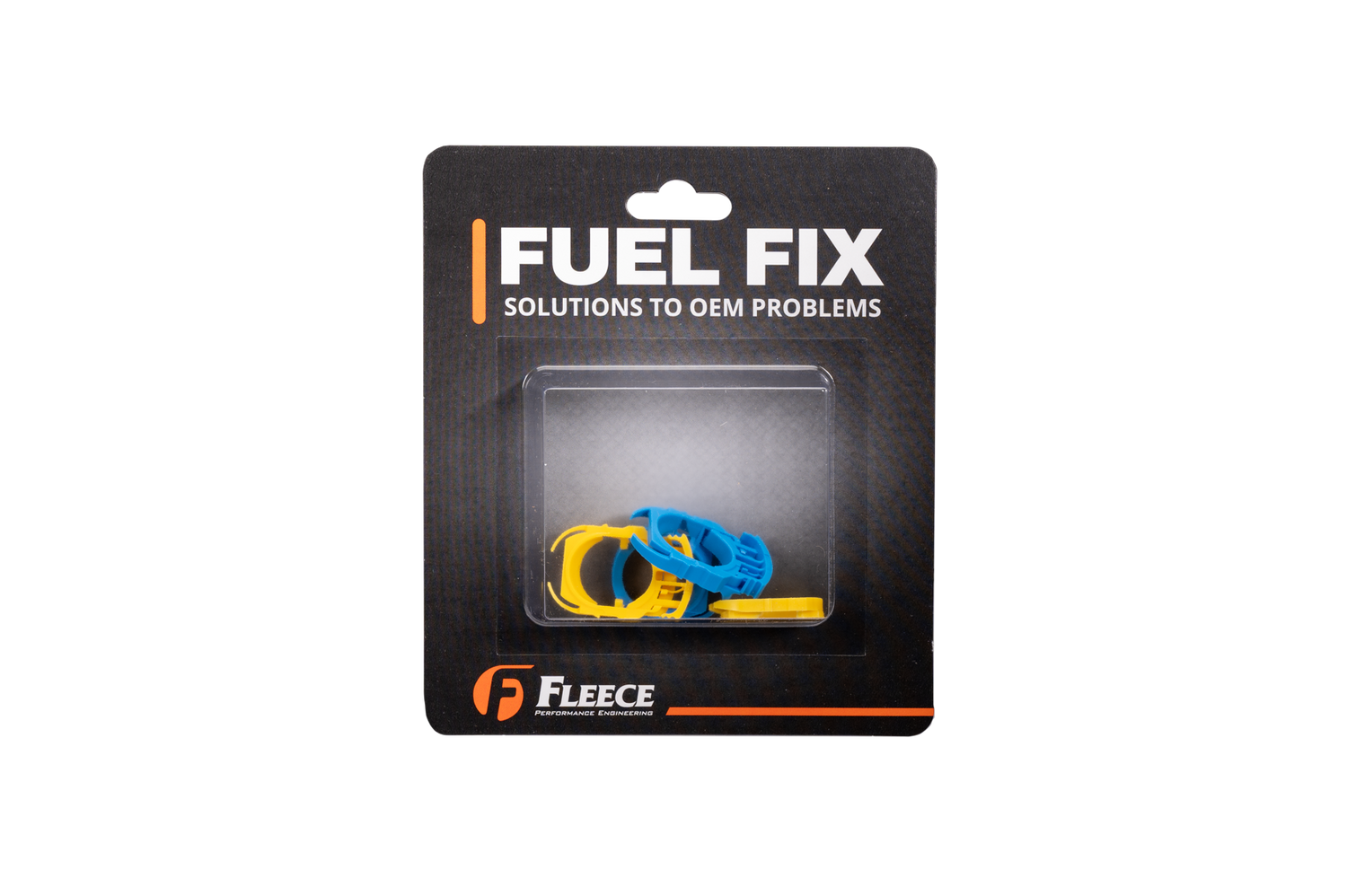

• Fuel Line Retaining Clips (FPE-FL-RC-FMC-4P)

• Short bed only. Replaces Ford OE HC3Z-9H307AQ
• Does not fit cab and chassis applications
• Confirmed to fit Titan aftermarket fuel tanks, and S&B short bed tanks. Does not fit the long bed S&B fuel tank (10-1008)
• Replaces the factory "furnace" style filter FD-4625, FD4625AA, HC3Z-9N184-C, HC3Z-9N184-J
• Tested and validated with the S&S Diesel Motorsport DCR conversion kit and CP4 Disaster Prevention Kit
• CARB EO D-834-21, CARB EO D-834-17
