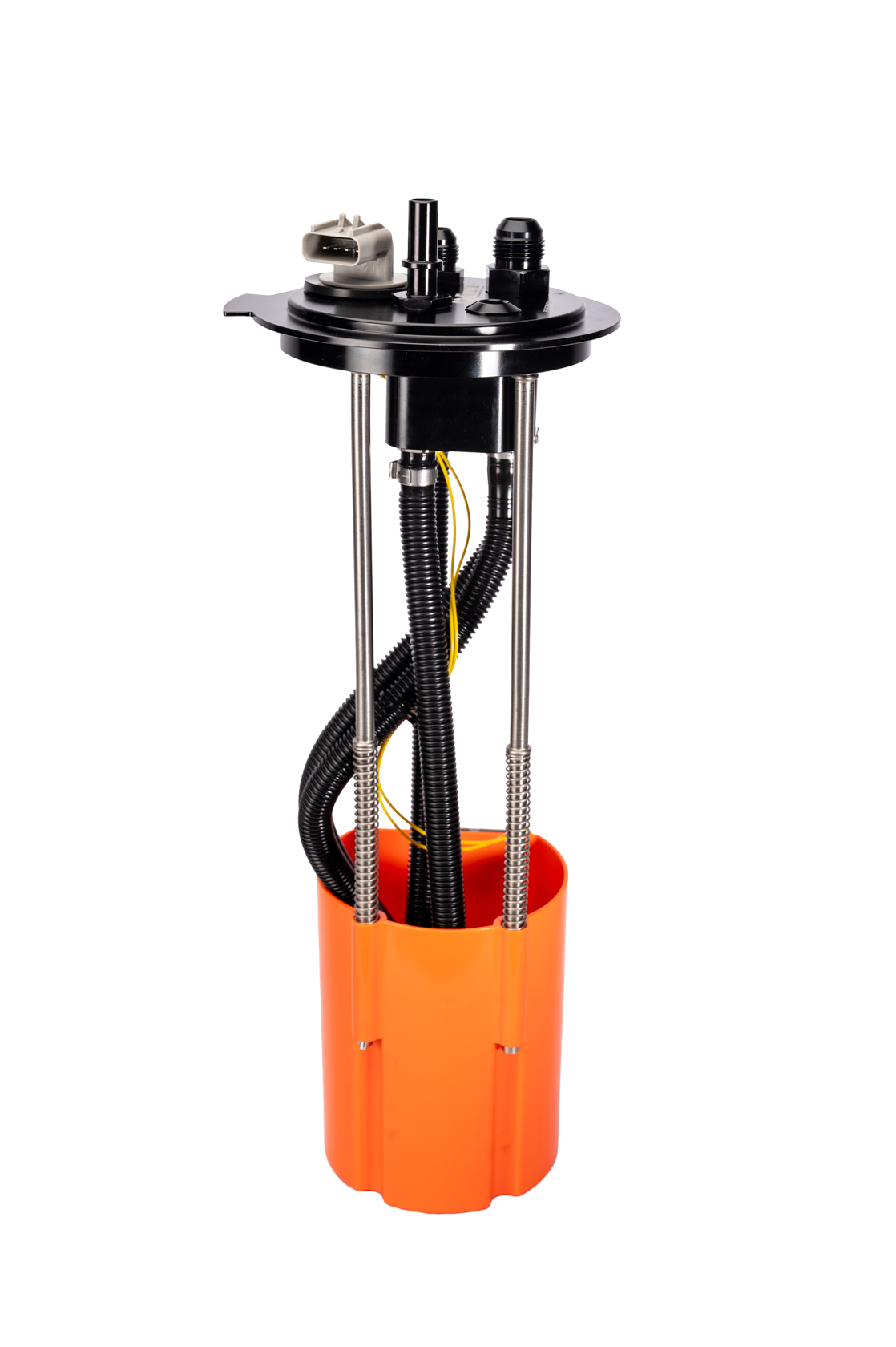

2017-2024 Powerstroke Long Bed SureFlo Performance Sending Unit (FPE-SF-FMC-1724-LB)

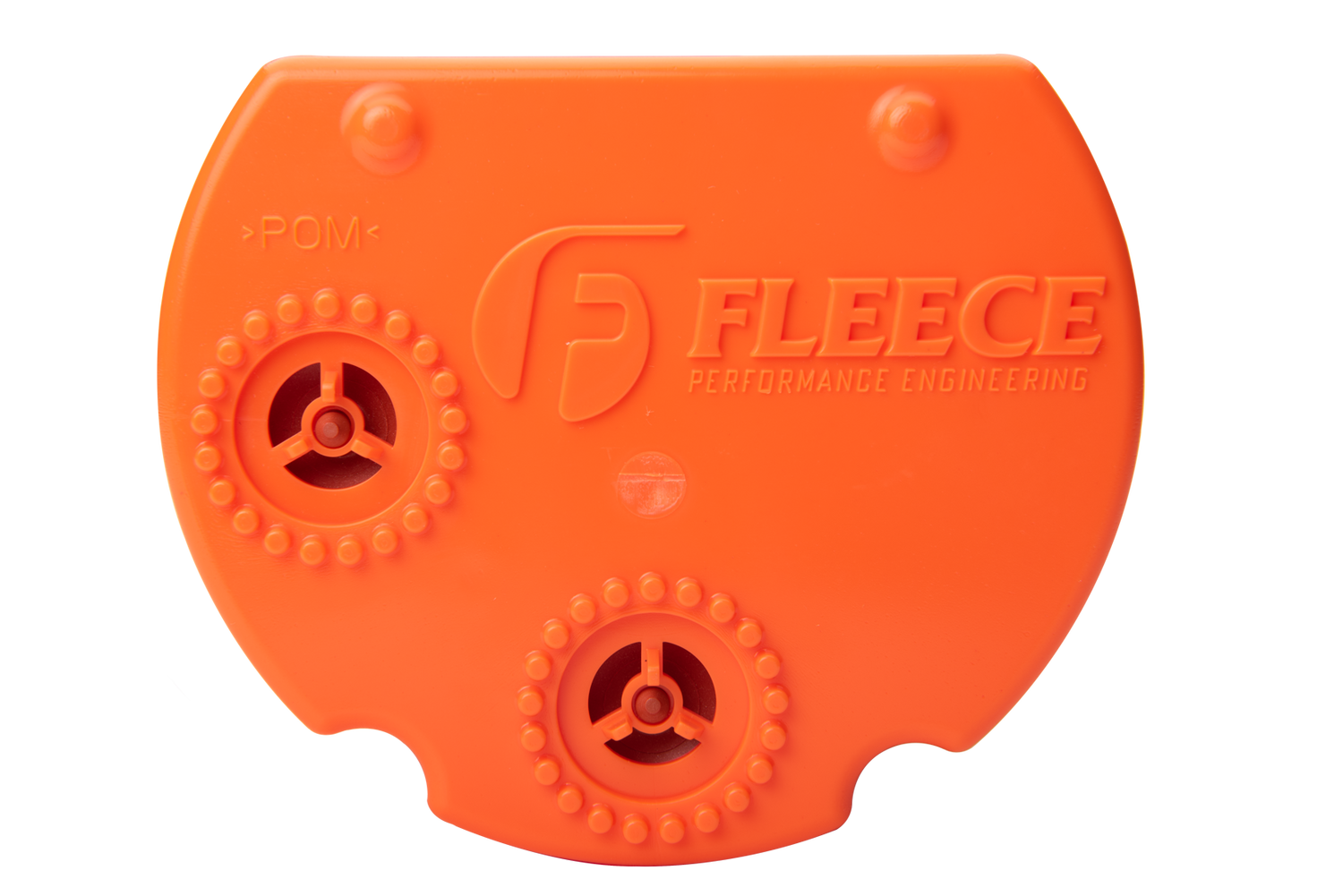

The SureFlo performance sending unit drops into the stock lift pump location on 2017-2024 Ford 6.7L Power Stroke trucks running an external frame-mounted lift pump. Factory-style quick disconnects adapt your stock fuel lines at the tank, and the bucket assembly draws and returns fuel at the base of the unit with one-way check valves, eliminating draw straws, tank sumps, drilling, and quarter-tank cavitation.

Part Number: FPE-SF-FMC-1724-LB

• This sending unit does NOT contain a fuel pump. It is intended for use with an external frame-mounted lift pump only. For a direct-replacement in-tank lift pump, use the PowerFlo In-Tank Lift Pump (FPE-PF-FMC-1724-SB / FPE-PF-FMC-1724-LB).

• OEM-style fitment; no tank cutting or drilling

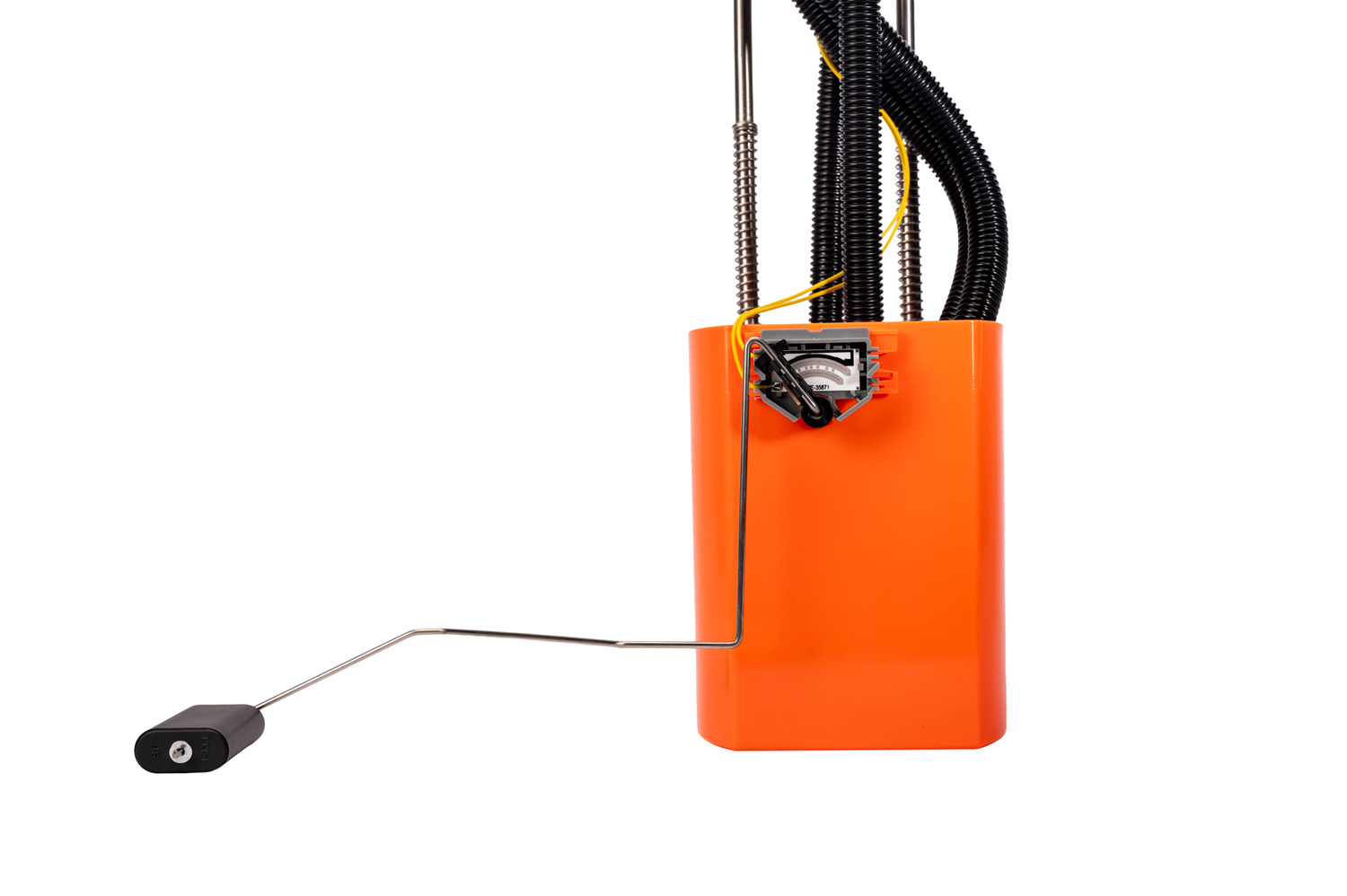

• New fuel level electronics and fuel float

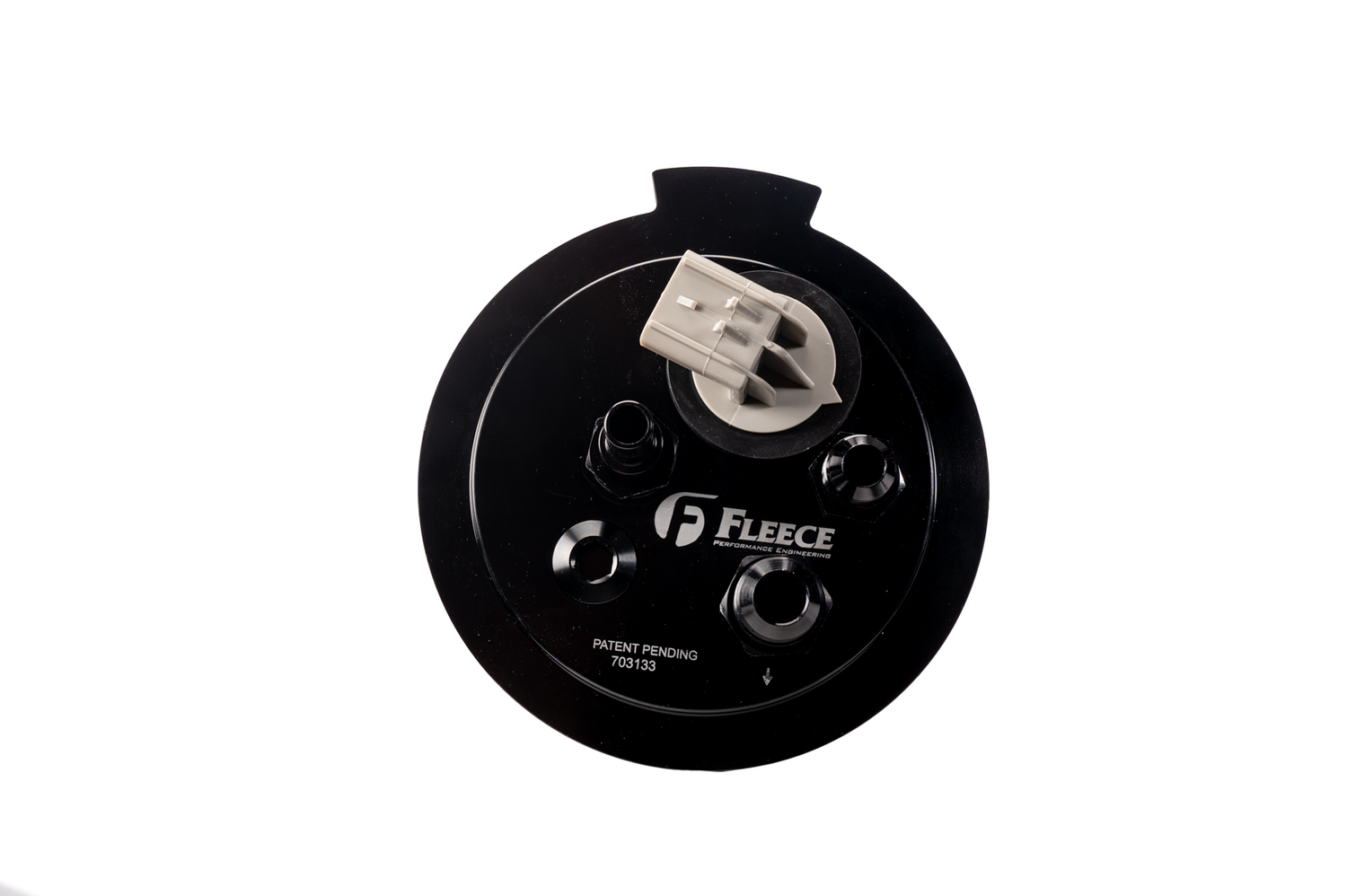

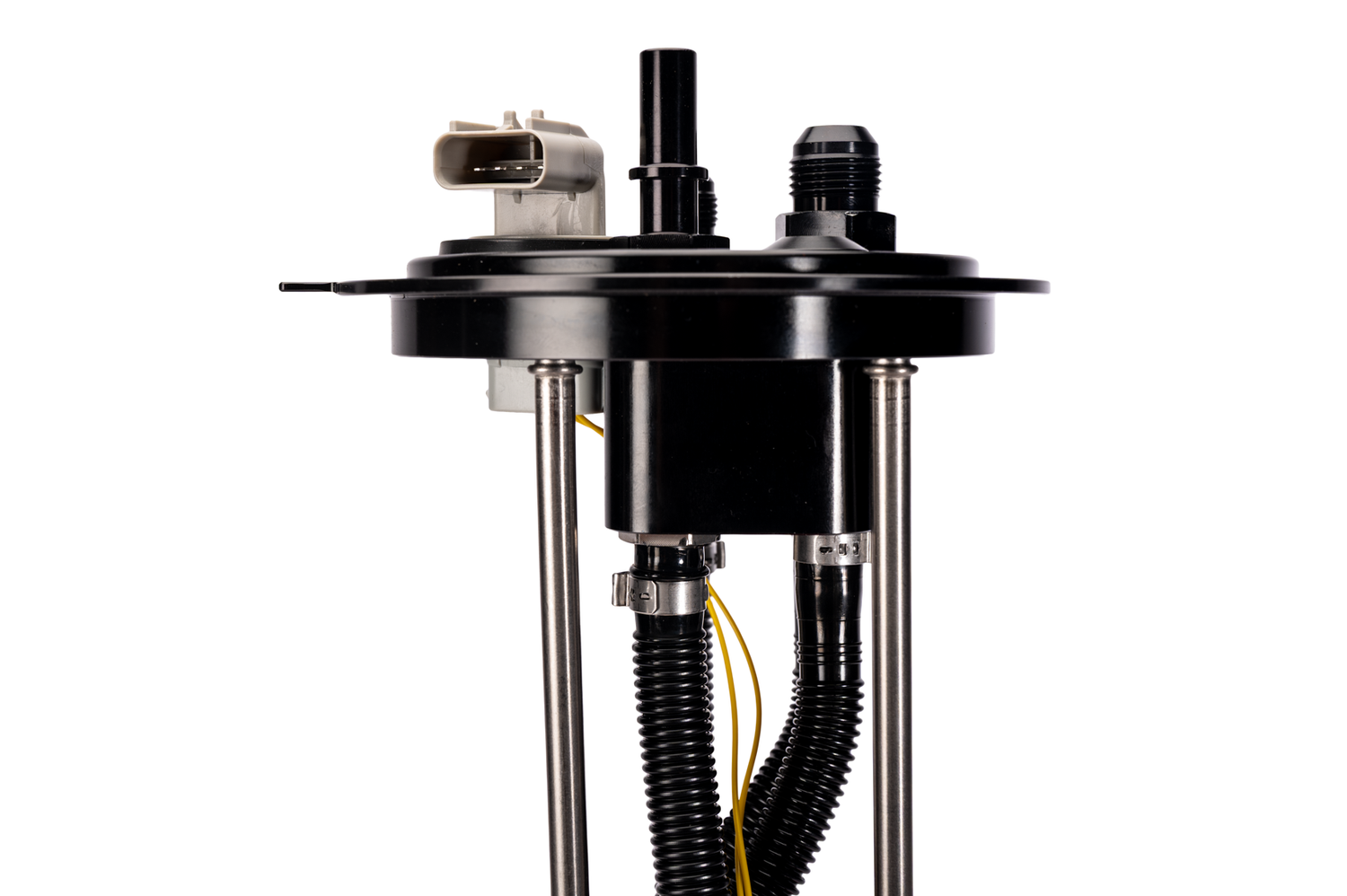

• Heavy-duty billet aluminum cap
• Universal -8 AN ports for professionally plumbing a custom fuel setup

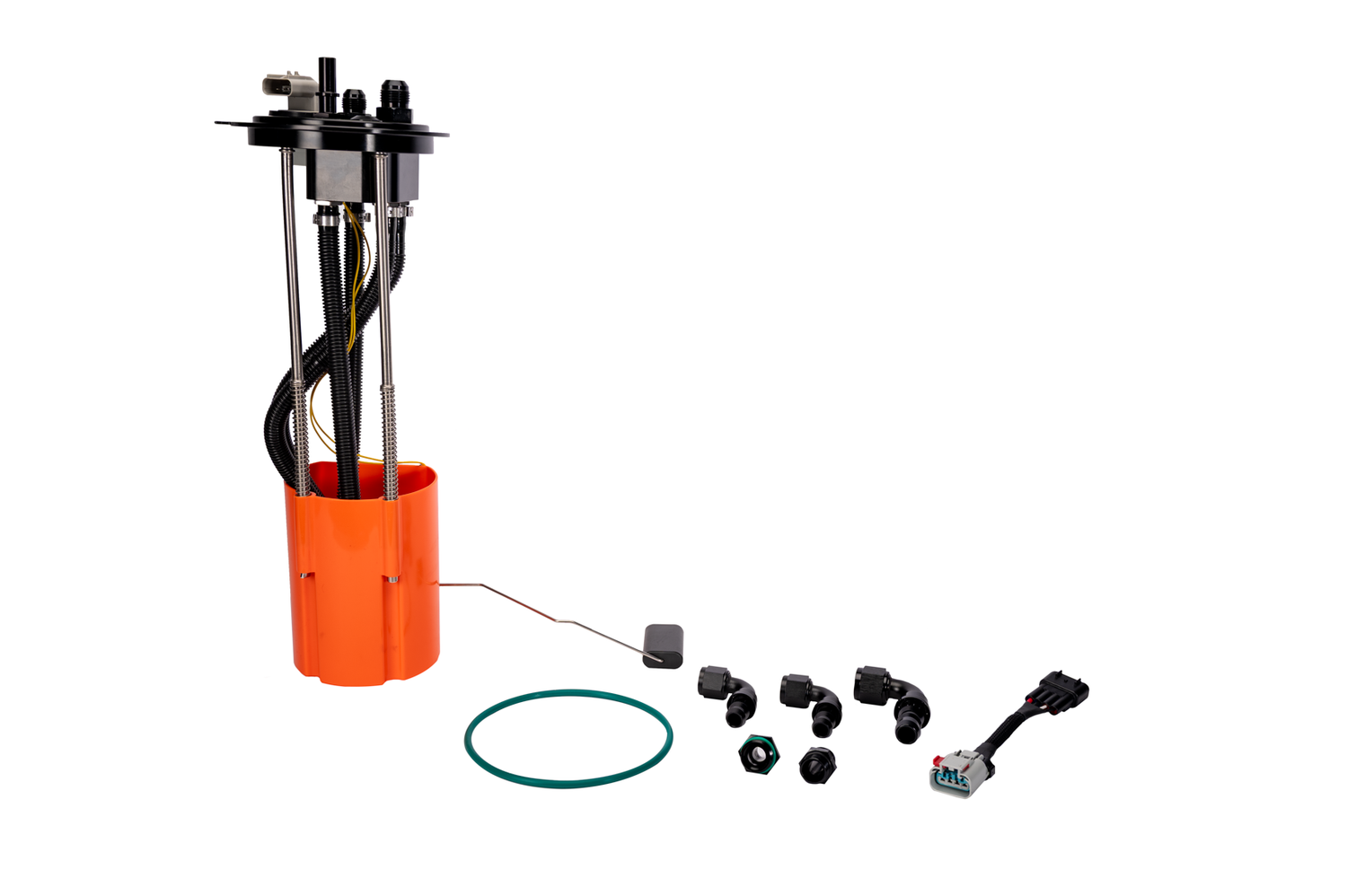

• New O-ring / flange seal included

• This part number fits Long Bed trucks and replaces Ford OE HC3Z-9H307AR when used with an external lift pump; also available in the other bed length
• Tested with aftermarket lift pumps including AirDog II-5G (up to 220 GPH) and FASS (up to 200 GPH)
• Confirmed to fit Titan and S&B aftermarket fuel tanks

• Installation Instructions (PDF)
