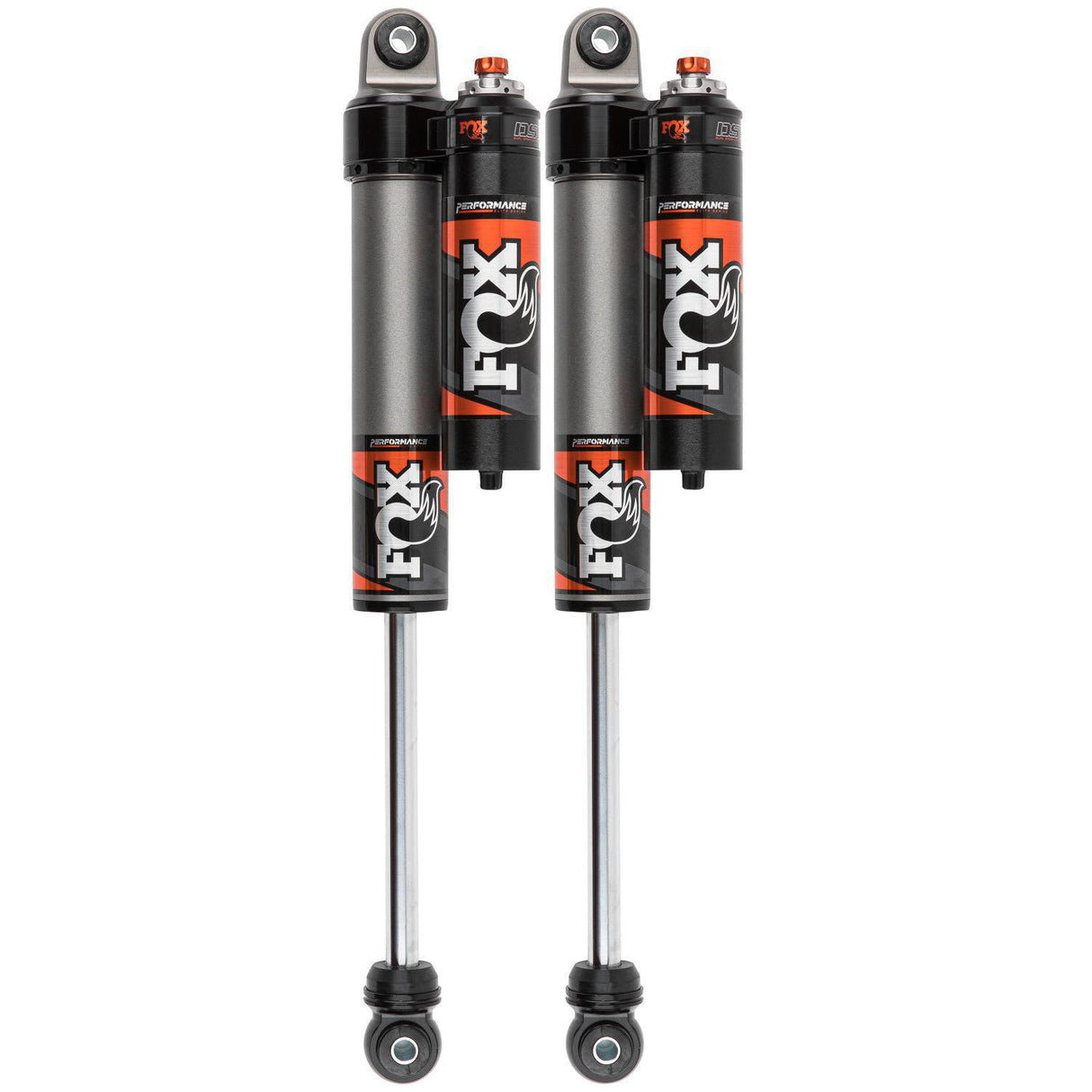

2017-2024 Powerstroke 2.5 Elite Series 4-6" Performance Rear R/R Shock (883-26-100)
Purchase to earn 2494 Dirty Dollars Learn More
Description
Description
Fits
Year | Make | Model |
2017 - 2024 | Ford | F-250 Super Duty |
2017 - 2024 | Ford | F-350 Super Duty Cab & Chassis |
2017 - 2024 | Ford | F-350 Super Duty Crew Cab Pickup |
2017 - 2024 | Ford | F-350 Super Duty Extended Cab Pickup |
2017 - 2024 | Ford | F-350 Super Duty Standard Cab Pickup |
FOX Performance Elite Series 2.5 shocks improve the stock Powerstroke platform by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation of your truck.
Type III anodization prevents corrosion and wear of the 2.5" aluminum bodies. External reservoirs increase oil capacity, remove dead space from the shock body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more travel, and consistent damping forces result. Each reservoir features a Dual Speed Compression (DSC) adjuster; strategically mounted to eliminate interference with aggressive tires at full lock.
Part Number: 883-26-100
Features
Features
- Aluminum Body & External Reservoir Dissipates Heat Faster Than Steel
- 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum Body resists rust over time
- Body Plating Hard-anodized for a durable finish
- Black-anodized CNC-machined 6061-T6 billet aluminum
- 7/8" hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow Piston design
- Application specific Valving to maximize performance
- Redundant sealing pack system main seal, wiper seal, scraper seal
- PTFE-lined, heat-treated, alloy steel spherical bearings
Specs:
- Extended Length: 34.93"
- Compressed Length: 21.35"
- Top Mount: Eyelet
- Bottom Mount: Eyelet
- Travel: 13.58"
- Rear Lift Height: 4-6"
