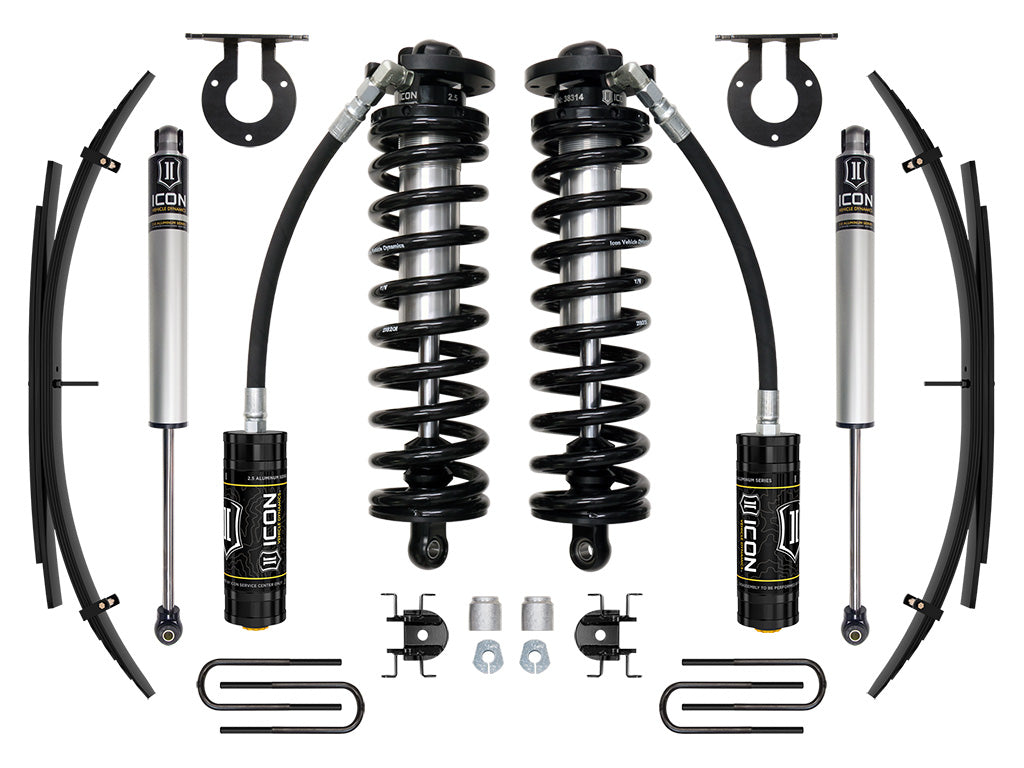

2017-2023 Powerstroke ICON 2.5 Front and Rear Lift Kit (ICOK63141L)

Fits

This ICON 2.5 Series suspension system for the 2017-2023 Ford Super Duty delivers serious off-road capability with 2.5-3" of lift while maintaining a comfortable daily-driver ride. The kit includes adjustable coilovers, progressive leaf packs engineered to work as a complete package for consistent damping and handling. Built to handle the demands of heavy diesel trucks without sacrificing daily drivability.

Part Number: ICOK63141L

• Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" or 3.25-3.75" of front lift over stock
• Vehicle specific tuned internal reservoir 2.0 Aluminum Series rear shocks
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Improved ride quality and performance compared to stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won't sag or break
• No drive shaft modifications required

• ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)

• Only fits 4WD models
• Will not fit F-350/F-450 Cab & Chassis models
• An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Secondary Shock Options Available, Contact ICON For More Details.
• Fits Single Rear Wheel Models Only
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• If equipped with Dynamic Bending Headlamps and/or Onboard scales part # 611081 is also required
• Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
• Will not fit 2024 models
• Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
• 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
• 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
• 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
• 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
• 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
• 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
• 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
• Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
