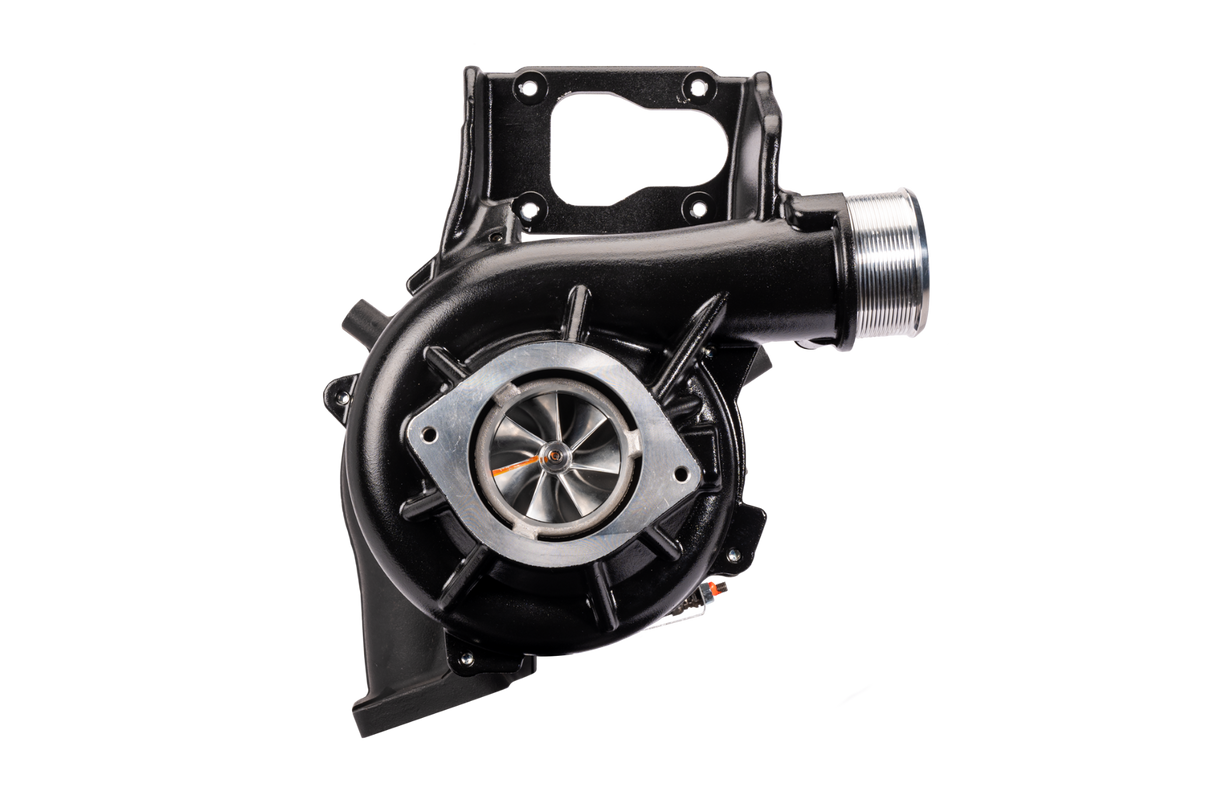

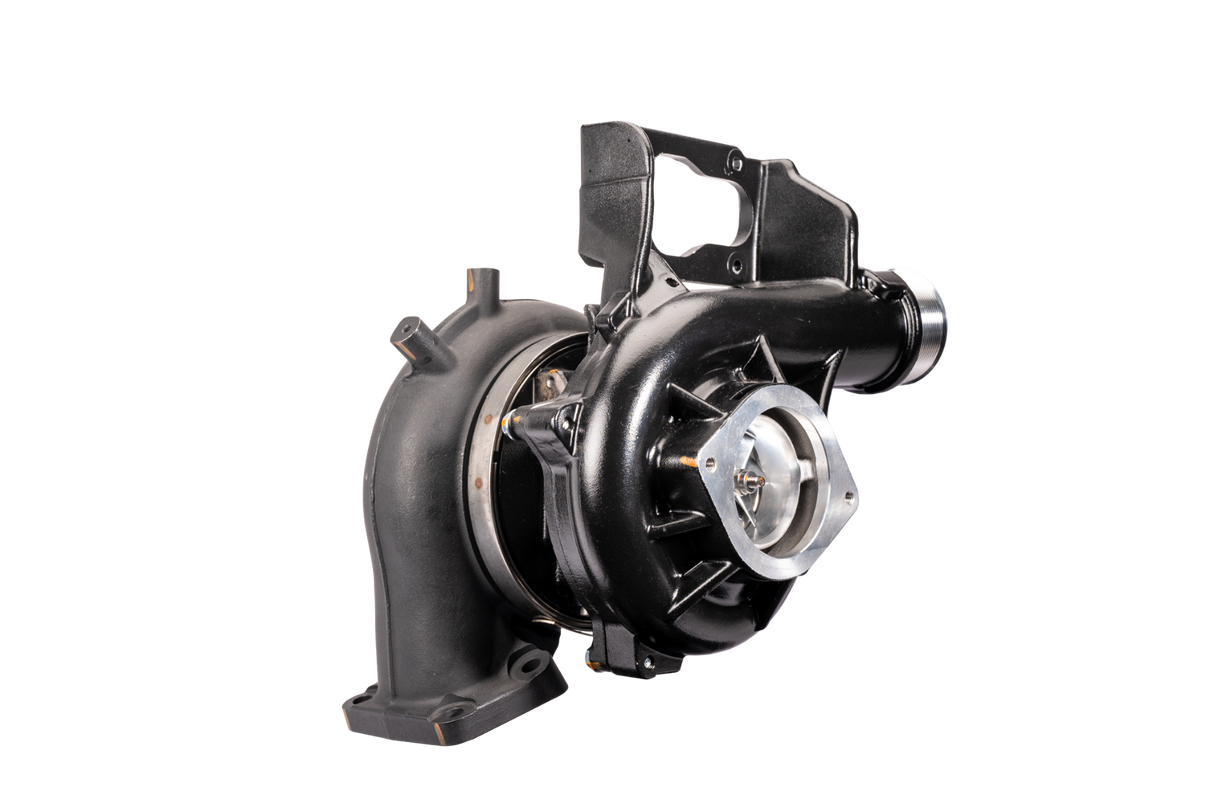

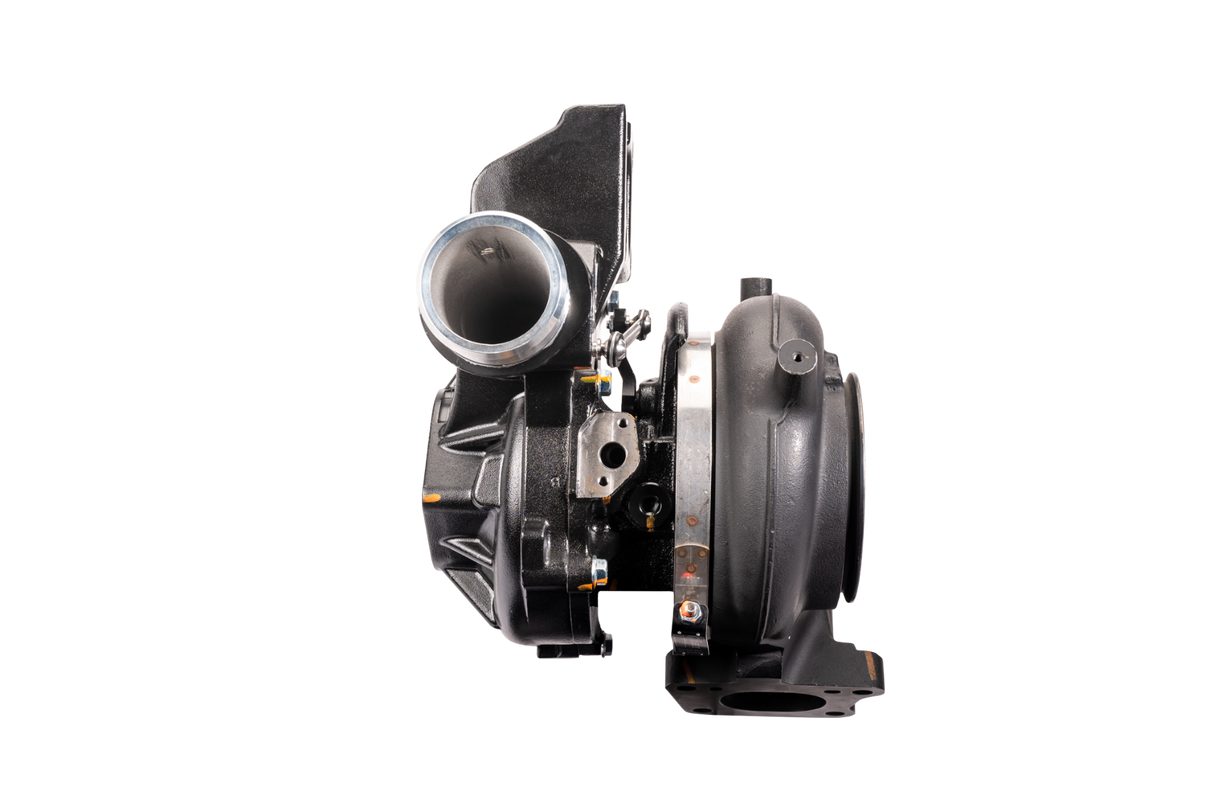

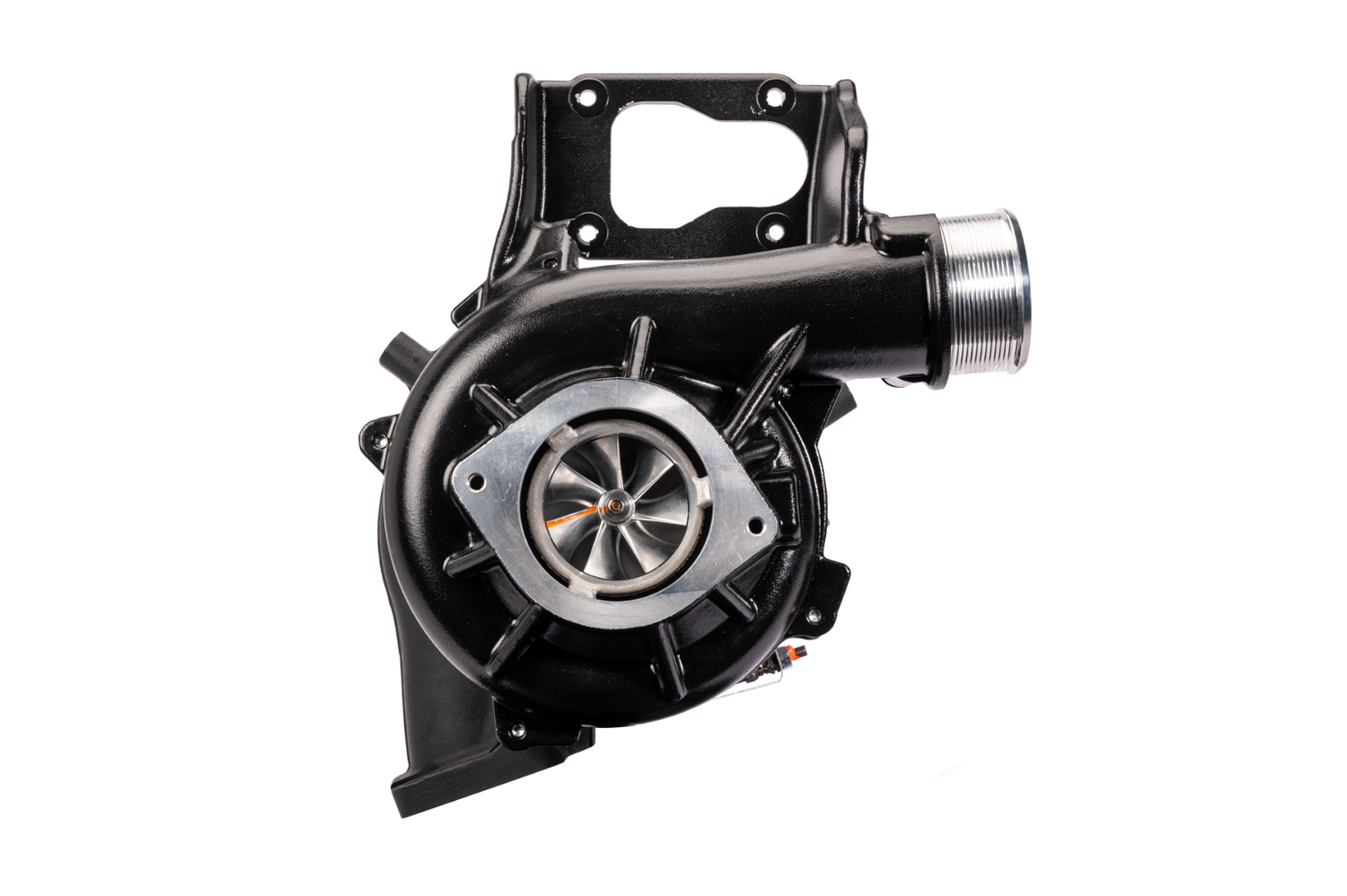

2017-2023 Duramax Cheetah Turbocharger (FPE-L5P-VNT63-1723)

Unlock the true potential of your L5P with the Fleece Cheetah Turbocharger, the ultimate drop-in powerhouse designed for those who demand more from their Duramax. This 63mm beast delivers lightning-fast spool-up and massive top-end performance while maintaining that legendary Cheetah whistle and factory reliability. Whether you're towing heavy or hitting the track, this turbo provides the perfect blend of 650 RWHP capability and daily drivability.

Part Number: FPE-L5P-VNT63-1723

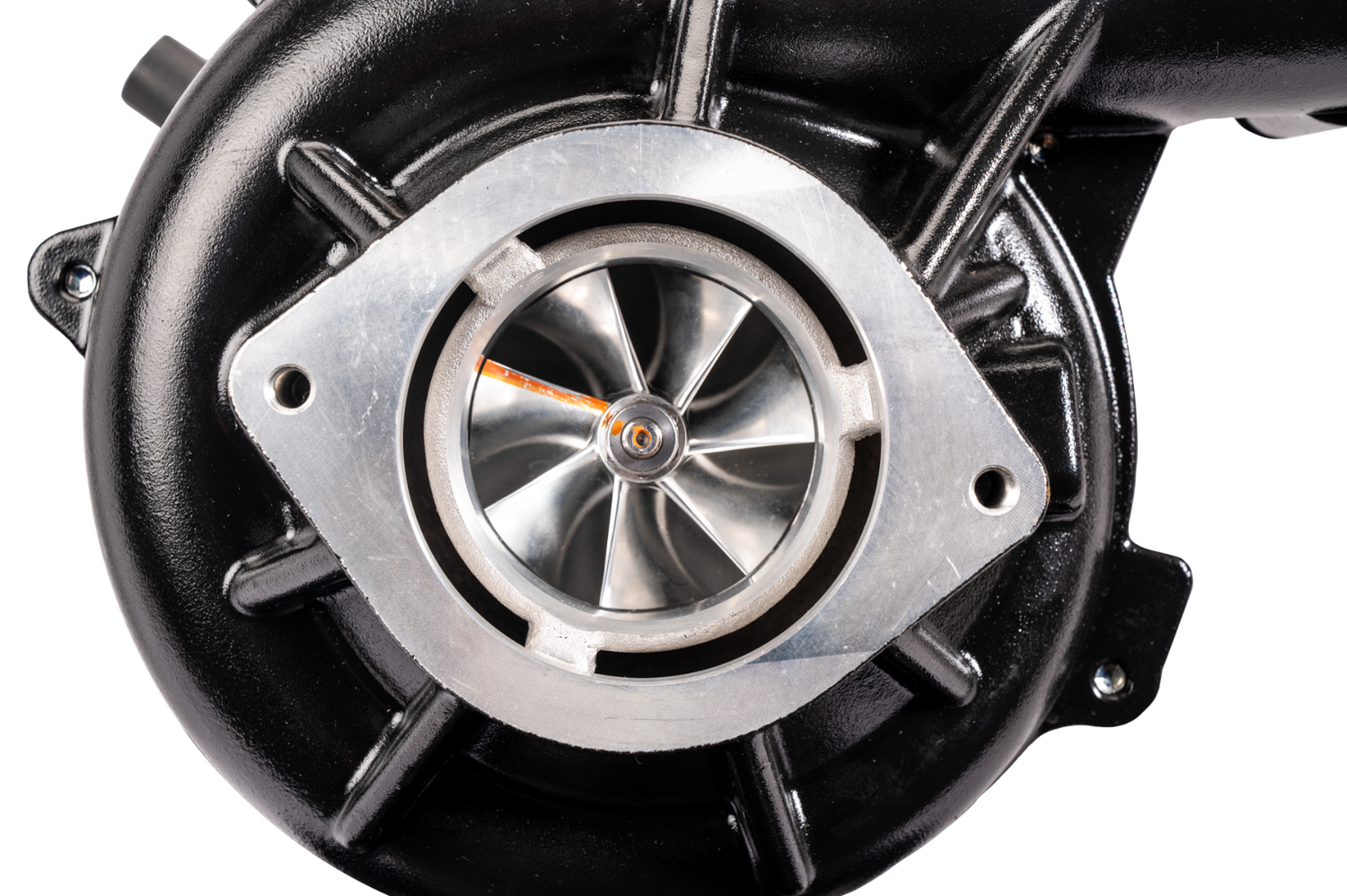

• Exclusive 63mm compressor wheel
• Supports up to 650 RWHP

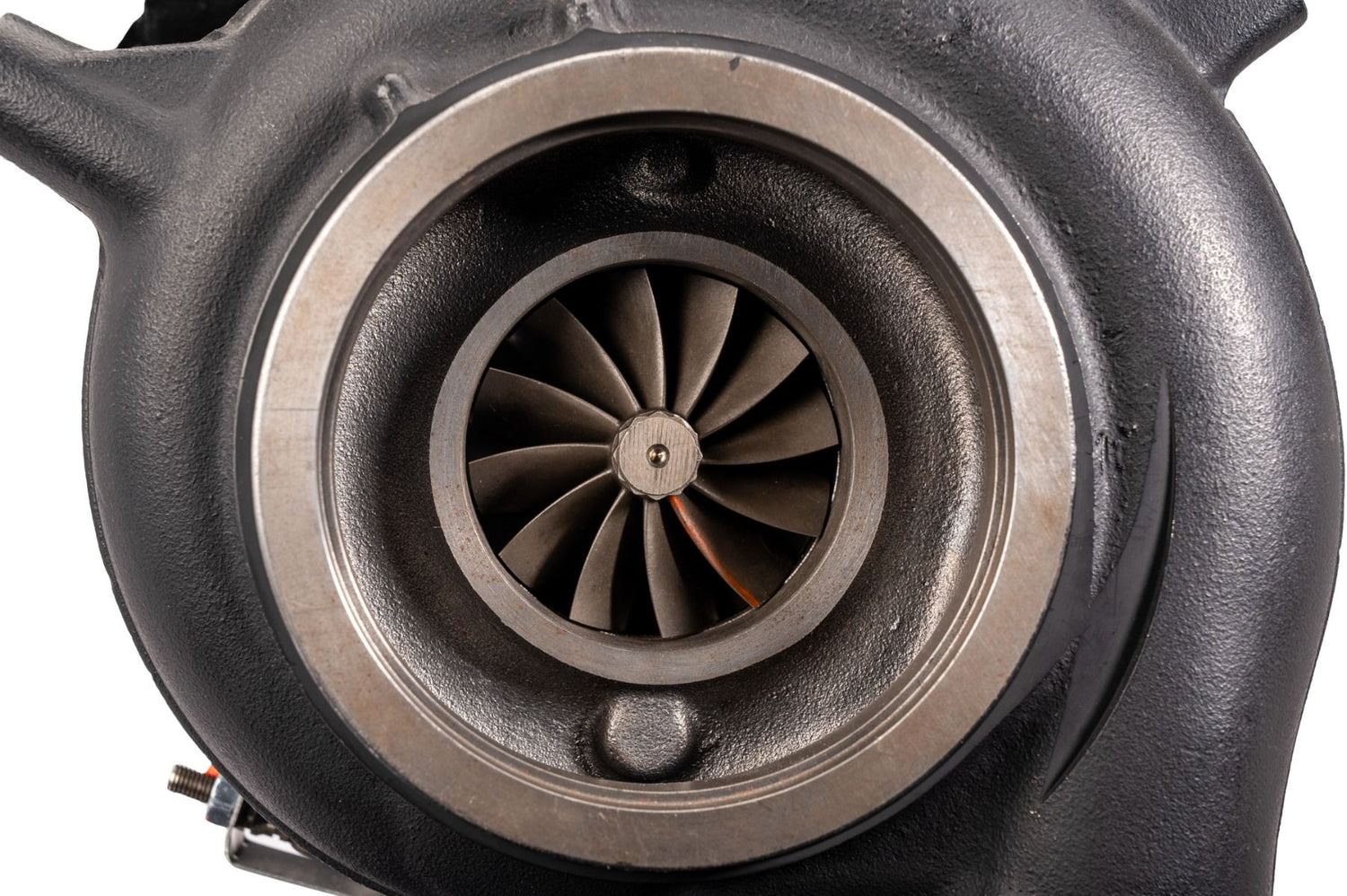

• High-strength Inconel turbine wheel
• Maintains all OEM factory turbocharger functions, including exhaust brake
• Brand new - no core charge or core to return

• CARB compliant (EO# D-834-19)
• Stock-appearing drop-in fitment

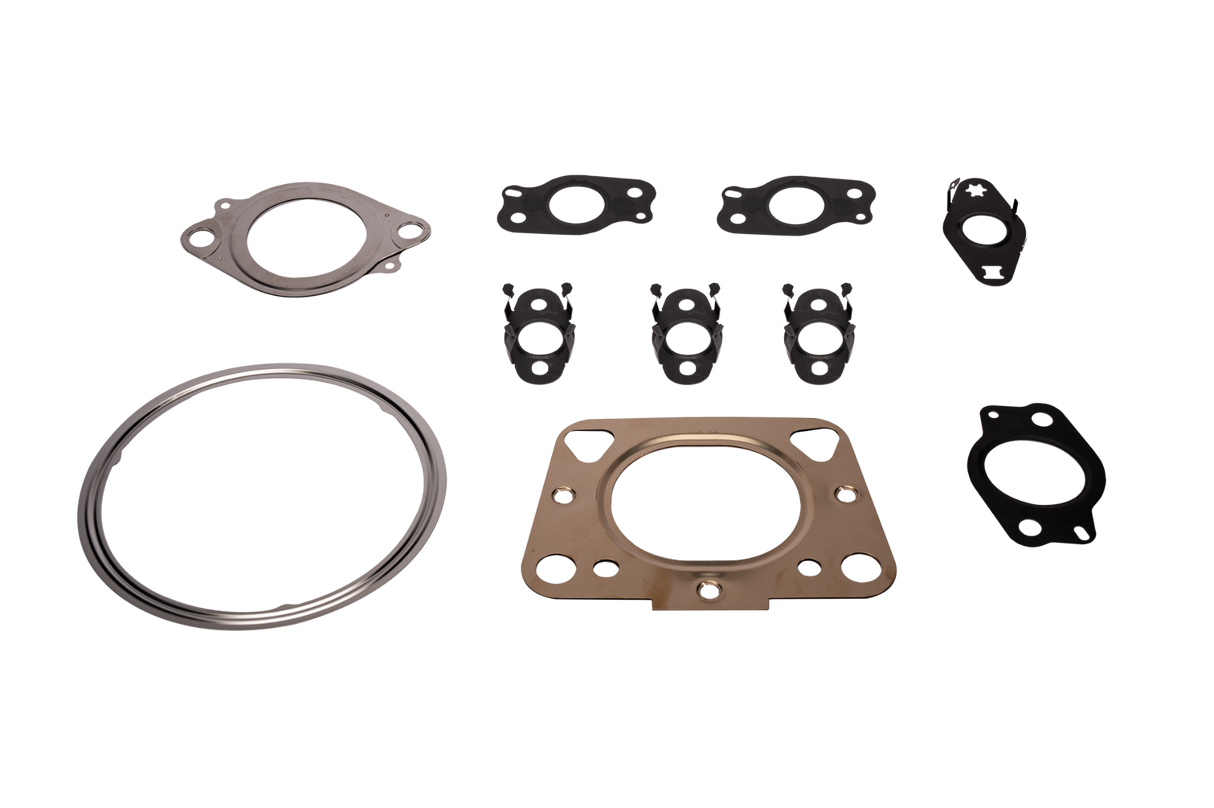

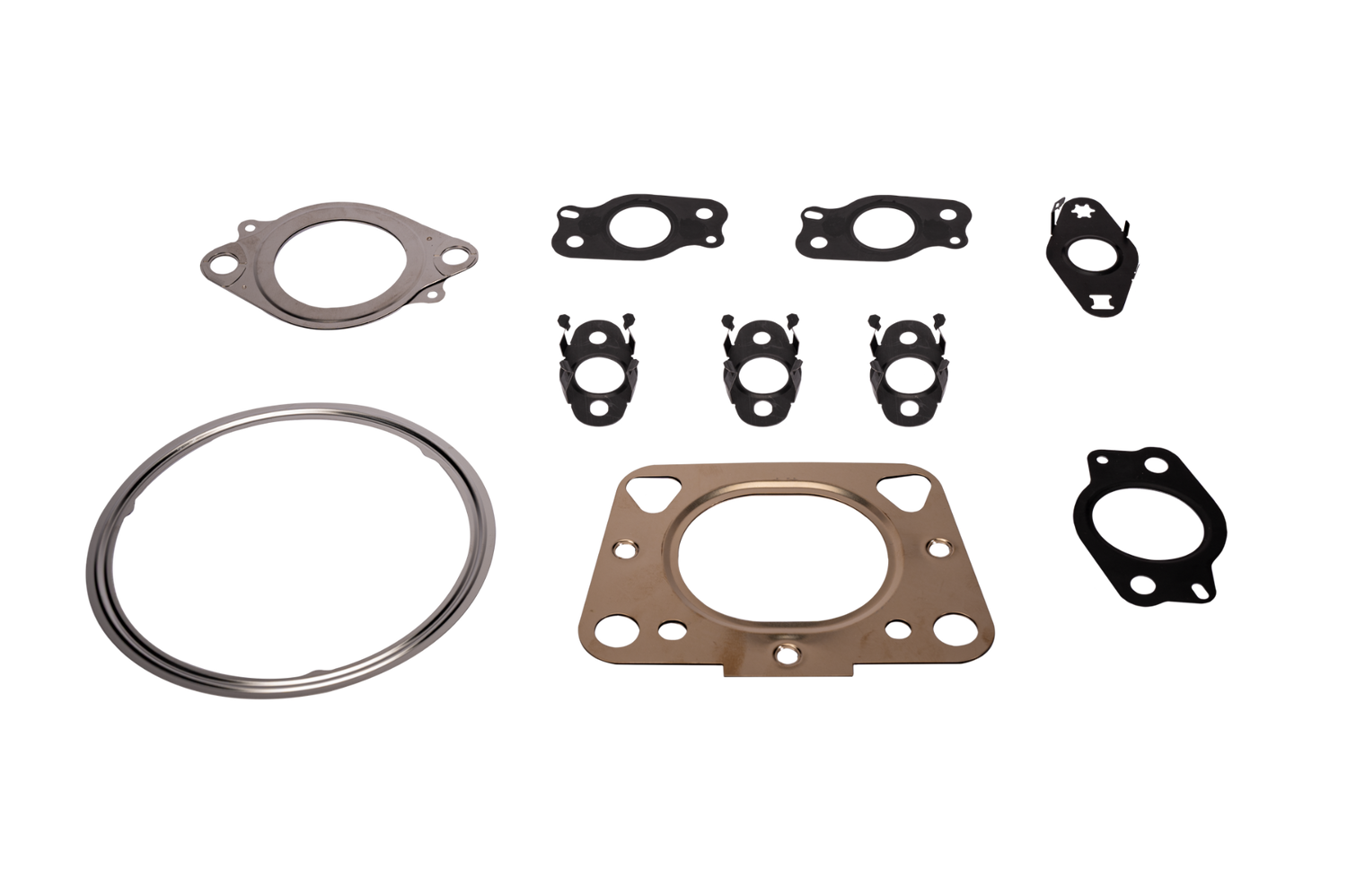

• 1 x EGR tube gasket to the intake bridge
• 1 x EGR coolant pipe gasket
• 1 x PCV to compressor cover gasket
• 3 x Coolant feed, coolant return, and oil feed gaskets
• 1 x Turbine housing to catalyst
• 2 x Oil drain gaskets
• 1 x Pedestal gasket

• This turbocharger is sold without an actuator and requires the use of the vehicle's original actuator or an applicable replacement actuator. Key GM part numbers by model year are:
  • 2017-2019 L5P: Actuator part number 12723306, 12683993, or 12683982
  • 2020-2023 L5P: Actuator part number 12723081 or 12707578

• Fleece recommends a factory intake horn and airbox for optimal performance.
• This turbocharger replaces OEM part numbers 12723305 (MY 2017-2019) and 12723083 (MY 2020-2023)

• 10-speed transmission models should avoid engine lugging to prevent surging.
• When using the stock air intake box and intake horn with the Cheetah, a high-quality performance module, such as an Edge HT2 or Banks Derringer, will enhance the Cheetah's overall drivability.

Click Here For Instructions

1-Year Limited Parts Warranty
