Universal Cummins/Jeep Lower Control Arm Dual Durometer Bushing (4807-02)
Synergy MFG
Part Number:
4800-01
$86.40 CAD
Unit price
/
Unavailable
Purchase to earn 86 Dirty Dollars Learn More
Description
Description
Fits: Universal Dodge Ram/ Jeep

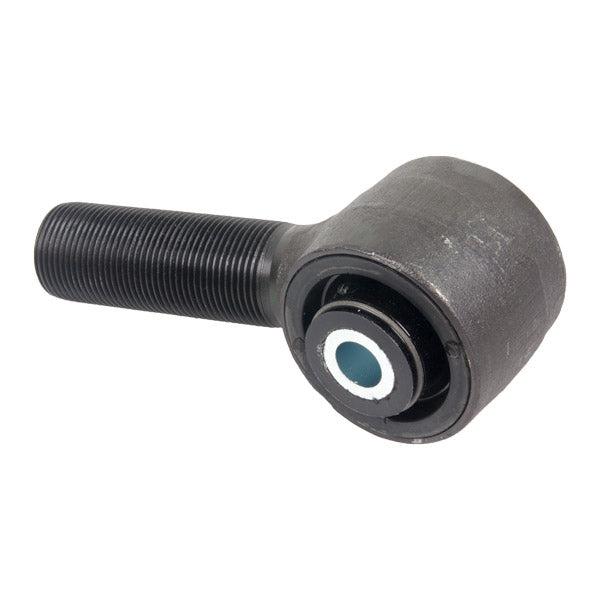

These Synergy Front Lower Short Arm Dual Durometer Bushings in Forged Housings are made from 1045 high-strength steel, & provide you with a zero bind, maintenance-free greaseless design.
Part Number: 4807-02
Features
Features
- Dual Durometer Bushings (DDB) feature a maintenance-free, grease-less design
- Housings are forged from high-strength 1045 steel and treated for corrosion resistance
- Control arm bushings are self-centering with 30 degrees of misalignment
- Outer soft inch durometer acts as bushing cushion and flex material
- Inner hard inch durometer lining acts as the bearing surface to allow free floating inner sleeve to rotate
- Provides for a maintenance-free zero bind bushing
- The internal bushing ring separates inner and outer materials to prevent the inner sleeve from gaping at extreme flex
- Available complete with bushing installed
- 2.618" Wide w/16mm Bolt
- Sold Individually
Additional Info
Additional Info
| Part # | Description | Application | Replacement Bushing | Mounting Width | Bolt Size | Shank |
|---|---|---|---|---|---|---|
| 4800-01 | LOWER CONTROL ARM JOINT | 8033, 8036, 8052, 8153, 8231, 8551-04, 8551-01, 8871-01 | 4320-01 | 2.625" | 9/16" / 14MM | 1 1/4-12 LH |
| 4800-02 | DODGE LOWER CONTROL ARM JOINT | 8551-02, 8551-03, 8583-02, 8583-03, 8870-01 | 4320-02 | 2.625" | 5/8" / 16MM | 1 1/4-12 LH |
| 4801-21 | UPPER CONTROL ARM JOINT | 8553-01 | 4322-01 | 2.32" | 9/16" / 14MM | 1-14 LH |
| 4801-22 | JEEP JK REAR UPPER CONTROL ARM FRAME SIDE JOINT | 8038 | 4322-02 | 2.625" | 9/16" / 14MM | 1-14 LH |
| 4802-31 | JEEP TRACK BAR JOINT | 8062, 8068, 8075, 8087, 8233-03 | 4323-01 | 1.60" | 9/16" / 14MM | 3/4-16 LH |
| 4802-32 | JEEP TRACK BAR JOINT | 8156 | 4323-02 | 1.60" | 1/2" / 12MM | 3/4-16 LH |
| 4803-41 | DODGE TRACK BAR JOINT | 8550-01 (03-07 trucks), 8550-02 | 4324-01 | 1.60" | 9/16" / 14MM | 7/8-14 LH |
| 4803-42 | DODGE TRACK BAR JOINT | 8550-01 (08-13 trucks) | 4324-02 | 1.60" | 5/8" / 16MM | 7/8-14 LH |
| 4804-21 | DODGE FRONT UPPER LONG ARM JOINT | 8585 | 4322-01 | 2.32" | 9/16" / 14MM | 1 1/4-12 LH |
| 4805-12 | JEEP TJ REAR UPPER CONTROL ARM JOINT | NA | 4321-02 | 2.00" | 10MM | 7/8-14 LH |
| 4807-01 | JEEP JK FRONT LOWER SHORT ARM FRAME SIDE JOINT | 8051 | 4320-01 | 2.625" | 9/16" / 14MM | 1 1/4-12 LH @ 6.3 DEG ANGLE |
| 4807-02 | JEEP JL FRONT LOWER SHORT ARM FRAME SIDE JOINT | 8851-01 | 4320-02 | 2.625" | 5/8" / 16MM | 1 1/4-12 LH @ 6.3 DEG ANGLE |
| 4808-21 | JEEP JK REAR UPPER SHORT ARM AXLE SIDE JOINT | 8054, 8854-01 | 4322-01 | 2.32" | 9/16" / 14MM | 1-14 LH @ 6.3 DEG ANGLE |
| 4810-01 | 13+ RAM TRACK BAR JOINT | 8704-01 | 4328-01 | 1.63 | 18MM | 1-14 LH @ 12 DEG ANGLE |
| 4811-01 | JEEP TRACK BAR JOINT | 8862-01 | 4327-01 | 1.60" | 9/16" / 14MM | 7/8-14 LH |
| 4812-01 |
JEEP & RAM TRACK BAR JOINT | 8075-02, 8875-01, 8550-11 | 4327-01 | 1.60" | 9/16" / 14MM | 7/8-14 LH @ 12 DEG ANGLE |
Notes
Notes
- Direct replacement available for Synergy products using a Johnny Joint or rod end
