2017-2024 F-Series Commuter 2-3" Lift Kit (CS-FLVL-COM-CS-17-GAS)

Carli Suspension
$3,271.68 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

The perfect comprehensive suspension setup for your F-Series pickup, with front linear-rate coil springs that provide a slight rear rake and smooth, soft highway driving and a stiffer, more controlled ride on rough terrain or hauling heavy loads. Paired with Carli's 2.

Front Sway Bar

Required

The Torsion Sway Bar is the engineered match for this kit — biggest single ride-quality upgrade you can make. The Frame Drop and Extended End Links keep your factory sway bar in service; pick those only if you're plowing snow, hauling an in-bed camper, or constantly loading to capacity.

Rear Leaf Springs

Required

The system has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package). More information can be found in the description at the bottom of this page.More information is available in the long description at the bottom of this product page. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

2° Pinion Shim

Optional

*OPTIONAL BUT RECOMMENDED* - When modifying the rear leaf springs (add-a-pack or Full Spring Pack) of the 2017+ Super Duty platform, there's a small chance you'll induce a driveline vibration around 70mph when under power from the rear driveline. These pinion shims will correct the angle to 4°-5°, ideal for our lifted applications. Although these will not be "required" on every truck, we've found the 4°-5° spec to be superior in our applications and these are FAR easier to install initially than correctively

Adjustable Radius Arms

Optional

Icing on the cake. Adds ½″ tire clearance, limit-strap protection for the front shocks, and 0.5-2.5° of adjustable caster correction — leaves death-wobble in the rear-view. 17-4 stainless spherical bearings for bind-free cycling.

High Mount Steering Stabilizer

Optional

Bolt-in replacement for the factory stabilizer. Adjustable 70-200 psi — run neutral or counter the right-hand pull of aggressive M/T tires like Toyo Mud Terrains. Stainless, leveled-and-lifted trucks only, not compatible with drop pitman arms.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Purchase to earn 3271  Dirty Dollars Learn More

Description

Fits

Year Make Model Lift
2017 - 2019 Ford F-250/ F-350 Super Duty GAS 2"
2020-2024 Ford  F-250/ F-350 Super Duty GAS 3"

Note: NOT compatible with diesel models

The perfect comprehensive suspension setup for your F-Series pickup, with front linear-rate coil springs that provide a slight rear rake and smooth, soft highway driving and a stiffer, more controlled ride on rough terrain or hauling heavy loads. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-FLVL-COM-CS-17-GAS

Features
  • Improved handling and stability
  • Carli-Tuned corrosion-resistant 2.0 IFP shocks

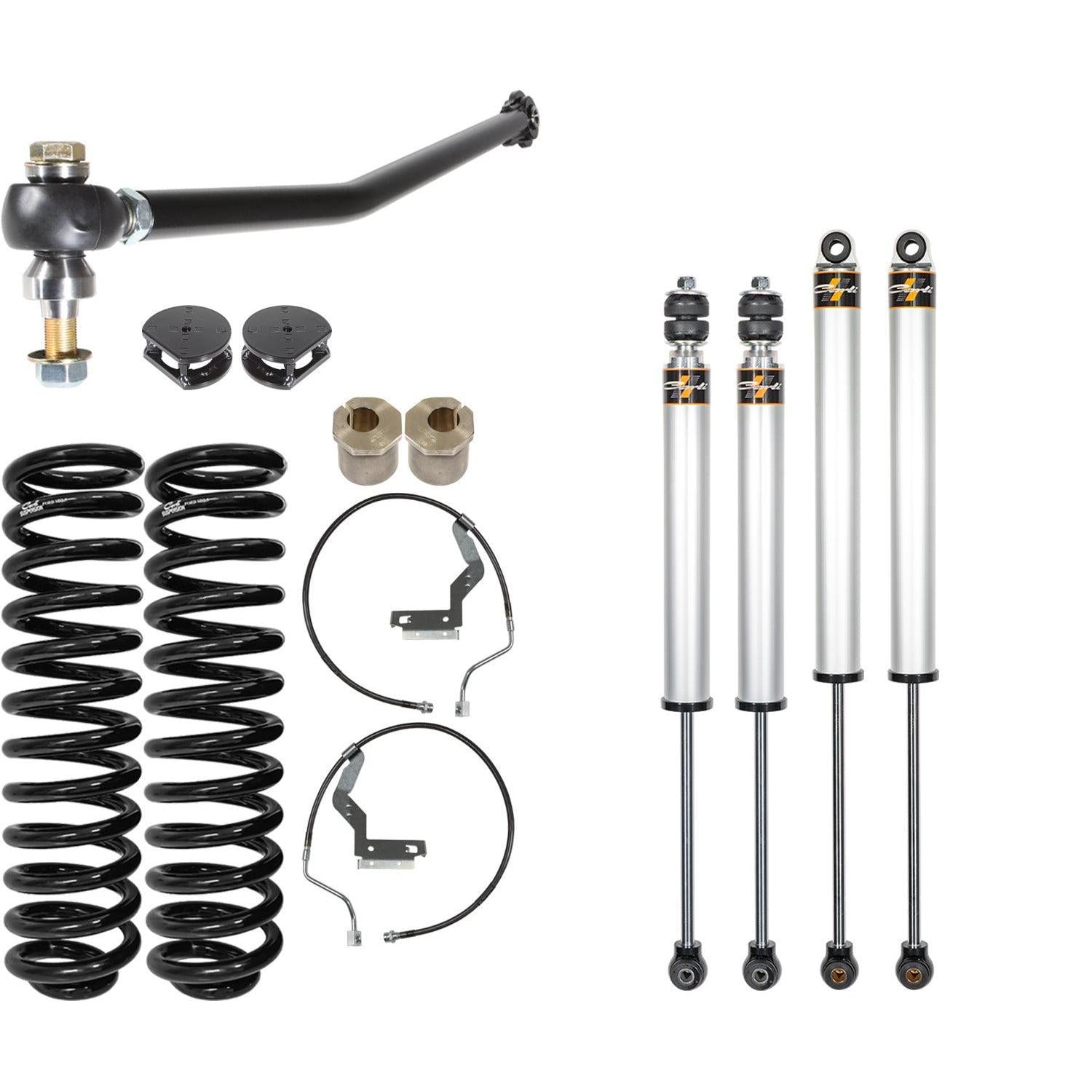

  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Increases wheel travel to 9" front and 13" rear
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info
  • Required and Optional Parts to support this system:
    • Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
    • Adjustable Track Bar Options: CS-DATB-03
    • Control Arms: CS-CA-MS-10 or CS-DBCA-10
    • Radius Arms: CS-FARA-LVL-05
    • Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
    • Leaf Spring Shackle: CS-FSHACKLE-11
    • Steering Stabilizer - High mount: CS-FHMSS-17
    • Steering Stabilizer - Low mount: CS-FLMSS-05
    • Trophy Hitch: CS-FHITCH-1723
