2017-2023 Duramax L5P Stealth Mach 2 Turbocharger (CPS200362)

Fits

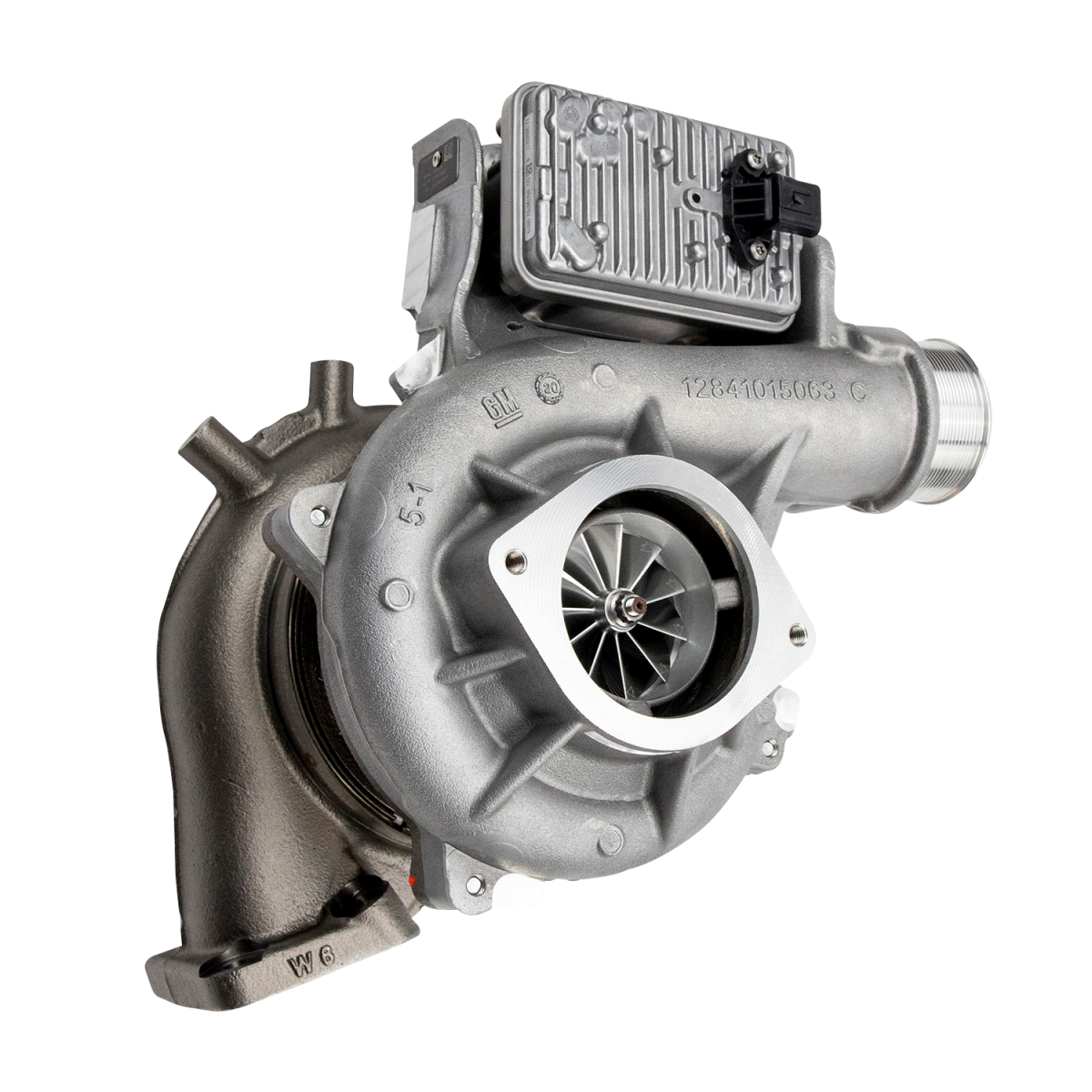

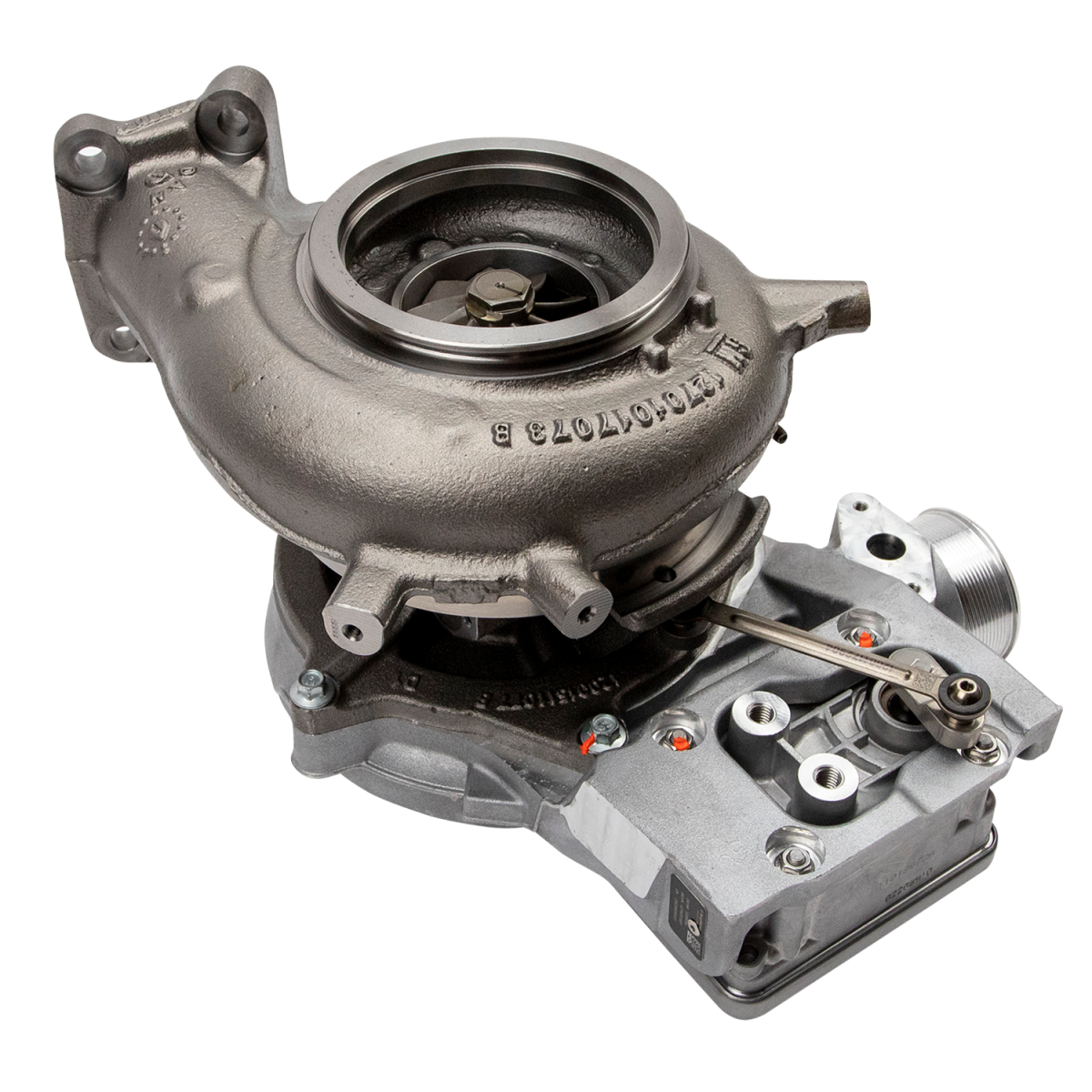

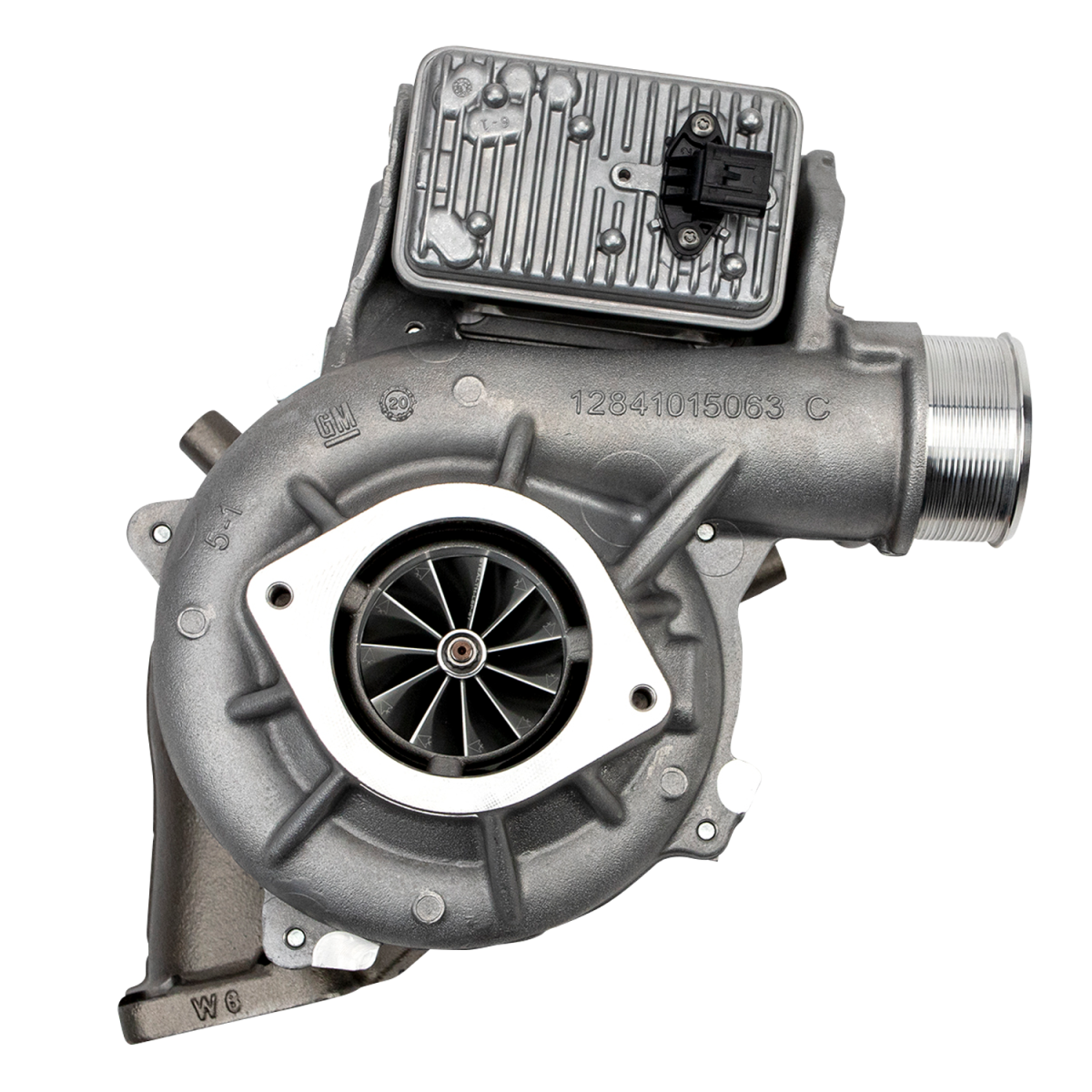

The Stealth Mach 2 67 VGT Turbo is an upgraded stock-appearing direct replacement turbocharger for 2017-2023 Chevrolet Silverado and GMC Sierra HD trucks with the 6.6L L5P Duramax diesel engine. Also compatible with 2019+ L5D applications, this turbo is built for quick spool-up, EGT control under heavy load, turbine braking during towing, and serious power potential.

With Calibrated Power Solutions' proprietary HFV High Flow Vane technology, an oversized turbine wheel, and a custom billet compressor wheel, the Stealth Mach 2 67 supports up to 650 RWHP with emissions compliant tuning and basic supporting modifications, with 800+ RWHP verified in competition applications with extensive supporting mods.

Part Number: CPS200362

Supersedes: DM1JK1070303010, DM1MO1070303010, DM1JK1070303000, DM1MO1070303000

• Airflow to support 800HP
• Up to 650 RWHP with emissions compliant tuning and basic supporting modifications
• HFV High Flow Vane technology with custom vane and nozzle ring assembly
• Taller and wider vanes match the larger turbine for superior high-load efficiency
• Retains factory exhaust brake function and improves throttle response
• Custom 67mm 11-blade billet compressor wheel
• Wide efficiency range
• Provides 81 lbs/min mass airflow compared to 60 lbs/min stock
• Oversized custom 9-blade turbine wheel
• Low drive pressure at high load for better EGT control

• No core charge
• Actuator sold separately
• Custom tuning is strongly recommended for this turbocharger upgrade
• The factory L5P actuator has a low failure rate and can usually be retained unless actuator-related codes or known actuator damage are present
• Higher power levels require proper supporting modifications

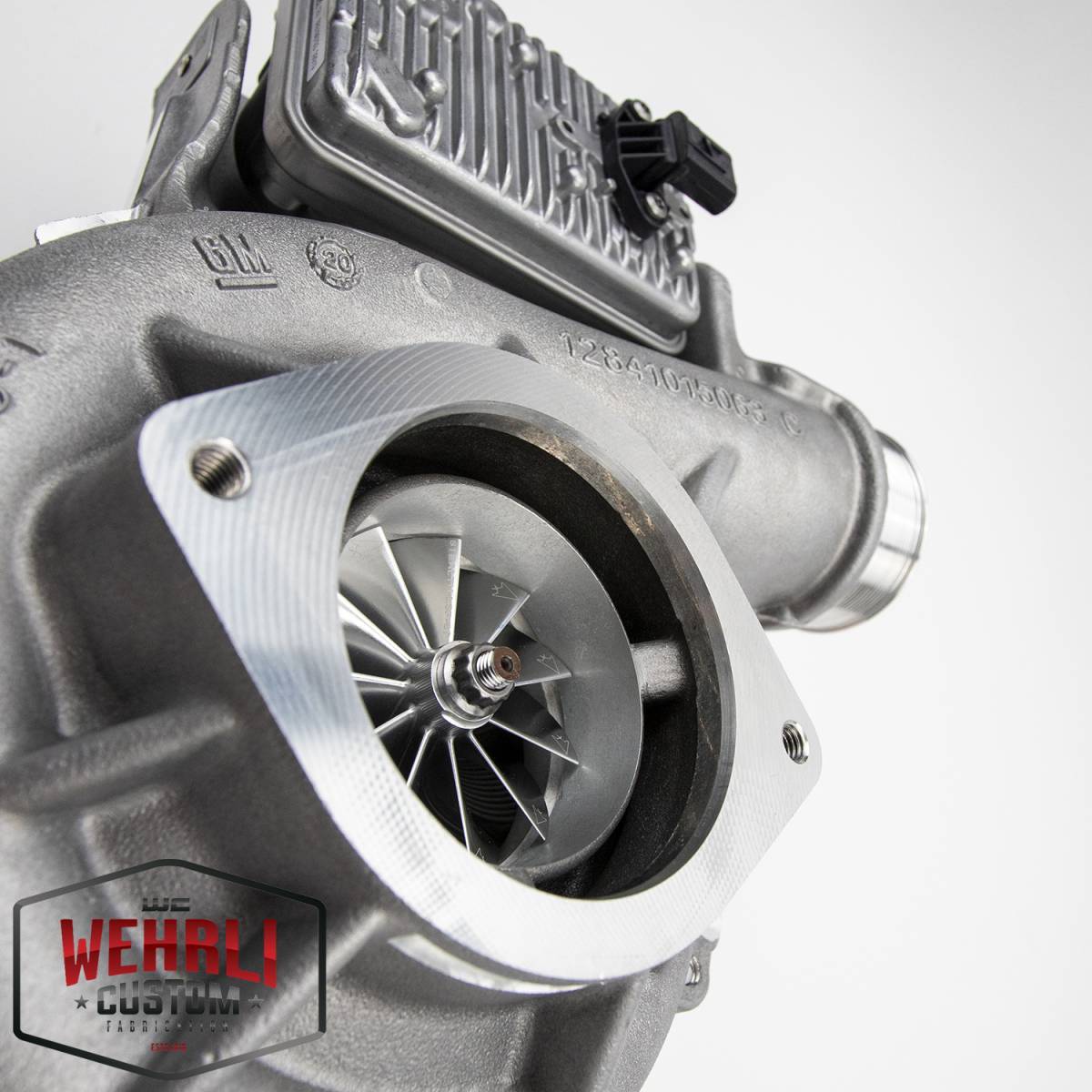

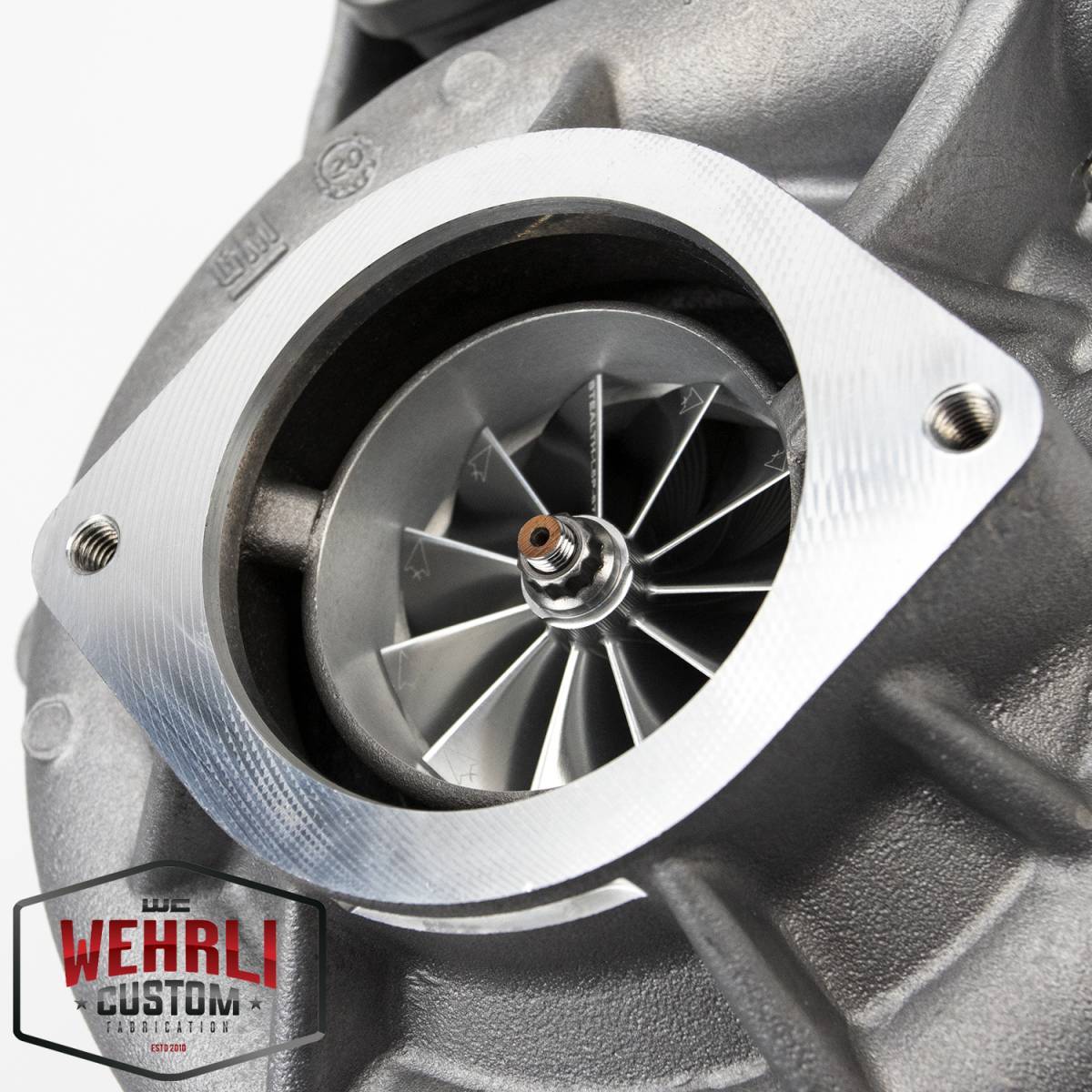

Billet Compressor Wheel

• 67mm 11-blade compressor wheel is lightweight and high strength
• Wide efficiency range allows towing without risk of surge
• Provides 81 lbs/min mass airflow compared to 60 lbs/min stock
• Supports strong top-end power while retaining street manners

Oversized Turbine Wheel

• Custom 9-blade turbine wheel produces a distinctive throaty exhaust sound
• Lowers drive pressure under heavy load
• Helps achieve nearly a 1:1 drive-to-boost ratio under most operating conditions
• Improves EGT control and supports increased power

HFV High Flow Vane Technology

• Proprietary custom nozzle ring assembly with vane cage and vanes
• Creates a fast-spooling and high-flowing drop-in variable geometry turbocharger setup
• Helps produce more power, quicker spool-up, and better EGT control than factory nozzle rings
• Improves performance across a wide operating range

• One Year Limited
