2017-2022 Powerstroke XB Evo+ Fog Lights (LF09X)
Purchase to earn 323 Dirty Dollars Learn More
Description
Description

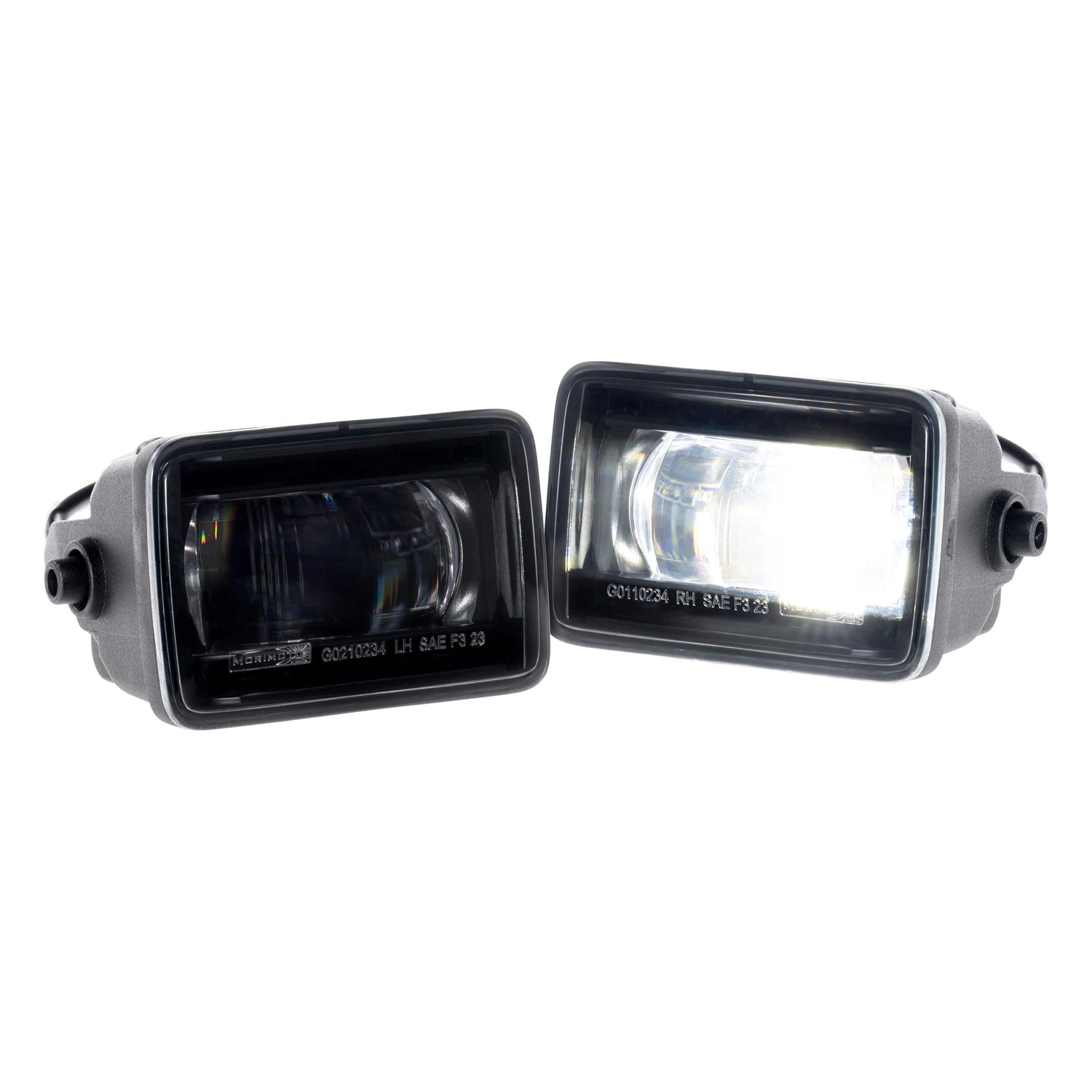

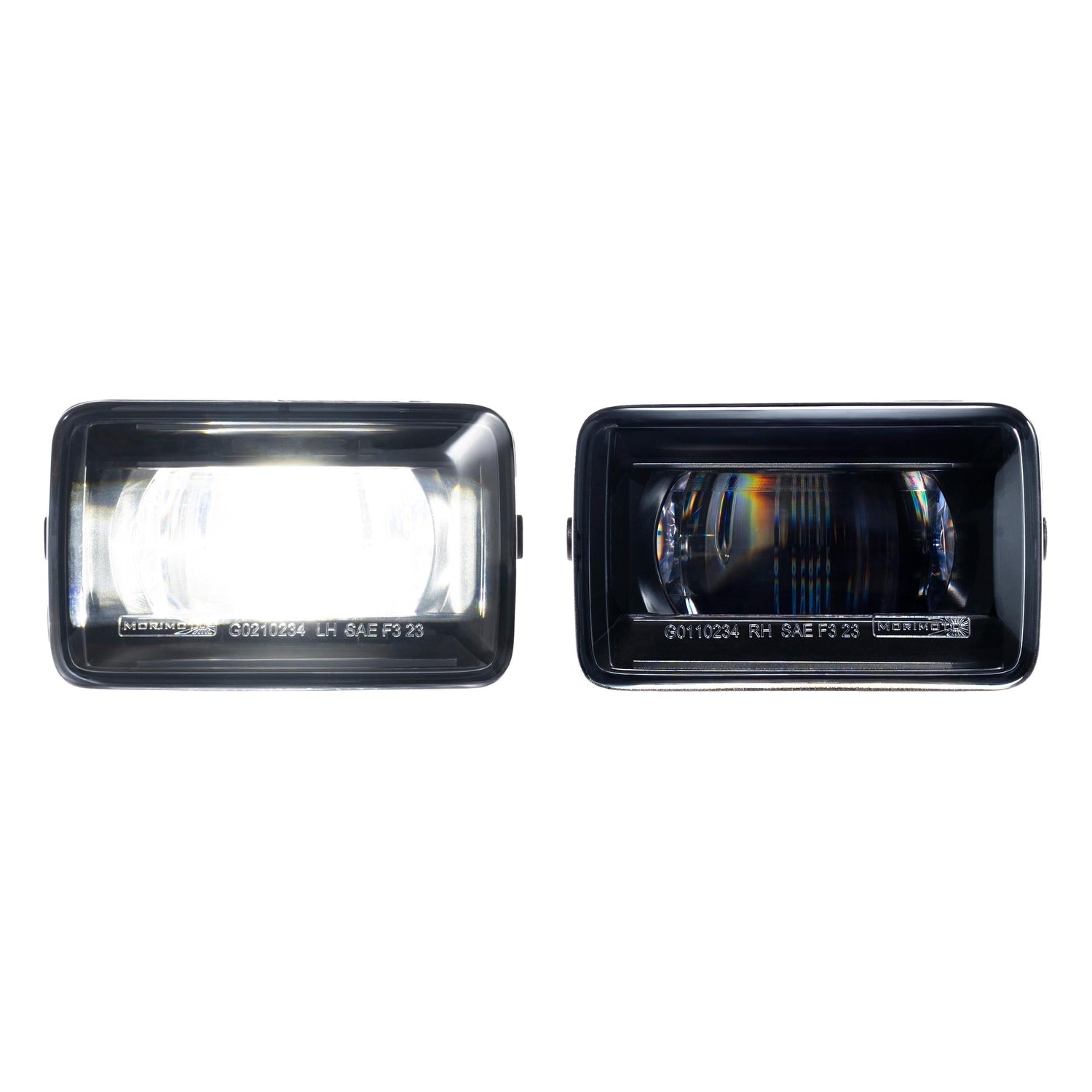

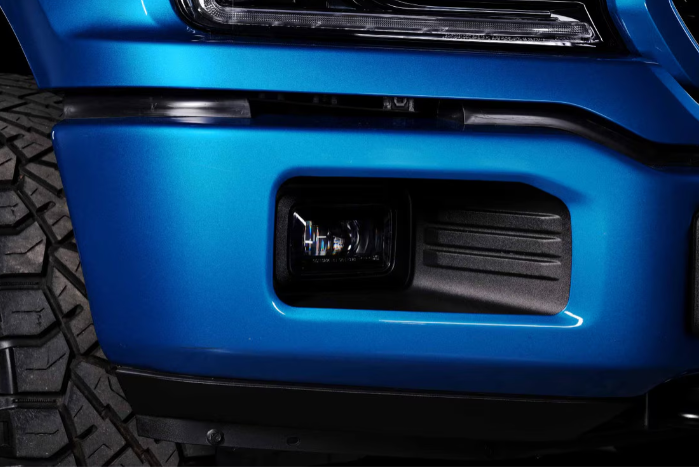

The XB Evo+ is a direct bolt-in LED fog light upgrade for Super Duty trucks that left the factory with halogen fogs. You get a wide, flat beam that lights up the ditches and shoulders without throwing glare at oncoming traffic, and the housings are built to OE dimensions so they drop right into the factory mounts. Both versions are SAE J583 F3 and ECE R19 compliant for street use.

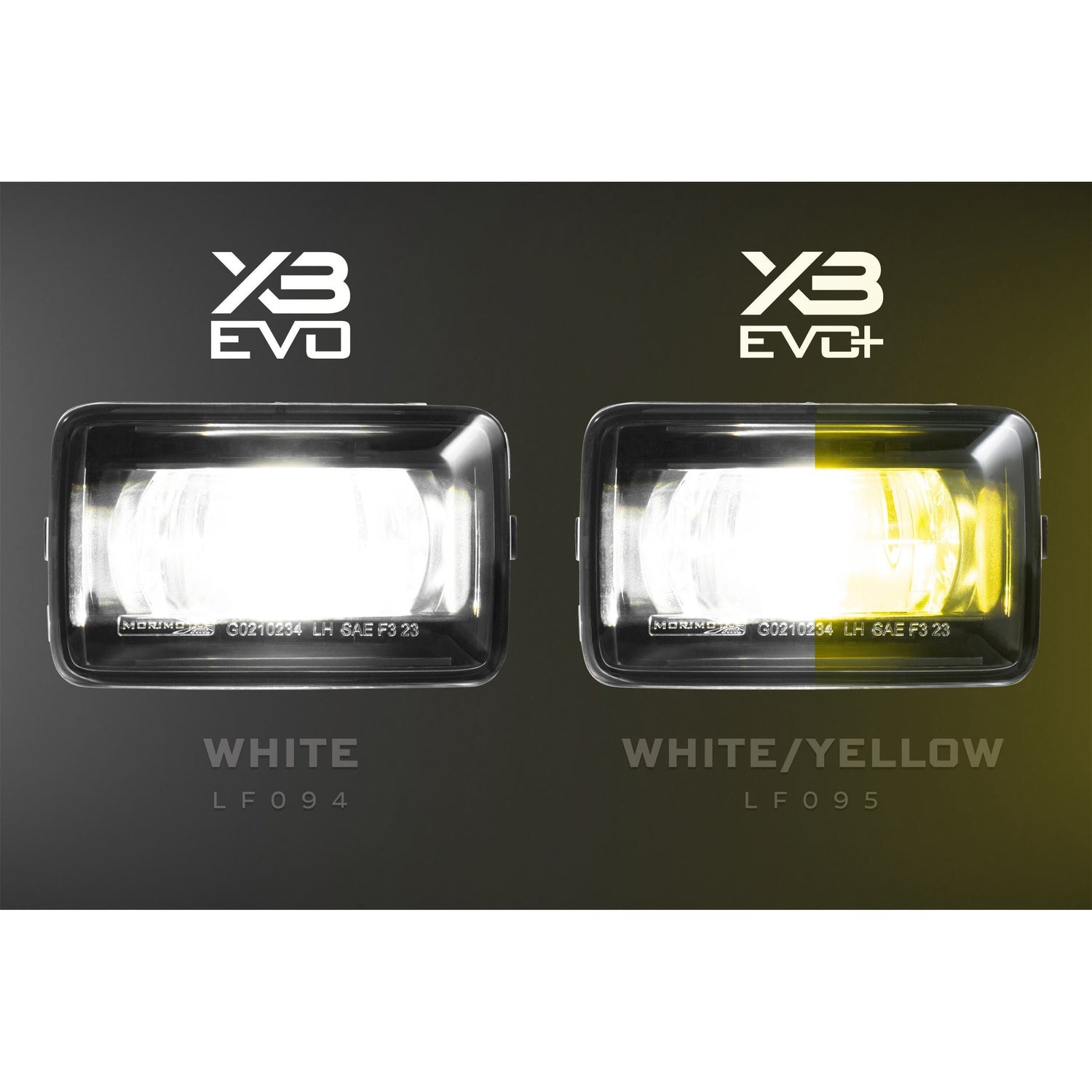

Part Numbers: LF094 (White), LF095.2 (White/Yellow)
Superseded Part Number: LF095
Features
Features
- Sold as a pair

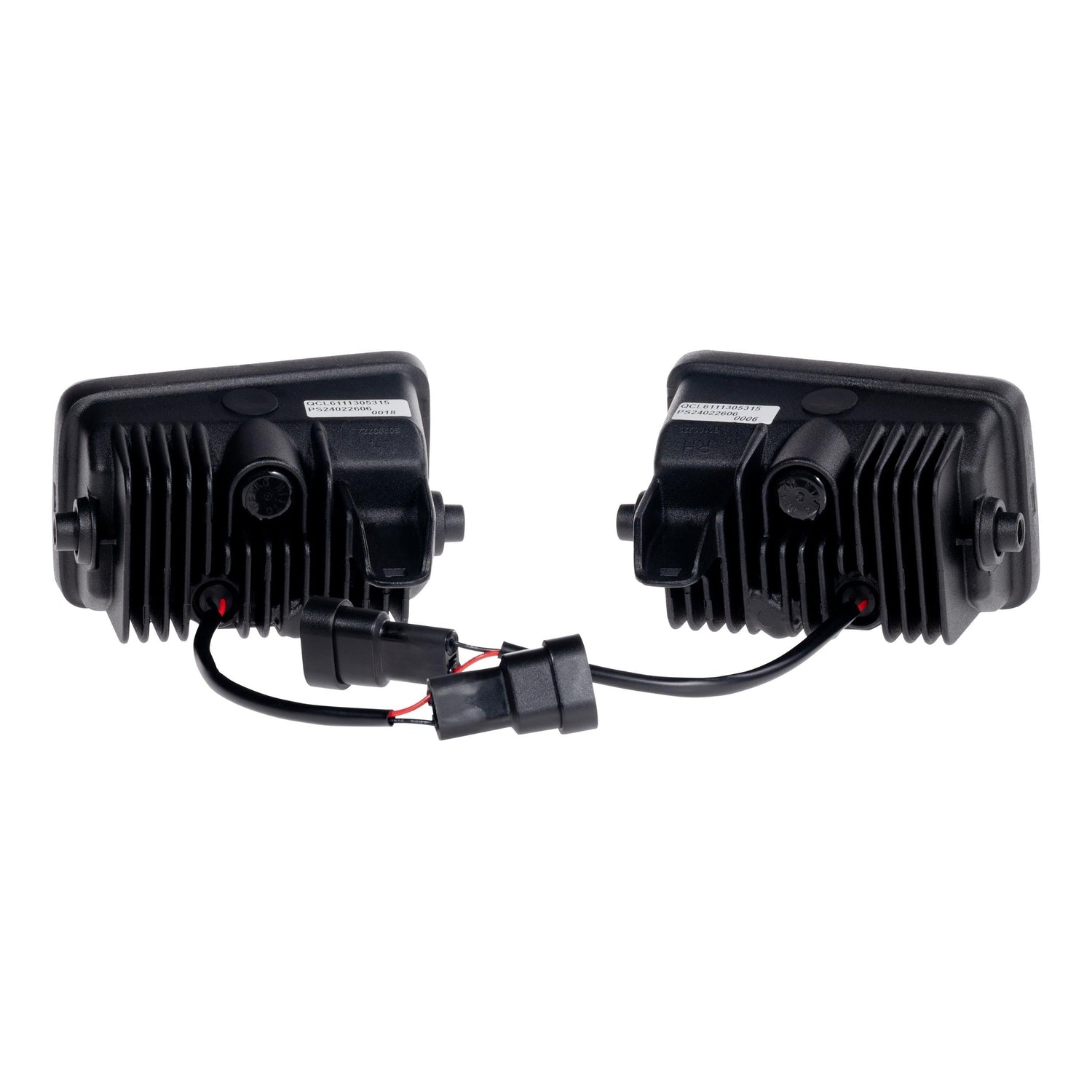

- Plugs into 9005/9006/H10 connectors
- White: Osram Oslon Compact PL LED chips, up to 1,500 lumens
- Yellow: Nichia NCSY131 LED chips, up to 1,250 lumens

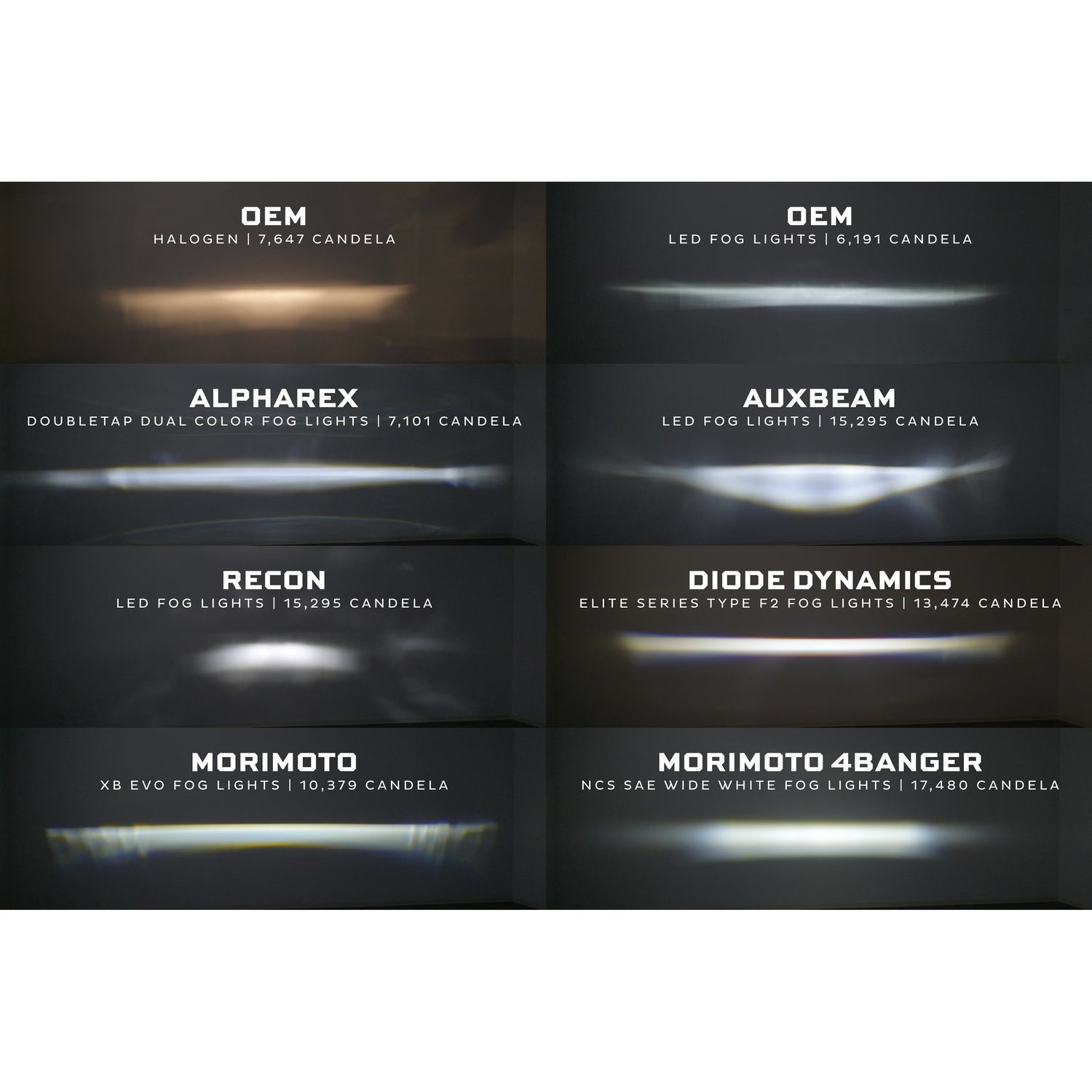

- Intensity: 8,500 cd (white), 7,000 cd (yellow)
- 20.5W power draw
- Ishida SAE wide fog optic
- Horizontal beam spread of 106 degrees (53L to 53R)
- Vertical beam of 6.3 degrees (1D to 7.3D)
- Die cast aluminum housing with UV-resistant polycarbonate lens
- Proprietary hardened anti-UV protection
- Integrated aiming adjusters for setting beam height

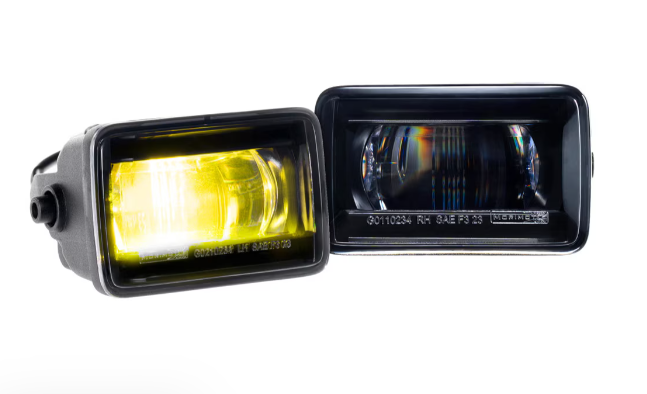

Switching Colors (LF095.2 White/Yellow Only)
Switching Colors (LF095.2 White/Yellow Only)

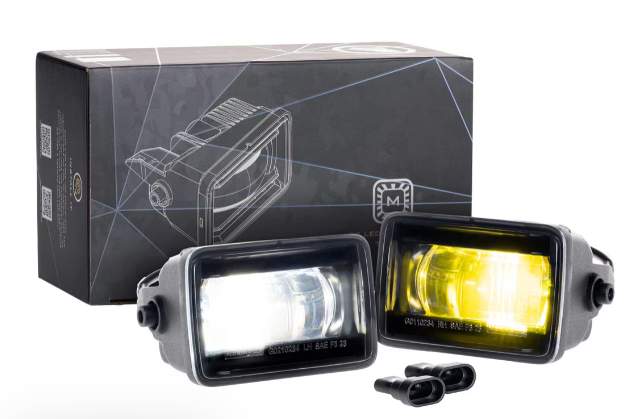

The LF095.2 runs either white or yellow, and you pick the color with a plug-in key. Each light ships with the factory key installed in the back of the housing, which gives you white output. Pull that key and plug in the key with the yellow loop to switch the light to yellow. Swap back any time you want white again.
Watch the color swap at 1:12 in the video below.

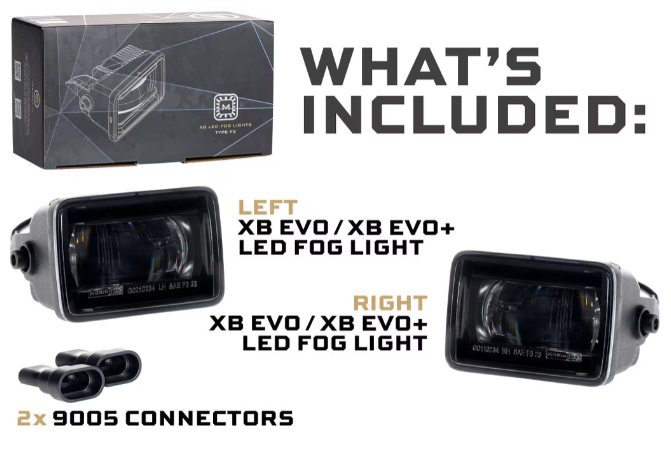

Includes
Includes
- 2x XB Evo or XB Evo+ fog lights (one pair)
- 2x 9005/9006/H10 connectors
- 2x yellow output keys (LF095.2 only)
Notes
Notes
- 2020-2022 Super Duty: fits trucks without factory LED fog lights only.
- Replaces Ford part numbers: FL3Z15201B, FL3Z15200B
Warranty
Warranty
Ten (10) Year Limited Warranty
