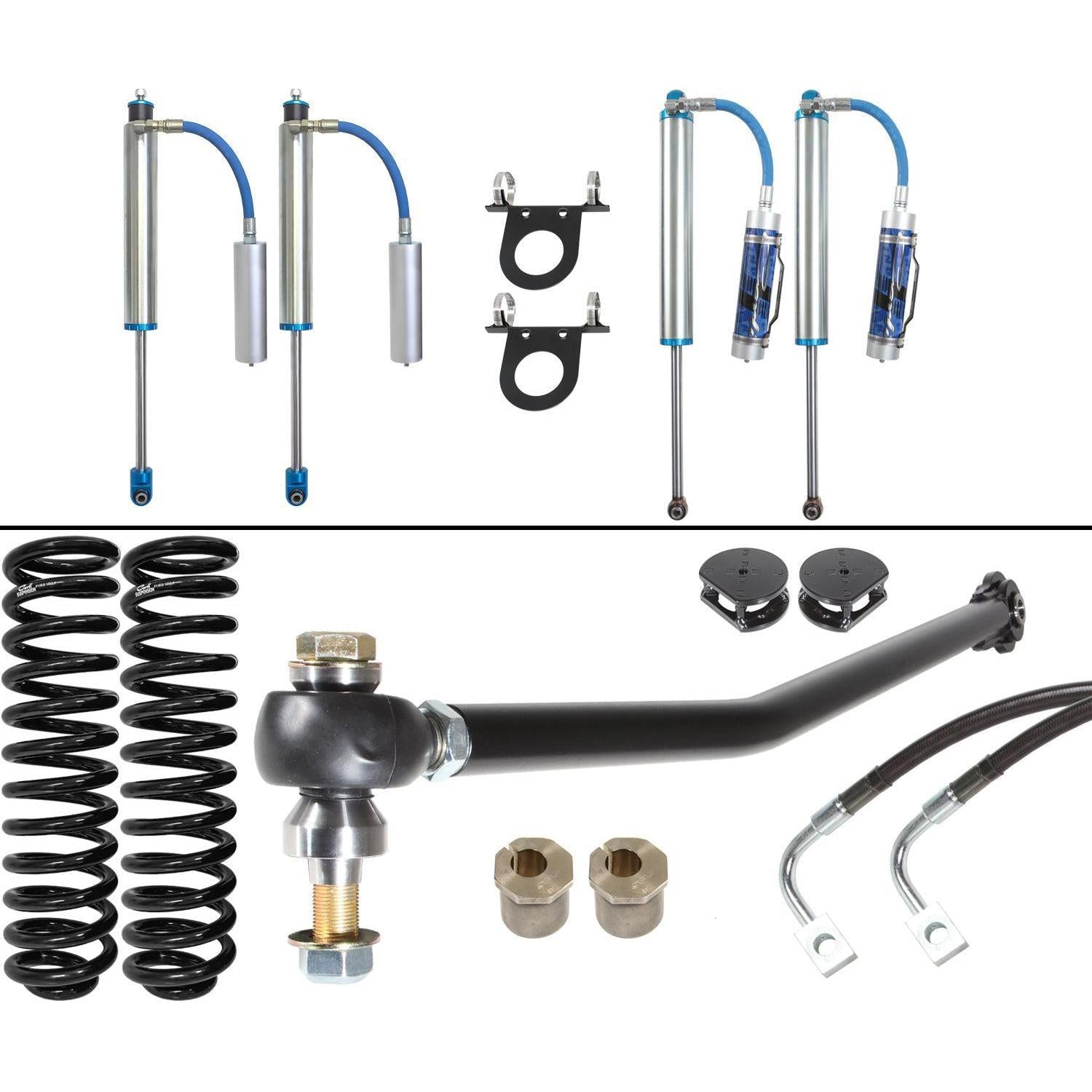

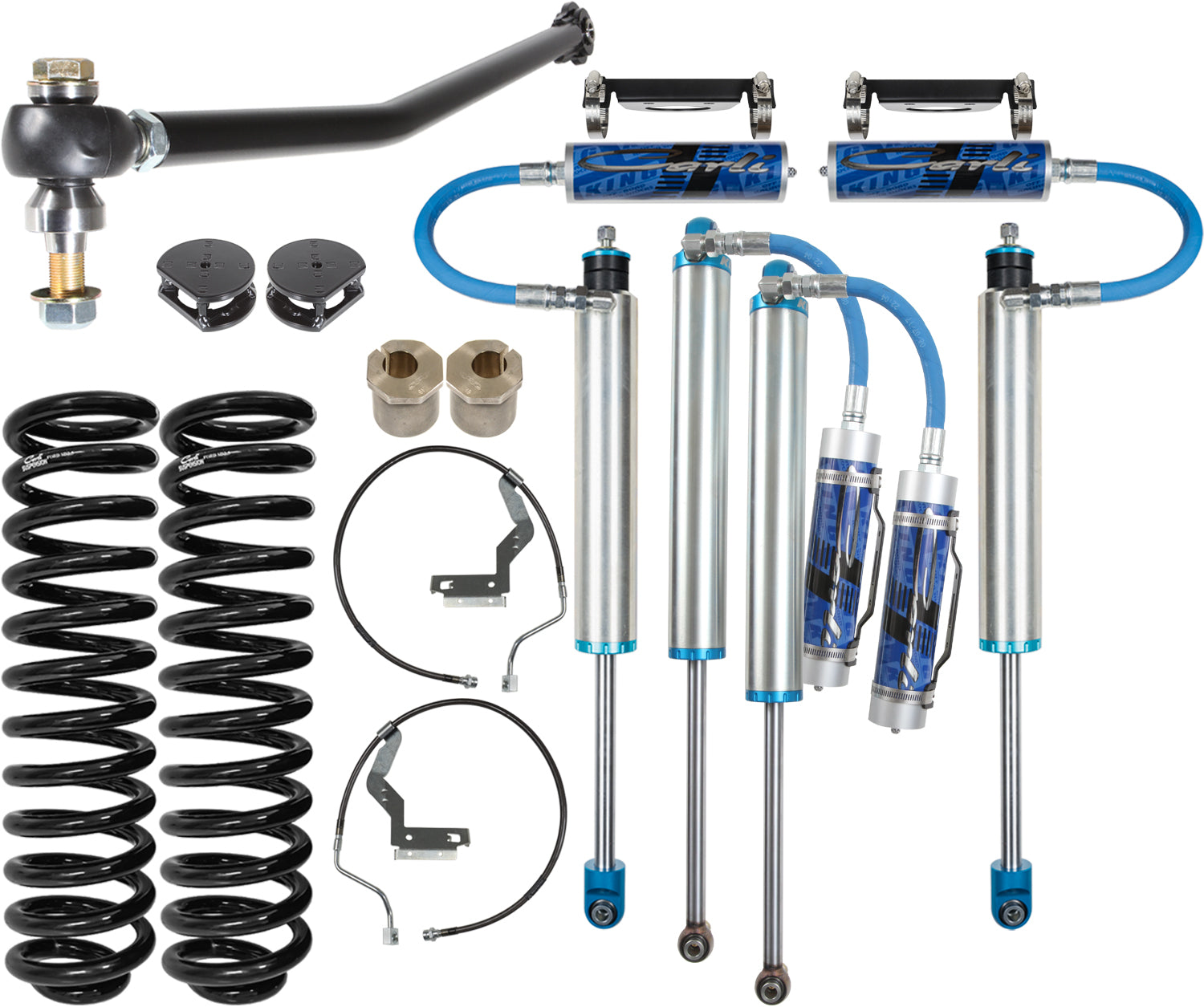

2017-2022 Powerstroke Pintop 2.5-3.5" Lift Kit (CS-FLVL-PT25-17)

Carli Suspension
$6,560.64 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These Pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, resulting in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Sway Bar Options

Required

This System has been optimized for use with the Torsion Sway Bar (CS-FTSB-LVL-17). Selecting anything other than this option will result in non-optimal operation of the system. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck

Rear Leaf Spring Options

Required

This System has been optimized for use with the Full Progressive Leaf Springs. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package).

Leaf Spring Shackle

Optional

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Radius Arms

Optional

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Steering Stabilizer - High mount

Optional

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Trophy Hitch

Optional

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Subtotal

Purchase to earn 6560  Dirty Dollars Learn More

Description

Fits

Year Make Model
2017 - 2022 Ford F-250 Super Duty
2017 - 2022 Ford F-350 Super Duty

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These Pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, resulting in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-FLVL-PT25-17

Features
  • Front and rear shock packages, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Increases wheel travel to 9" front and 13" rear
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
