2017-2022 Powerstroke E-Venture 2.5-3.5” Lift Kit (CS-FLVL-EV25-17)

Fits

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled, which read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-FLVL-EV25-17

• Select from Mountain, Street, and Desert modes to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button.
• Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response. Don’t worry, if your curiosity gets ahead of you or you failed to track your changes, we’ve implemented a “Restore Default” setting
• Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support

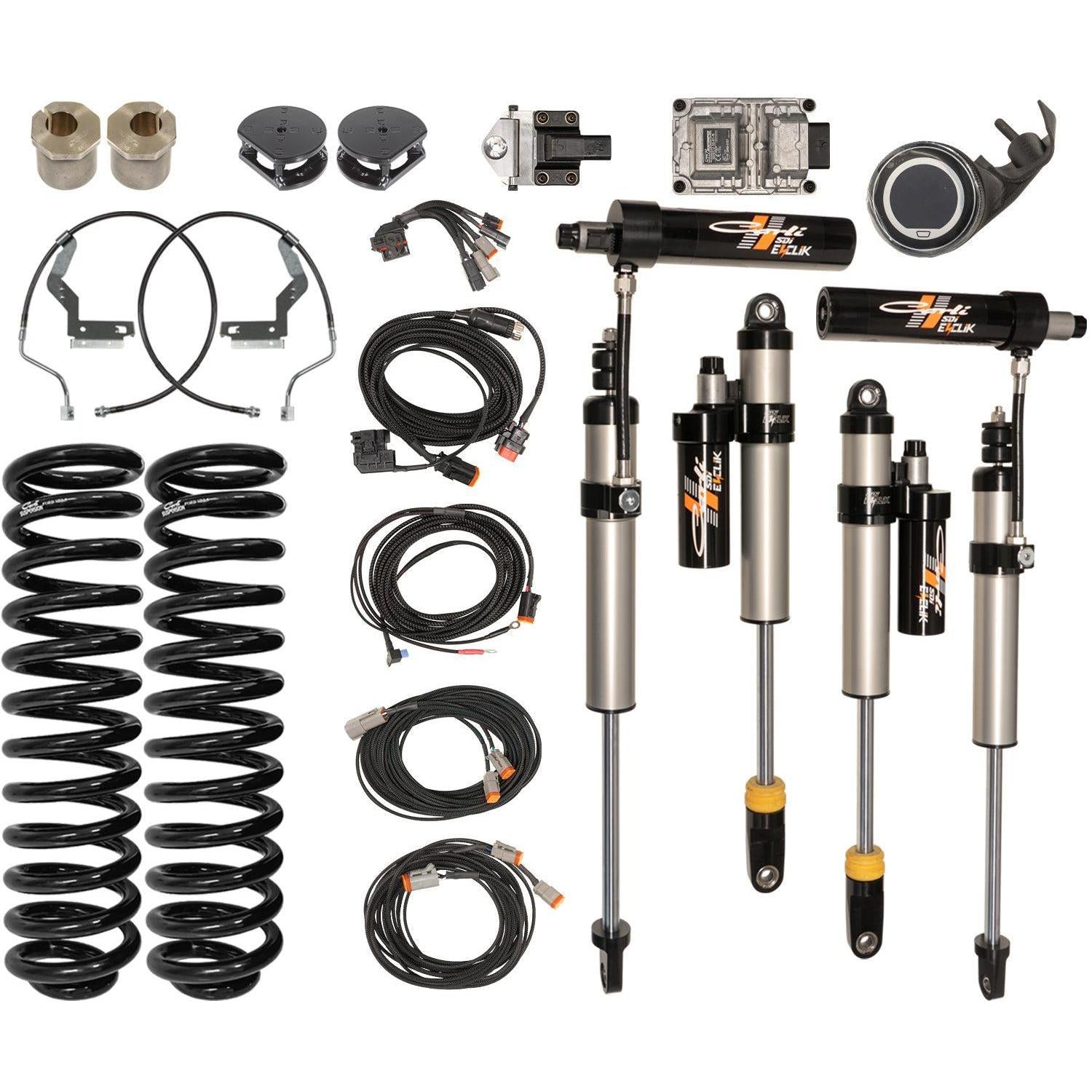

• Front and rear shock packages, linear rate coil springs, brake line kits, bump stop drops, caster correction shims, and adjustable track bars
• Increases wheel travel to 9" front and 13" rear

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
  • Radius Arms: CS-FARA-45-05
  • Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-05
  • Carrier Bearing Drop: CS-CARRIERDROP-F
  • Trophy Hitch: CS-FHITCH-1723

• Kit requires Carli sway bar drop brackets, Carli long bed extension harness, and Carli progressive leaf springs. These components are sold separately
• Expect 1.5″ lift on 2020+ F250/350 Tremor applications
