2017-2022 Powerstroke Backcountry 2.5-3.5" Lift Kit (CS-FLVL-BC-CS-17)

Carli Suspension
Regular price $4,272.48 CAD

Notices

This item may have additional freight costs. Learn More

Ships from

  • Canada
    1 available
  • United States Usually ships in 2 to 4 weeks · Import fees covered
    10+ available

Build Your Kit

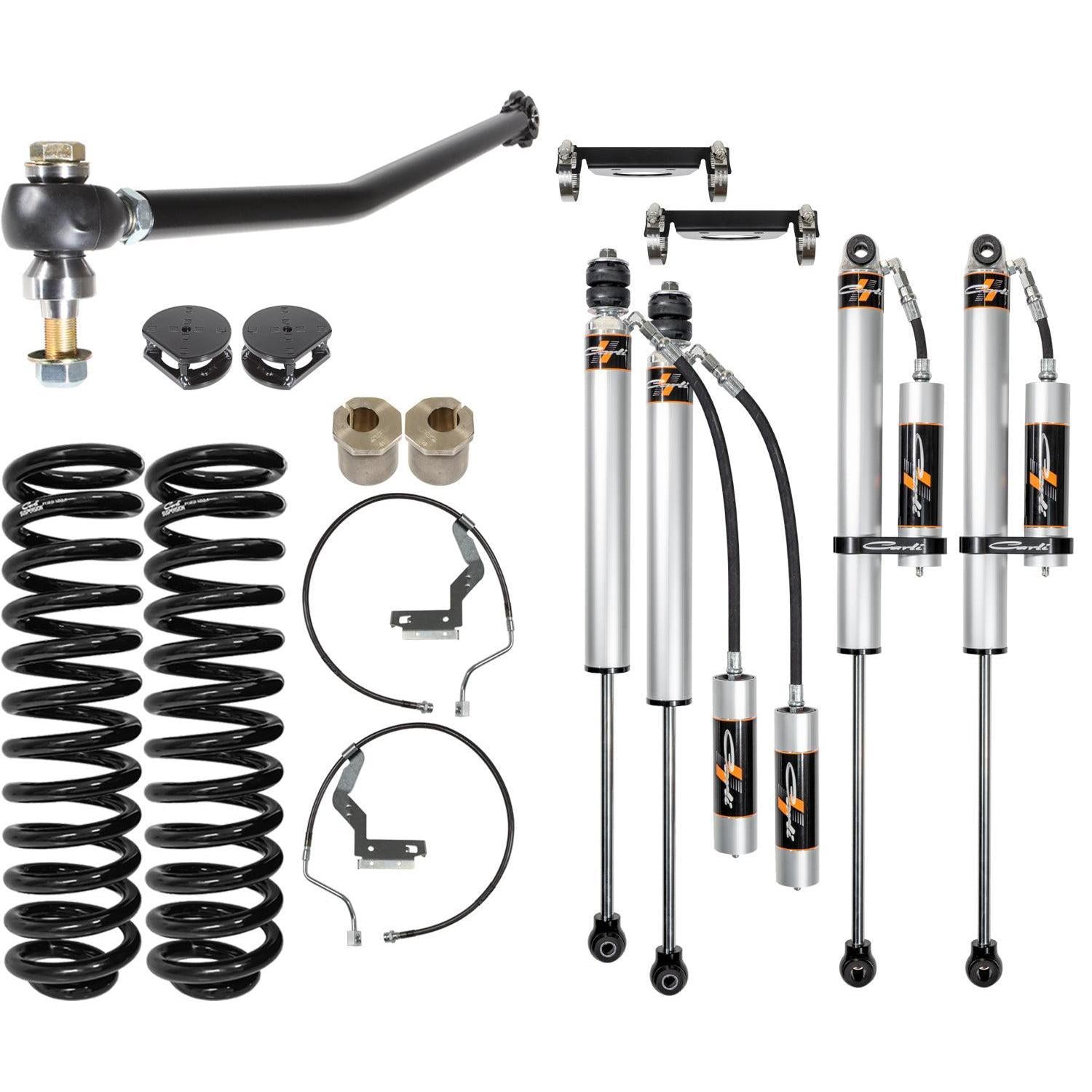

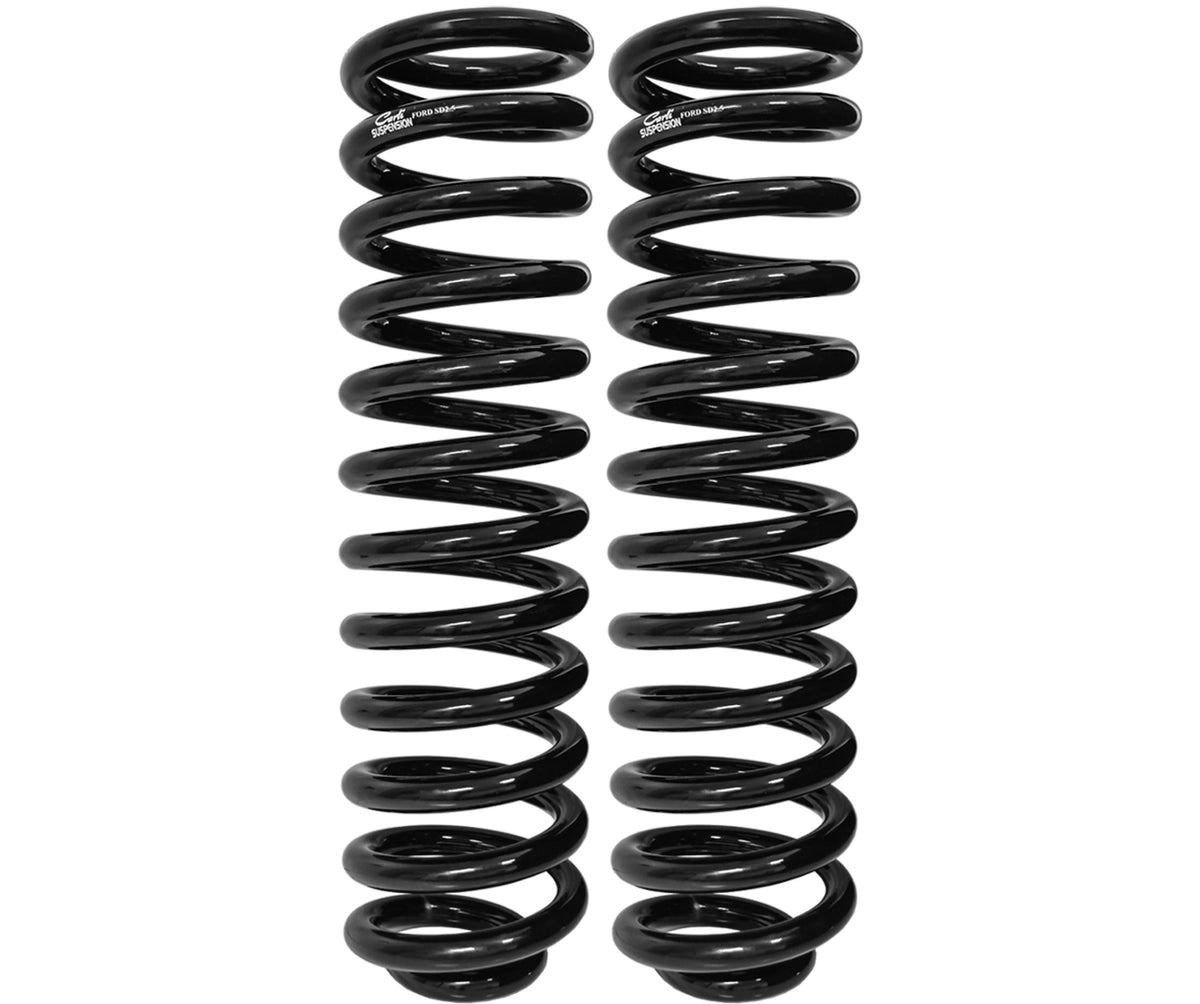

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Front Linear-Rate Coil Springs are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Step 1 of 7 · Optional

Sway Bar Options

Needed to complete this build. Skip only if your truck already has one installed. This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Sway Bar Options

Step 2 of 7 · Optional

Leaf Spring Options

Needed to complete this build. Skip only if your truck already has one installed. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package)

Leaf Spring Options

Step 3 of 7 · Optional

Leaf Spring Shackle

The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Leaf Spring Shackle

Step 4 of 7 · Optional

Radius Arms

Icing on the cake, these arms add Additional Tire Clearance, Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Constructions, Serviceable 17-4 Stainless Spherical Bearings and Adjustable Caster Correction up to 3.5° over stock specs to leave Death-Wobble in the rear-view.

Radius Arms

Step 5 of 7 · Optional

Steering Stabilizer - High mount

Bolt in replacement for the factory stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains.

Steering Stabilizer - High mount

Step 6 of 7 · Optional

Low Mount Steering Stabilizer

Bolt in steering stabilizer which compliments a Carli, or factory, high mount stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers.

Low Mount Steering Stabilizer

Step 7 of 7 · Optional

Trophy Hitch

Get your over-sized spare out of your bed - crank it into the factory location and secure it with our 3-way tie-down with the Carli Trophy hitch. Boasting 16,000lbs. of capacity via the 3" hitch receiver, direct bolt in installation, and up to a 38" spare tire in the factory location!

Trophy Hitch
Your Build
2017-2022 Powerstroke Backcountry 2.5-3.5" Lift Kit (CS-FLVL-BC-CS-17)
$4,272.48

Purchase to earn 4272  Dirty Dollars Learn More

Description

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8″ hardened steel chrome plated shaft, and 6061 billet rod ends. Front Linear-Rate Coil Springs are tighter when cornering and react consistently throughout any compression range, making them more responsive and predictable.

Part Number: CS-FLVL-BC-CS-17

Features

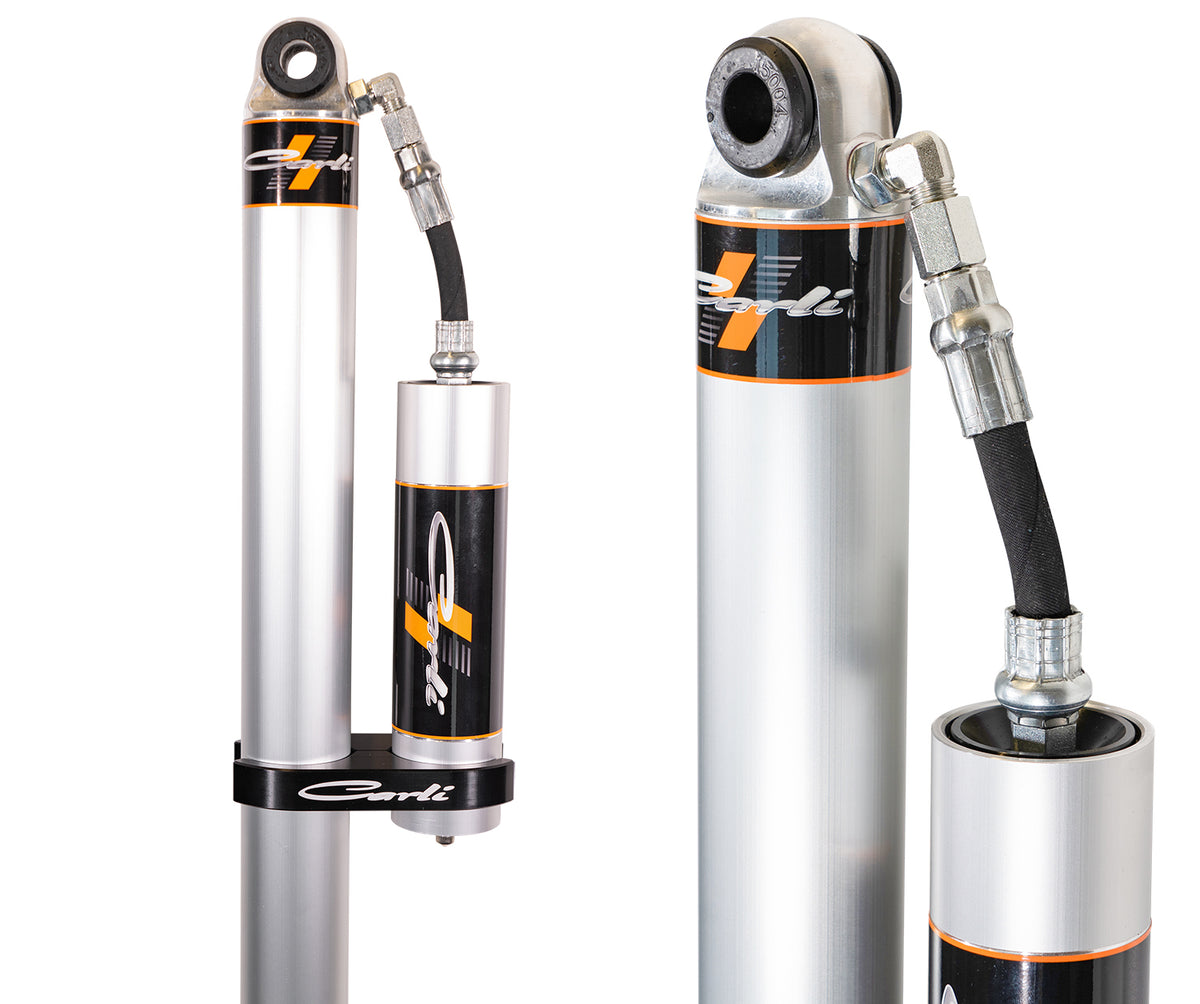

  • Carli-Tuned remote reservoir 2.0 shocks, which provide a more comfortable on-road feel and better off-road performance
  • Corrosion-resistant aluminum bodies provide a long-lasting finish

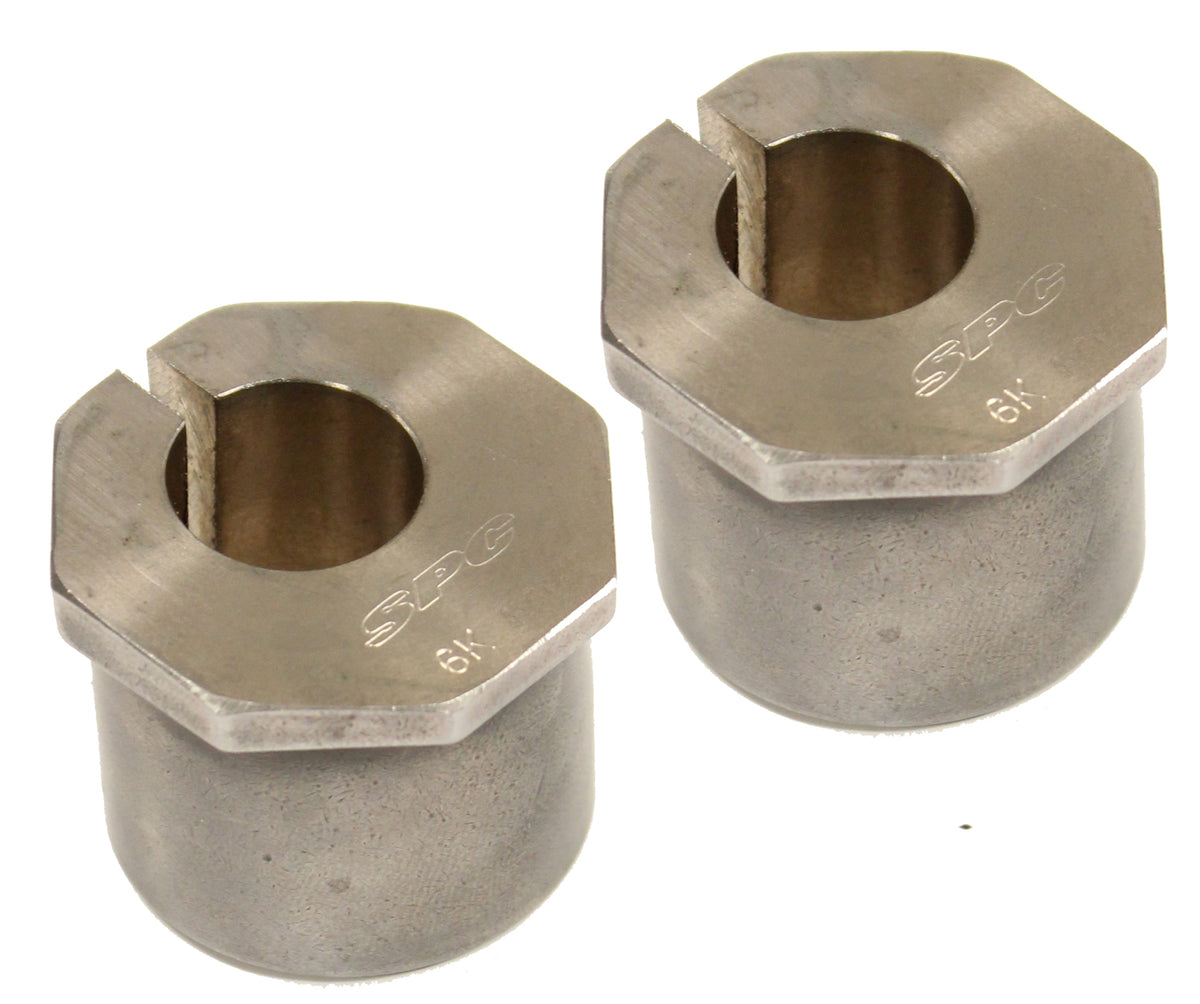

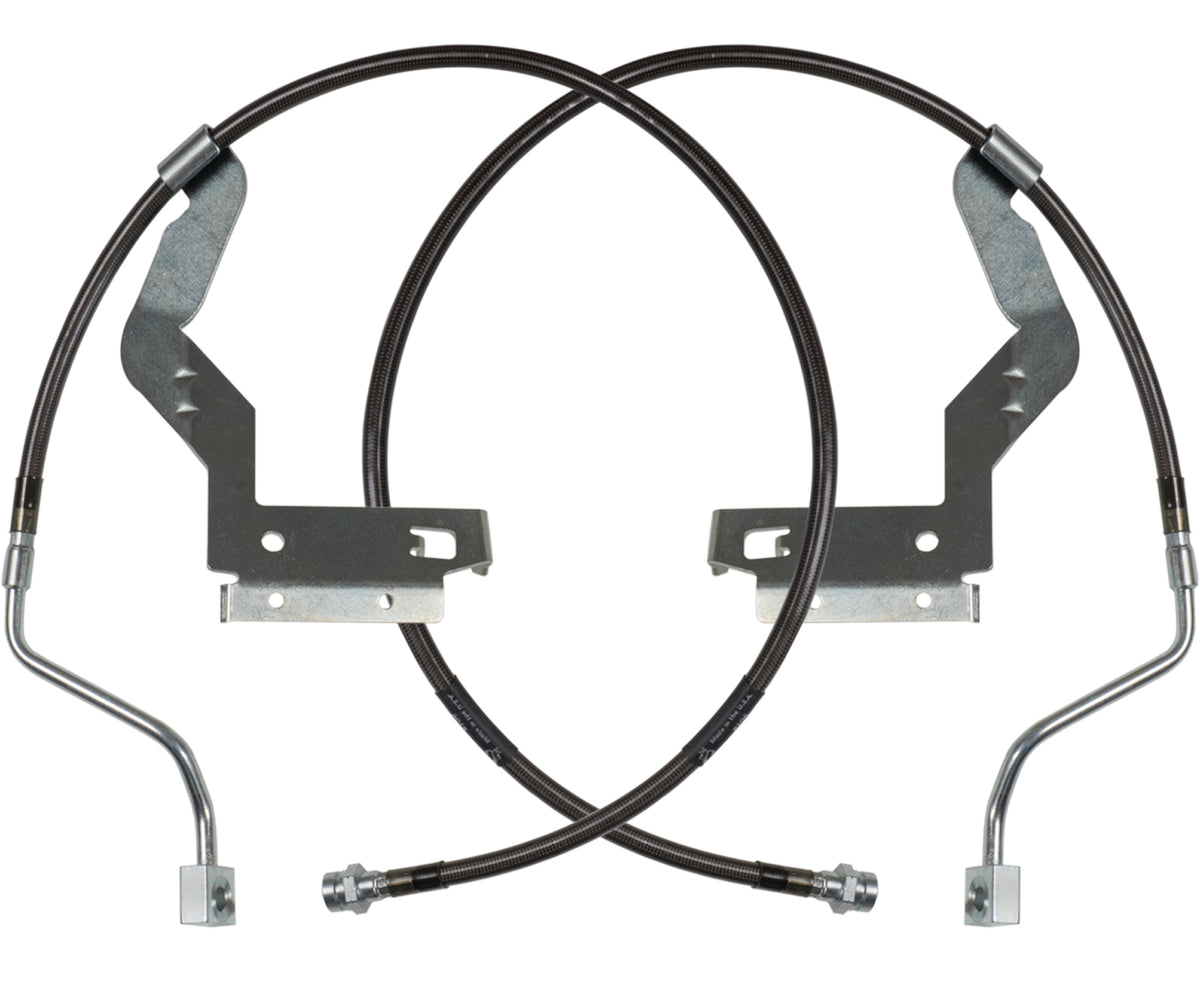

  • Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
  • Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance.
  • Increases wheel travel to 9" front and 13.8" rear
