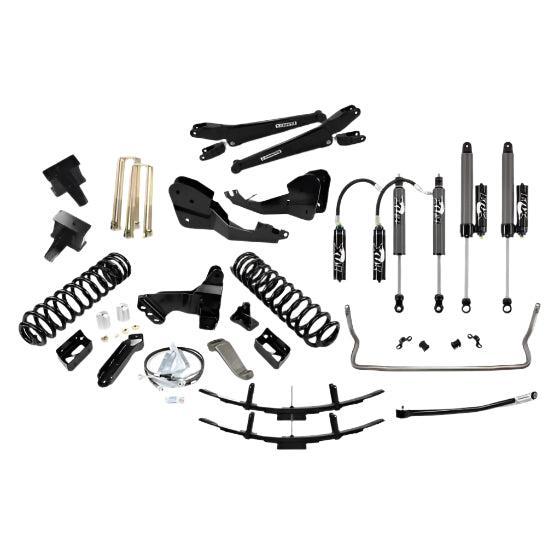

2017-2022 Powerstroke 8-9" Elite Lift Kit W/ Fox Factory Race 2.5 DSC Reservoir Shocks (220-P1173)

Elevate your Powerstroke with this all-inclusive 8-9" Elite Lift Kit W/ Fox Factory Race 2.5 DSC Reservoir Shocks!

Cognito's engineered front lift components don't just lift your truck—they actually fix steering and suspension geometry while delivering ridiculously smooth rides. Get everything you need for a perfect 6" front lift on 2017-2019 models or 7"  front lift on 2020-2022 trucks, creating that head-turning level stance from bumper to tailgate.

HD adjustable bar length with 1.25" Heim joint at the chassis end, 1" Uniball at axle end, and 1.5" x .25" DOM tubing. Features easy length adjustment after installation and semi-gloss black powder coat finish.

Fox Factory Race 2.5 Reservoir smooth body shocks bring race-tested performance to your everyday adventures! Born from extreme off-road competition, these performers deliver superior ride quality and control in any terrain.

Deaver mini packs swap your factory bottom overload spring for a progressive design. Adjust ride height by .25",  .59 inch, .93 inch, or 1.27 by removing any number of 3 spacer blocks.

HD front sway bar reduces body roll for better control and traction. Measuring 1.5" in diameter, it is made from heat-treated 4140 chromoly steel with larger clamps and polyurethane bushings included.

Part Number: 220-P1173

• Yields 8" front lift & a 5-1/2" rear lift for 2017-2019 Trucks & 2020-2022 Tremor Truck models.
• Yields 9" front lift & a 6-1/2" rear lift for 2020-2022 Trucks
• Fox Factory Race Series 2.5 DSC Reservoir front & rear shocks
• SM Series caster adjustable radius arms
• HD adjustable track bar
• Deaver Mini packs
• HD front swaybar
• Levels vehicle stance front to rear

• Made in the USA

• 14-hour DIY install time
• Click Here 7024
• Click Here 7153
• Click Here 7196
• Click Here 7400
• Click Here 7401
• Click Here 8137

• Allows for up to a 38 x 13.5 Tire on a 10" Wide Wheel with 4.75" Backspacing

Parts Only

• Limited Lifetime Warranty - Cognito branded products
