2017-2021 3.5L EcoBoost GT2260S Stage 2 Turbocharger Kit (911984-5003S)

Fits

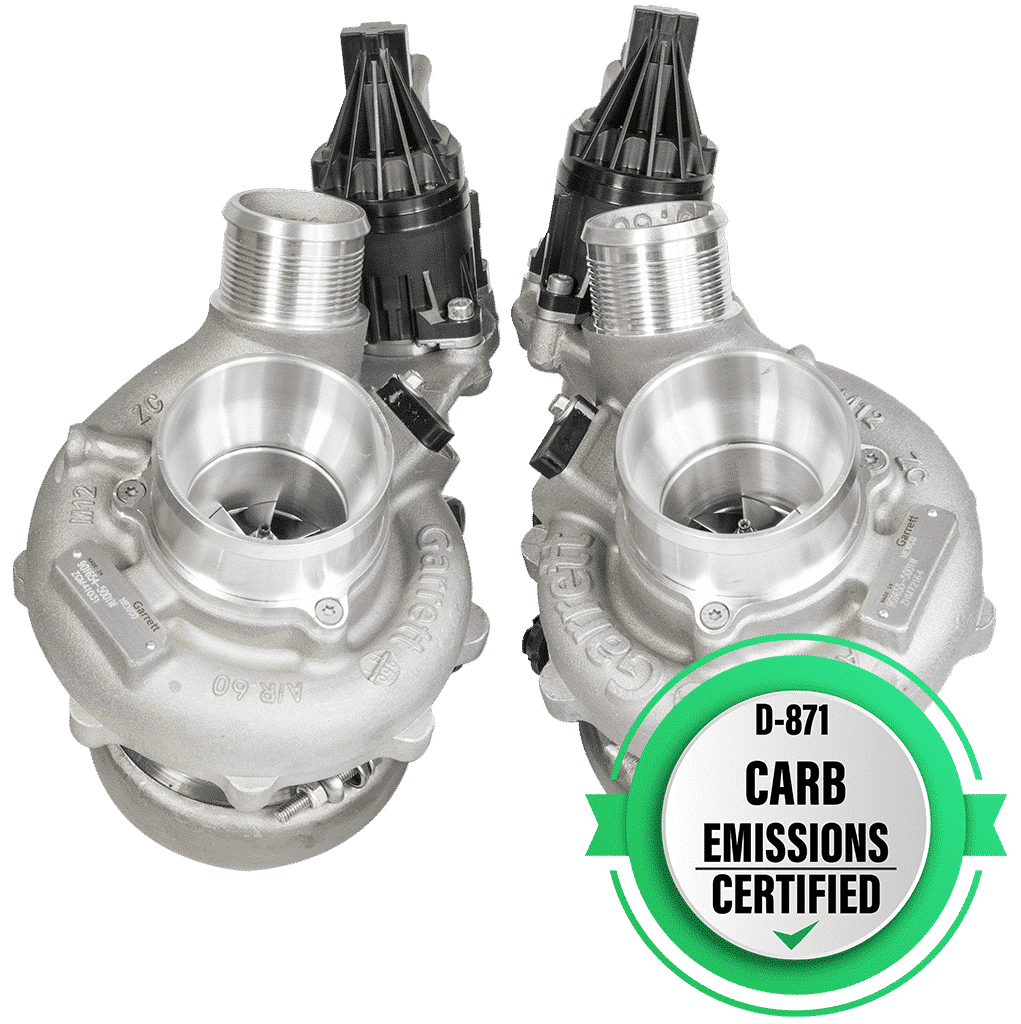

The Garrett 911984-5003S PowerMax Stage 2 kit is a serious performance upgrade for the 2017–2021 Ford 3.5L EcoBoost. Designed as a direct bolt-on replacement for the factory turbos, this kit delivers the airflow and response needed to take your build to the next level. Featuring twin GT2260S turbochargers with larger, fully-machined billet compressor wheels and advanced turbine aerodynamics, this setup provides more airflow and quicker spool-up compared to stock. With proper calibration, the Stage 2 kit is capable of supporting up to 800 flywheel horsepower.

Part Number: 911984-5003S

• Twin GT2260S turbocharger kit.
• Direct-fit, bolt-on upgrade.
• Larger billet compressor wheels for increased airflow.
• Advanced turbine aero for faster spool-up and reduced lag.
• Capable of supporting up to 800hp with supporting modifications.

Includes:

• (2) Garrett PowerMax Stage 2 Turbochargers
• (2) Electronic Wastegate Actuators
• (1) Installation Hardware Kit

• Custom tuning is required for optimal performance.
• A high-flow fuel system and other engine modifications are highly recommended for maximum performance gains.
• Professional installation is required.
• Compatible with both standard F-150 and high-output Raptor models.
