2017-2022 Powerstroke Diesel 6.5" Lift Kit w/ Bilstein 5100 Shocks & 2-Piece Dr Shaft (49-2763)

Fits

Another excellent lift kit option for Super Duty owners; this kit includes all the premium parts needed for maximum clearance, handling, performance, and an uncompromising ride on and off-road.

Part Number: 49-2763

• Up to 6.5"
• For 1-Piece Drive Shaft
• Ability to use factory radius arms
• Radius arm drop brackets correct caster
• Install up to 38" off-road tires

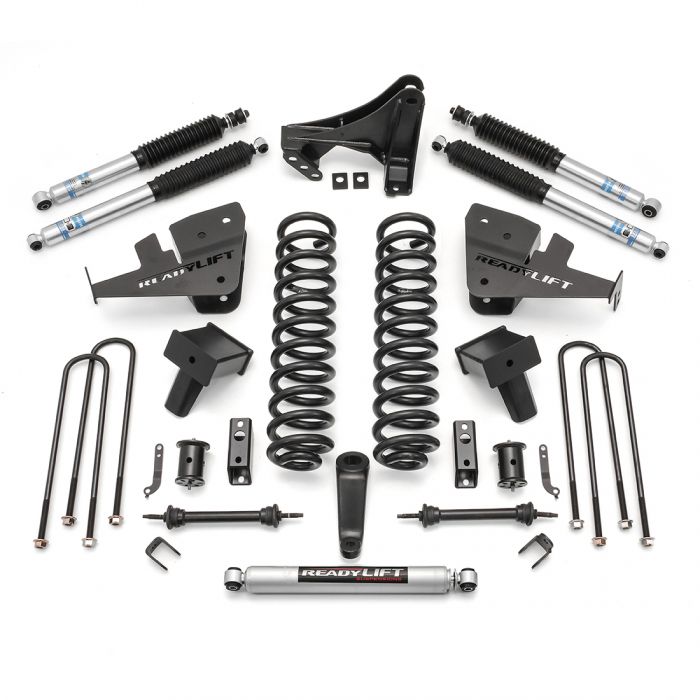

Includes:

• Two performance coil springs
• One drop pitman arm
• One OEM style cast-iron front track bar bracket
• Two radius arm drop brackets
• Two bump stop extensions
• Two extended length front sway bar end links
• Two OEM style cast iron rear lift blocks
• Longer u-bolts and hardware
• Four Bilstein 5100 Shocks
• Alignment cams

Tire Fitment:

• 38"- Max tire diameter
• 37" by 12.50" for no rub on a 9" wide wheel with 0 offset
• 38" by 13.50" on a 10" wide wheel with +12 offset
• 18" - 37" by 12.50"
• 20" - 37" by 12.50"
• 22" - 325/60R22

• Estimated Installation Time: 6 Hours +/- 1 Hour (not including alignment and wheel & tire assembly)
• 2 Piece drive shafts only
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs.

• Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. ReadyLIFT leveling kit, block kits, and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty. See the ReadyLIFT website for exceptions.
•  Warranty does not apply to discontinued, clearance, or outlet products.

• Wearable components including, but not limited to, shocks, ball joints, Heim joints, bushings, and steering extensions, are covered for up to 1-year.
• Free 5 Year/ 60,000 Mile Powertrain Warranty with qualifying suspensions.
