2017-2022 Powerstroke Diesel 6.5" Lift Kit w/ 1-Piece Driveshaft (49-2762)

Fits

Note: For 1-piece driveshaft ONLY

For those looking for that perfect mid-level lift kit without the hefty price tag, you've found it! ReadyLift's 6.5" Coil Spring Lift Kit. Engineered to be a direct bolt-on kit for easy installation. It features Radius Arm Drop Brackets to lower the mounting points of the radius arms, this helps to correct caster angle and improve vehicle geometry, especially for vehicles with a solid axle front suspension. Providing you with better handling and stability with increased camber control to minimize wheel hop and maintain proper alignment. Effectively increasing your truck's handling predictability and giving you that neck-breaking ground clearance that dominates any road or terrain with ease.

Part Number: 49-2762

• Improves articulation and control over any terrain

• Ability to use factory radius arms
• 100% bolt-on with no modifications required
• Radius arm drop brackets correct caster angle
• Install up to 38" off-road tires

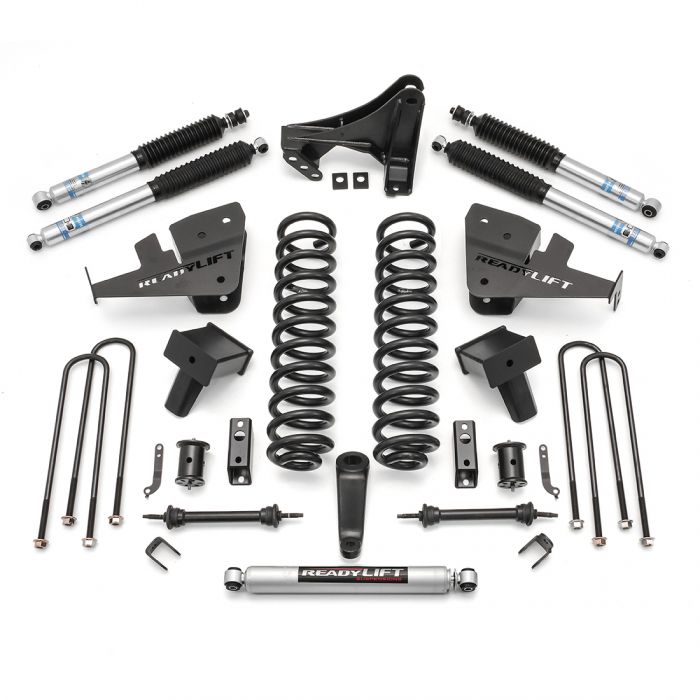

Includes:

• x2 performance coil springs
• Drop pitman arm
• OEM style cast-iron front track bar bracket
• x2 radius arm drop brackets
• x2 bump stop extensions
• x2 extended length front sway bar end links
• x2 OEM style cast iron rear lift blocks
• Longer u-bolts and hardware
• x4 Bilstein 5100 Shocks
• Alignment cams

Tire Fitment:

• 38"- Max tire diameter
• 37" by 12.50" for no rub on a 9" wide wheel with 0 offset
• 38" by 13.50" on a 10" wide wheel with +12 offset
• 18" - 37" by 12.50"
• 20" - 37" by 12.50"
• 22" - 325/60R22

• 1 Piece drive shafts only
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of airbag system will void all block warranties and can cause failure of the block bump stop tang


• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
