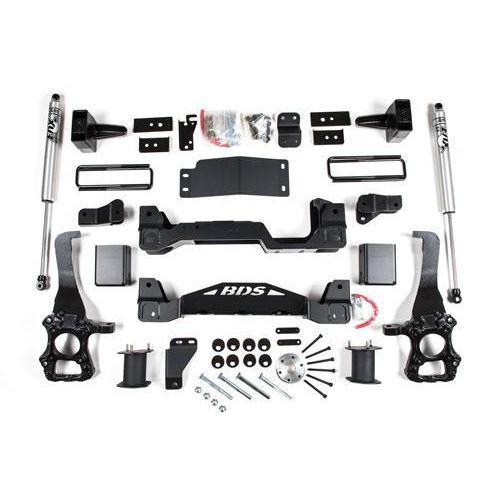

2015-2020 F-150 6" BDS Lift Kit (BDS1532H)

Fits

Take your F150 up a notch in strength, control, and stance with the BDS 6" lift kit! This Performance system brings together safety and capability with uncompromising on and off-road performance. All BDS kits have everything you need to properly lift or level your truck without the hassle of searching for the proper parts.

Part Number: BDS1532H

• One-piece laser cut 1/4" steel cross members
• Differential relocation brackets
• Sway bar relocation
• HD differential skid plate
• Bump stop extensions
• BDS NX² series shocks
• Upper strut mount spacers to retain the OE ride quality
• CNC-machined ductile iron steering knuckles
• cam bolts, & billet aluminum driveshaft spacer
• Clears 37's
• 5'' offset pin block kit
• Rear brake line extensions
• Works with your factory ESC system

Tire & Wheel Combinations:

• 37" x 12.50" w/ 18 x 9 and 5"
• 35" x 12.50" w/ 18 x 9 and 5"
• 37 x 12.50 w/ 20 x 9 and 5-5.5"

• 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
• 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405
• Kits manufactured after July 1st WILL WORK on Diesel Models.
• Requires frame bracket modification.
• This kit is FMVSS No.126 Compliant with The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS)


• Click Here For Installation Instructions
• Difficulty: 4 (where 1 = easiest and 5 = complicated)
