2017-2020 F-150 / Raptor Wheel Bearing Assembly (AX515188)

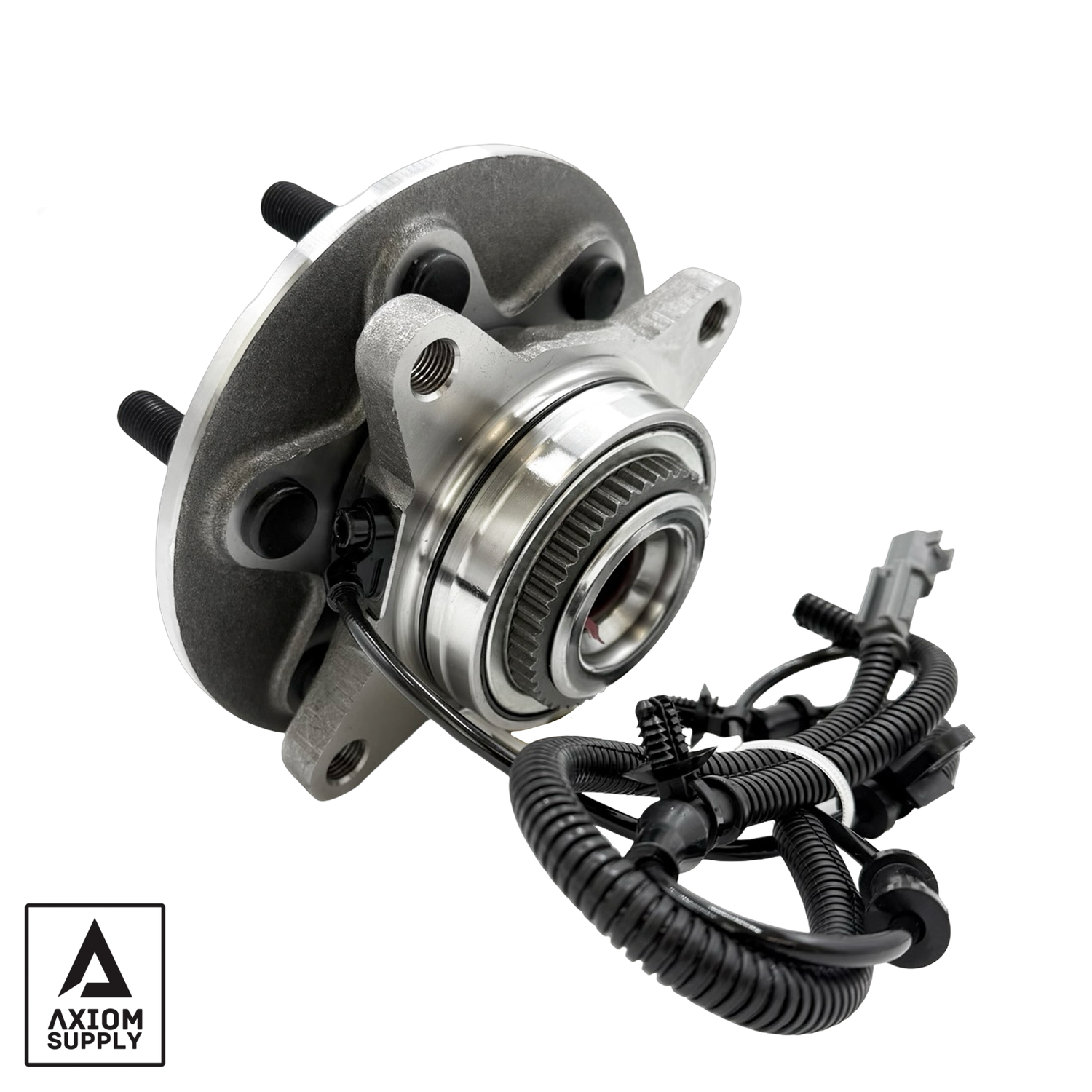

This Axiom Supply front wheel bearing and hub assembly is a complete bolt-in replacement for 2017-2020 F-150 and F-150 Raptor models on the 13th-generation platform, covering trucks with a 6-lug hub and integrated ABS sensor in 4WD and some 2WD configurations. The proprietary bearing and hub structure reduces hub-face deflection under load, keeping steering response tight and braking stable even with oversized tires or a lifted setup. It fits either the left or right front position, installs in about 2 hours with no modifications, and interchanges with Ford OEM HL3Z-1104-B, Timken HA590797, SKF BR931016, and MOOG 515188.

Part Number: AX515188

• Precision tapered roller bearings packed with high performance grease for maintenance-free operation
• Grade 10.9 cold-formed, zinc-plated wheel studs for tensile strength and corrosion protection
• Durable ABS sensor built to maintain accurate signal transmission through heat, mud, and moisture

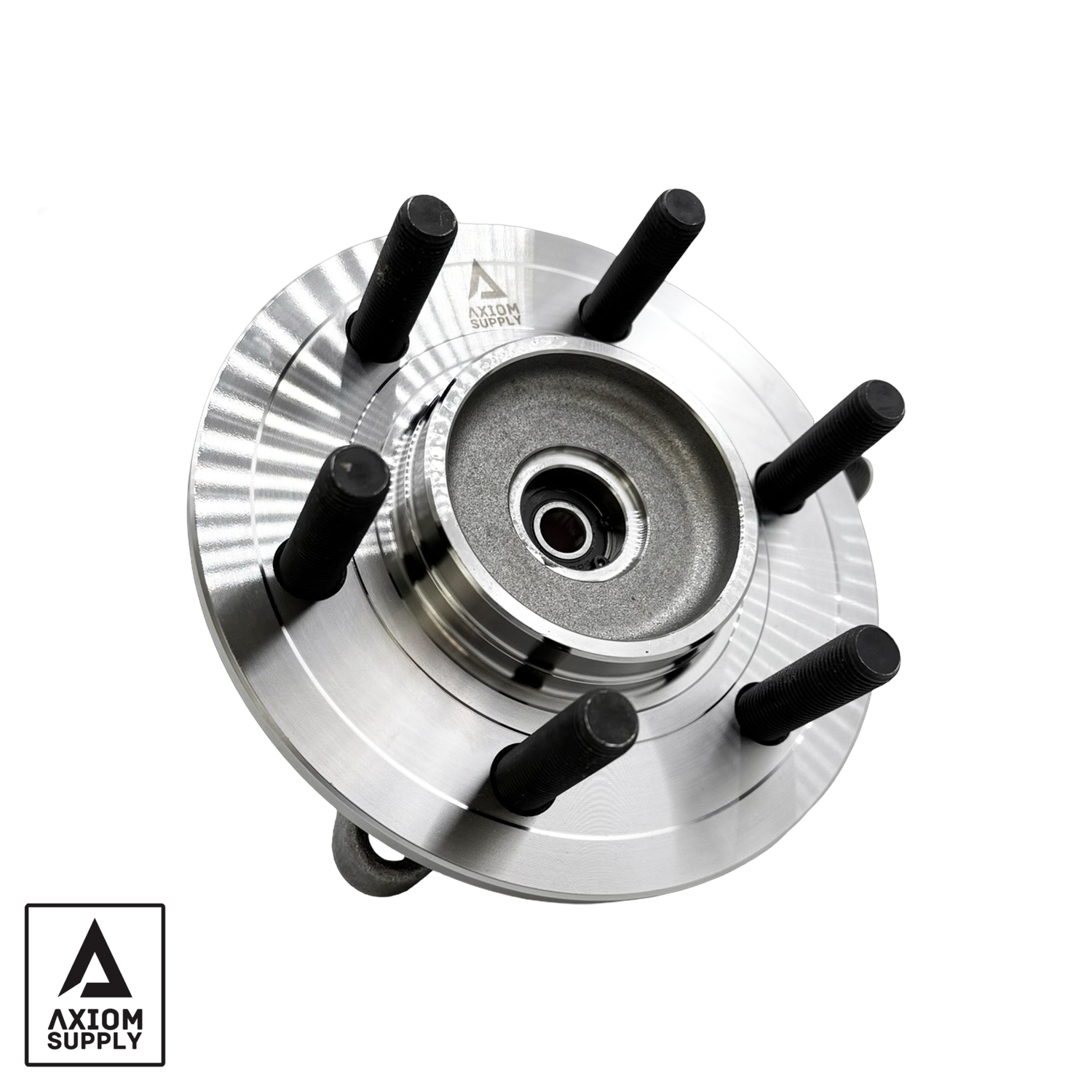

• Configuration: 6x135 bolt pattern with M14-1.50 lug studs
• Rolled inner spindle design accommodates both 2WD and 4WD systems
• Interchanges with Ford OEM HL3Z-1104-B, Timken HA590797, SKF BR931016, MOOG 515188, and more
• Complete bolt-in unit, fits both left and right spindle positions
• Proprietary bearing and hub structure reduces hub-face deflection under load for tighter steering response and improved braking stability

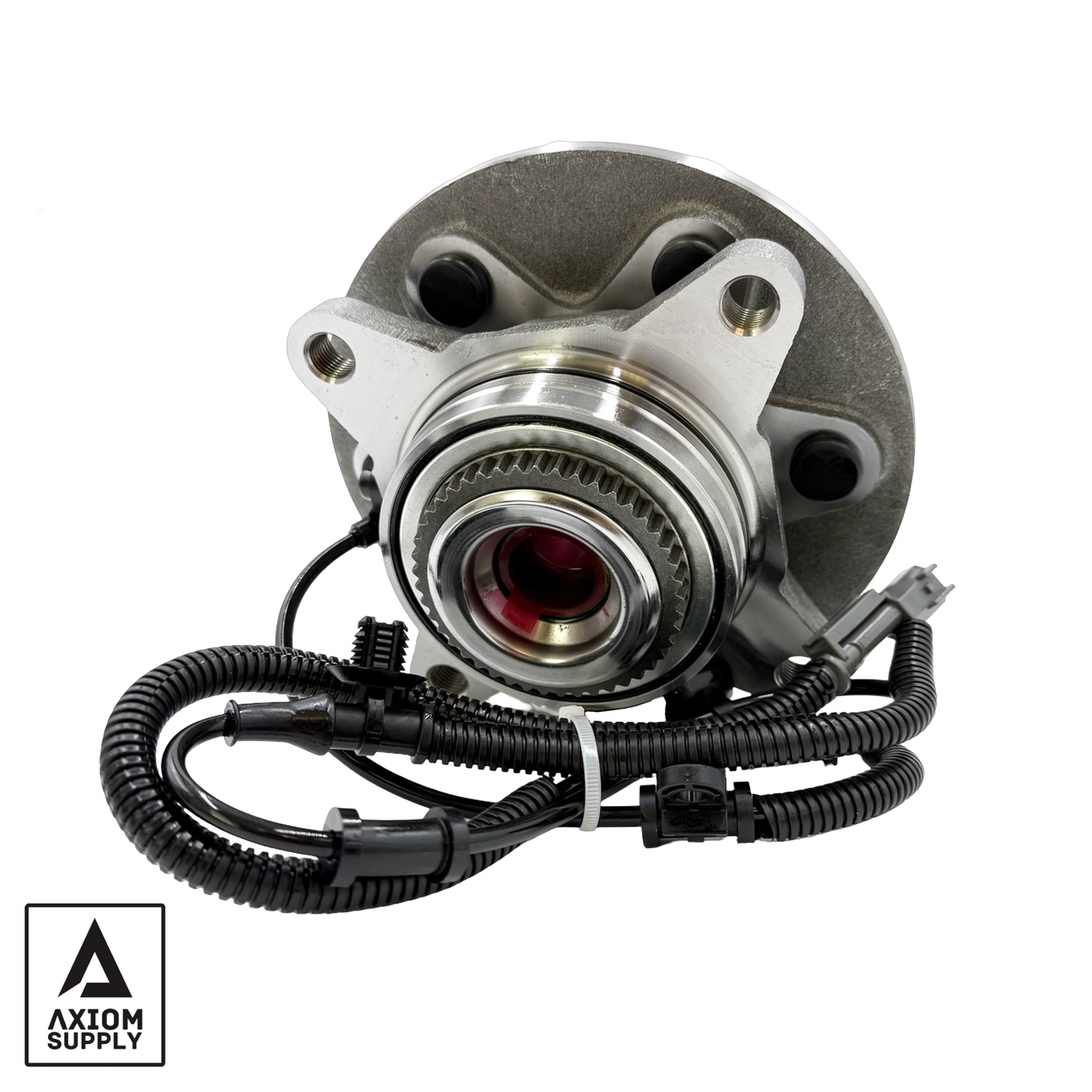

• 1 x Wheel Bearing & Hub Assembly with Integrated ABS Wire

• For trucks equipped with a 6-lug wheel hub and integrated ABS sensor
• Torque specs: axle nut 30 lb-ft, spindle bolts 129 lb-ft, main caliper bolts 184 lb-ft, lug nuts 150 lb-ft
• Typical installation time is approximately 2 hours with no special modifications required
