2017-2019 Powerstroke 8" 4-Link Lift Kit (BDS1541H)

BDS

Part Number: BDS1541H

Sale price$5,791.86 CAD

Quantity:
This item may have additional freight costs. Learn more

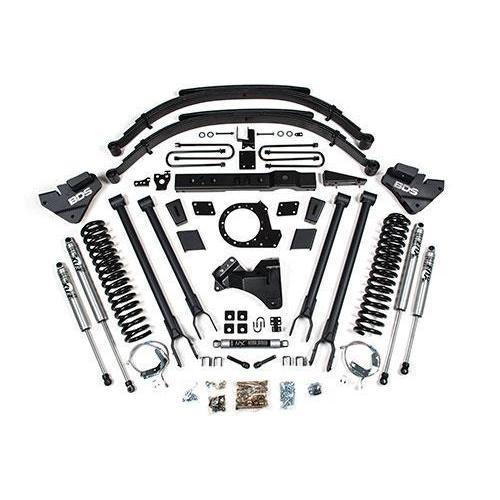

Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
2017-2019 Ford F250/F350 Super Duty w/ 6.7L Powerstroke


Take your new Super Duty to the next level with the tried and true BDS 4-link conversion system. A big upgrade from the factory stamped steel radius arms, these high-strength 4-link conversions offer improved handling, stability, strength, and caster control during wheel travel. Full-length 8" ProRide diesel-specific coil springs are used for the additional ride height paired with BDS NX2 series gas shocks for a smooth ride on any terrain and all-around impressive performance.

Part Number: BDS1541H

Features
  • 4-Link Front suspension optimizes front driveline geometry thru full-wheel travel
  • Upper and lower 4-link control arms are made from heavy wall 2" OD DOM steel tubing
  • 2-1/2" greaseable polyurethane bushings
  • The combination of a replacement track bar bracket & dropped pitman arm decrease steering operating angles & centers the axle.
  • A replacement single steering stabilizer comes standard
  • Sway bar drop brackets and brake line relocation hardware compensate for the added ride height
  • Full replacement 6" ProRide coil springs
  • A transfer case indexing kit is included to alleviate front driveline angles & allow correct operation of the 4wd system at all speeds.
  • The indexing kit includes an indexing plate with hardware
  • HD transmission crossmember.
  • Rear lift options include a block kit for factory 3-leaf main springs or block/add-a-leaf kit for factory 2-leaf main springs. A third option is a full set of replacement glide-ride leaf springs that directly replace both style factory spring sets for a smooth, level ride.
  • NX2 Performance shocks

Tire & Wheel Combinations:

  • 38 x 13.50 w/ 17 x 10 and 5"
  • 40 x 13.50 w/ 17 x 10 and 5"
Notes
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 40 x 13.50 tires WILL require trimming.
  • The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If your truck is equipped with a factory rear sway bar add: 123009
  • The indexing ring has not been designed to work on manual-shift transfer case models. Modification to the shift cable mount will be required.
  • Diesel applications only
  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
