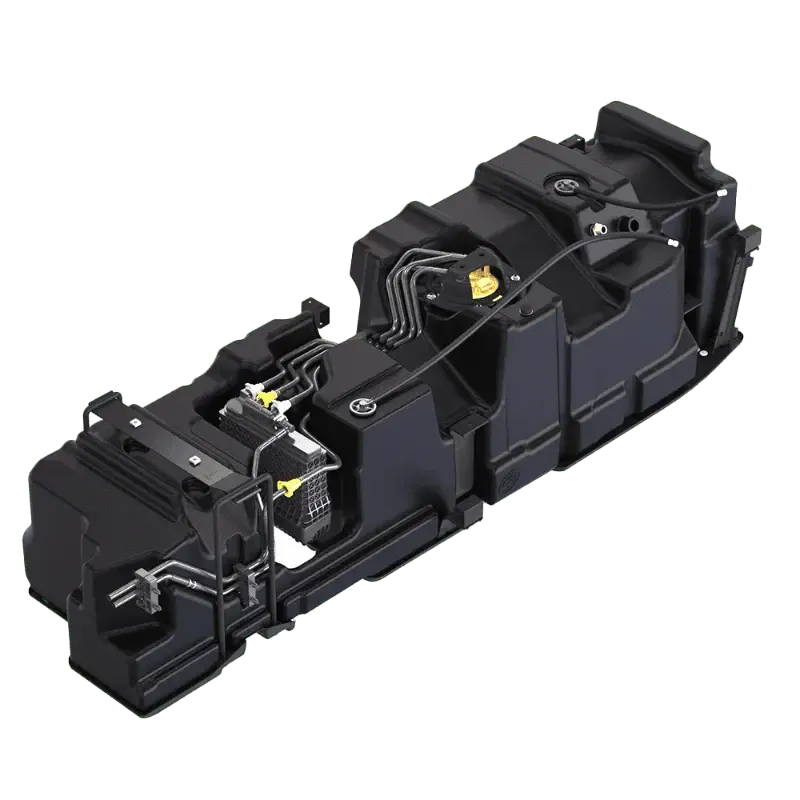

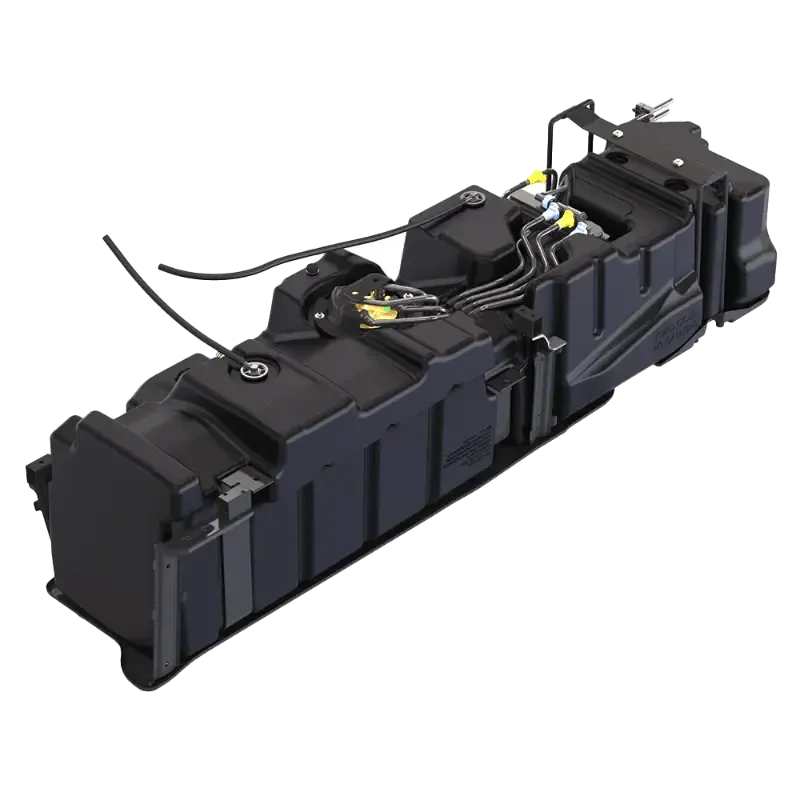

2017-2025 Powerstroke S&B 60 Gallon Fuel Tank (CC-SB) (10-1004)

Fits

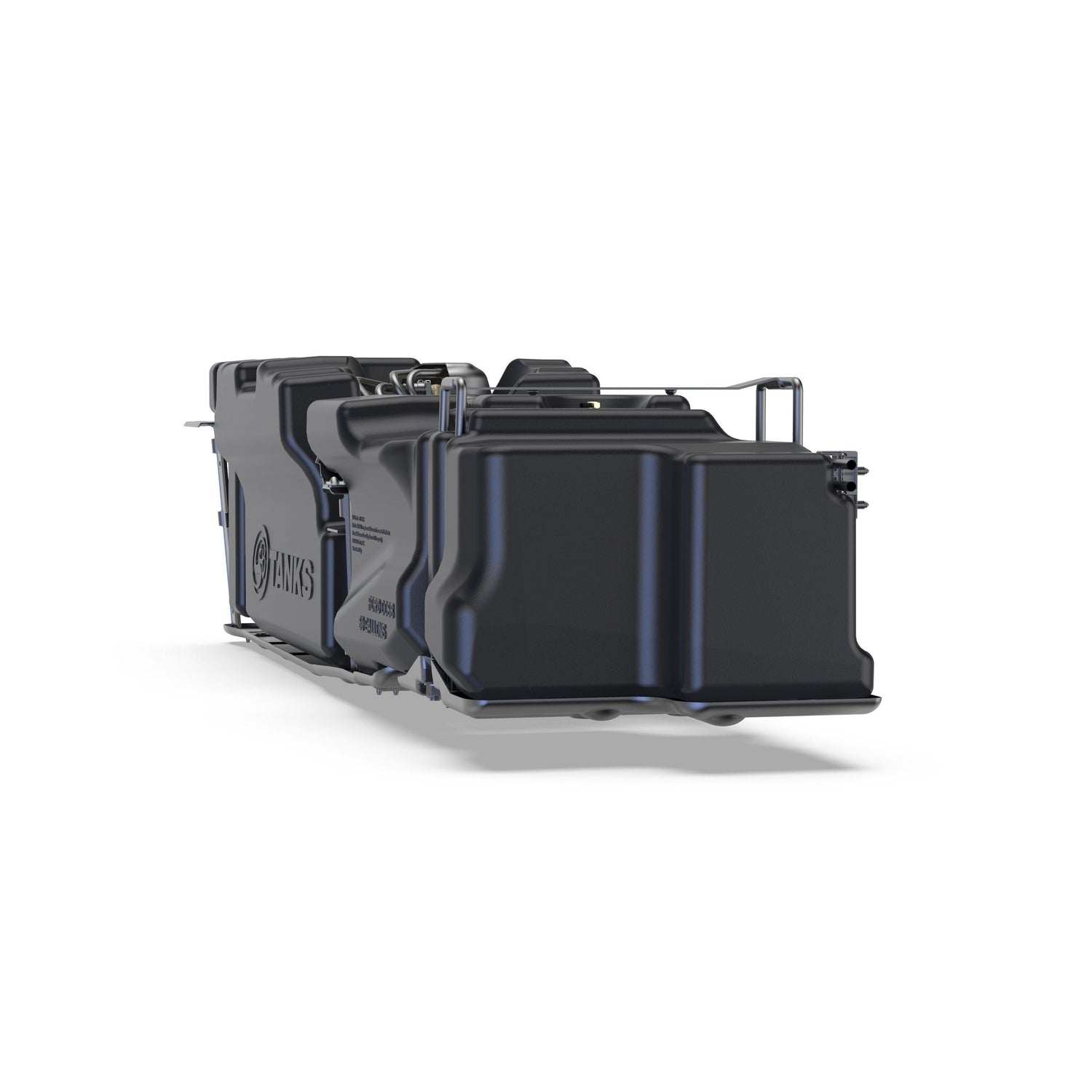

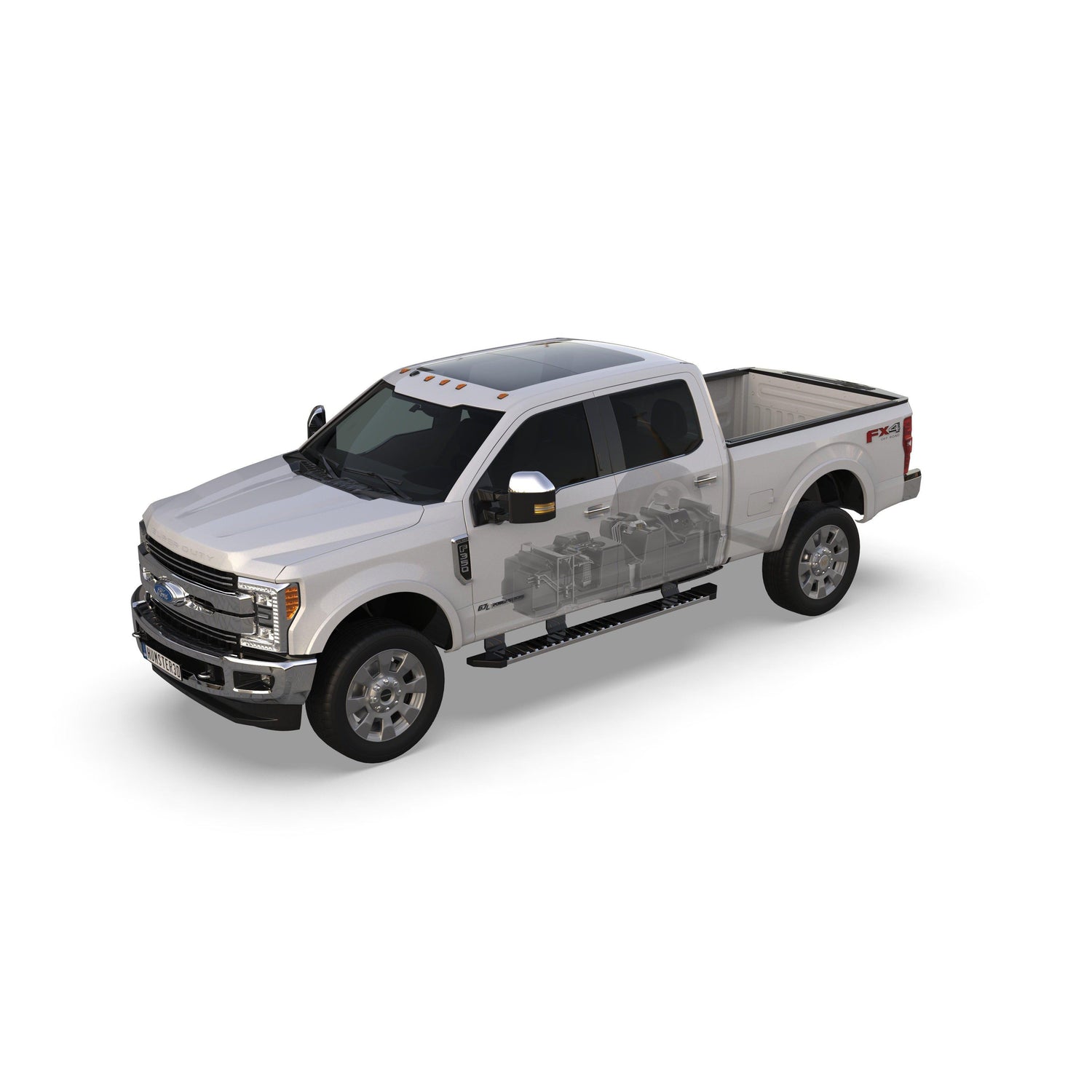

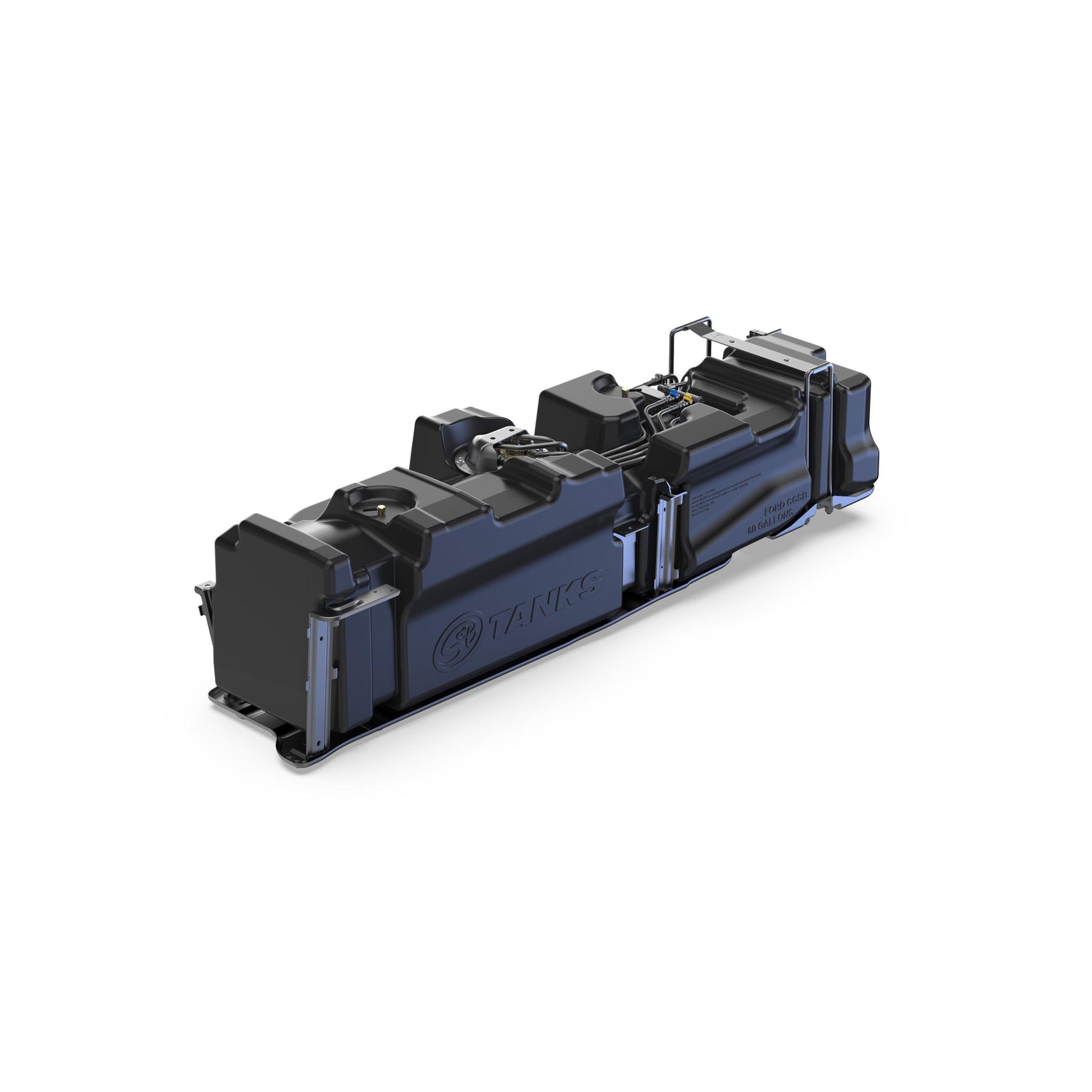

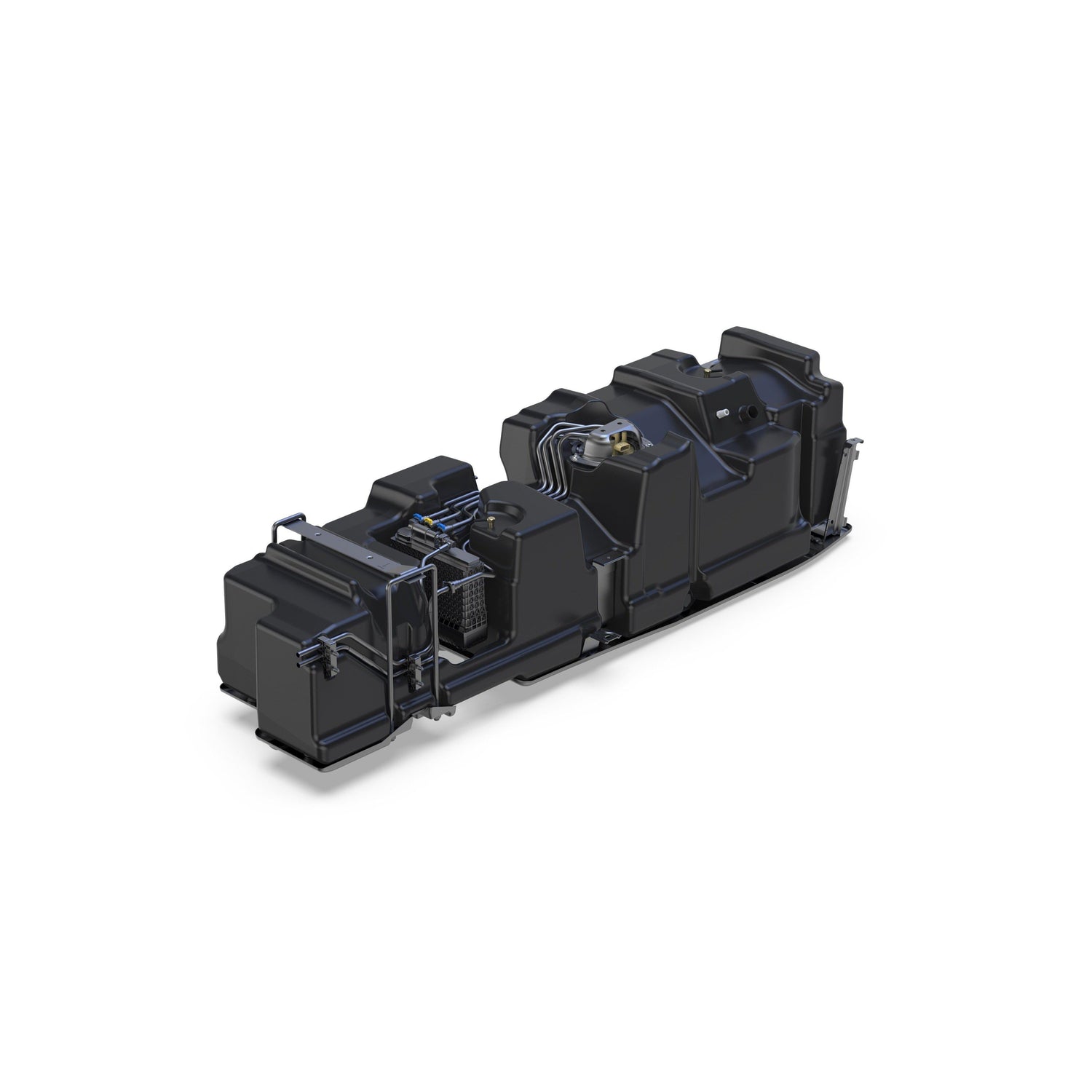

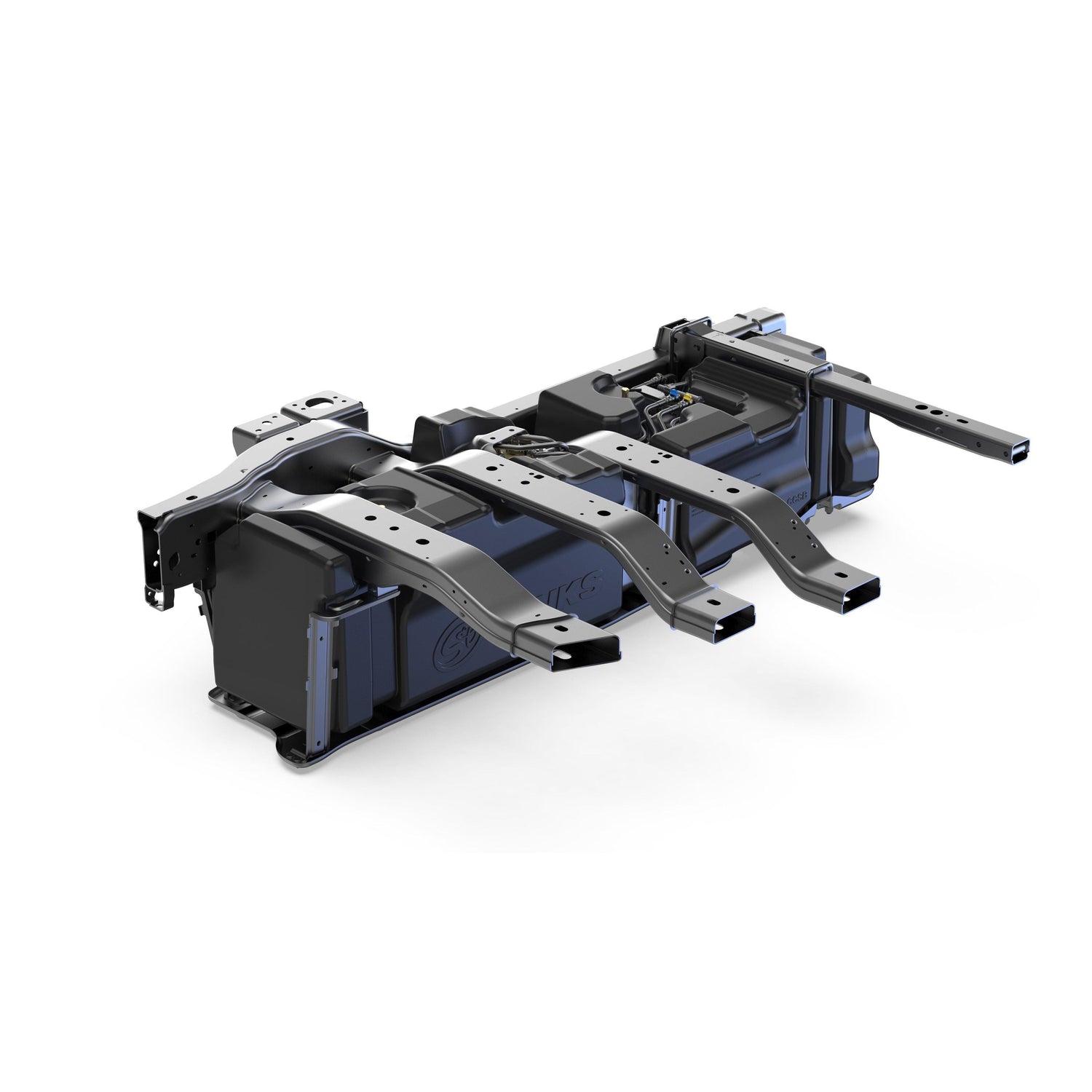

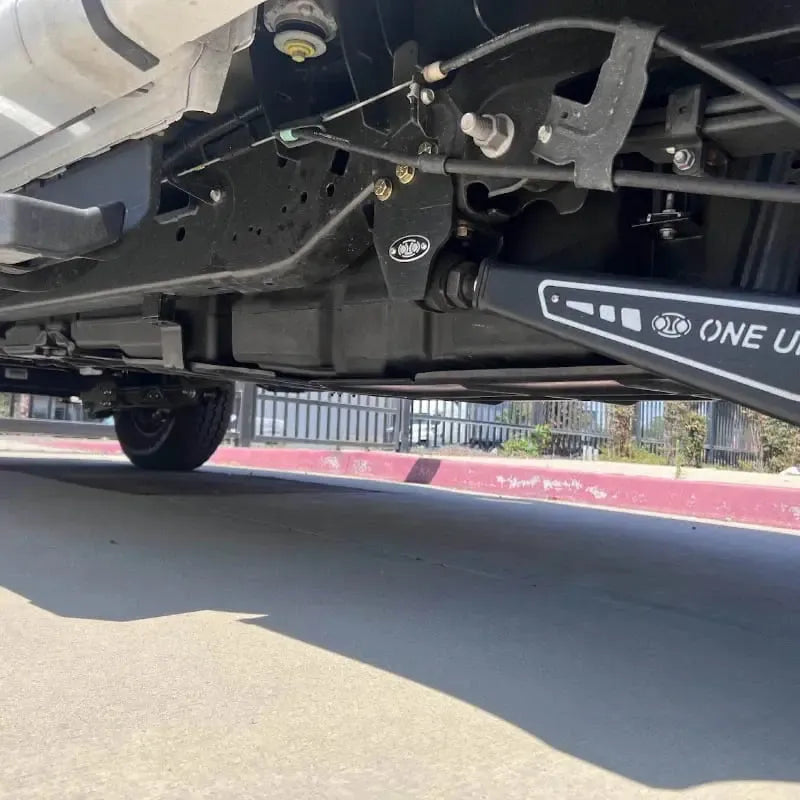

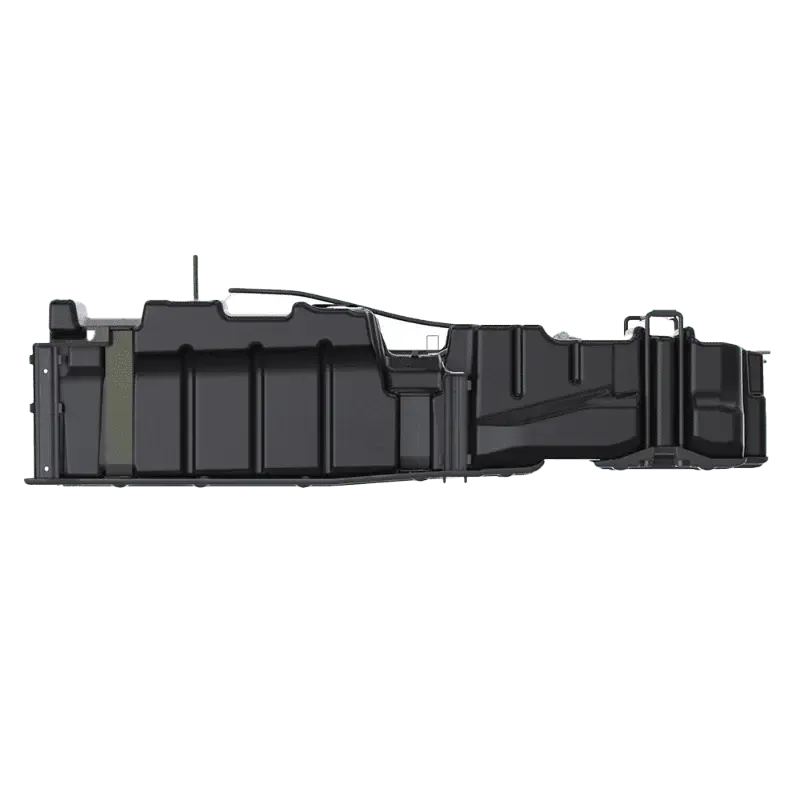

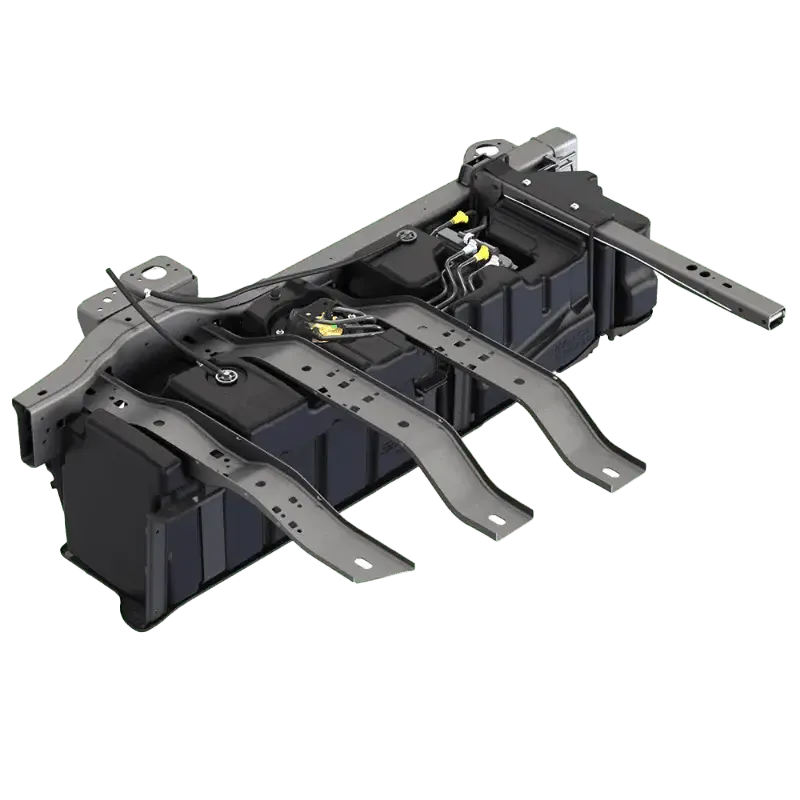

The S&B is a 60-gallon replacement fuel tank for the 2017-2025 Ford F-Series Crew Cab Short Box. The 34 Gallon OEM tank that came in your Superduty is simply not enough - the S&B 10-1004 bumps your capacity to 60 Gallons with no cutting, drilling, or modifications and installs in under 3 hours.

Not only does it over double your carrying capacity, but it also uses your OEM sending unit.

S&B Tanks are made out of the best quality high-density cross-link polyethylene. S&B Tanks hold many advantages over metal fuel tanks. S&B Tanks will not rust, corrode, or delaminate over time, won't have condensation like metal tanks, and are more resilient than metal tanks.

S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.

Part Number: 10-1004

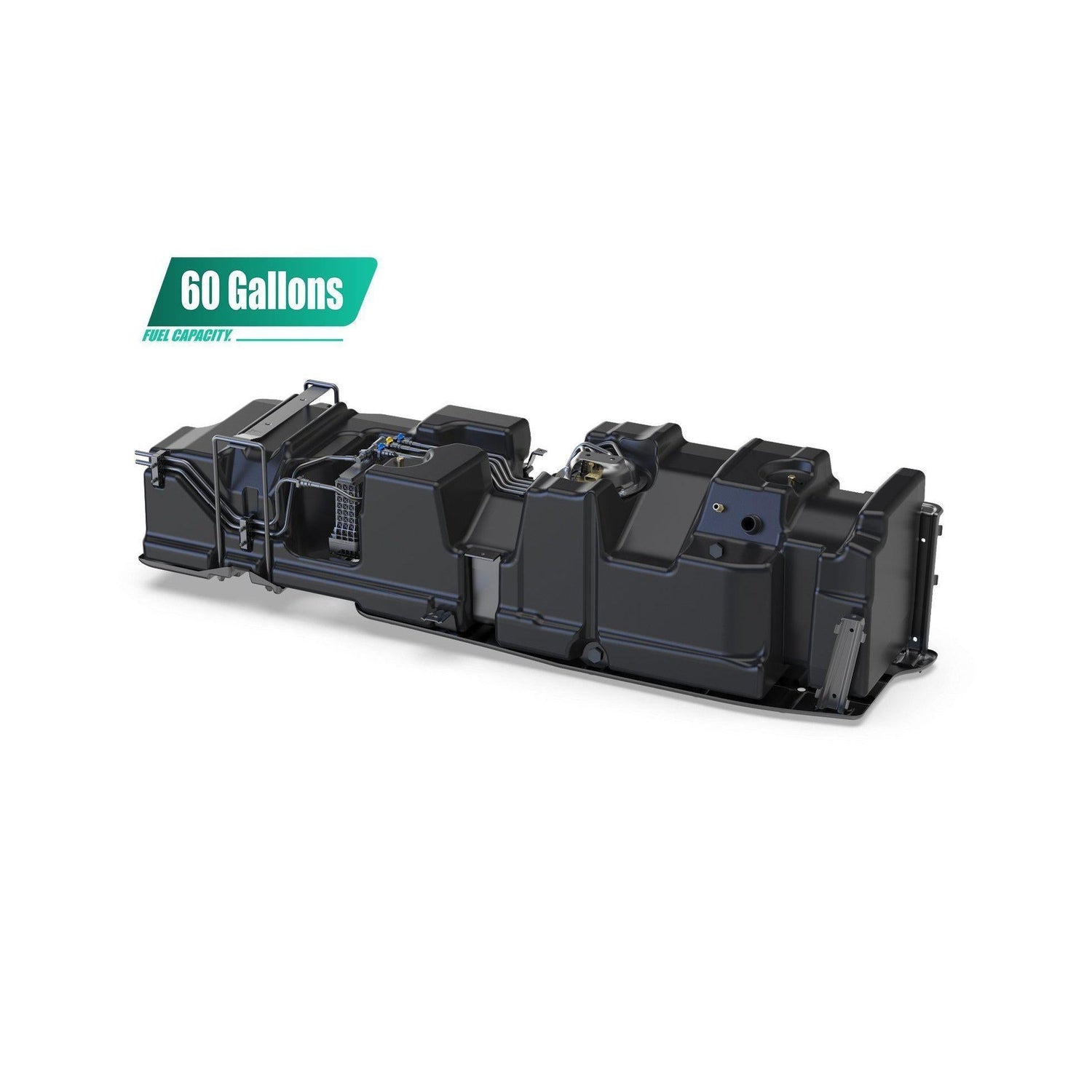

• Midship 60 Gallons (227 Litres)
• Compatible w/ Gooseneck and 5th wheel

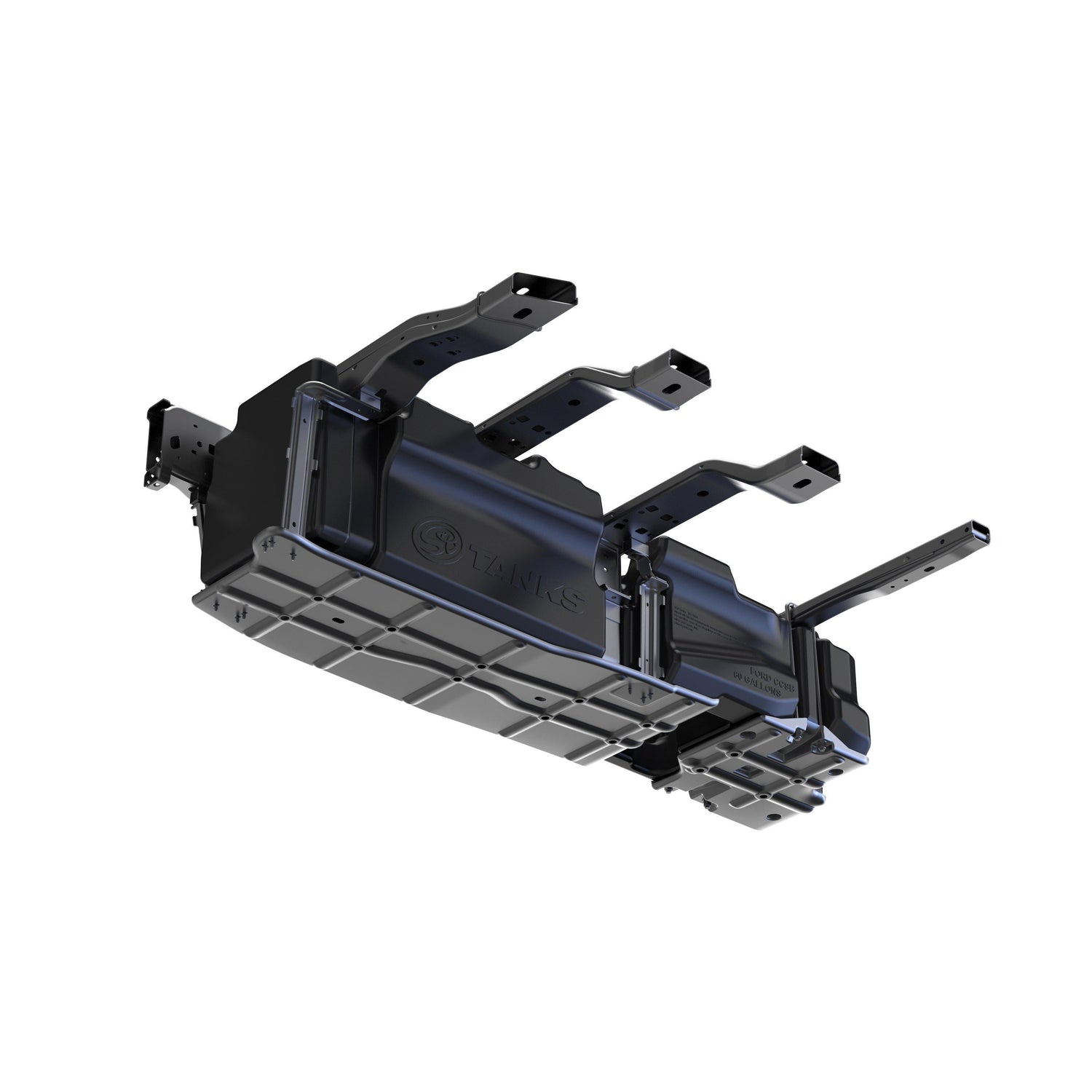

• Compatible w/ OE Skid Plate
• No Cutting Required
• Dimensions 76.02" X 20.69" X 19.08"
• Drain: No

• Embedded fitting thread size: 1/2" NPT

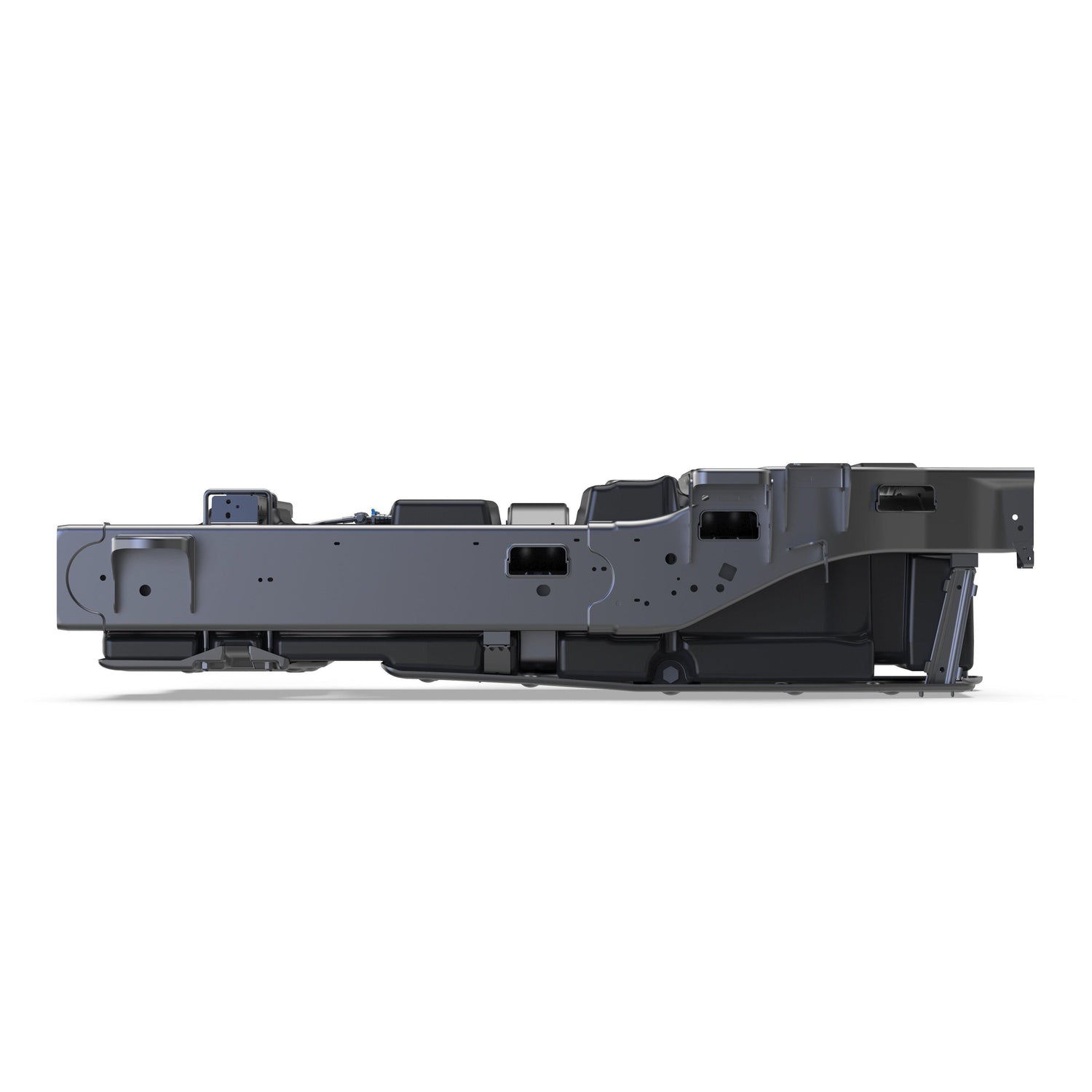

• Ground Clearance compared to OE tank: 1.75" lower

• Straps Included
• Sump: No
• Transfer pump ready
• Dry weight 50lbs
• Anti-Wave Baffles
• Double Coated Stainless Steel Hardware
• Integrates with Factory Gauge

• 2-3 Hour Install
• Click Here

• If you have an EZ-Lynk on your truck you will be able to easily reprogram your Distance to Empty (DTE).
• According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.
• Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
• The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.
• This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60-gallon tank with have a greater fuel reserve.
• If you have a Fass system (or any aftermarket lift pump system) with the draw style you will need to use S&B sending unit 86-1000.  Aftermarket lift pumps provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B Sending Unit allows you to drive to empty with your pump.


Recalibrate Your Distance To Empty For Free (Minus Return Shipping)

• Add on the rental of the EZ-Lynk and a deposit of $825 will be added to your purchase.
• We will ship you the EZ-Lynk to recalibrate your Fuel Level.
• You ship the EZ-Lynk back to us with the tracking number (We cover shipping to you, so we ask that you cover shipping back to us) within 10 days.

Dirty Diesel Customs

*EZ-Lynk Return*

Unit 6, 1060 Stevens Road

West Kelowna, B.C. V1Z-1A3

• We will inspect the device to ensure it is in working order.
• You receive a full refund for your deposit.

Note: Vehicles currently supported - 2011-2022 Ford Super Duty.
2023+ Models are not currently supported by EZ Lynk.
