2017-2019 Powerstroke 6R140 Transmission & Converter Package (2WD/4WD)(1064514BM)
Purchase to earn 11693 Dirty Dollars Learn More
Core Deposit
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.
1) Reply to this email or give us a quick call (778-754-7090) and let us know that you will be shipping us a Core, please include your Original Invoice/Order Number so we can link up your file.
2) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.
3) Ship your core with tracking to:
Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3
4) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).
Note:
- If you have purchased a BD Diesel product, please follow their core-return program which can be found here.
- If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.
- If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.
- Failure to follow these steps may result in a delay/denial of your core refund.
- Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.
- 0-60 Days: Full Deposit if the core passes the inspection.
- 61-120 Days: 25% of your eligible core refund amount will be deducted.
- 121+ Days: 50% of your eligible core refund amount will be deducted.
Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.
Learn more.
Description
Description
Fits
| Year | Make | Model | Engine |
| 2017-2019 | Ford | F-Series 2WD or 4WD | 6.7L Powerstroke |

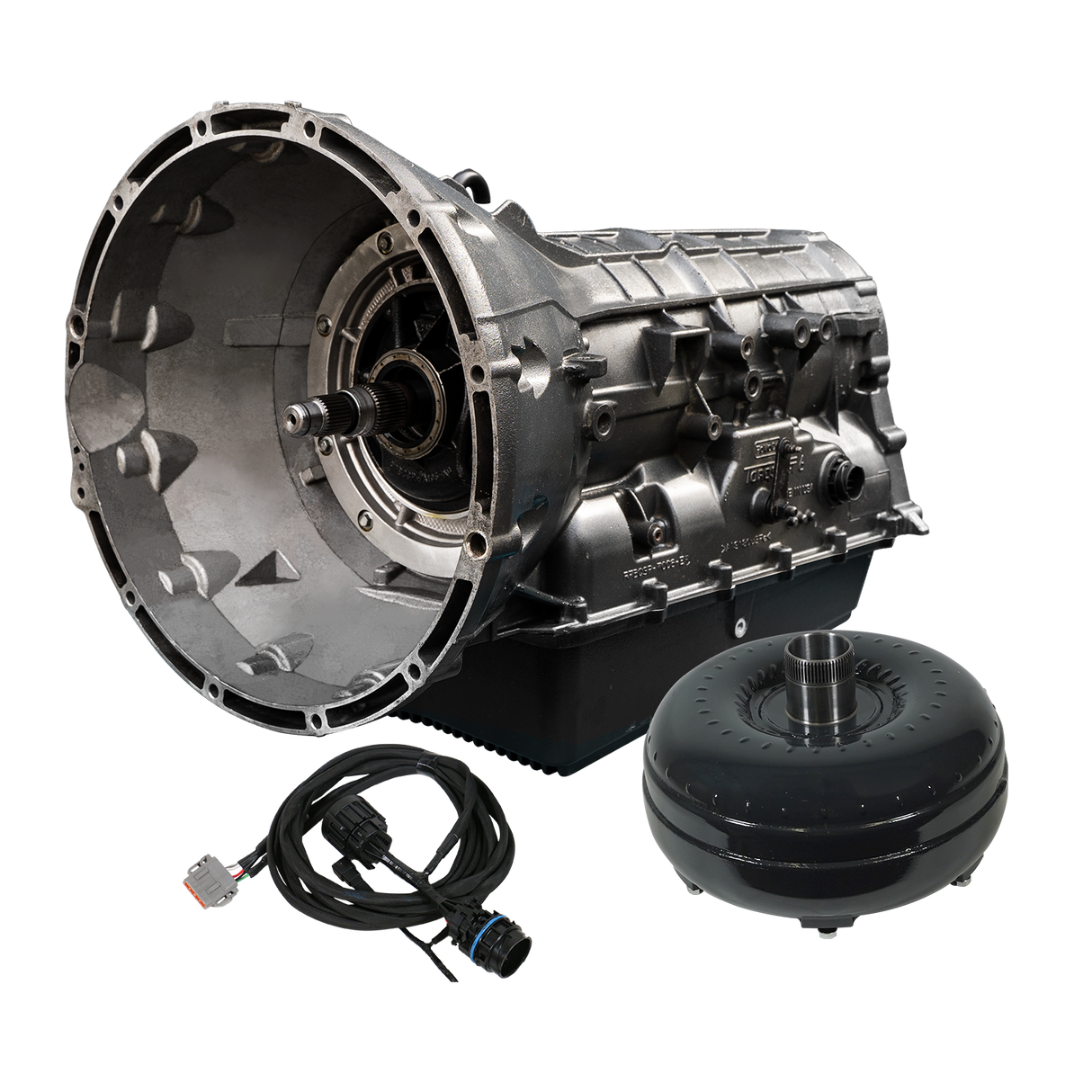

For towing, street or track BD transmission and torque converter packages have been dyno tested together for ultimate performance, and reliability. Featuring BD's own HD pan that adds extra fluid capacity.
Part Number: 1064514BM
Features
Features

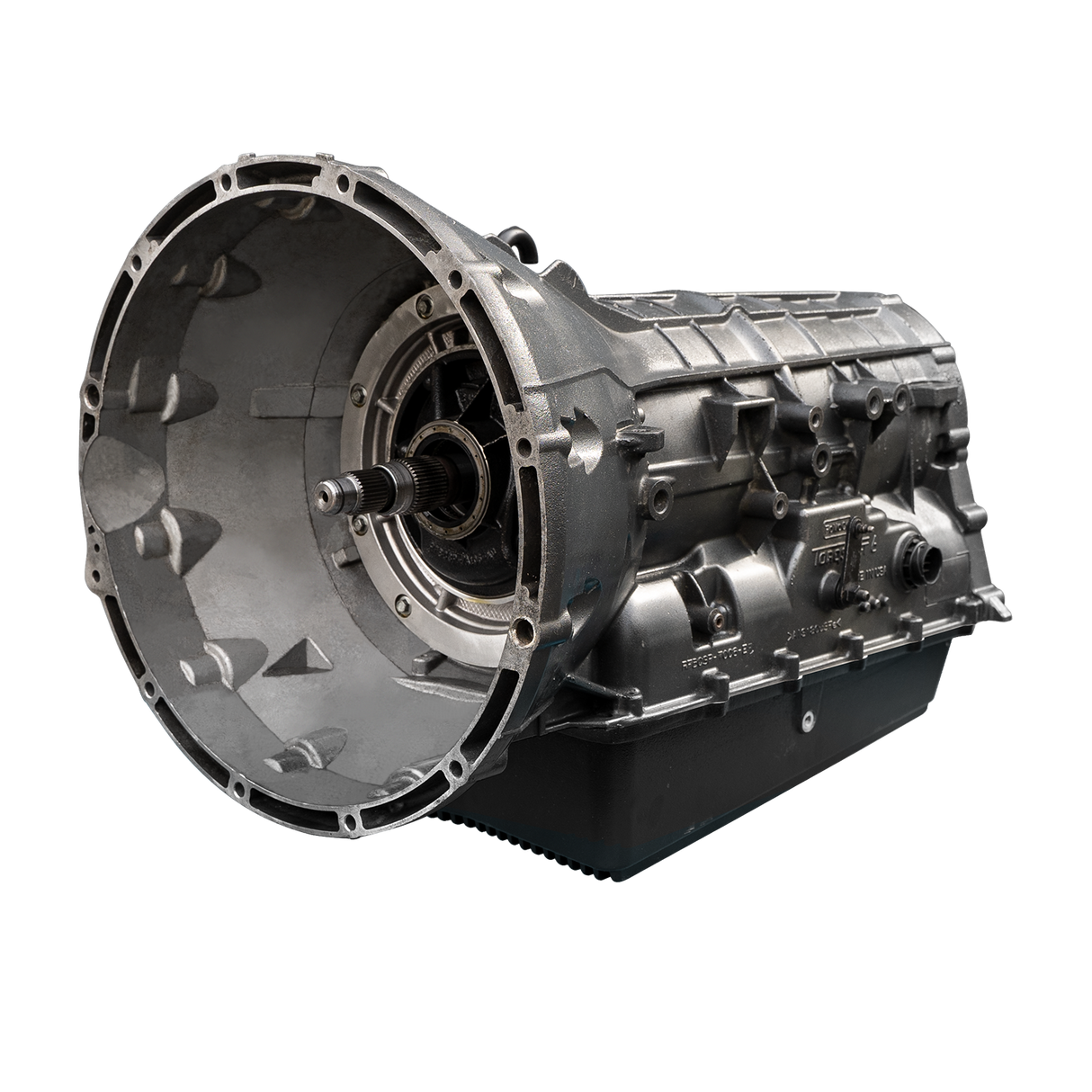

Transmission:
- More clutches compared to stock and competitors

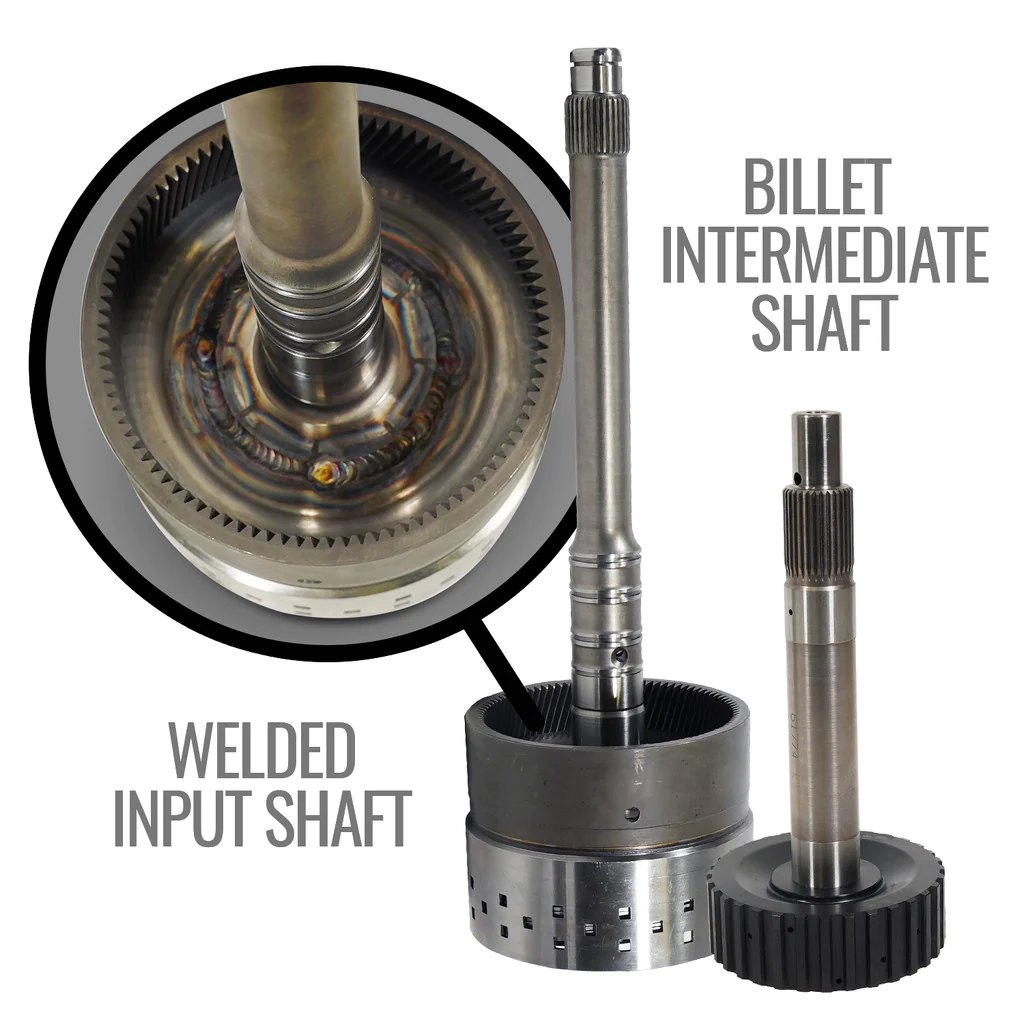

- Billet intermediate shaft to handle higher power
- Upgraded input shaft is tig welded to prevent OEM weld failure in demanding applications
- Custom BD patented pressure plates increase clutch count without sacrificing part strength
- Clutch Count: FORWARD 6 (20% increase over stock)
- Clutch Count: DIRECT 6 (20% increase over stock)
- Clutch Count: INTERMEDIATE 8 (60% increase over stock)
- Clutch Count: OVERDRIVE 8 (14% increase over stock)
- Clutch Count: LOW REVERSE 5
- Brand new valve body
- Electronic Line Pressure Controller for up to 300psi Line Pressure
Pressure Controller:
- 76% more theoretical holding power
- Delivers up to 300psi line pressure at WOT
- Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
- Does not create parasitic load or extra heat when inactive

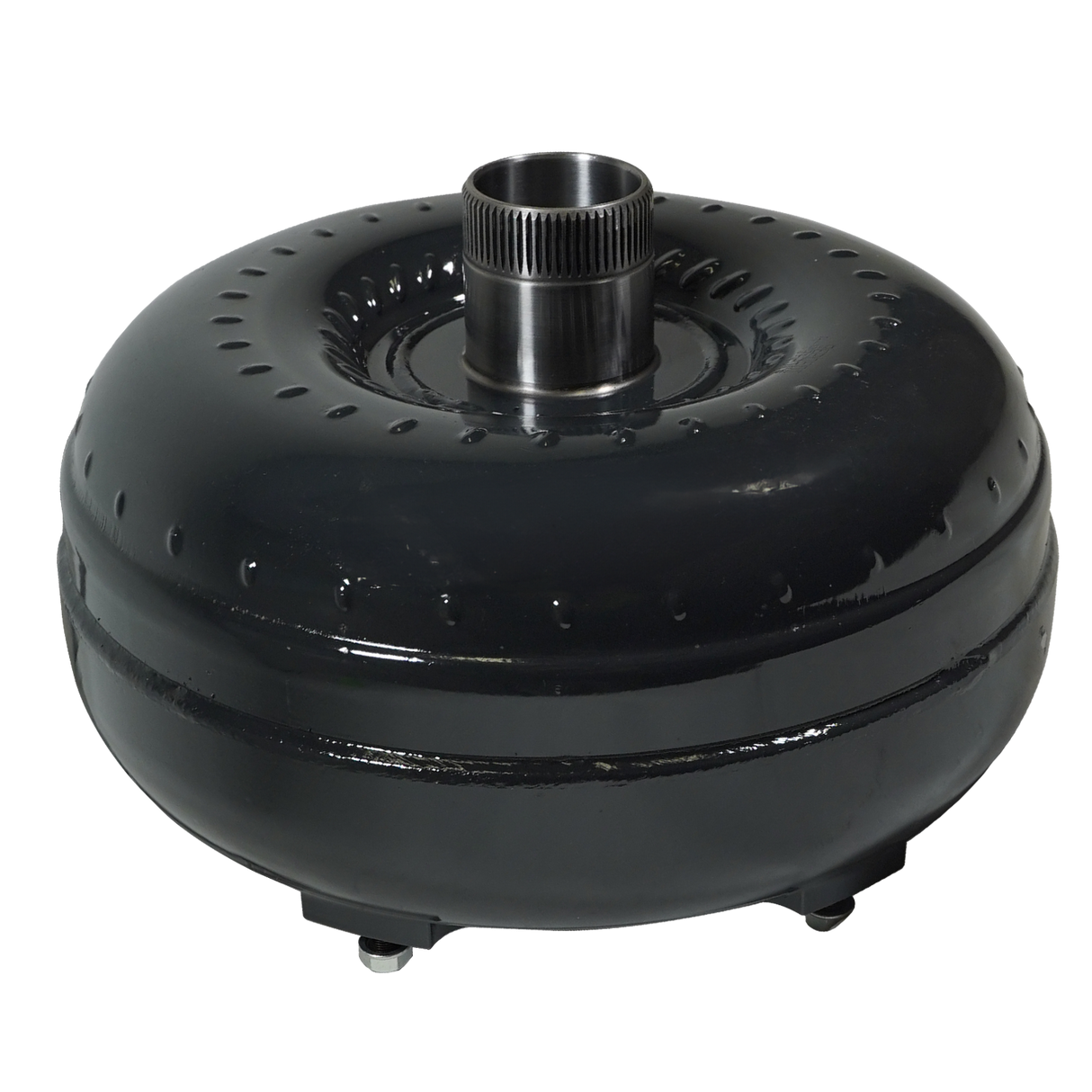

Torque Converter:
- Ideal upgrade converter for heavy tow use or higher horsepower
- Captured clutch design maintains good drivability feel
- Four surface clutch assembly doubles the OEM friction area
- Increased count of steels increases heat dissipation
- 23% increased piston area for additional clutch clamping force
- Billet bearing hub, piston and clutch retainer
- Stamp forged 1-piece cover
- Furnace-brazed pump and turbine fins
Notes
Notes
- 2WD applications require the yoke adapter and rear mount bracket be transferred over during installation
- For PTO option please contact us
- Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
- Transmission is compatible with both 2wd and 4wd applications
- Will not fit early 2011 trucks with 8-bolt flex plate – will have to update to 6 bolt flex plate.
Installation
Installation
- 12-Hours - Requires Ford Scanner
- Pressure Contoller Click Here
- TorqShift 6 Click Here
Warranty
Warranty
- 36-Months
- 12,000 Miles
