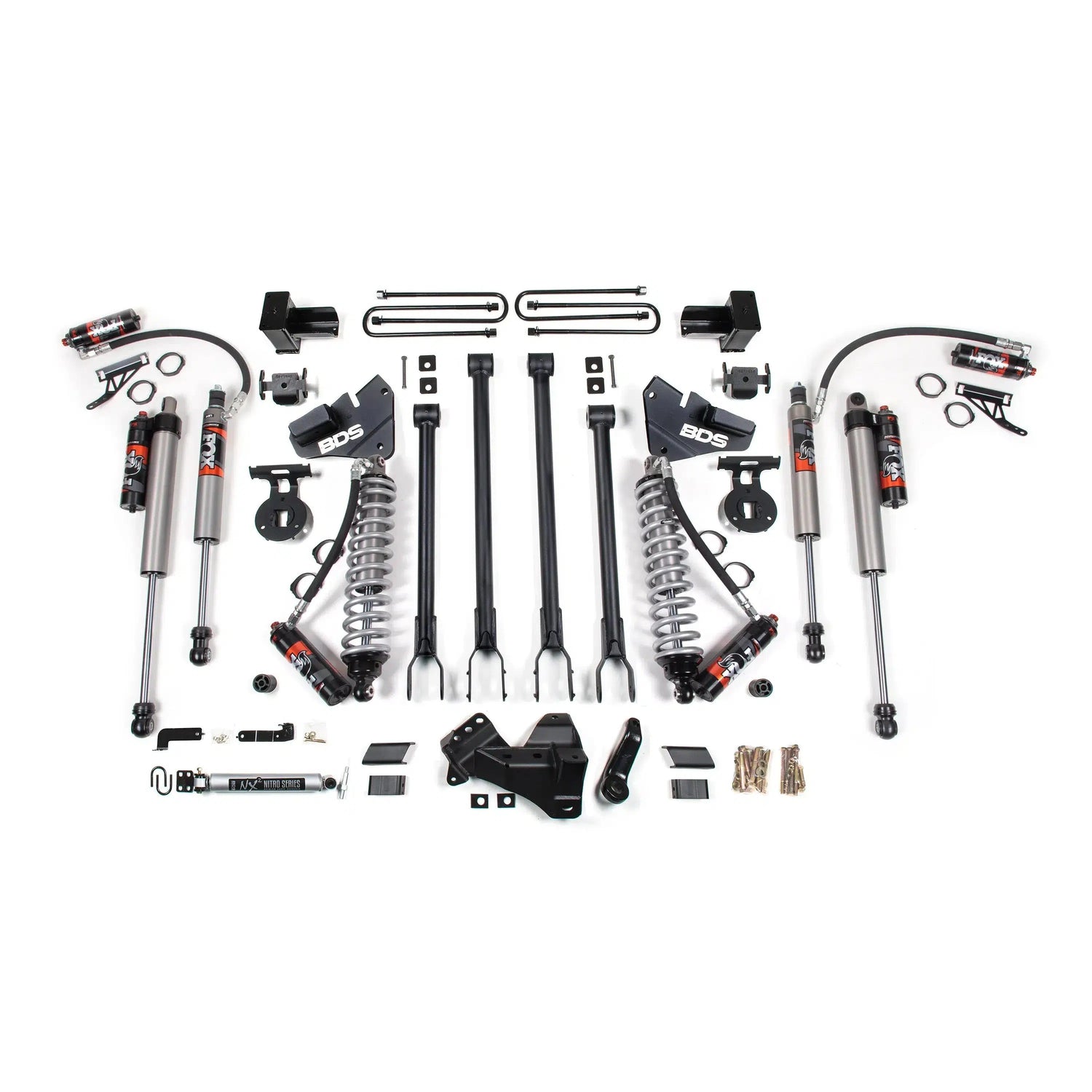

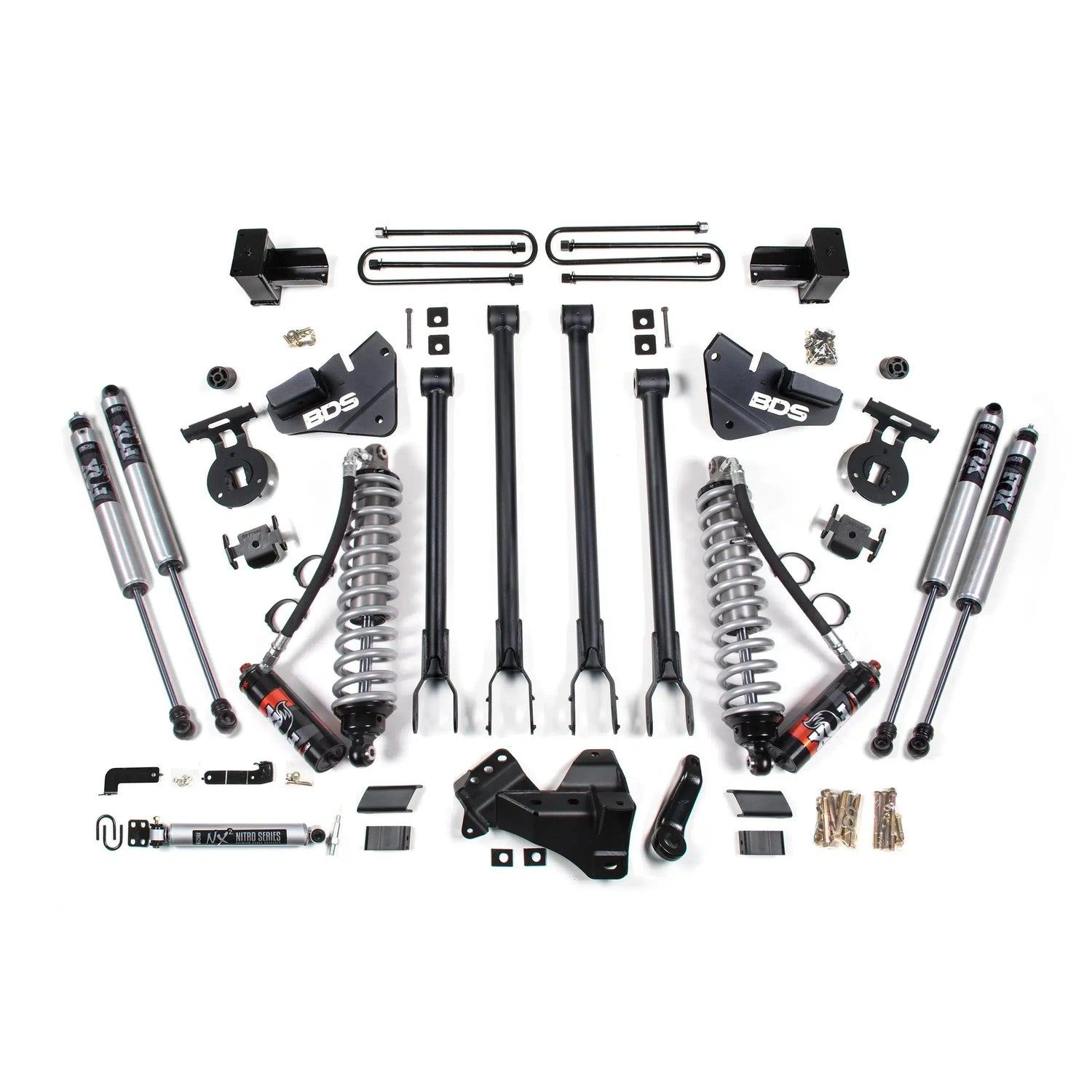

2017-2019 Powerstroke 4" 4-Link Lift Kit (BDS1577FPE)

BDS
Regular price $7,093.01 CAD

Shocks
Notices

BDS Product images may differ from exact product.

This item may have additional freight costs. Learn More

Ships from

  • CanadaEst. Next Week · Secure yours today
    Special order
  • United States
    Out of stock

Build Your Kit

Customize your 2017-2019 Powerstroke 4" 4-Link Lift Kit (BDS1577FPE) below. Add BDS-matched components to complete your build.

Step 1 of 6 · Optional

Traction Bar

Add a BDS Recoil traction bar kit to control rear axle wrap and improve traction under load. Choose the option matching your lift height.

Traction Bar

Step 2 of 6 · Optional

Steering Stabilizer

Steering Stabilizer

Step 3 of 6 · Optional

Track Bar

Add an adjustable front track bar to re-center the front axle after lift and correct track bar geometry.

Track Bar

Step 4 of 6 · Optional

Rear Sway Bar Link Kit

Rear Sway Bar Link Kit

Step 5 of 6 · Optional

Carrier Bearing Drop Kit

Carrier bearing drop spacer to correct rear driveline angle on trucks with a 2-piece rear driveshaft.

Carrier Bearing Drop Kit

Step 6 of 6 · Optional

Rear Driveshaft Spacer

Rear Driveshaft Spacer
Your Build
2017-2019 Powerstroke 4" 4-Link Lift Kit (BDS1577FPE)
$7,093.01

Purchase to earn 7093  Dirty Dollars Learn More

Description

Crank your Powerstrokes suspension and handling up to 11 with the BDS 5" Radius Arm lift kit, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS1577FPE

Features

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Tire Fitment:

  • 37 x 12.5 with and in. Backspace

Additional Info

Auxiliary Front and Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Notes

  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 37 x 12.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • If your truck is equipped with a factory rear sway bar add: 123005

Questions and Answers

Don't see your question? Ask us anything about this product.

Vehicle Fitment - Part No: BDS1577FPE


Product Fitment Notes
  • 4WD configurations only.
  • Fits dual rear wheel (DRW) models only.
