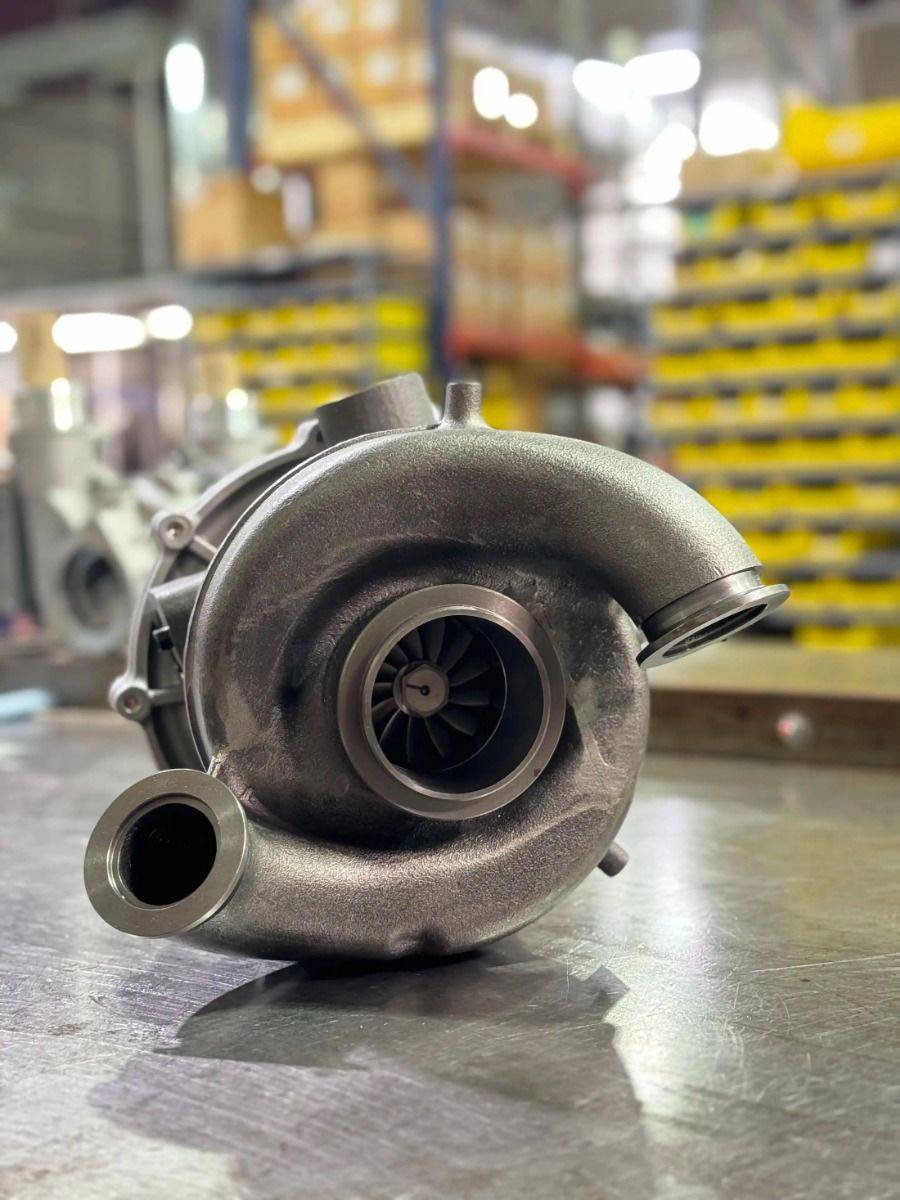

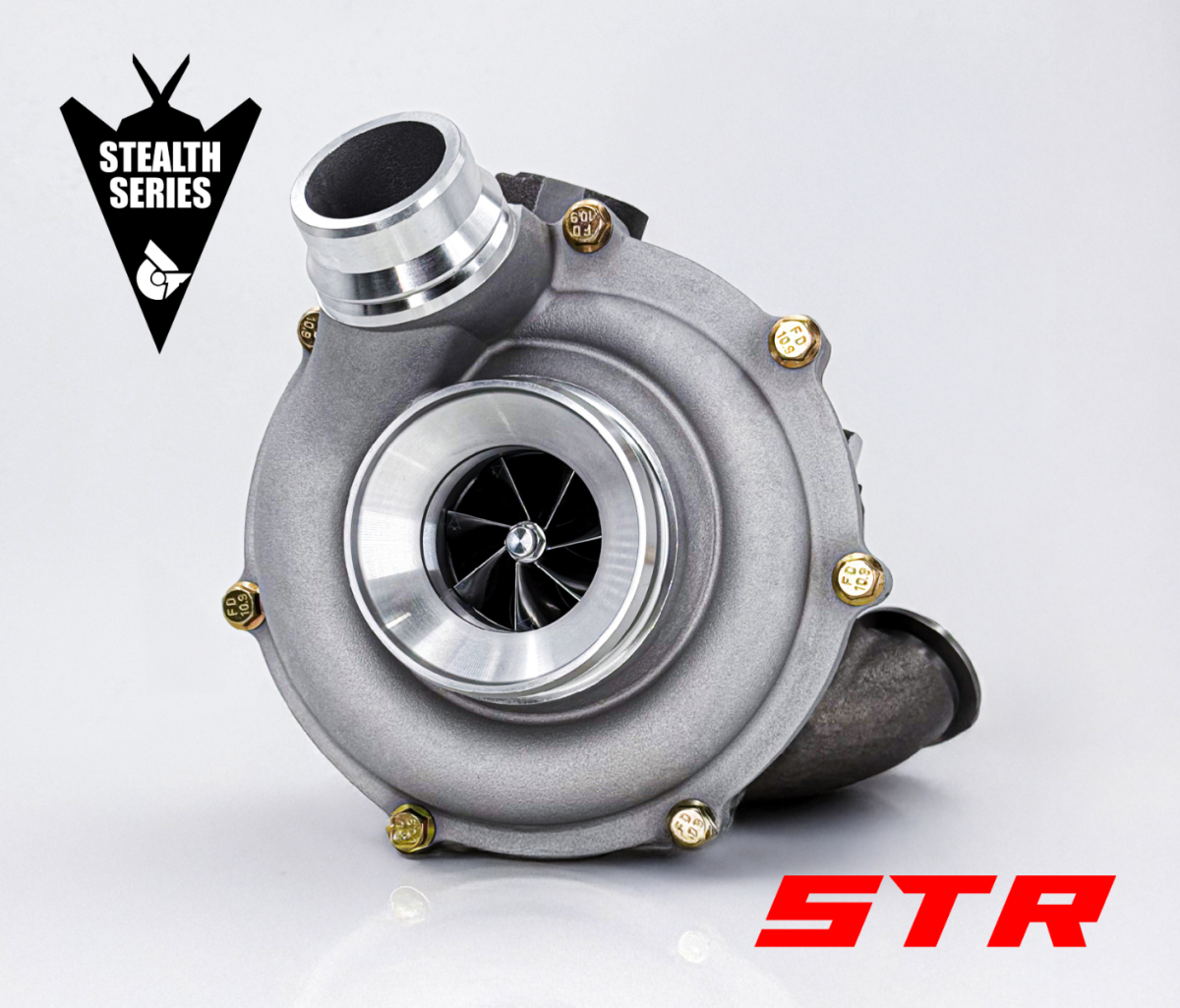

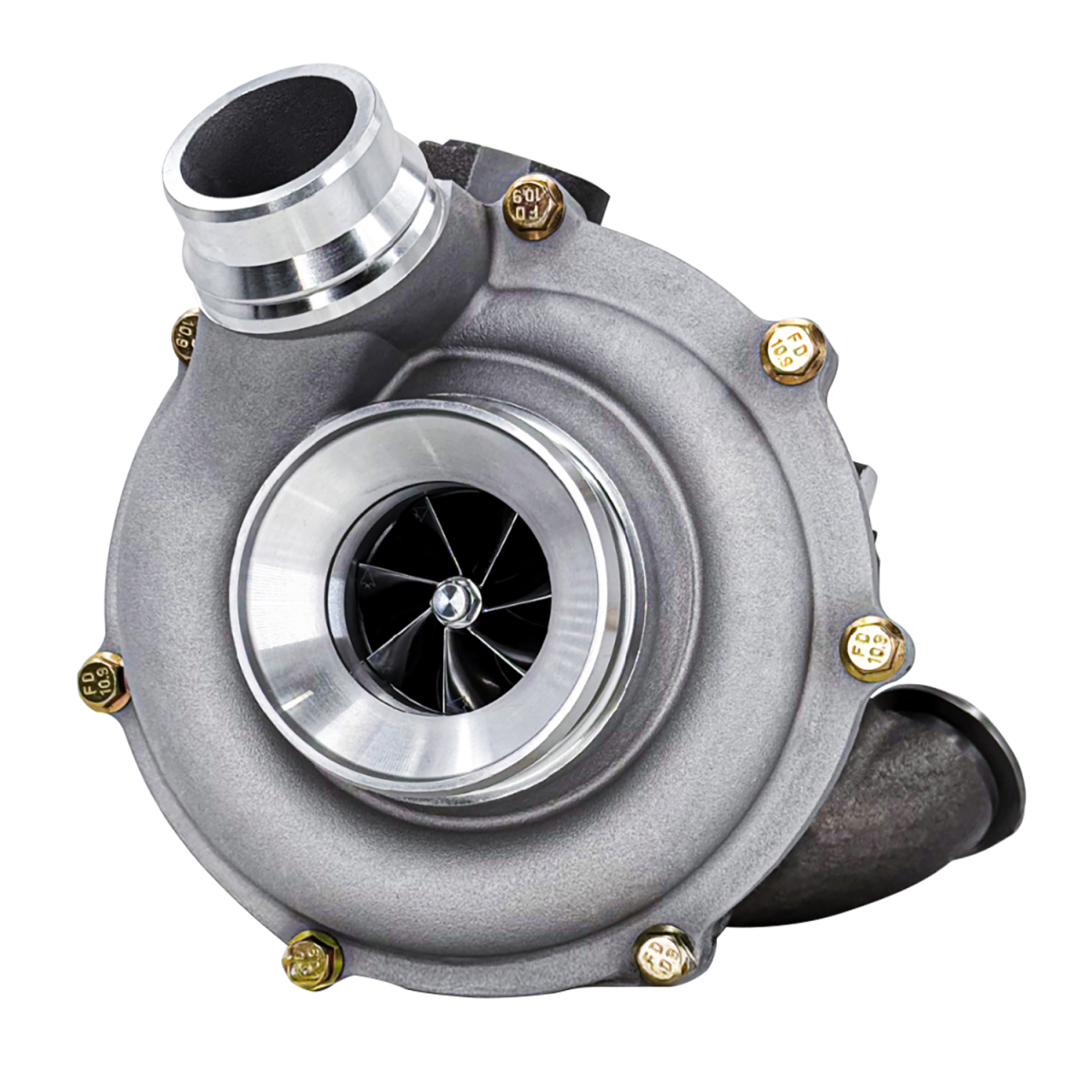

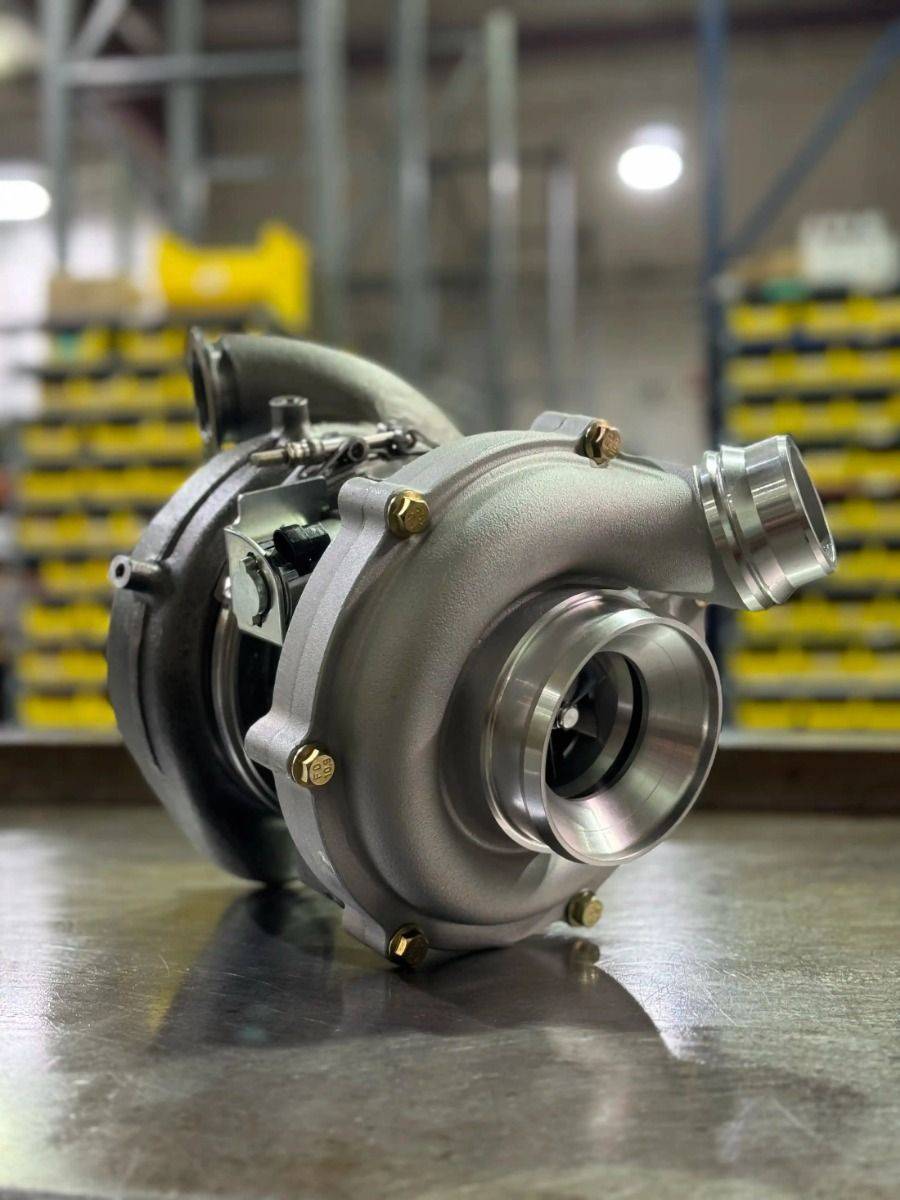

2017-2019 Powerstroke Stealth STR Turbocharger (CPS200170)

The Stealth STR Turbo is an upgraded direct replacement turbocharger designed to take your stock or lightly modified 2017-2019 6.7L Power Stroke to the next level. Built to outperform the stock turbocharger in nearly every aspect, it offers improved performance, quick response, and upgraded durability without adding unnecessary hassle.

This turbo is easy to tune for and does not require custom tuning to get up and running. With a 61mm 7x7-blade billet compressor wheel, larger custom 13-blade high-flow turbine wheel, lighter rotating assembly, and grooved journal bearings, the Stealth STR is built for strong daily drivability, towing performance, and long-term reliability.

Part Number: CPS200170

Supersedes: DM1HH3080102000

• Dyno verified to support up to 625 RWHP with stock emissions equipment
• Supports 75HP over the stock turbo with tune-only setups
• Increased power without additional lag
• Better low-end EGT control than stock
• 61mm 7x7-blade billet extended tip compressor wheel
• Larger custom 13-blade high-flow turbine wheel
• 8.5% lighter rotating assembly for ultra-fast spool-up
• Grooved journal bearings for increased lubrication and cooling

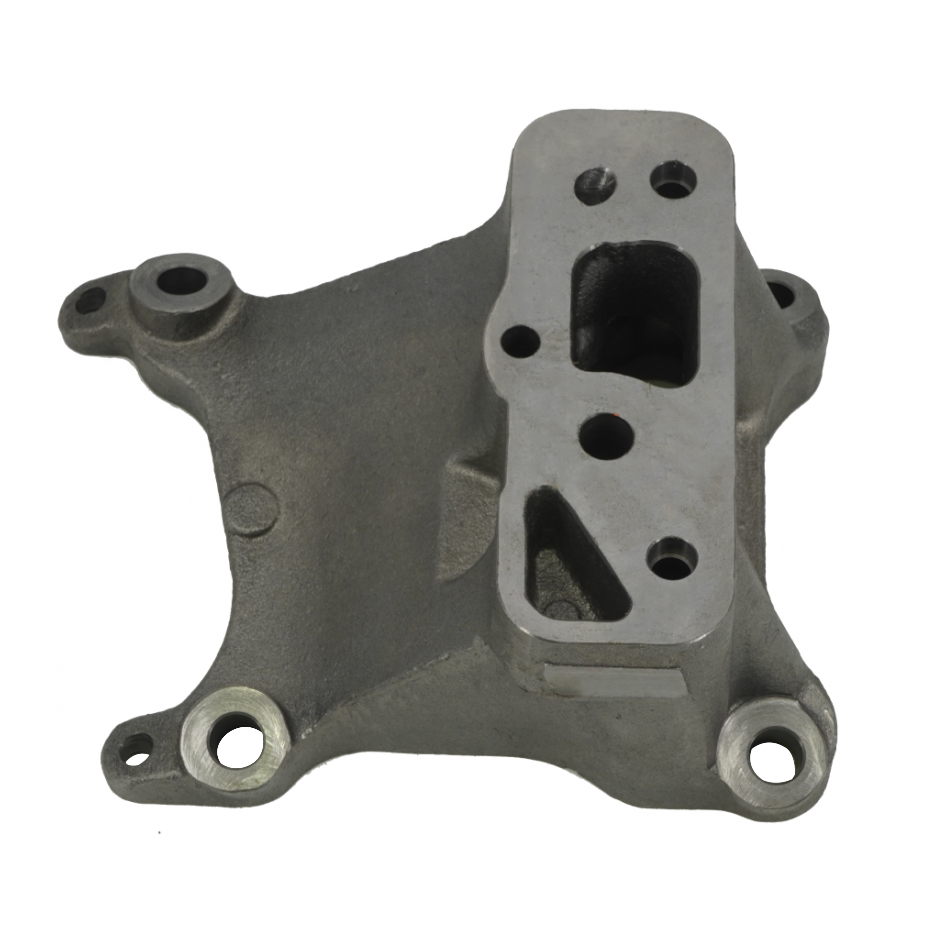

• Installation pedestal included
• No tuning required to get up and running

• No tuning is required, but stock tuning should be expected to produce stock power levels

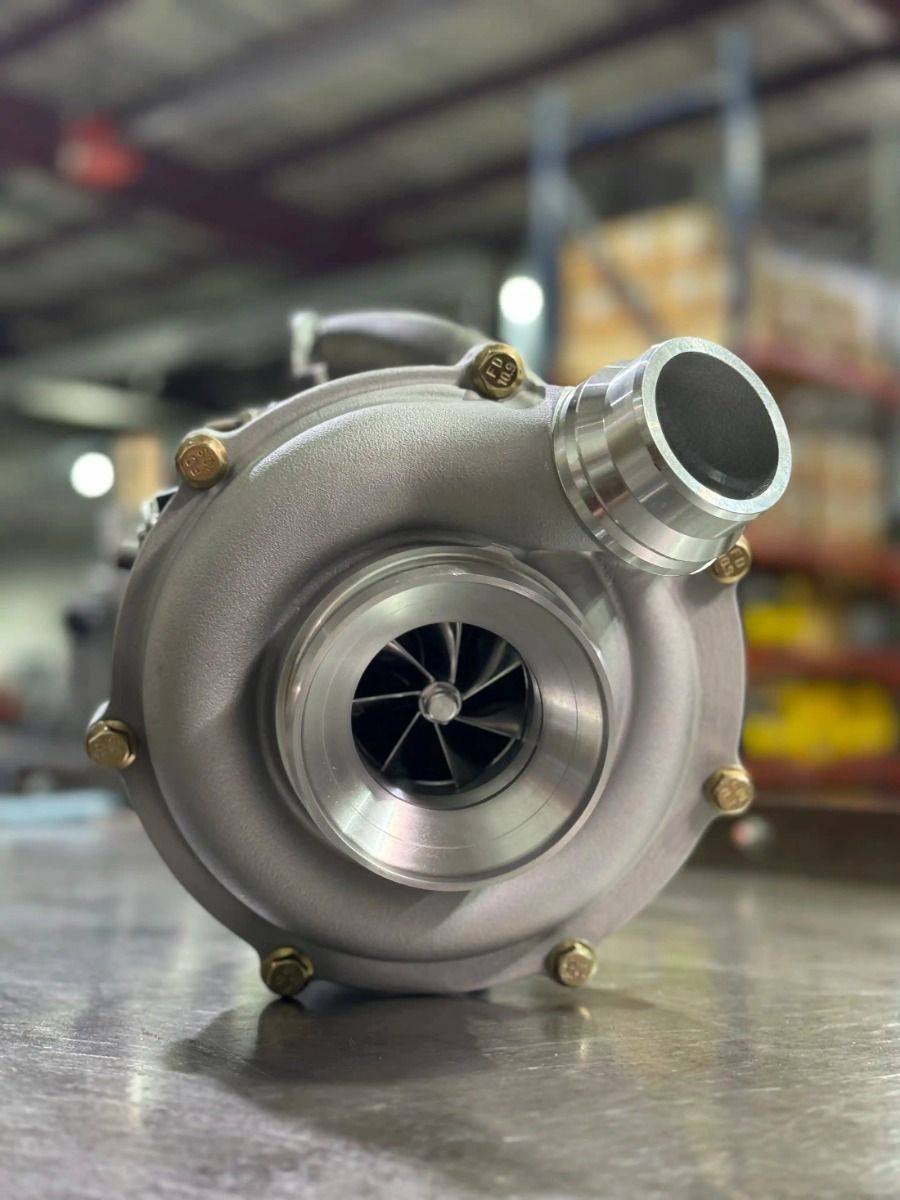

Billet Compressor Wheel

• 61mm 7x7-blade billet extended tip compressor wheel
• Designed to provide improved airflow over the stock turbocharger
• Supports increased power while maintaining quick response and daily drivability

High-Flow Turbine Wheel

• Larger custom 13-blade high-flow turbine wheel
• Designed to improve flow and help control EGTs under load
• Supports increased performance without adding unnecessary lag

Rotating Assembly

• 8.5% lighter than the stock rotating assembly
• Provides ultra-fast spool-up
• Helps improve throttle response for towing and daily driving

Grooved Journal Bearings

• Grooved journal bearings improve lubrication
• Increased cooling helps support long-term durability
• Built for stock, lightly modified, and hard-working trucks

• One Year Limited
