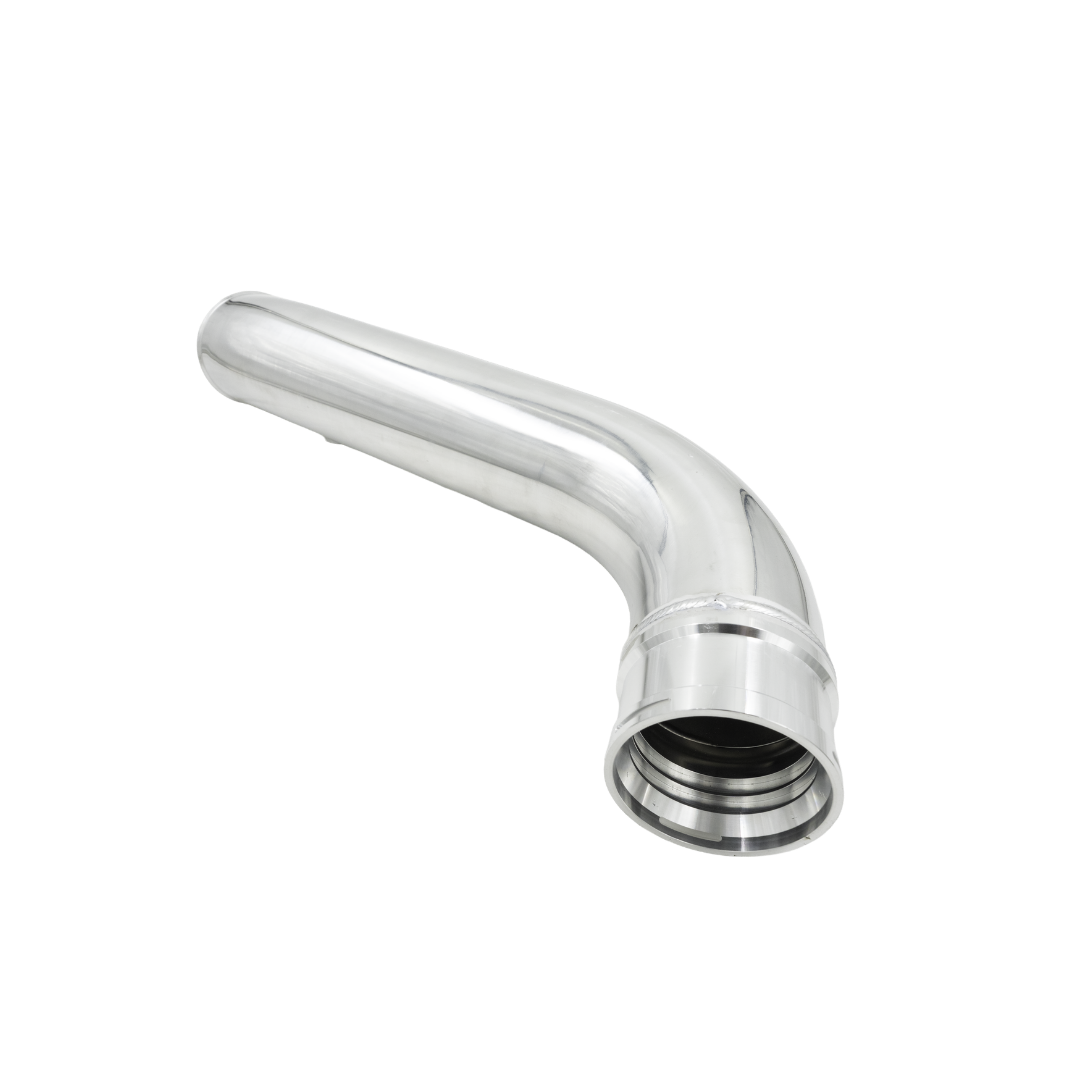

2017-2019 Duramax Passenger Side Intercooler Pipe Kit (L5P-INT-A042)

The factory passenger side charge pipe on the L5P is plastic, and once you turn up the boost it's known to leak or crack. Ours is 6061-aluminum, TIG welded, and built to handle the pressure a tuned truck puts through it. It connects to the factory intercooler with a quick-disconnect coupler we designed in-house, sealed with two O-rings where GM used one, so it stays locked in and doesn't blow off. There's a properly placed bung for the air intake temp sensor, so your readings stay accurate.

Part Number: L5P-INT-A042

Why Shop Dirty?

• Canadian-Made Performance: High-performing parts made in-house in our shop in West Kelowna and sourced from across North America with the highest quality standards
• Born in the Shop: Our parts are engineered with real-world experience. Whether it's an OEM fix or a performance upgrade, we build what we know works. We make our parts to solve real-world problems.
• Dirty Made Quality: Our kits are trusted by shops across Canada because we design with the end user in mind. We aren't just designing the kits; we are installing them every day in our own shop. We use our own products every day. From the first weld to the last bolt, we build tough gear that actually fits, handles abuse, and looks the part.

• Mandrel-bent 6061 aluminum, TIG welded, for clean unrestricted airflow over the plastic factory pipe
• In-house designed quick-disconnect coupler with a dual O-ring seal, more secure under pressure than the single O-ring OEM setup
• Air intake temp sensor bung placed for accurate readings
• Developed using OEM models and 3D scans of the passenger side layout for clearance around the fan shroud and intercooler outlet, refined through CAD and prototype testing
• 3.5" to 3" reducing coupler and T-bolt clamps included for a leak-free install
• Available raw or powder coated

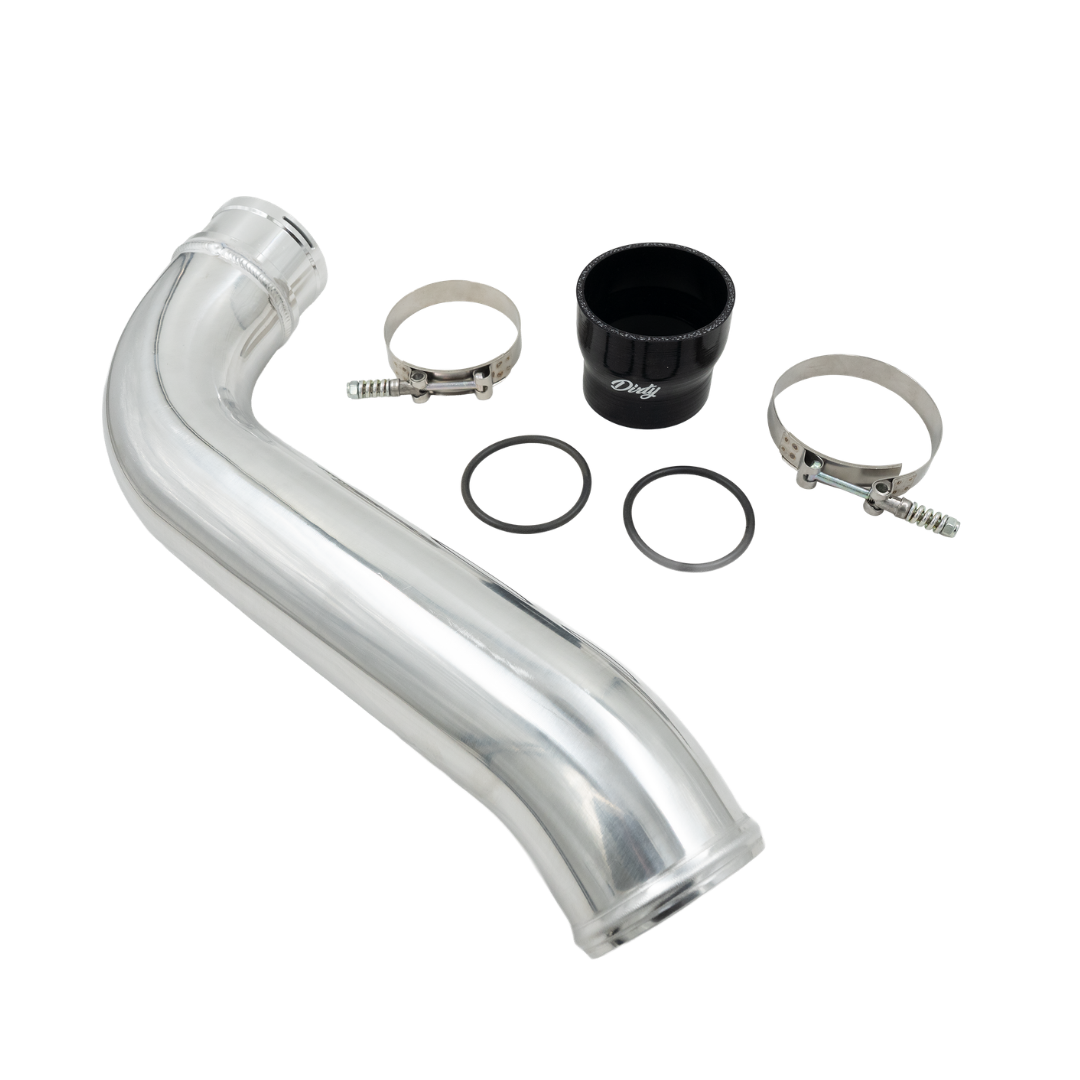

• (1) Passenger side charge pipe assembly

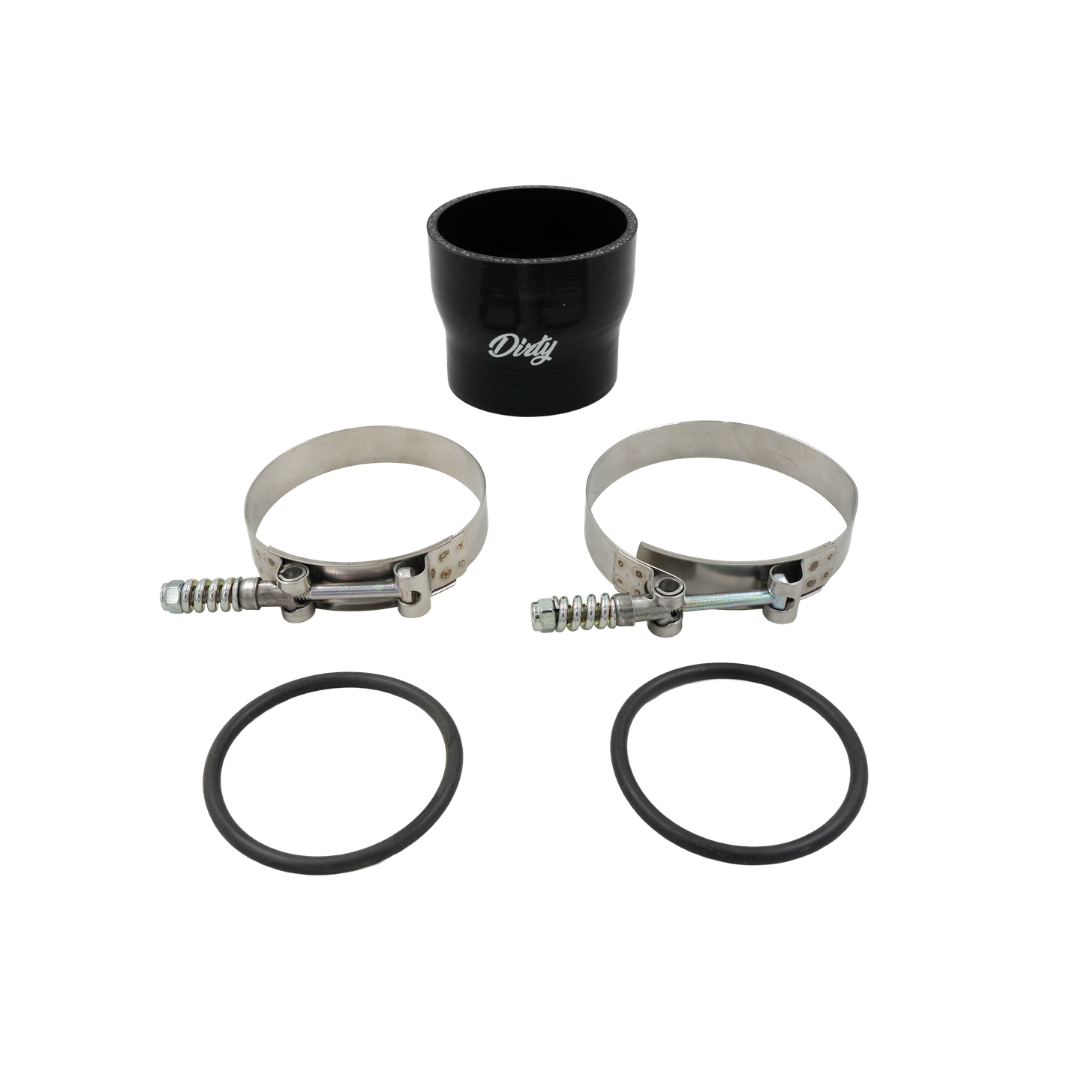

• (2) O-rings
• (1) 3.5" to 3" reducing silicone coupler
• (2) T-bolt clamps

Material	6061 Aluminum, TIG Welded
Connection	Quick-disconnect to factory intercooler, dual O-ring seal
Shipping Weight	4 lbs
Origin	Canada

We overengineer everything we make. It's manufactured to last and tested to prove it, and if by some strange anomaly it ever lets you down, we'll fix it, have a word with whoever built it, and come back stronger. That's the Dirty Lifetime Warranty. Click here for all the details.
