Description
Fits
| Year |
Make |
Model |
Engine |
2017-2019
|
GMC/Chevrolet
|
Crew Cab, Short Box |
6.6L Duramax
|

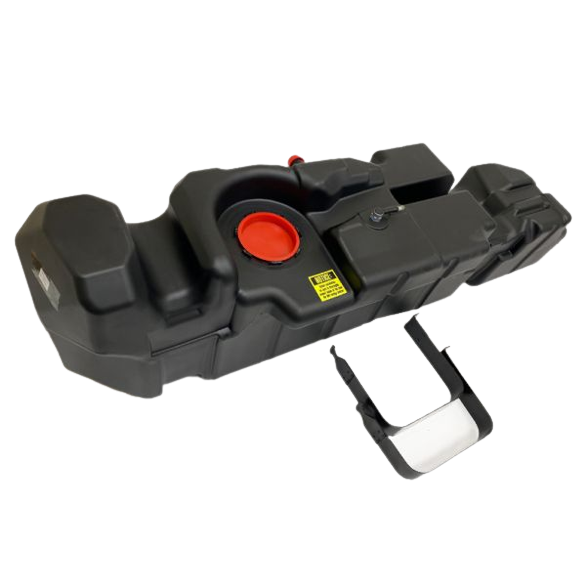

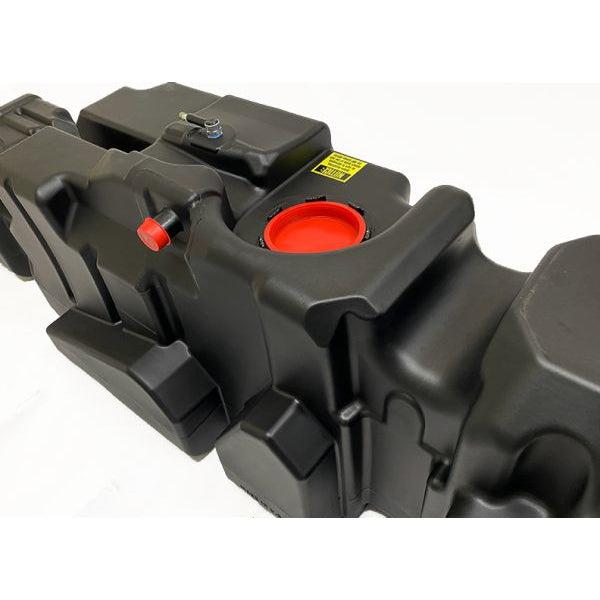

Tougher than steel & more durable than aluminum; these Titan tanks are the perfect upgrade for your Duramax! Compatible with aftermarket sending units, these tanks are mid-ship, direct fit & require no modifications.
Part Number: 7010217
Features
- 1/4" Thick military grade, cross-linked polymer
- 20 Gallons larger at 56 Gallons
- Black, baked epoxy-coated, galvanized steel mounting straps
- Low fuel trap design
- 2.5” below bottom of the stock tank shield
Notes
- Diesel Fuel ONLY
- Does not fit with the B&W model 1016 Turnoverball Hitch or the Curt model 60642.
Service Bulletin
Effected Vehicles: 2019-to Current GM 6.6L Diesel Crew Cab Short and Long Bed Trucks
Issue: Fuel gauge Drops to Empty After Initial Install and Vehicle Driven Approximately 100 Miles.
Explanation: The GMC trucks have the ability through programming and monitoring to know exactly how much fuel is in the fuel tank as well as fuel consumption based on miles driven and fuel economy.
The design of the Titan XXL tanks adds additional fuel volume above the OEM float which in turn will hold the float on full past what the computer thinks is acceptable. The truck will run a system check and see that the Fuel gauge is reading out of specifications and will zero the fuel gauge. This will put the truck into a semi-adaptive learning mode and the truck will start to align the specifications with the current truck parameters. In our experience 4-5 full tanks ran from Full to empty will fix this issue on analog gauges. Truck with digital gauges (such as Denali, AT4, and High Country models) can take up to 10 full tanks to remedy this issue.
Recommendations: Run tank from full to empty, do not fill up until tank is close to empty.
