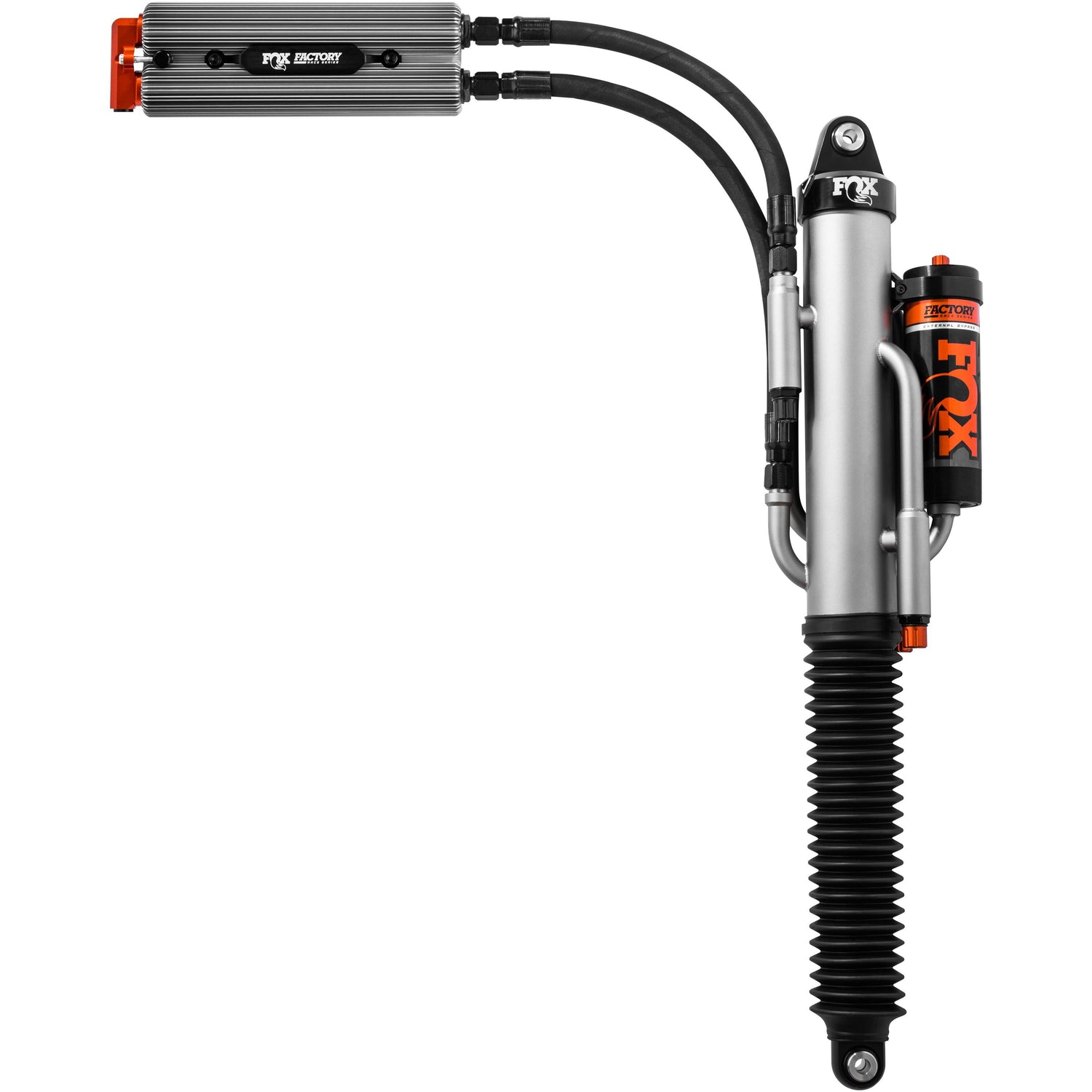

2017-2018 Raptor 3.0 Race Series 0-1" Lift External Bypass Rear Coilover (883-09-141)

FOX Part Number: 883-09-141
$5,420.29 CAD

Purchase to earn 5420 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2017 - 2018 Ford F-150 Raptor



Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).

This kit delivers the next level of off-road performance without sacrificing everyday ride quality.

Part Number: 883-09-141

Features

  • Durable Zinc Plated Seamless Alloy Body
  • Quick Adjust Bypass Knobs For Easy Adjustments
  • External Reservoir System Dissipates Heat Fast
  • 3.0" steel Body, proprietary coating for improved durability
  • Hard anodized impact extruded aluminum finned remote reservoir with New Recirculating Reservoir Bridge
  • Hard anodized CNC-machined 6061-T6 billet aluminum
  • 7/8" 17-4 H900 hard chrome plated stainless steel shaft
  • Hard anodized 6061-T6 billet aluminum high-flow race Piston
  • Valving Specific for Gen 2 Raptor to maximize performance and comfort

Specs:

  • Extended Length: 31.15"
  • Compressed Length: 18.88"
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Travel: 12.27"
  • Rear Lift Height: 0-1"
