2017-2018 2.8L Duramax Colorado 4" Lift Kit (BDS745H)-Lift Kit-BDS-BDS745H-Dirty Diesel Customs

2017-2018 2.8L Duramax Colorado 4" Lift Kit (BDS745H)

BDS

Part Number: BDS745H
Sale price$3,077.01 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Fits

Year Make Model Type Lift
2017-2019 Chevy / GMC Colorado/Canyon Colorado ZR2 4"



Improve your off-road capability in your Colorado with the BDS 4" ZR2 system. Take it up a notch in strength, control, and stance with the BDS 4" lift kit! This Performance system brings together safety and capability with uncompromising on and off-road performance. All BDS kits have everything you need to properly lift or level your truck without the hassle of searching for the proper parts.

Part Number: BDS745H

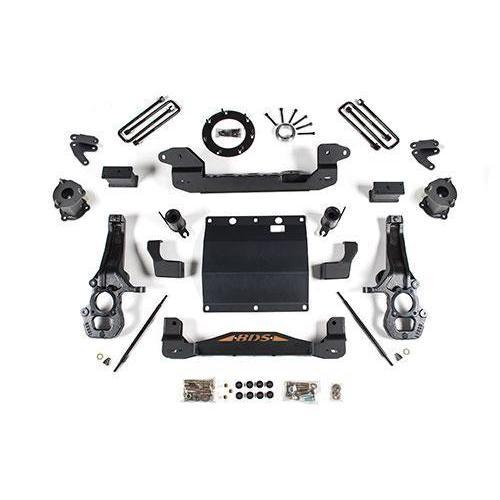

 Features
  • HD full-width belly skid plate
  • 1/4" thick one-piece laser cut steel high clearance crossmember
  • CNC-machined ductile iron steering knuckles
  • Top-mounted strut spacers are supplied to correctly position the DSSV Coilovers
  • 4" block & U-Bolt kit
  • Multipoint differential relocation system
  • Transfer case indexing ring
  • Axle-mounted shock relocation brackets
  • Larger ball joints from the ZR2 A-arms
  • Clears 35's
  • Retains OE driving characteristics

Tire & Wheel Combinations:

  • 35x12.50 w/ 20 x 9 and 5.25"
  • 35x12.50 w/ 17x9 or 18x9 and 4.5"
Notes
  • Will fit gas and diesel models
  • Inner Fender trimming required
  • Minor welding required
  • The electronically assisted steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern tires. High-speed steering wheel feedback can occur.
  • Stock 17" and 18" wheels cannot be reinstalled with the lift kit. Aftermarket 20" wheels with a maximum of 5.25" backspacing are recommended. Certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See the end of the instructions sheet for details on installation.
