2015 VW/Audi 2.0L TDI FlashZilla Stage 3 Tune File

TuneZilla
$934.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stage 3 tune: pick any add-ons, then the FlashZilla Pro if you need one. Add-on prices on this page apply when ordered with this tune.

Dynamic Idle

Optional

Speed up engine-warm up with a 1,100 RPM (or another RPM of your choice) idle. The idle will return to stock state (approximately 830RPM) by 70C (158F) coolant temperature. Results may vary. Example Idle RPM vs. coolant temperature progress chart below: Most factory ECUs actually already has Dynamic Idle, especially at higher elevation or very cold temperatures. We typically do not set a higher idle RPM etc. than the maximum that's set by the factory. An engine that gets warmer sooner means that you get interior heat sooner (more comfort during cold weather) and reach optimal efficiency (fuel economy) sooner. If you want a permanently raised idle (e.g. 950-1000 RPM) to reduce vibrations, especially with a stiffer aftermarket engine mount, then we also can do that.

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires custom tuning work for best results. We will not add this to other brand tunes.

Transmission Tune

Optional

Optional DSG tune for DSG automatic cars. Skip this if your car is a manual.

FlashZilla Pro

Optional

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 934  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

TuneZilla engine (ECU) tuning for the VW/Audi 2.0L TDI EA288, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. Add the FlashZilla Pro below if you do not already own one.

Part Number: CR-TDI-150-003

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Tune Options

Stock baseline: 132 hp / 233 lb-ft at the wheel, Not published crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires
Stage 1 CR-TDI-150-001 156 hp / 288 lb-ft Not published +24 hp / +55 lb-ft (wheel) None listed
Stage 2 CR-TDI-150-002 167 hp / 298 lb-ft Not published +35 hp / +65 lb-ft (wheel) None listed
Stage 3 CR-TDI-150-003 190 hp / 325 lb-ft Not published +58 hp / +92 lb-ft (wheel) None listed

Crank figures are TuneZilla's published estimates.

Transmission Tuning

Available Add-Ons

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

  • Emissions-Off (DPF, AdBlue, EGR, ASV & Swirl Flap) (CR-TDI-2L-MISC)
  • Deep Idle (TDI-Deep-Idle)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Requirements

Genuine OEM CR190 turbo (not rebuilt or aftermarket). Actual performance depends on EGT limiter and boost creep.

Installation

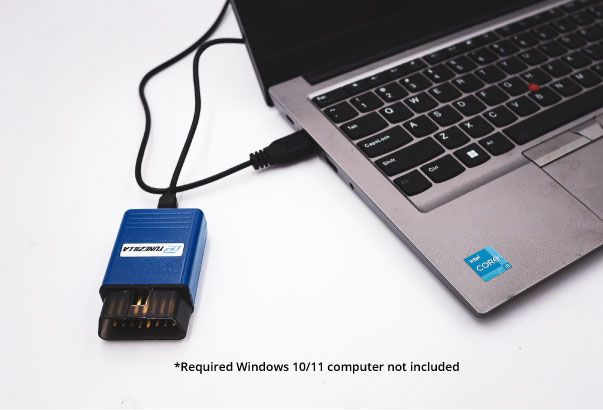

  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Supported ECU Hardware Numbers

04L906016AE 8272, 04L906016AE 8416, 04L906016AE 9288, 04L906016AF 8275, 04L906016AF 8417, 04L906016AF 9289, 04L906016AG 9284, 04L906016AH 9285, 04L906016AJ 8273, 04L906016AJ 8418, 04L906016AJ 9286, 04L906016AK 8276, 04L906016AK 8419, 04L906016AK 9287, 04L906016MG 4451, 04L906021C 8277, 04L906021C 8412, 04L906021C 9282, 04L906021CL 8473, 04L906021D 8413, 04L906021D 9283, 04L906021DS 8125, 04L906021DT 5520, 04L906021HG 4448, 04L906021HH 4449, 04L906026BF 1570, 04L997016 9460, 04L997016A 9461, 04L997016B 9468, 04L997016C 9467, 04L997016D 9466, 04L997016E 9465, 04L997022M 9458, 04L997022N 9459
