2015-2020 F-150 ICON Front and Rear Lift Kit (ICOK93095T)

Fits

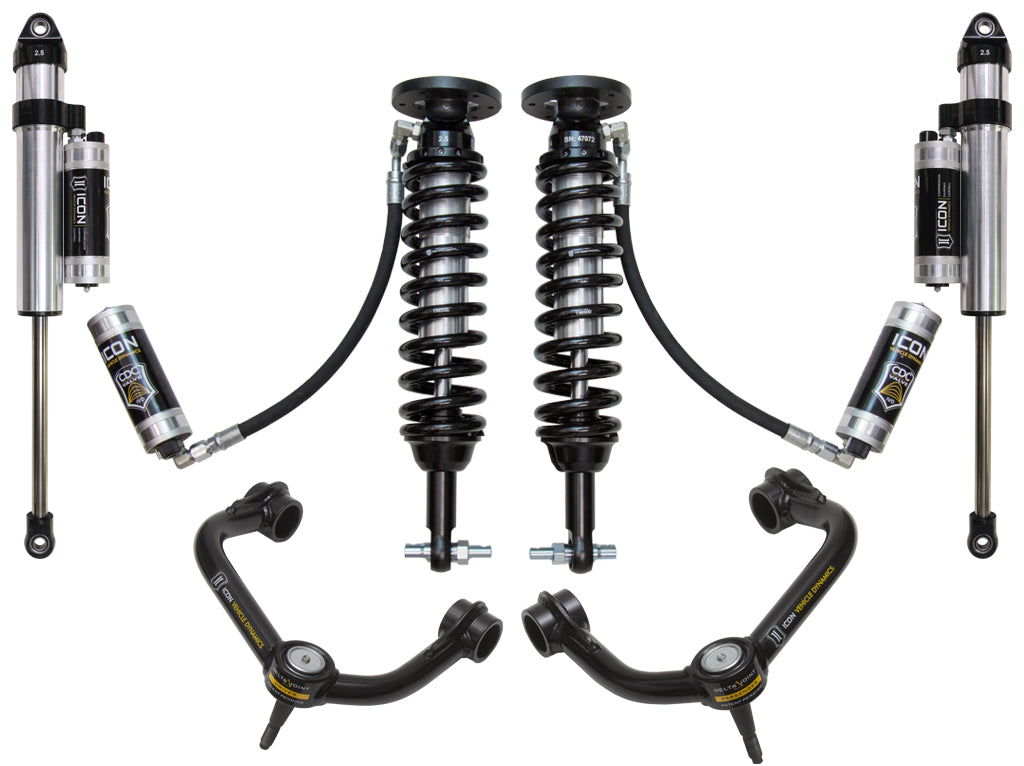

This complete ICON suspension system for the 2015-2020 Ford F-150 delivers improved ride quality and off-road performance with 1.75-3" of lift. The kit includes adjustable coilovers, billet aluminum upper control arms engineered to work as a complete package for consistent damping and handling. Bolt-on installation with no cutting or welding required.

Part Number: ICOK93095T

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed for the lighter weight of the 2015-2020 F150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 1.75-3" of lift height
• ICON CDCV equipped shocks front and rear for fully adjustable tuneability of your shocks
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system - No cutting or welding necessary for install

• ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 1.25-2.5" over stock
• Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• Ships in multiple boxes
