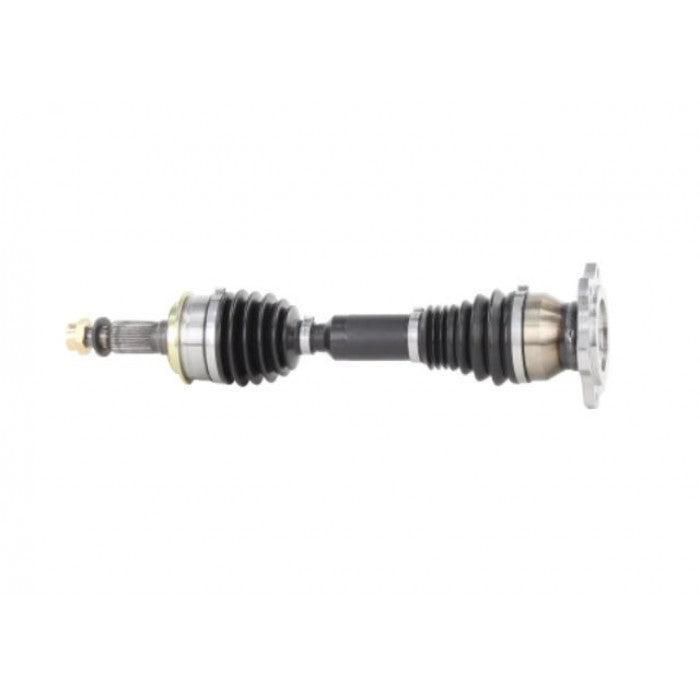

2015-2019 Duramax Extended Travel Front (CV) Axle Assembly (DMAX-8356-EXT)

Fits

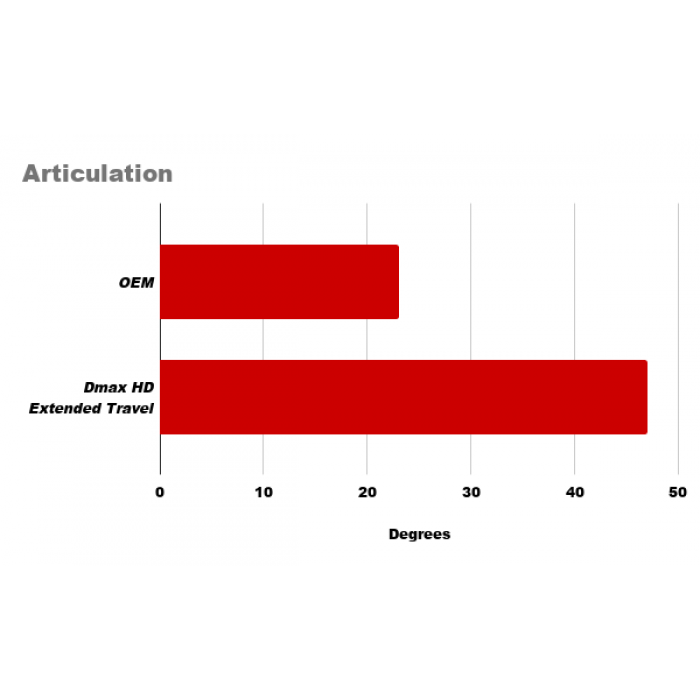

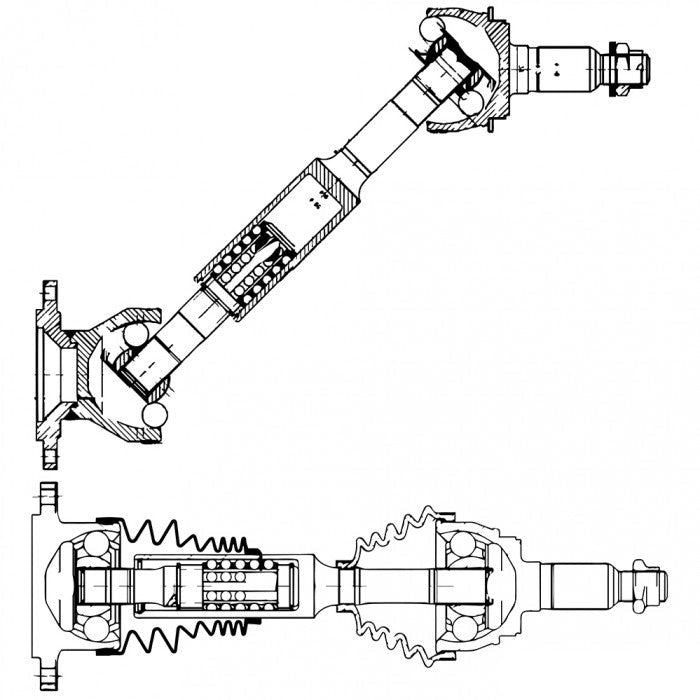

Having issues wearing out CV Axles? Here is the solution, this extended travel CV axle assembly was designed for the rigorous abuse that Duramax owners put their trucks through with the added stresses caused by modifications to the vehicle the stress on the stock components can often lead to failures. This axle allows for a full 47 degrees of articulation versus the 23 degrees that the factory axle allows, making it perfect for leveled and lifted applications. The thermoplastic elastomer boots offer a better life than many of the other boots on standard CV axles. The advantages of these thermoplastic elastomer boots include ideal flex fatigue characteristics, exceptional tear resistance, protection against water and a wide temperature capability. The upgraded cages, races and bearings allow for smooth operation even at the highest degree of articulation, this is achieved by the 8-bearing joint versus the factory 3-bearing joint which can limit the articulation and smooth operation of the CV axle.

Note: Universal Fit left or right side

Part Number: DMAX-8356-EXT

• Extended Travel
• Higher Articulation Angle
• Thermoplastic Elastomer Boots
• Upgraded Cages, Races & Bearings
• 8 Ball Socket Design for greater strength and durability

Includes:

• 1 - CV axle shaft for left or right side
• 1 - CV axle nut washer
• 1 - CV axle nut, self-locking

• Make sure to have medium strength thread lock available for reinstallation of CV flange bolts
• The Axles Shafts are thicker than the stock unit, this may cause clearance issues on trucks with aftermarket Coilover Shock Lift Kits
• 34mm socket required for CV axle nut removal

• (Dmax XD Lifetime Warranty) Dmaxstore XD Steering and suspension parts come with a  Lifetime warranty to the original purchaser. If a failure occurs, Dmaxstore will replace the failed part only once it has been received at their facility. Shipping costs are not included under the warranty. Some standard wear is not covered.
