2014+ Cummins Front Radius Arm Drop Bracket (8730-03)

Description

Fits

The primary purpose of radius arm drop brackets is to improve your ride quality by lowering the mounting locations at the frame to maintain factory front suspension geometry.

Part Number: 8730-03

Features

• HD 3/16" steel plate and includes an integrated, crush resistant, grade 50 A-572 steel skid plate
• Stainless steel flippable cam spacers (1/2" or 1-1/2" forward) for better tire clearance
• No need to remove drop brackets
• Fully Bolt-on
• Maintains factory geometry

Additional Info

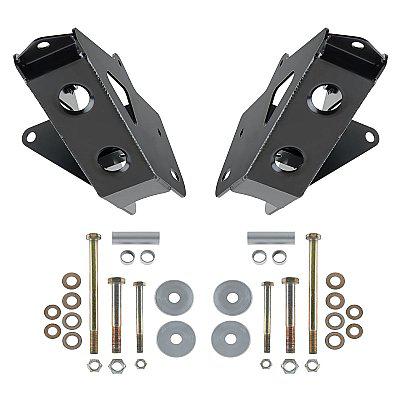

• (1) 873003-R RIGHT HAND DROP BRACKET
• (1) 873003-L LEFT HAND DROP BRACKET
• (2) 873003-07 OEM LOCATION SPACER TUBE
• (4) 873003-11 TRANSMISSION BRACKET SPACERS
• (4) 873003-21 1" OFFSET RADIUS ARM SPACER
• (1) Front Radius Arm Drop Brackets Hardware Kit

Notes

• Designed to be used with 2.5 - 6" front lift springs.
• Recommend having the truck aligned after installation.
• Running the axle 1-1/2" forward may require driveshaft spacer (8731-01) or lengthened driveshaft.
• Running larger tires with the axle 1-1/2" forward will require an aftermarket front bumper or trimming of the stock bumper.
• Running the axle 1-1/2" forward may require sway bar relocation brackets.
