2014-2026 Ram 2500 Backcountry 2.5" Lift Kit (CS-DLVL-BC-CS-1419-H)

Carli Suspension
$3,790.08 CAD
Notices

This item may have additional freight costs. Learn More

Ships from

  • CanadaEst. 14 weeks · Secure yours today
    Special order
  • United States Import Fees covered by Dirty
    10+ available

Build Your Kit

Review 'Additional Info' for required and optional components

Step 1 of 8 · Optional

Torsion Sway Bar

Maintaining the factory sway bar is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Step 2 of 8 · Optional

Rear Track Bar

The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. Our Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling. Note, with the Leveling Systems, a 1” rear bump drop is required

Step 3 of 8 · Optional

Low Mount Steering Stabilizer

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

Step 4 of 8 · Optional

High-Mount Steering Stabilizer

Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.

Step 5 of 8 · Optional

Radius Arm

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, Serviceable 17-4 Stainless Spherical Bearings and maintain the factory caster adjustment.

Step 6 of 8 · Optional

Radius Arm Drop Bracket

The 2.5 Inch Carli Systems DO NOT require these. Lifting the front 2.5" and maxing the caster correction (adjusting the cam-bolts to the rear of their adjustment) will provide sufficient caster to reach the Ram recommended alignment spec. This may cause a slightly coil bow but it's perfectly operable. If you'd prefer to achieve a proper caster spec with the cam-bolt in the middle of its range and want to guarantee a straight, non-bowing coil, these Radius Arm Drop Brackets are the answer.

Step 7 of 8 · Optional

Front Differential Guard

Better to have it and not need it than need it and not have it.

Step 8 of 8 · Optional

Lifetime Ball Joints

The last set of ball joints you'll install carrying the industry's best warranty you won't need to use!
Your Build
2014-2026 Ram 2500 Backcountry 2.5" Lift Kit (CS-DLVL-BC-CS-1419-H)
$3,790.08

Purchase to earn 3790  Dirty Dollars Learn More

Truck Fitment

Description

Note: NOT compatible with diesel models

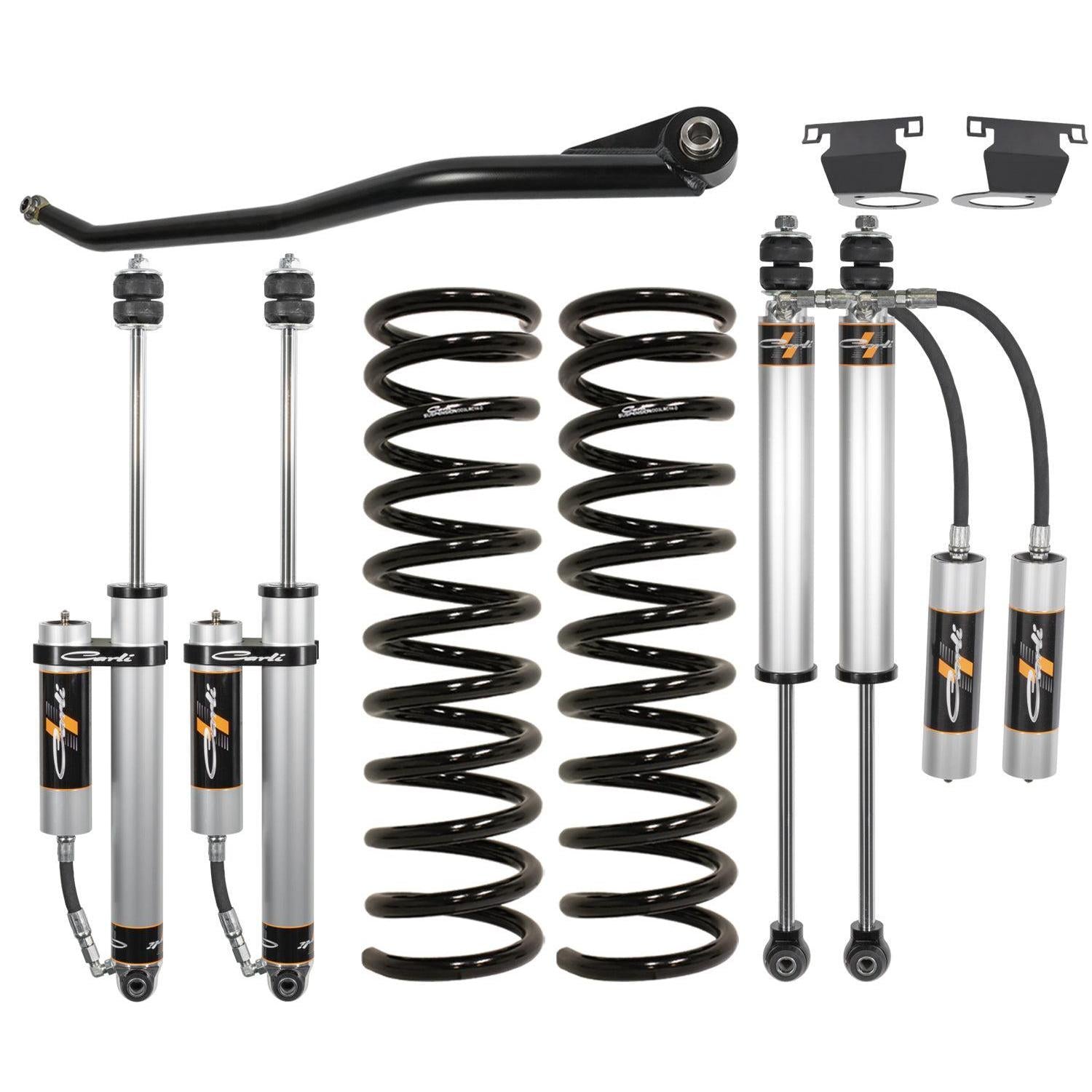

The perfect comprehensive suspension setup for your 2500, for the full-time highway driver and part-time off-roader. It features front and rear multi-rate coil springs that provide a slight rear rake and smooth, soft highway driving, as well as a stiffer, more controlled ride on rough terrain or hauling heavy loads. Paired with Carli's 2.0 remote reservoir shocks to further maintain stability, control, and provide superior bottom-out protection.

Part Number: CS-DLVL-BC-CS-1419-H

Features
  • The Bakcountry Leveling 2.0 System is designed for those seeking the best on and off-road performance on a budget, with no loss of towing capacity
  • Custom shock valving and coil rate specifically tuned for the lighter front end of the HEMI-equipped trucks
  • Multi-rate front coil springs, front and rear shock package, and adjustable track bar
  • Increases wheel travel to 9.5" front and 9.5" rear
  • Allows for the fitment of 35" tires

Notes
  • NOT compatible with factory air ride rear suspension
