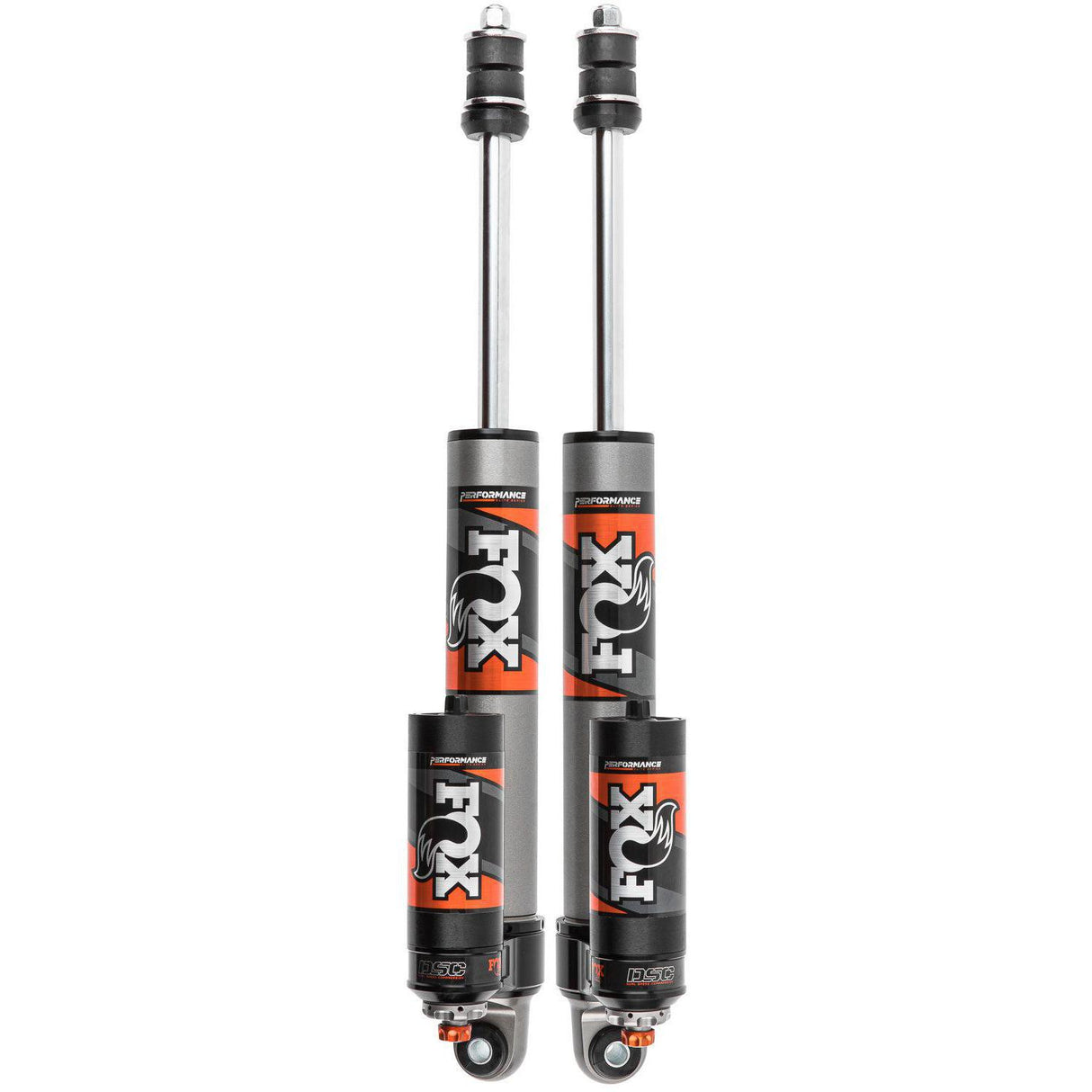

2014-2024 Cummins Rear 3-4" Elite Series 2.5 R/R Shock (883-26-066)

Fits

Performance Elite Series 2.5 Reservoir smooth Body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from the Off-Road race shocks; they've been thoroughly perfected in the most brutal conditions. Performance Elite shocks provide improved damping in any terrain. Experience the incredible performance and precise control the Performance Elite Series 2.5 Reservoir shocks deliver.

Part Number: 883-26-066

• 2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum Body
• 7/8" hard chrome-plated steel Shafts
• Redundant sealing pack system
• 2.5" smooth bore and honed seamless alloy Reservoir with Dual Speed Compression (DSC) adjuster
• Maximize comfort and control through any terrain
• Remote Reservoirs are mounted to clear aggressive tires at full lock
• Aluminum shock bodies and external Reservoirs efficiently dissipate heat by increasing oil capacity
• Larger, high flow Piston increases bottom-out resistance and damping in any environment


Specs:

• Extended Length: 27.15"
• Compressed Length: 16.55"
• Top Mount: Stem Top
• Bottom Mount: Eyelet

• Travel: 10.6"
• Rear Lift Height: 3-4"
