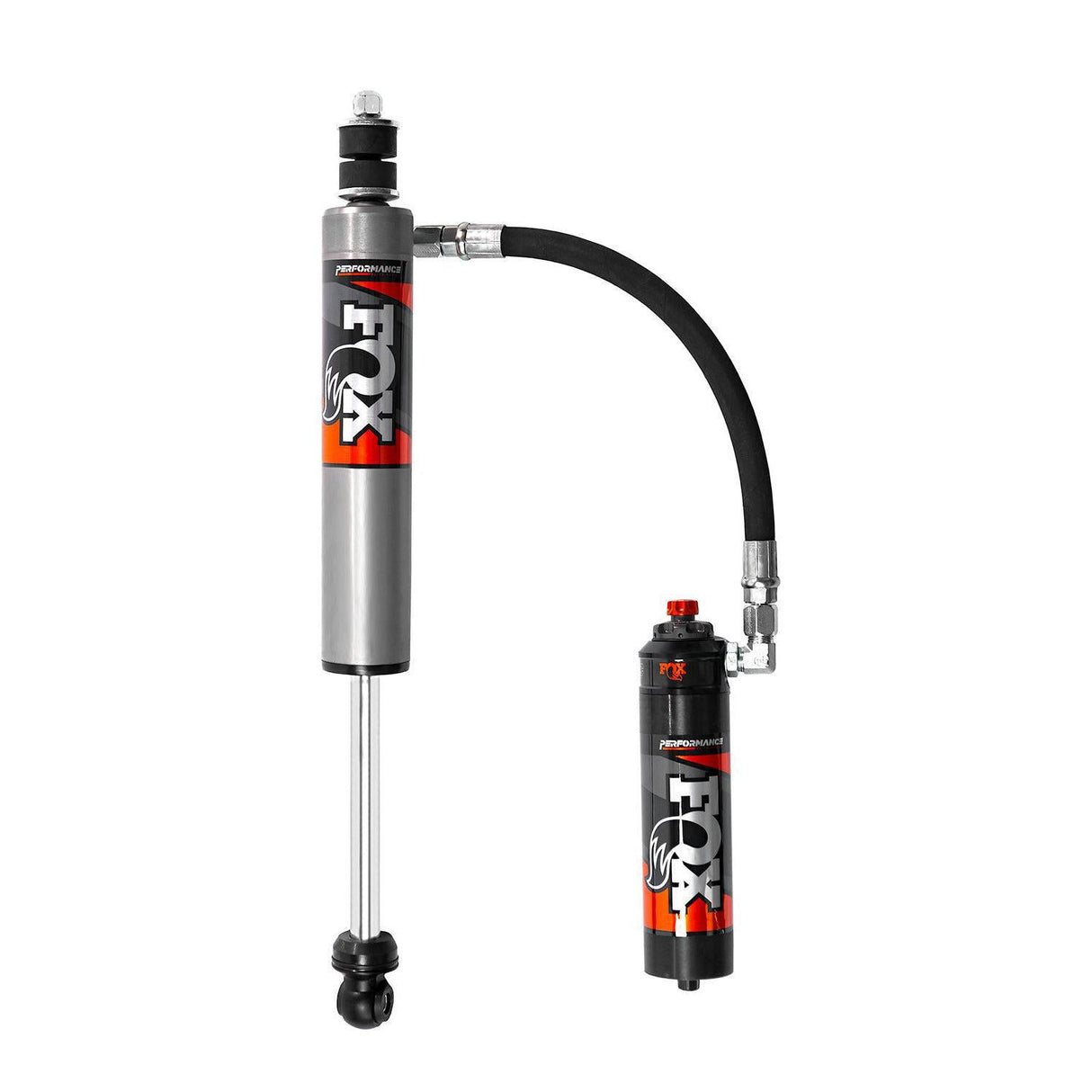

2014-2024 Cummins Front 3-4" Elite Series 2.5 Reservoir Shock (883-26-063)

Fits

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from the Off-Road race shocks; they've been thoroughly perfected in the most brutal conditions. Performance Elite shocks provide improved damping in any terrain. Experience the incredible performance and precise control the Performance Elite Series 2.5 Reservoir shocks deliver.

Part Number: 883-26-063

• Aluminum Body & External Reservior Dissipates Heat Faster Than Steel

• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 25.49"
• Compressed Length: 16.0"
• Top Mount: Stem top
• Bottom Mount: Eyelet

• Travel: 9.48"
• Front Lift Height: 3-4"
