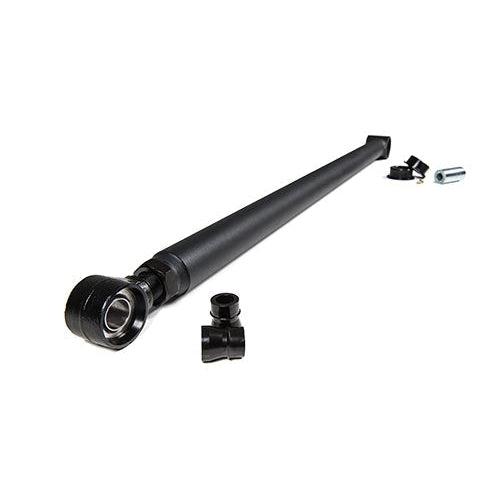

2014-2024 Cummins 0-8" Lift Adjustable Rear Track Bar (BDS122609)

Fits

This new track bar allows for fine adjustment of the rear axle position. It also provides better control of the rear axle by replacing the soft factory rubber bushings with high durometer polyurethane at the frame and a forged COM bearing joint at the axle. Both ends are rebuildable and the poly bushings are greaseable, for use in the factory mount as well as any relocation brackets designed for a stock bar.

Part Number: BDS122609

• Can be used with or without track bar relocation when needed for heights of 0-8"
• Reduce wear on suspension
• Steel tube construction (1-3/4" x 1/4" wall DOM)
• Fully welded, greaseable frame mount end uses high-durometer polyurethane bushings
• Knurled bushing sleeve for no-slip connection
• 1" thread for fine-tune adjustment
• COM Bearing inserts are Injection-molded race for long life, quiet operation, precision machined, and mimic stock bushing width

Includes:

• One Rear Track Bar
• One Forged COM Housing
• One 1" Jam Nut
• One 7/8" COM Bearing
• One Circlip

• One Bag Kit
• Two COM Adapters
• Two Bushings
• One Sleeve
• One Grease Fitting

• Must be used with an appropriate track bar relocation bracket for heights over 3"
• Minimum Length: 35-7/8"
• Maximum Length: 36-7/8"

• Click Here For Installation Instructions
