2014-2022 Mercedes Sprinter 2.1L FlashZilla Stage 1 Tune File

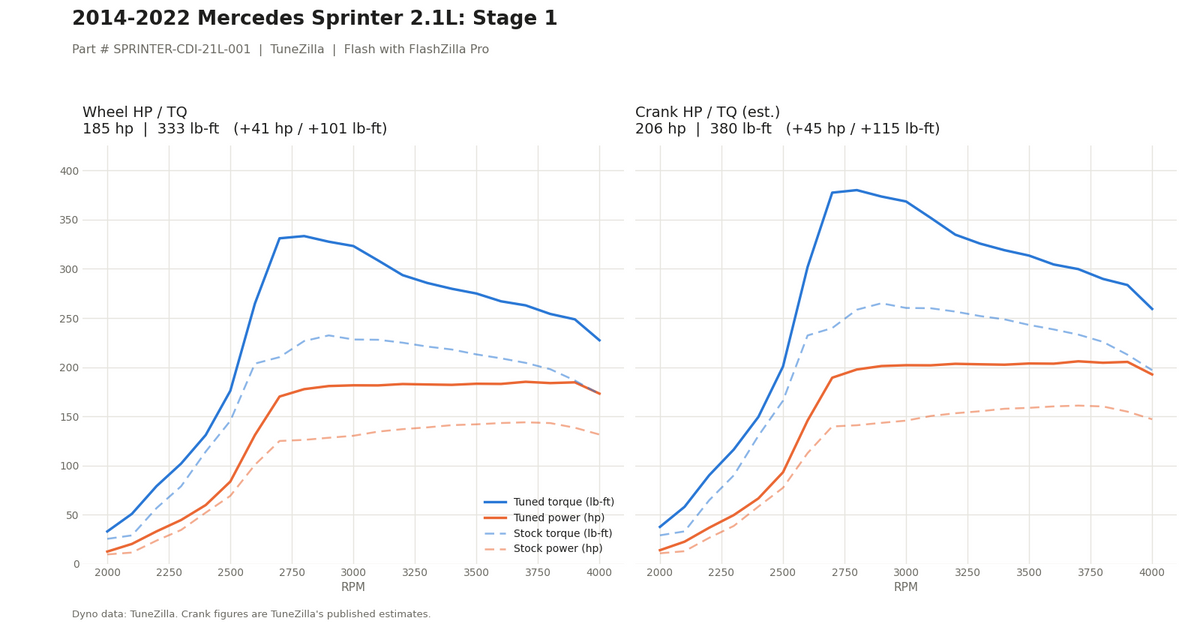

TuneZilla engine (ECU) tuning for the Mercedes Sprinter 2.1L CDI BlueTec, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

ECU check: the FlashZilla Pro flashes the 2-plug EDC17CP57 ECU only. Vans with the 6-plug MD1 ECU cannot be flashed with the FlashZilla Pro.

Part Number: SPRINTER-CDI-21L-001

Emissions-Off: not included with this tune. Add it in the options below.

Stock baseline: 144 hp / 232 lb-ft at the wheel, 161 hp / 265 lb-ft crank (est.)

Crank figures are TuneZilla's published estimates.

• Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (MERCEDES-CDI-30L-EDC17-MISC-OFF)
• Speed Limiter Removal (SPRINTER-CDI-EDC17-SLR)

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

No hardware modifications are required; tune add-ons to accommodate hardware changes can be purchased.

It is important to note that we do not remove factory readiness monitors or force readiness for any factory-installed components. If you are installing aftermarket hardware that is for off-road use only, please double-check with your state requirements prior to flashing.

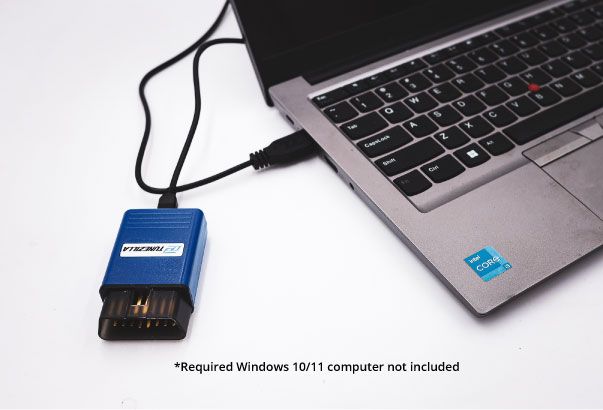

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

ECU check: the FlashZilla Pro flashes the 2-plug EDC17CP57 ECU. Vans with the 6-plug MD1 ECU cannot be flashed with the FlashZilla Pro. Confirm your ECU before ordering.

SCR / AdBlue: clear the SCR countdown before flashing (the message can stay on screen after an emissions-off flash). If you run an aftermarket exhaust, clear all dash errors first. Unplug the SCR controller after flashing but before starting the vehicle (TuneZilla confirmed). It is under the driver's seat on Sprinters and in the trunk under the spare tire on most other models. Emissions-off tunes also require unplugging the EGR, swirl flap motor, DPF temperature and pressure sensors, and NOx sensors, or you may get rough, smoky cold starts.

6519020904 6519040401, 6519021004 6519040401, 6519021504 6519040401, 6519024603 6519040401, 6519025802 6519040401, 6519029401 6519040401, 6519032732, 6519032837, 6519033231, 6519037347, 6519039443, 6519039771

Introducing our Stage 1 ECU Tune for Mercedes-Benz 2.1L Bluetec motor, meticulously crafted to elevate the performance of your diesel Mercedes to new heights. Experience a power surge with an increase of both horsepower and torque, taking your vehicle to another class of performance.

Unleash a new driving experience with improved throttle response, ensuring a dynamic and responsive ride every time you hit the accelerator.

Any Time, Any Place

Flash your Mercedes in the comfort of your own driveway or garage using our TuneZilla Portal App and FlashZilla Pro dongle. Download your tune directly to your laptop and flash your vehicle anywhere.

Tune files can be modified through our InstaTune server so that you can upgrade your tune anytime.

Your Tune, Your Way

What sets our Stage 1 ECU Tune apart is its versatility. Designed to deliver remarkable performance without the need for additional hardware upgrades, this tune provides a seamless and hassle-free installation process. Keep your factory components in place while relishing the enhanced power and mid-range capabilities that come with our meticulously calibrated tune.

For those seeking a more personalized touch, optional tune features are available to accommodate various hardware changes. Whether you've upgraded your exhaust, or other components, our Stage 1 ECU Tune can be tailored to optimize performance based on your specific modifications. Say goodbye to "no start" conditions and hardware failures with our optional tune add-ons.

Uncompromising Performance

Embrace a driving experience like never before, where power, fuel efficiency, and luxury come together seamlessly. Elevate your 2.1L Bluetec CDI motor with confidence, knowing that our Stage 1 ECU Tune is designed to deliver performance without compromise.

Upgrade today and redefine the road with a blend of power and precision that's unparalleled.
