2014-2021 3.0L Ram Ecodiesel 4.0" Front w/ 2.0" Rear SST Lift Kit w/ Falcon (69-10410)

Fits

 ReadyLIFT's SST 4" bolt-on Lift kit has been the go-to for Ram truck owners for years. This recently upgraded kit has all the necessary features like; Gen 2 steel tube upper control arms that are TCT non-bonded, maintenance-free pivot bushings, and HD 1-Ton ball joints to ensure a great ride, maintenance-free operation, and suspension geometry.

Part Number: 69-10410

• 4" lift front
• 2" lift rear
• Bolt-on lift kit
• maintenance-free operation
• No modifications required

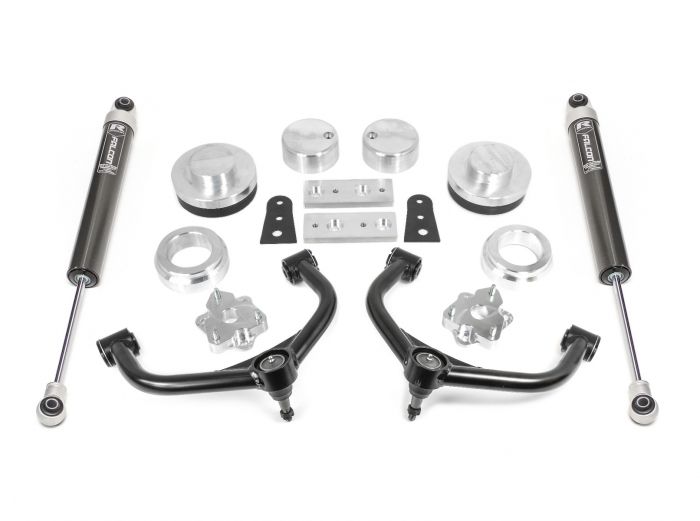

Includes:

• Two heavy-duty DOM TCT non-bonded tube steel upper control arms
• Side-biter washers
• Corrected HD 1-ton ball joint pivot angles.
• Two top mounts front CNC machined billet aluminum strut extensions
• Two front pre-load spacers
• Two rear coil spring spacers with polyurethane spring isolators
• Two Microcellular progressive bump stop extensions
• Sway bar drop spacers
• Two rear Falcon 1.1 Monotube series shock with aluminum billet alloy piston

Tire Fitment:

• 35"- Max tire diameter
• 37" by 12.50" for no rub on a 9" wide wheel with 0 offset
• 295/65R20 requires no less than +18

• Estimated Installation Time: 7.5 Hours +/- 1 Hour (not including alignment and wheel & tire assembly)
• Not for use with factory air suspension

• Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. ReadyLIFT leveling kit, block kits, and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty. See the ReadyLIFT website for exceptions.
•  Warranty does not apply to discontinued, clearance, or outlet products.

• Wearable components including, but not limited to, shocks, ball joints, Heim joints, bushings, and steering extensions, are covered for up to 1-year.
• Free 5 Year/ 60,000 Mile Powertrain Warranty with qualifying suspensions.
