2014-2019 3.0L Ram Ecodiesel Classic 4" Front w/ 2" Rear SST Lift Kit (69-1041)

Fits

ReadyLIFT's SST 4" bolt-on Lift kit has been the go-to for Ram truck owners for years. This recently upgraded kit has all the necessary features like; Gen 2 steel tube upper control arms that are TCT non-bonded, maintenance-free pivot bushings, and HD 1-Ton ball joints to ensure a great ride, maintenance-free operation, and suspension geometry.

Part Number: 69-1041

• Best engineered technology on the market
• Work with factory rear coil springs
• Enhance ride and off-road performance
• OEM alignment geometry retained
• Font & rear bump stop extensions prevent over-compression

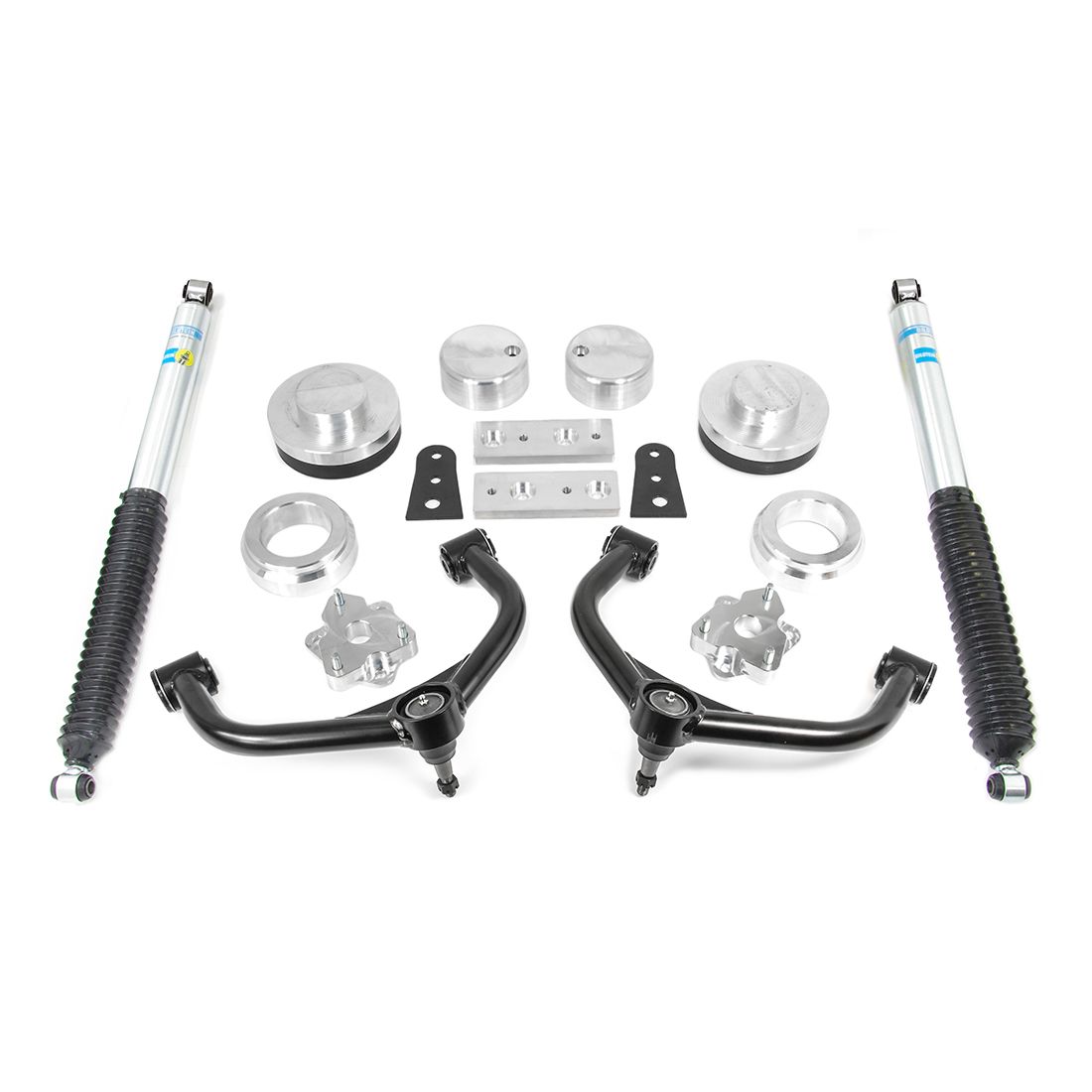

Includes:

• Two top mounts front CNC machined billet aluminum strut extensions
• Two front pre-load spacers
• Two HD DOM tube steel upper control arms
• HD 1-Ton ball joint pivot angles
• Two rear coil spring spacers with polyurethane spring isolators
• Two bump stop extensions
• Sway bar drop spacers
• Two rear Bilstein 5100 series shocks

Tire Fitment:

• 35"- Max tire diameter
• 35" by 12.50" on a 9" wide wheel with 0 offset
• 295/65R20 tire no less than +18

• Estimated Installation Time: 7.5 Hours +/- 1 Hour (not including alignment and wheel & tire assembly)

• Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. ReadyLIFT leveling kit, block kits, and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty. See the ReadyLIFT website for exceptions.
•  Warranty does not apply to discontinued, clearance, or outlet products.

• Wearable components including, but not limited to, shocks, ball joints, Heim joints, bushings, and steering extensions, are covered for up to 1-year.
• Free 5 Year/ 60,000 Mile Powertrain Warranty with qualifying suspensions.
