2014-2018 Cummins 2500 6" Lift Kit - Rear Air Bags (BDS1627H)

Description

Click here to customize this Kit

Fits

Take your air ride Cummins up a notch with this BDS Suspension 6" Rear Air Bag Suspension System. These kits include everything you'll need to correctly lift, improve ride quality across any terrain on & off-road, and maintain factory performance of the airbag system with no compromise on the range of motion.

Part Number: BDS1627H

Features

• Radius arm relocation brackets correct the suspension geometry & caster
• 1/4" steel, 5" tall gusseted airbag spacers &  air ride leveling sensor brackets to position the ride height sensors at the stock angle
• NX2 Series Shocks
• Indexing ring kit to correct the operating angle of the front driveshaft.
• Extended length sway bar links & Sway bar relocation brackets
• 1/4" thick steel radius arm relocation brackets
• Rear track bar bracket to correct axle positioning
• ProRide 6" coil springs
• HD track bar relocation bracket to recenter the front axle once lifted
• Laser-cut transmission cross-member & adjustable transmission mounting plate to increase clearance.
• Up to 37" tires

Tire & Wheel Combinations:

• 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
• 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
• 37 x 12.50 w/ 20 x 9 and 4.5" - 5"

Notes

• Will NOT fit rear coil-spring equipped models
• Fits Diesel Models Only
• Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicles could have 8 bolt transfer cases (w/Heavy-duty Aisin 6 speed transmissions)
• Will not fit RAM 2500 Powerwagon models
• Will not fit Cab and Chassis models

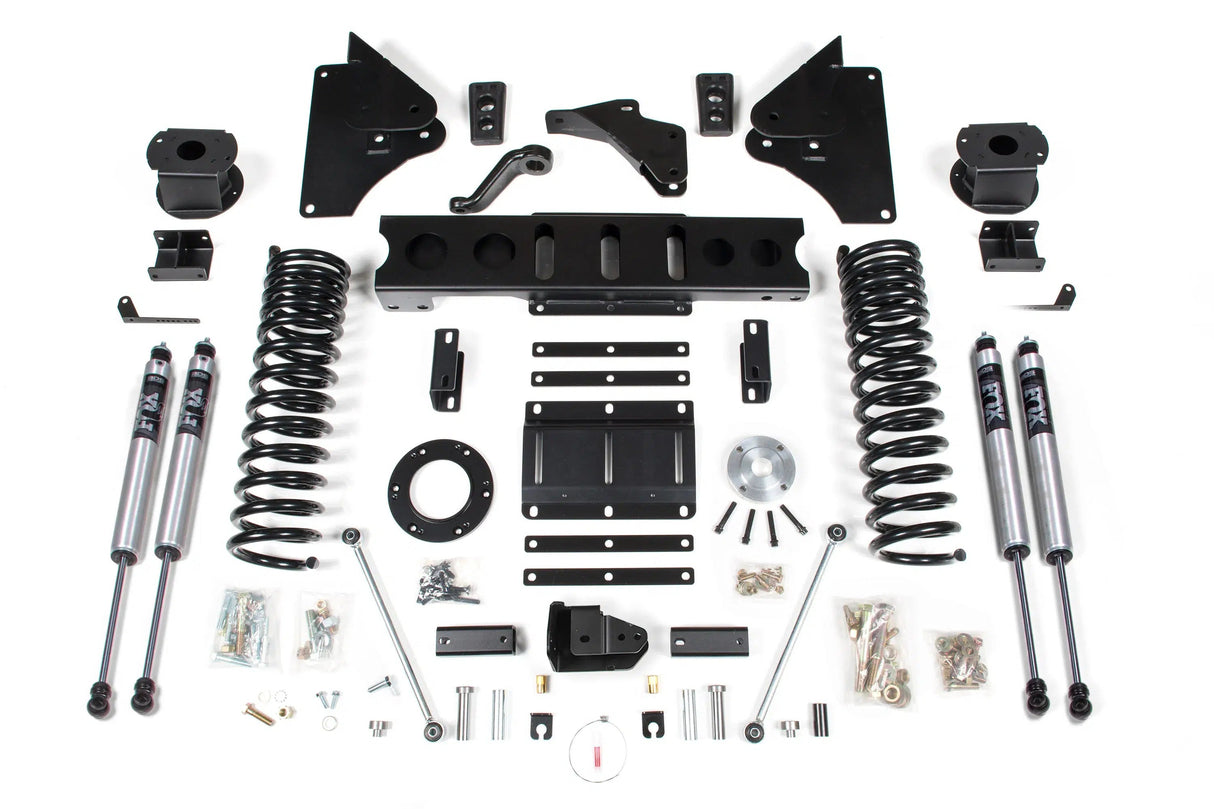

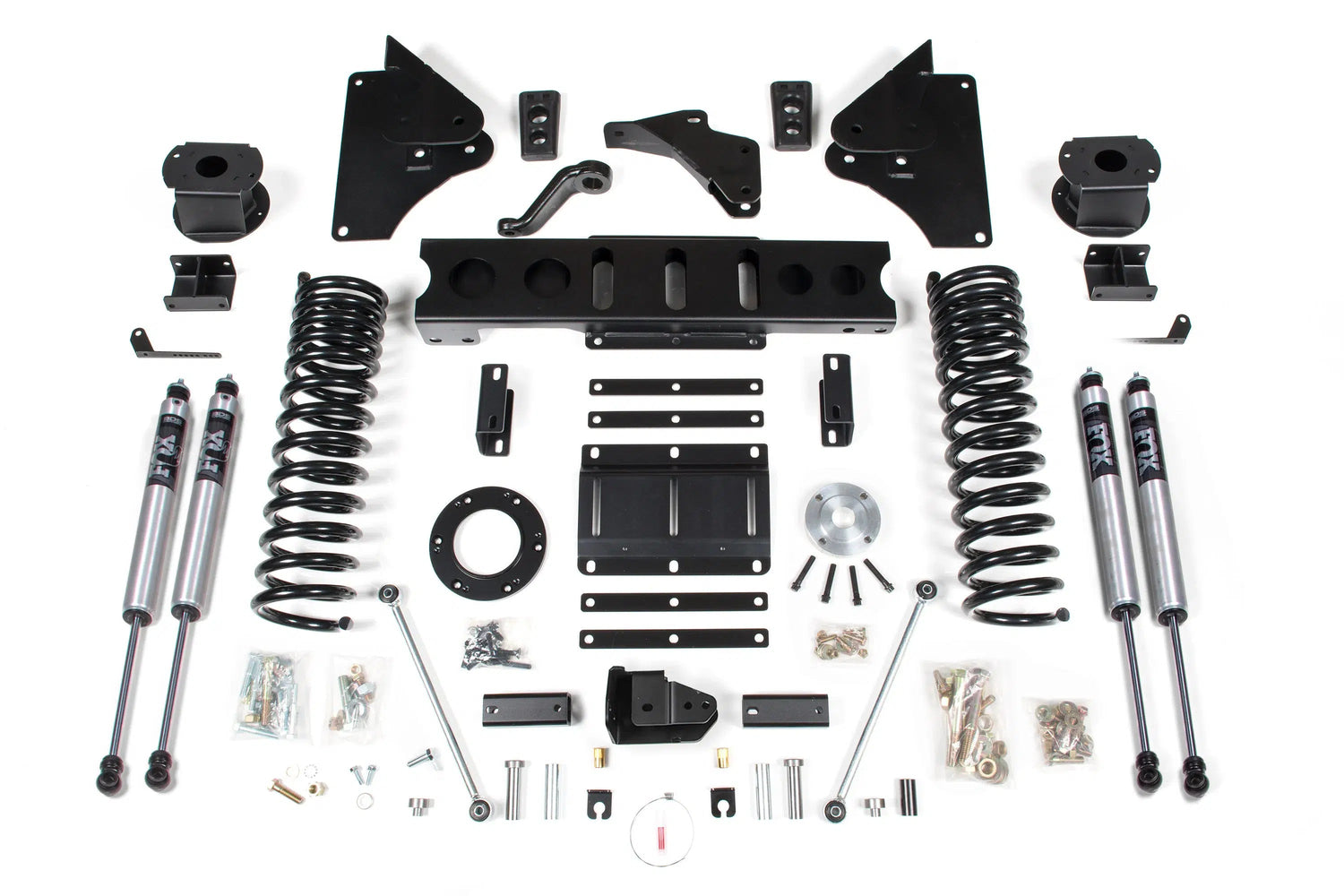

• Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
