Description
Fits
Year |
Make |
Model |
Type |
Lift |
2014-2018 |
Dodge / Ram |
2500 w/ 6.7L Cummins & 4x4 |
w/ Rear Air-Ride |
6" |

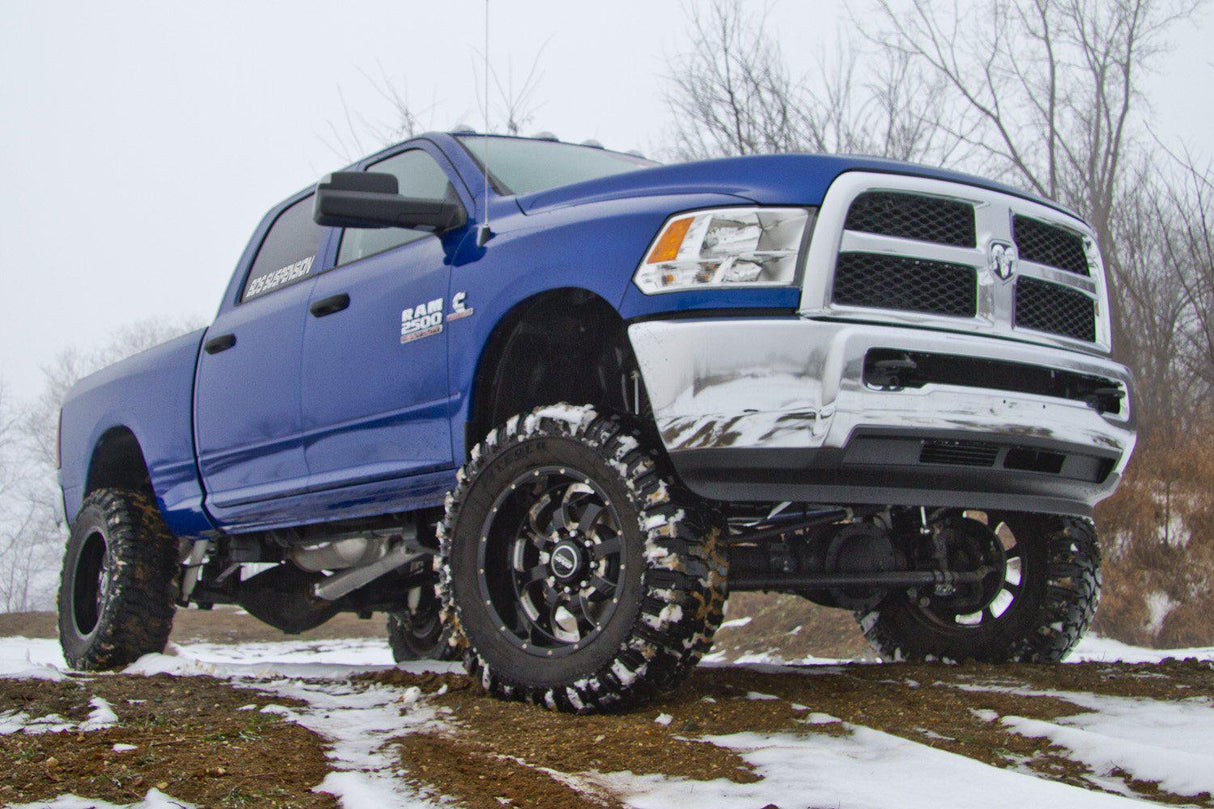

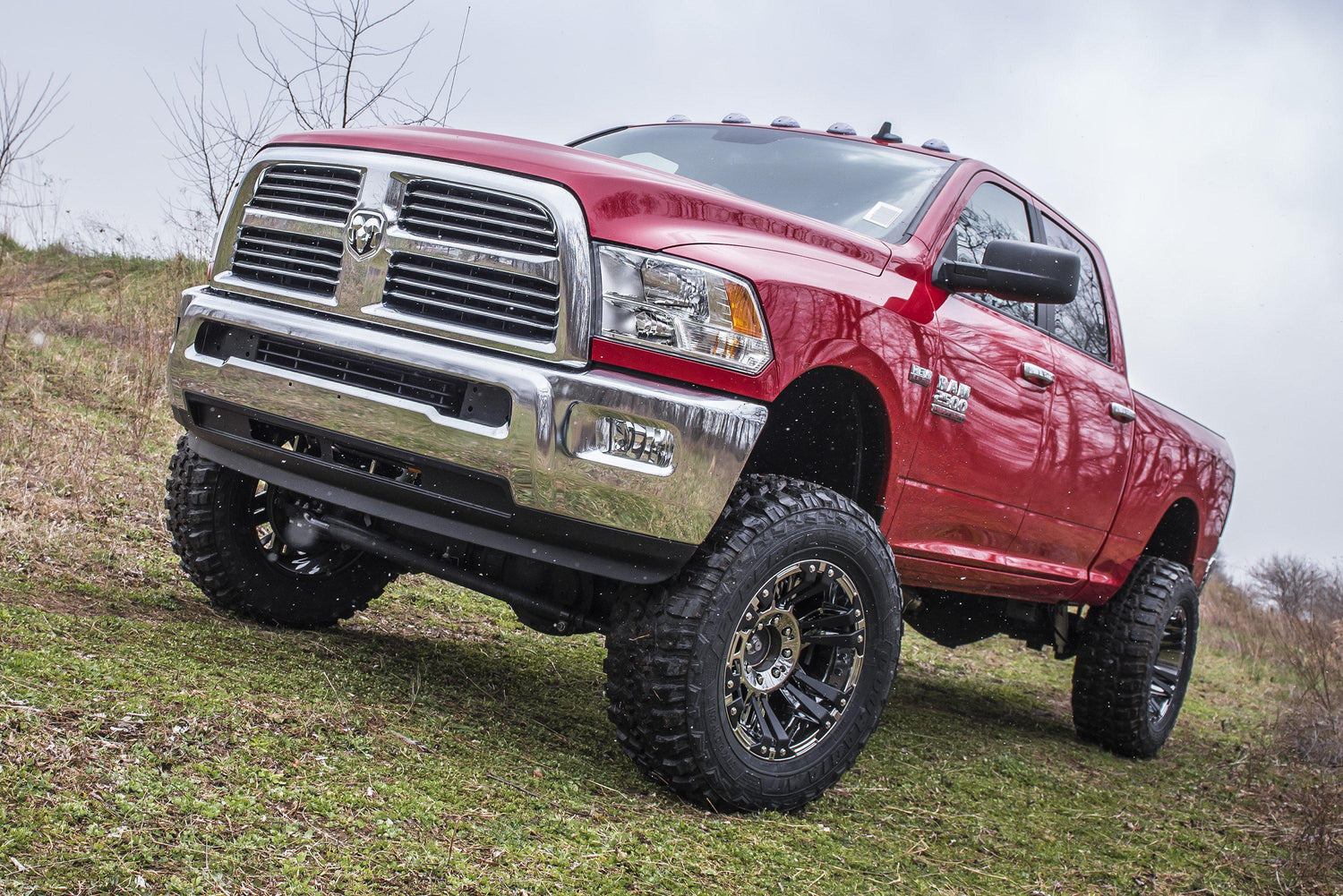

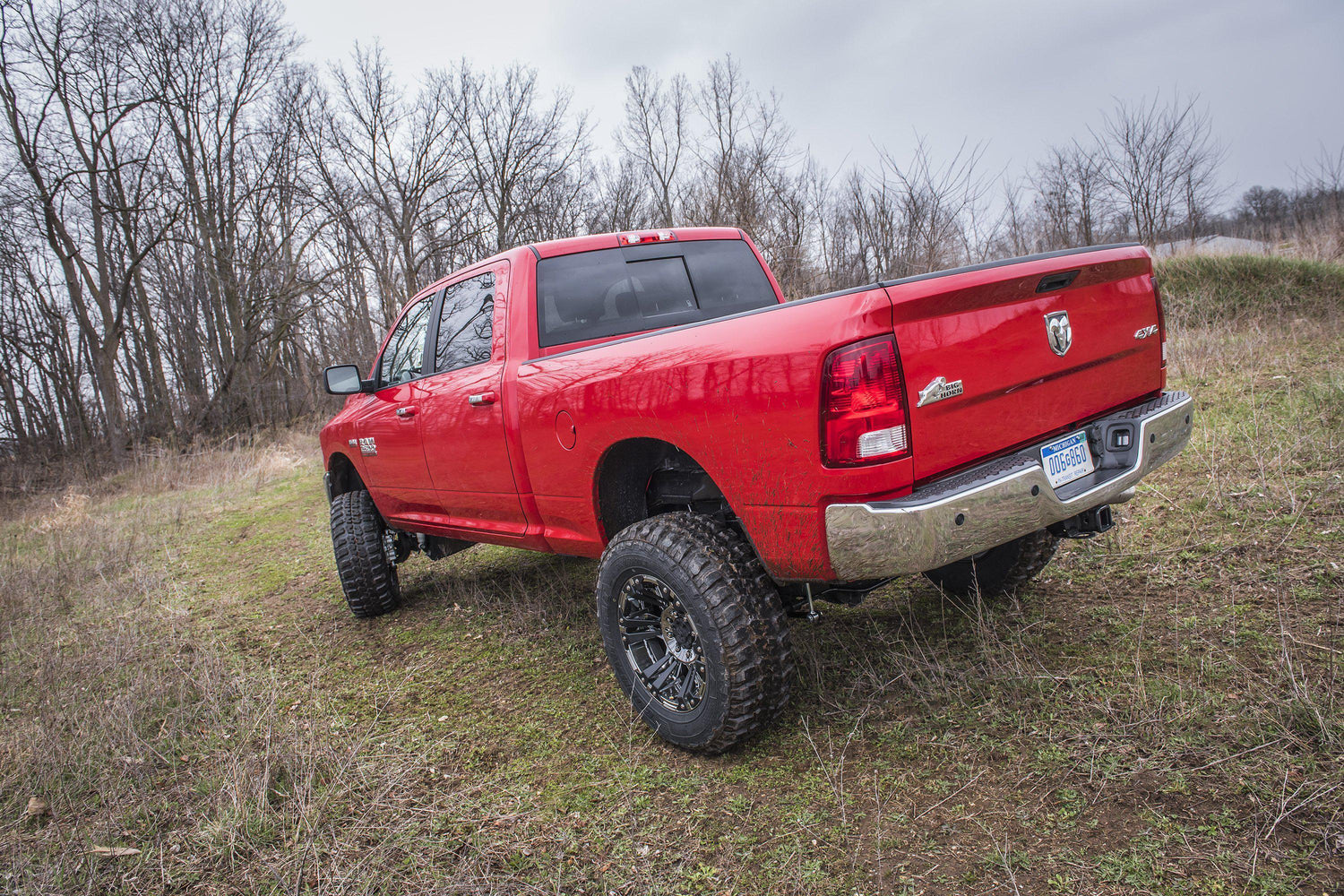

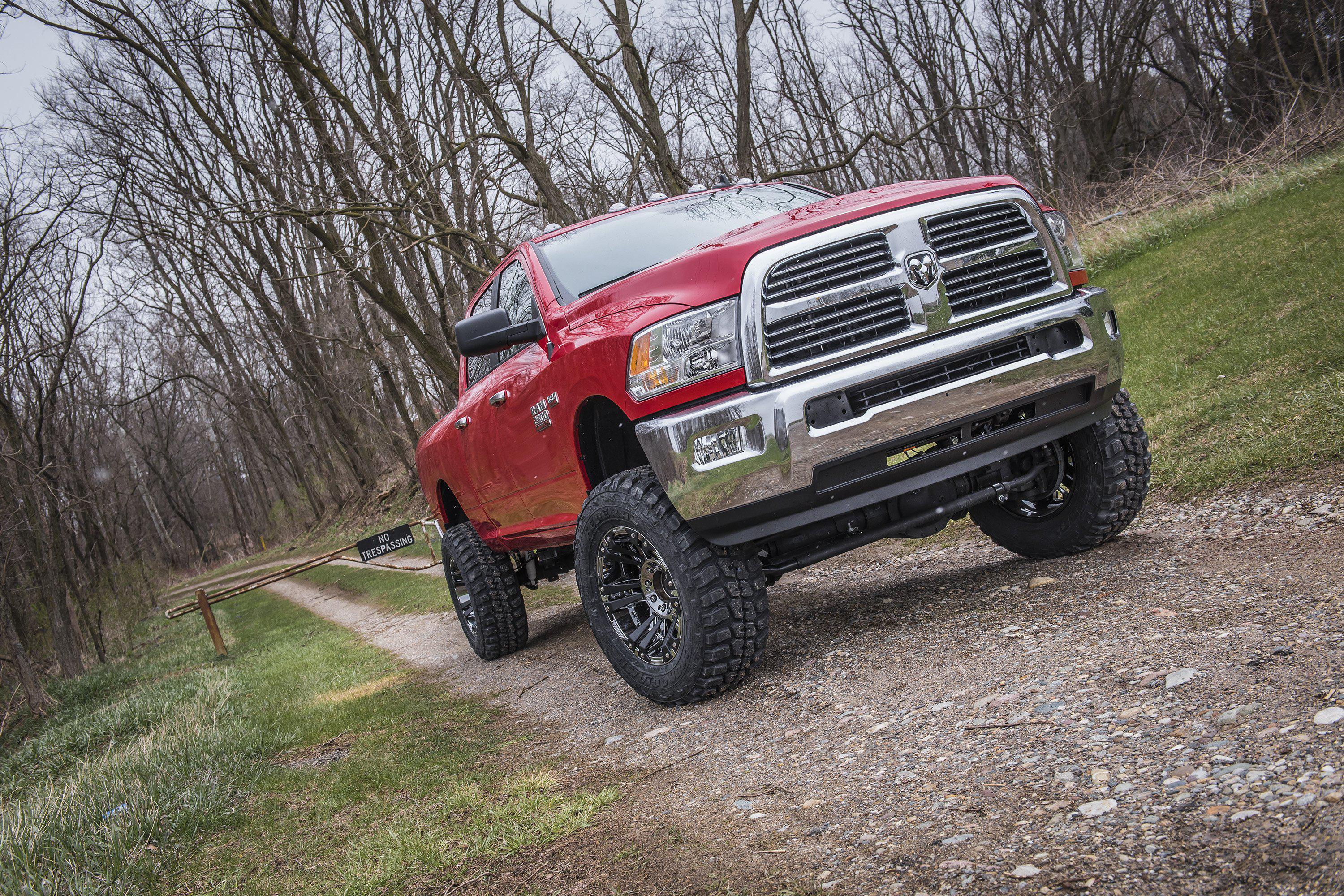

Take your air ride Cummins up a notch with this BDS Suspension 6" Rear Air Bag Suspension System. These kits include everything you'll need to correctly lift, improve ride quality across any terrain on & off-road, and maintain factory performance of the airbag system with no compromise on the range of motion.
Part Number: BDS1628H

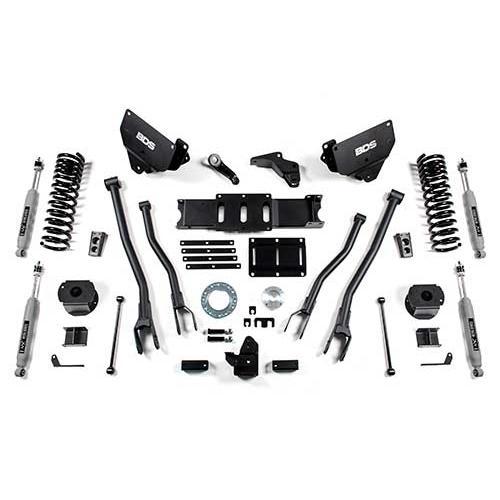

Features
-

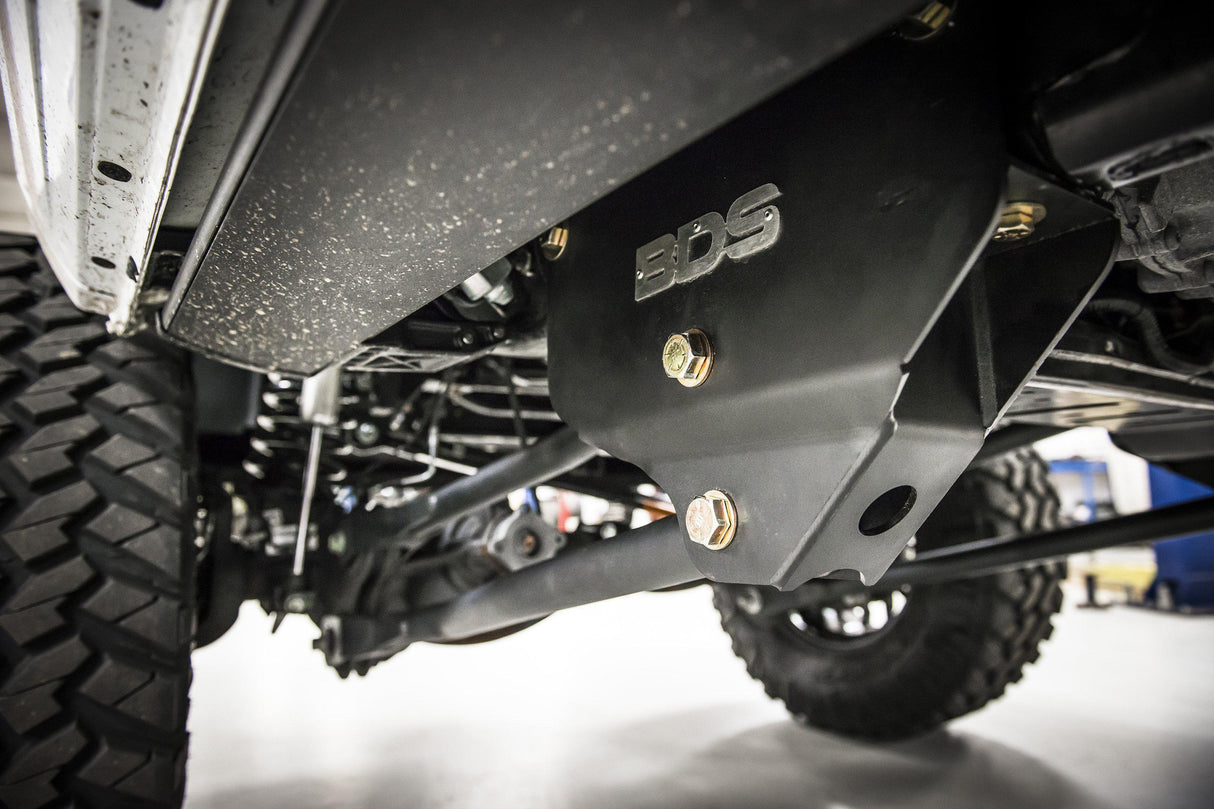

1/4" thick steel 4-Link Brackets create an extremely sturdy mount for new arms
- 2" OD x 3/16" wall DOM tubing Upper & Lower control arms
- You aren't required to remove the factory radius arm bracket which means this kit is reversible
- HD Track Bar Relocation Bracket
- Forged Drop Pitman Arm
- Sway Bar Relocation Bracket
- Brake line brackets
- 6-Bolt Indexing ring kit

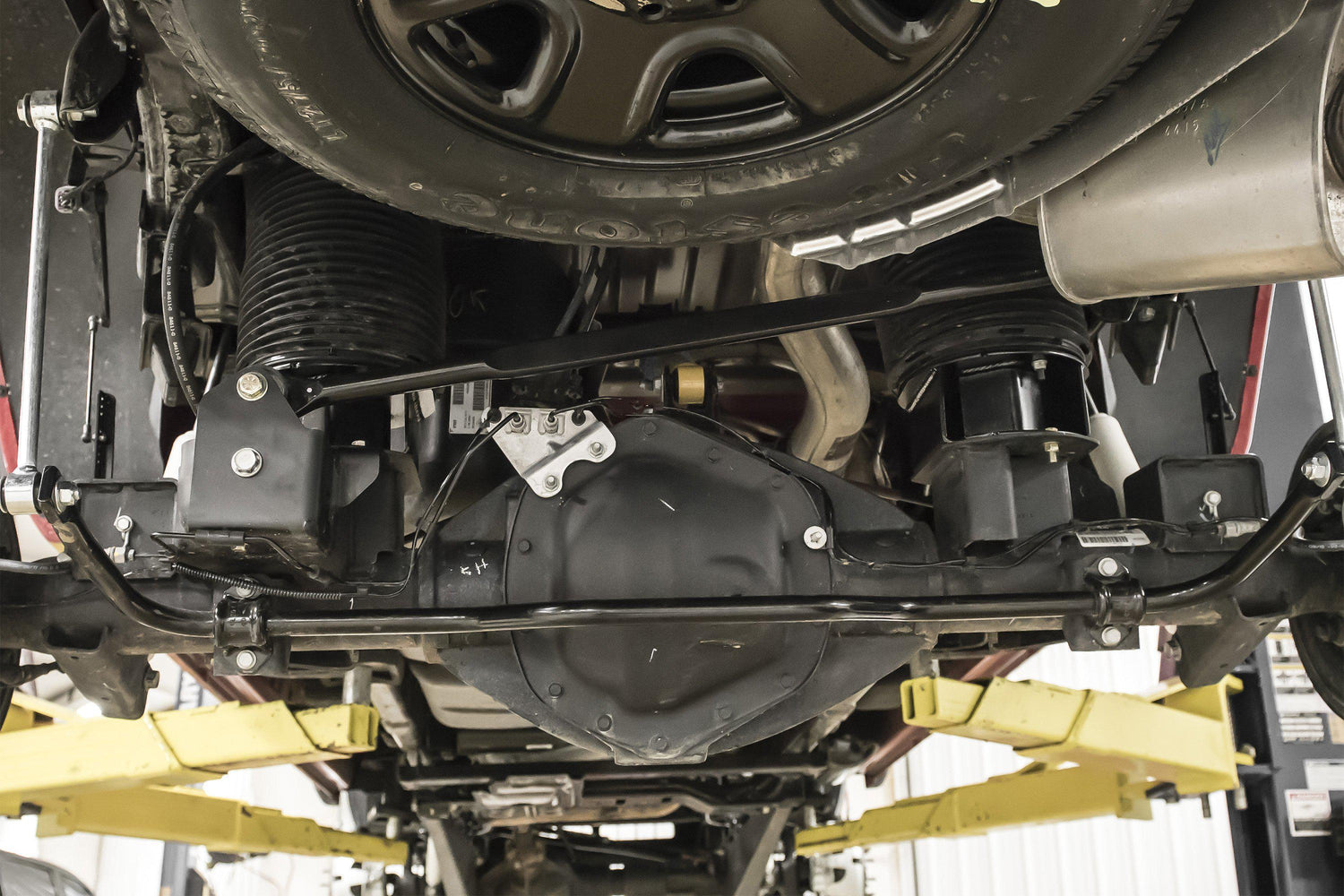

- 1/4" steel, 5" tall gusseted airbag spacers
- OD Polyurethane bushings isolate road vibrations
- ProRide 6" coil springs
- Laser cut transmission cross-member & adjustable transmission mounting plate to increase clearance
-
NX² series shocks
Tire & Wheel Combinations:
- 37x13.50 w/ 17", 18", 20"x9 and 5.625"
- 37x12.50 w/ 17", 18", 20"x9 and 4.5"
Notes
- Will NOT fit rear coil-spring equipped models
- Fits Diesel Models Only
- The indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicles could have 8 bolt transfer cases (w/Heavy-duty Aisin 6 speed transmissions), order 122813
- Will not fit RAM 2500 Powerwagon models
- Will not fit Cab and Chassis models

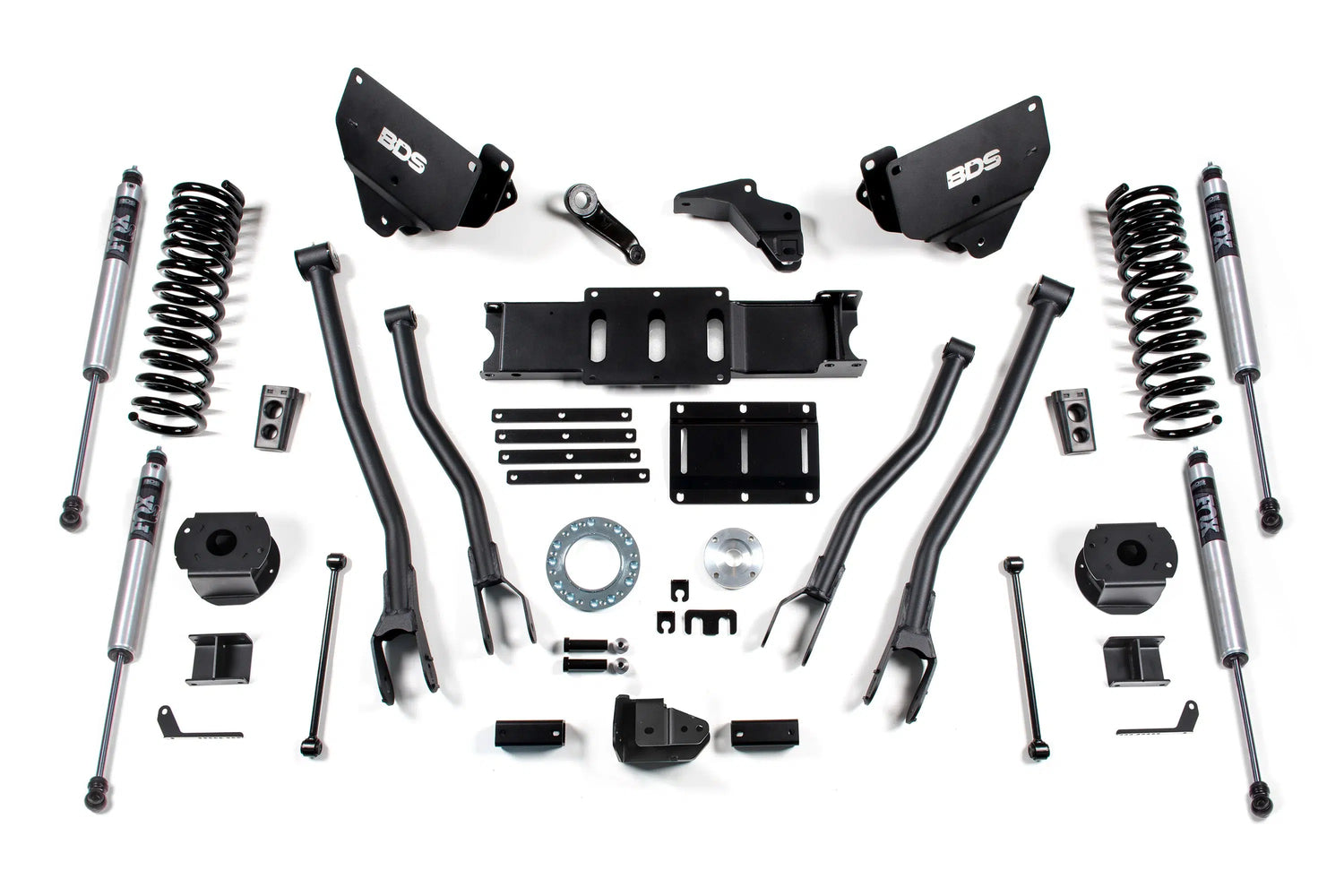

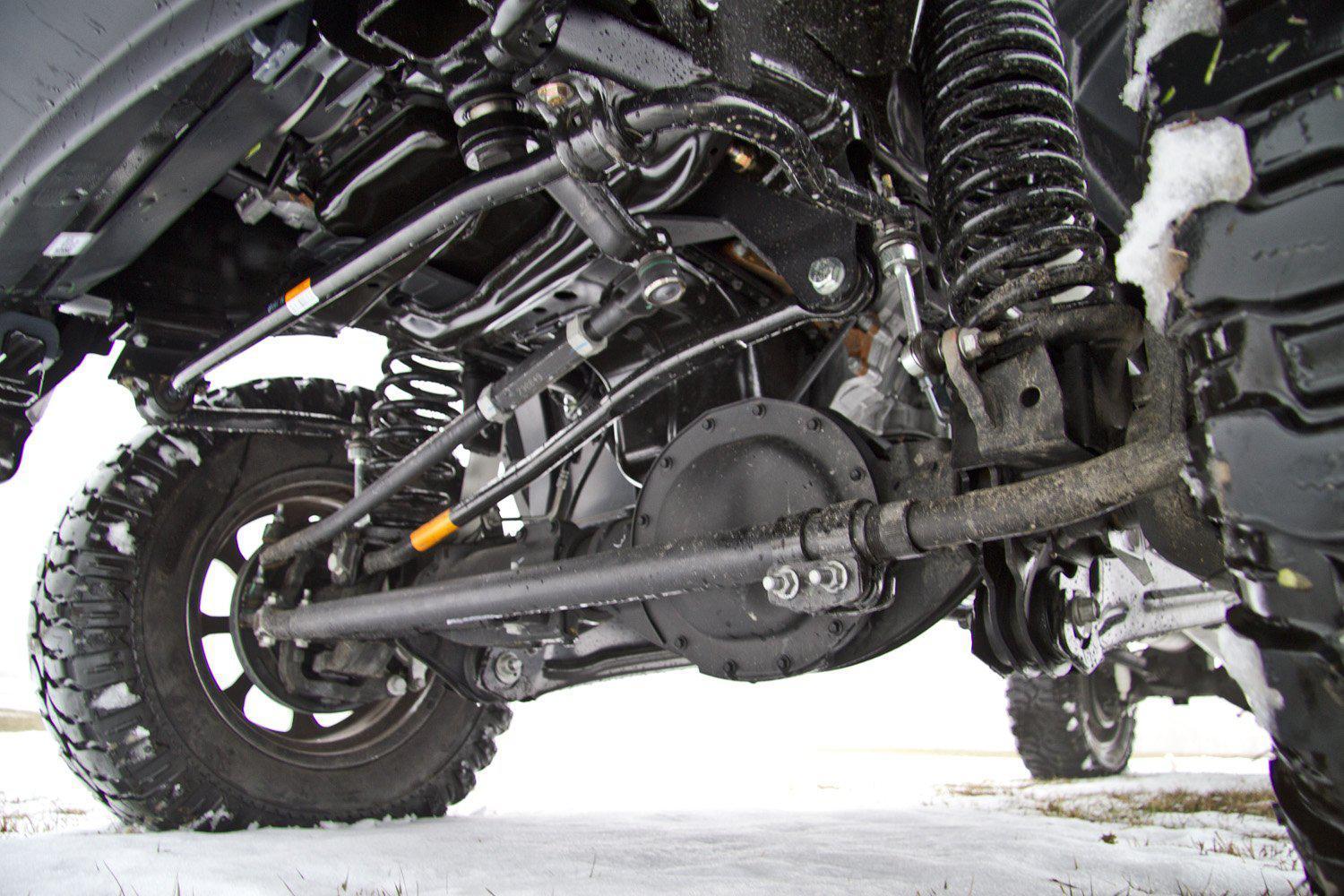

- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation
