2014-2018 Cummins 2500 8" 4-Link Lift Kit (BDS1626H)

BDS

Part Number: BDS1626H
Sale price$5,616.50 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type Lift
2014-2018 Dodge / Ram 2500 w/ 6.7L Cummins & 4x4 w/ Rear Coil Springs 8"

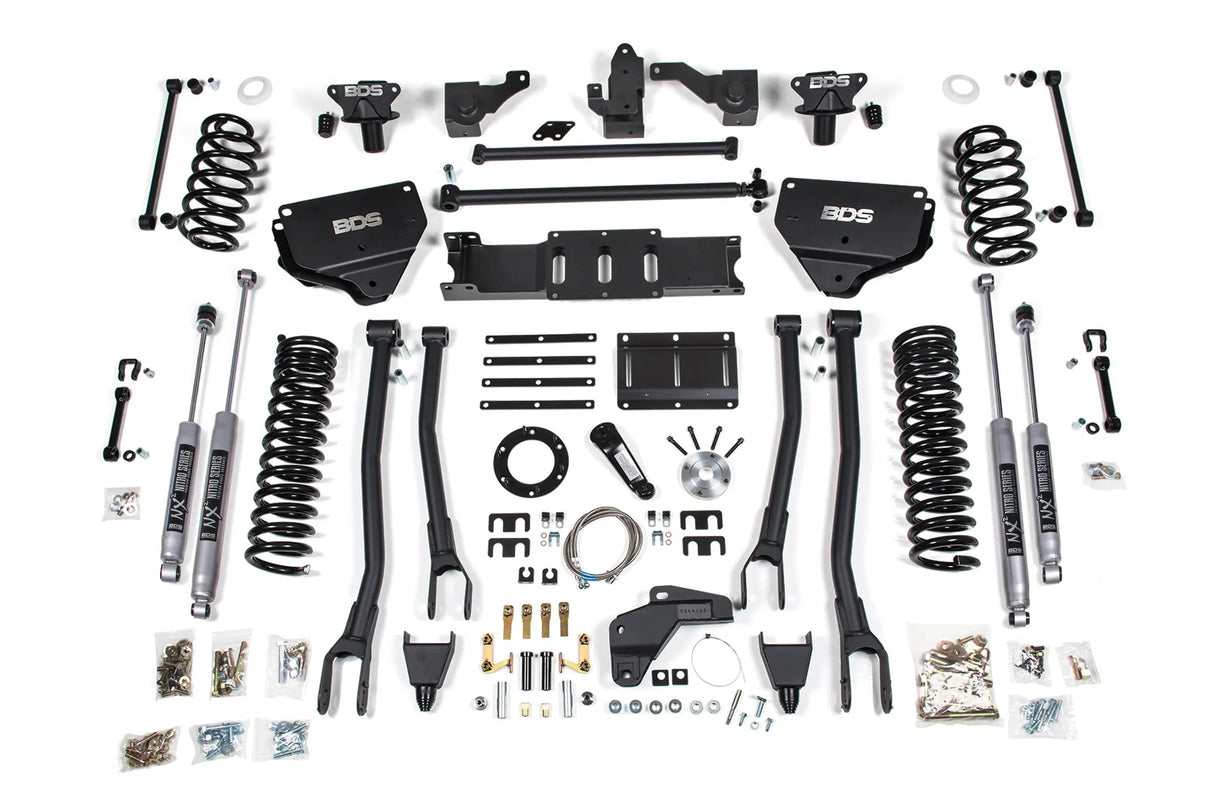

BDS Suspension expands its lineup of suspension systems for the 2014-2018 Cummins with the 8" 4-Link Lift Kit designed to take your truck to the next level for improved performance, capability over any terrain, comfort, and curb appeal. Paired with NX2 Series shocks to enhance performance while allowing clearance for up to 40" tires.

Part Number: BDS1626H

Features
  • Allows for the installation of up to 40" tires
  • 1/4" Steel 4-Link Bracket design improves stability, wheel travel, and handling across all terrains.
  • Large polyurethane bushings help isolate road vibrations and allow for extra tire clearance
  •  Upper and Lower control arms are built from 2" OD x 3/16" wall DOM tubing
  • Extended rear sway bar links
  • Forged Drop Pitman Arm
  • 2.5" OD polyurethane bushings
  • Braided stainless steel kevlar-lined extended front brake lines
  • Extended front bump stops
  • HD Rear Track Bar / Relocation kit
  • Indexing ring kit for 6 Bolt Transmissions
  • Upper and lower coil seats
  • Dual-rate ProRide 8" coil springs
  • Laser-cut transmission cross-member
  • Adjustable transmission mounting plate to increase front driveline clearance
  • Outboard coil spring relocates the position outward which provides increased stability without compromising ride quality
  • NX² series gas shocks.

Tire & Wheel Combinations:

  • 40 x 13.50 w/ 17 x 9 and 4.5" - 5.5"
  • 40 x 13.50 w/ 20 x 9 and 4.5" - 5.5"
Notes
  • Not for use with factory rear airbag suspensions
  • Kits come standard with a 6-Bolt indexing ring kit. If equipped with heavy-duty 8-bolt t-case order 122813 in place of 122623
  • Carrier bearing drop kit will be required for 2-piece rear driveshaft #122405
  • Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • 40x13.50 tires may require some trimming, and depending on wheel width and backspacing may require spacing the front bumper forward and inner fender trimming.
  • Will not fit Cab and Chassis models

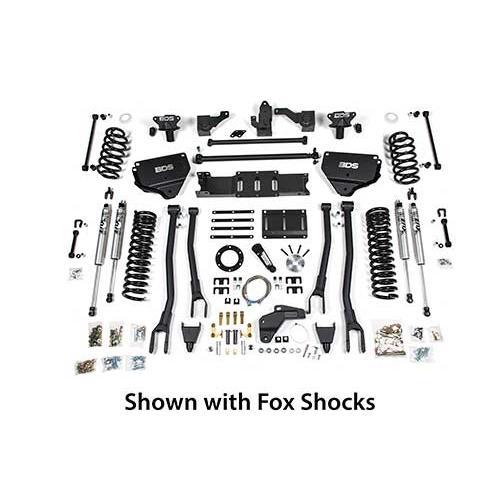

  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
