2014-2018 Cummins 2500 4" 4-Link Lift Kit - Rear Coil Springs (BDS1602H)-Lift Kit-BDS-BDS1602H-Dirty Diesel Customs

2014-2018 Cummins 2500 4" 4-Link Lift Kit - Rear Coil Springs (BDS1602H)

BDS

Part Number: BDS1602H
Sale price$3,548.94 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type Lift
2014-2018 Dodge / Ram 2500 w/ 6.7L Cummins & 4x4 w/ Rear Coil Springs 4"



This full 4 link conversion 4" lift kit completely revamps your Cummins to handle better through it's full suspension travel and gives you greater durability to keep you on the road with increased stability, wheel travel, and improved handling across all terrains.

Part Number: BDS1602H

Features
  • Frame Brackets locate off of the factory radius arm brackets which means that there is no need to remove the factory bracket
  • New control arm positions at the frame create improved suspension geometry & reduced caster
  •  2.5" progressive rate coil springs
  • Large diameter, heavy-wall tubular control arms are formed for tire clearance when turning
  • 2.5" ProRide Coil Springs
  • Axle-mounted track bar relocation bracket repositions the rear track bar & centers the axle
  • Extended sway bar links keep the rear sway bar at the optimum operating angle
  • Allows for the installation of up to 37" tires

Tire & Wheel Combinations:

  • 37x12.50 w/ 17", 18", 20"x9 and 5.625"
  • 35x12.50 w/ 17", 18", 20"x9 and 4.5"
Notes
  • Not for use with factory rear airbag suspensions
  • Fits Diesel Models Only
  • Will not fit RAM 2500 Powerwagon models.
  • Will not fit Cab and Chassis models

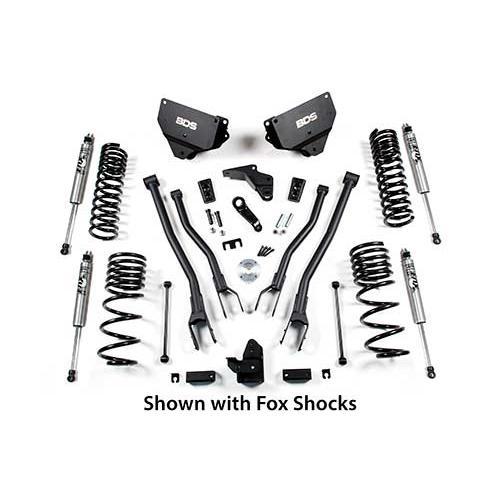

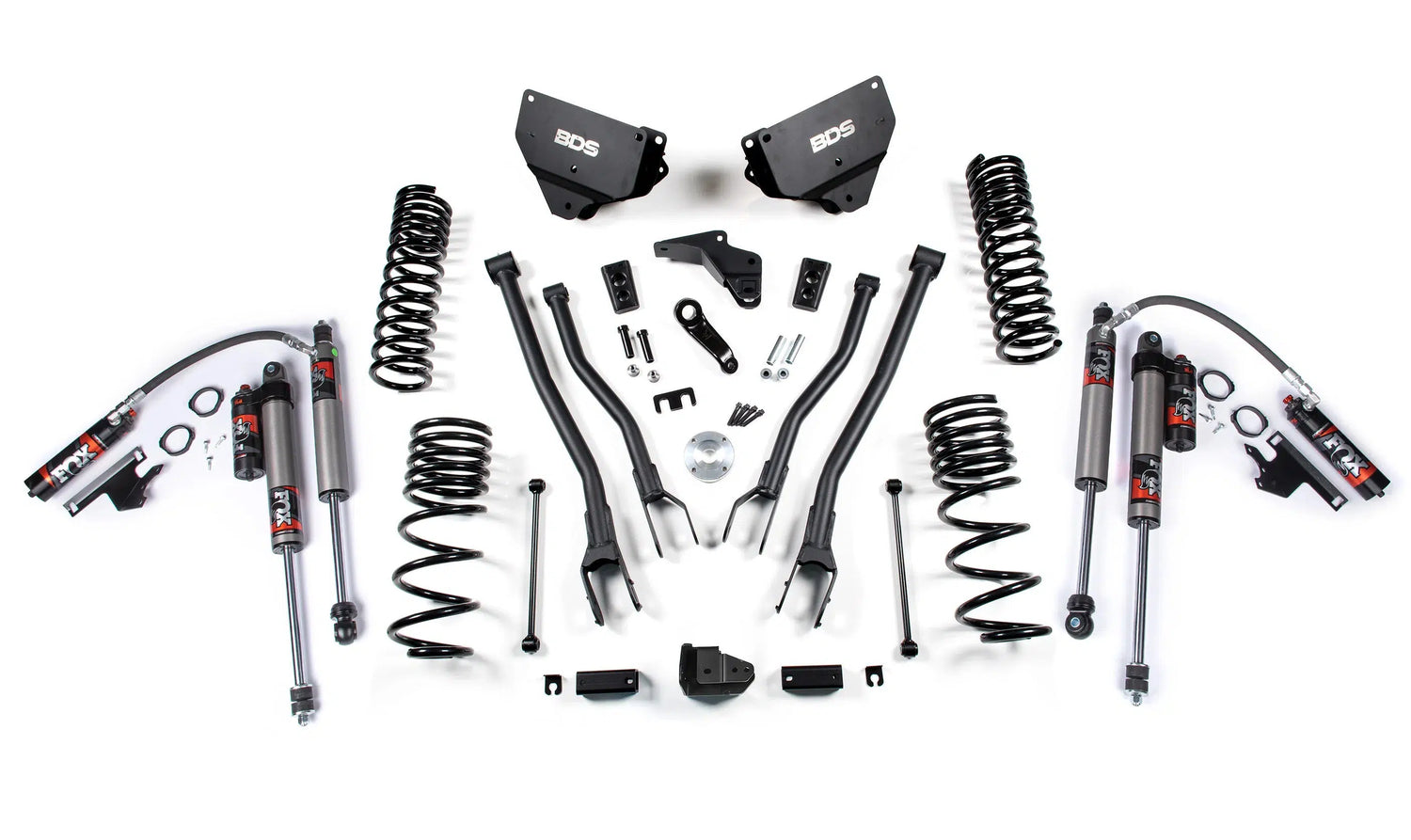

  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
Installation
