Description
Fits
| Year |
Make |
Model |
Type |
Lift |
| 2014-2018 |
Dodge / Ram |
2500 Truck |
w/ Rear Air-Ride |
4" |
Rear air suspension Dodge rams have sometimes been difficult to get aftermarket parts for, which BDS set out to solve! This full 4 link conversion 4" lift kit completely revamps your Cummins to handle better through it's full suspension travel and gives you greater durability to keep you on the road with increased stability, wheel travel, and improved handling across all terrains.
Part Number: BDS1632H

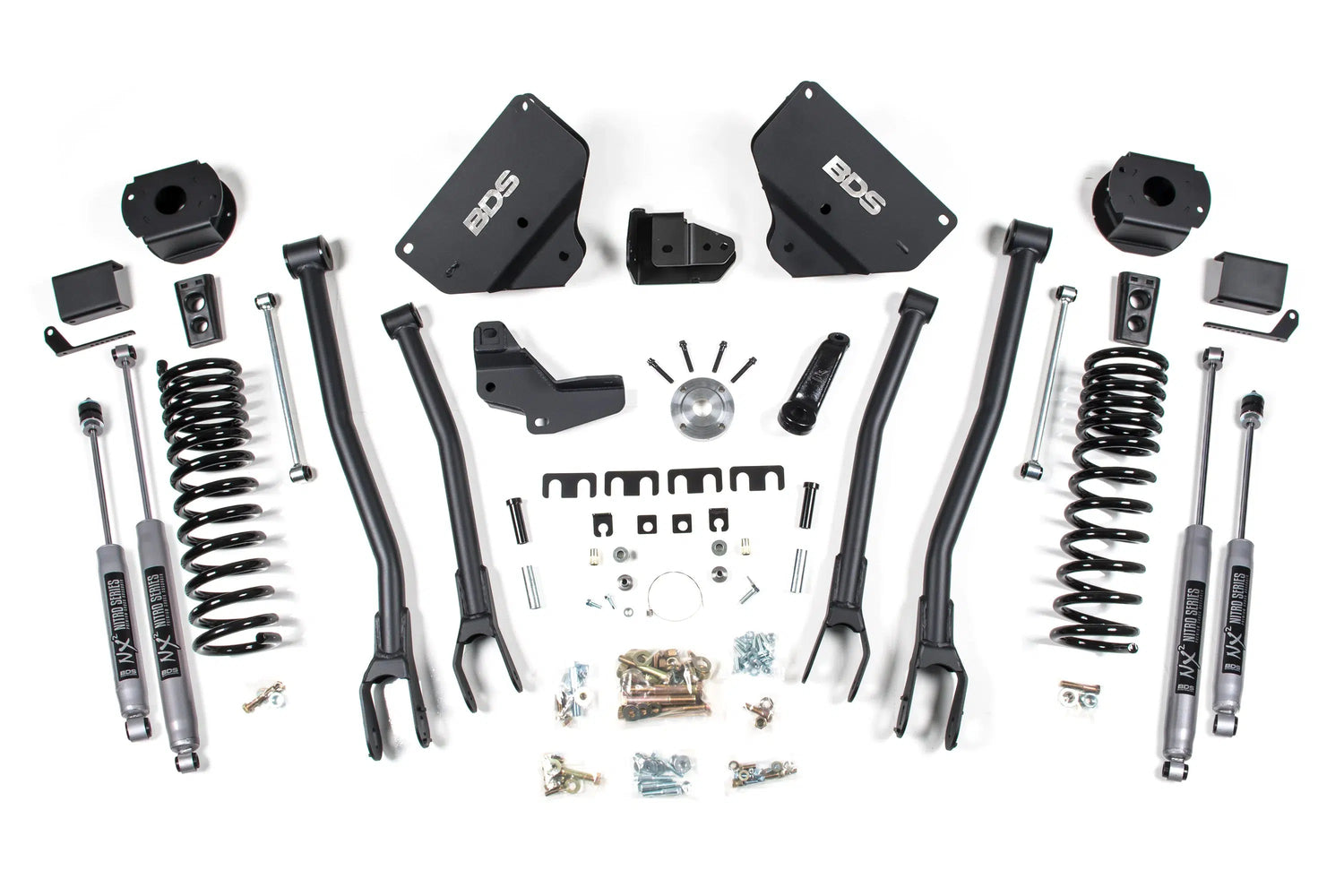

Features
- Frame-mounted brackets precision welded
- ProRide 4" coil springs
- 1/4" steel, 3.5" tall gusseted airbag spacers for the rear
- HD track bar relocation bracket
- Sway bar relocation brackets & extended Sway bar links
- Bump Stop Extension
- Air ride leveling sensor brackets to position the ride height sensors at the stock angle
- NX2 Series Shocks
- Forged Drop Pitman Arm
- 1/4" thick steel 4-Link Brackets
- 2" OD x 3/16" wall DOM tubing for Upper & Lower Control Arms
- 2.5" OD polyurethane bushings
- Clear's 37's
- Full 4 link conversion setup
- Rear Air Ride Compatible
Tire & Wheel Combinations:
- 37x12.50 w/ 17", 18", 20"x9 and 5.625"
- 35x12.50 w/ 17", 18", 20"x9 and 4.5"
Notes
- Not for use with factory rear coil spring suspensions
- Fits Diesel Models Only
- Will not fit RAM 2500 Powerwagon models
- Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit # 122405
- Will not fit Cab and Chassis models

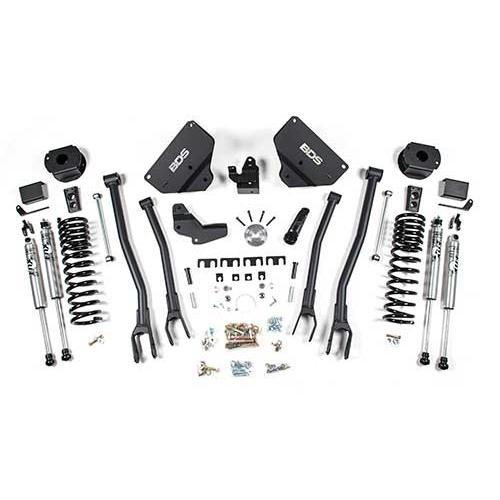

- Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
