2014-2018 GMC 1500 9" Big Lift Kit w/ Aluminum or Stamped Steel Suspension (44-3490)

Fits

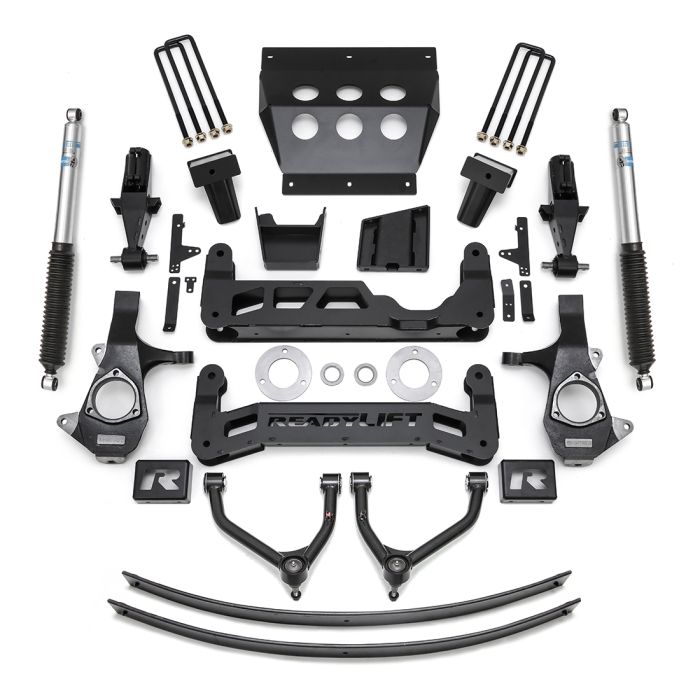

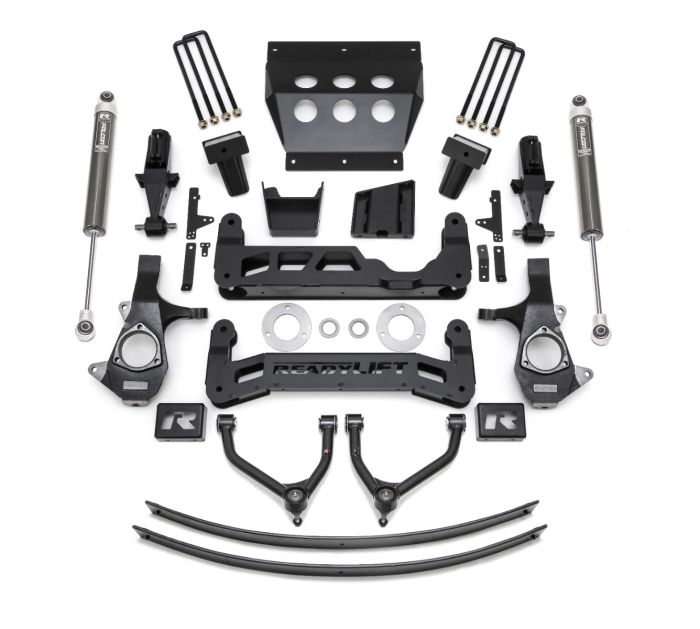

The ultimate big lift kit for your 1500, ReadyLift has designed this kit specifically for factory stamped steel or aluminum front suspension. Featuring lower strut extensions, TCT bushings, and tubular UCAs provide you with superior strength, articulation, and precise pivot points that will never add stress to your factory struts or compromise ride quality. The 'add-a-leaf' and rear block with bump stop landings center your axle to retain proper pinion angle, effectively increasing ground clearance, allowing you to install up to 37" tires!

Part Number: 44-3490/ 44-34900

• TCT lower bushings to provide a precise pivot point that maintains the factory ride
•  Boxed steel front/rear cross members and full-width front skid plate are constructed of thick 3/16" plate steel while also allowing for the use of the OE front plastic gravel guard
• 1/4" boxed plate steel differential drop brackets feature a double gusset & boxed center rib to take the abuse of front differential torsional twisting
• 3/16" thick plate steel rear lift blocks
• Built-in bump stop landings and an offset pin design to properly center the axle & specific angles to the blocks to retain the proper pinion angle
• Bilstein or Falcon 1:1 shocks included

Tire Fitment:

• Fits up to a 37 tall off-road tire - requires a 9" wide wheel with -12 offset for no rub

• Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide. Only Front MagneRide compatible
• Can be used on trucks with factory Aluminum front suspension

• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT


• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here for installation instructions
